Cooler Bypass Valve: Removal
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the fasteners and the underbody shield.
-
NOTE: Be prepared to collect escaping fluid.

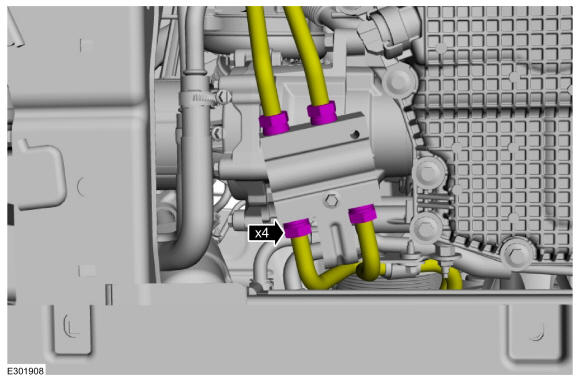

Completely loosen the transmission fluid cooler tube fittings.
Torque: 22 lb.ft (30 Nm)

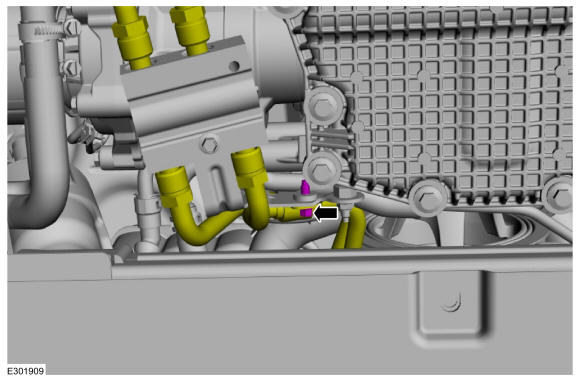

- Remove the transmission fluid cooler tube bracket bolt.
Torque: 89 lb.in (10 Nm)

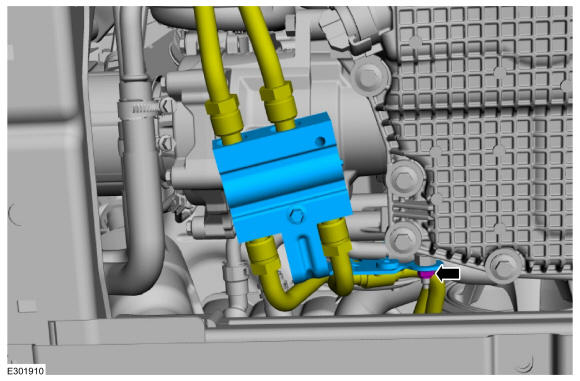

- Remove the nut and the cooler bypass valve.
Torque: 89 lb.in (10 Nm)
