Transmission Cooling - Component Location
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.

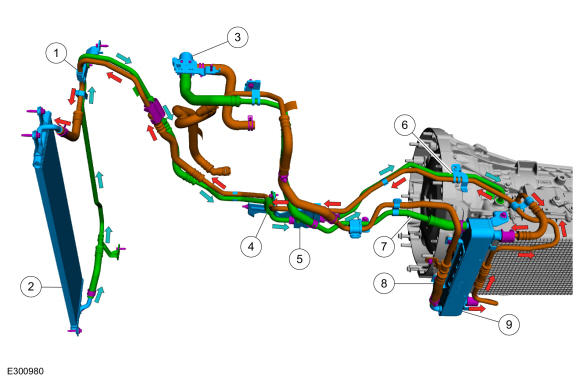

| Item | Description |
|---|---|
| 1 | Front transmission cooler tube assembly |
| 2 | Auxiliary transmission fluid cooler |
| 3 | Transmission fluid cooler coolant control valve |
| 4 | Intermediate transmission cooler tube assembly |
| 5 | Cooler bypass valve |
| 6 | Rear transmission fluid cooler tube assembly |
| 7 | Transmission fluid cooler coolant outlet tube |
| 8 | Transmission fluid cooler coolant inlet tube |
| 9 | Transmission fluid cooler |
