Selector Lever Cable Adjustment: Adjustment
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .

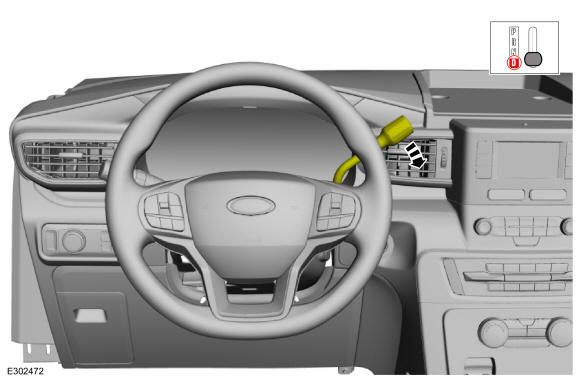

- Position the selector lever in D.
- Remove the bolts and the heat shield.

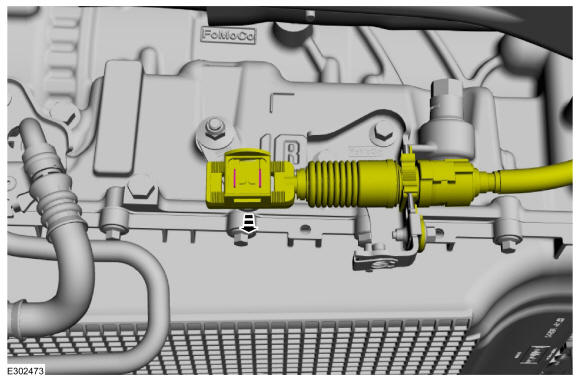

- Disconnect the selector lever cable from the transmission manual lever.
- Position the transmission manual lever in D

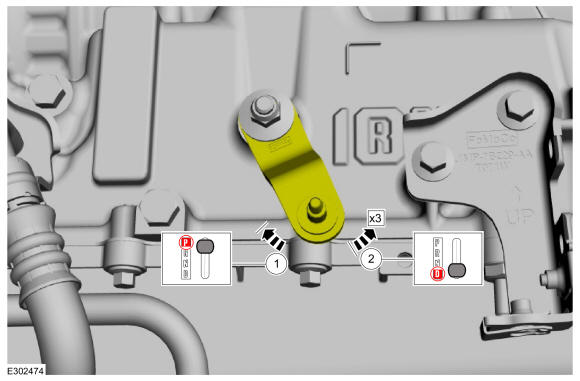

- Rotate the manual lever clockwise until it stops.
- Rotate the manual lever counterclockwise 3 detents.

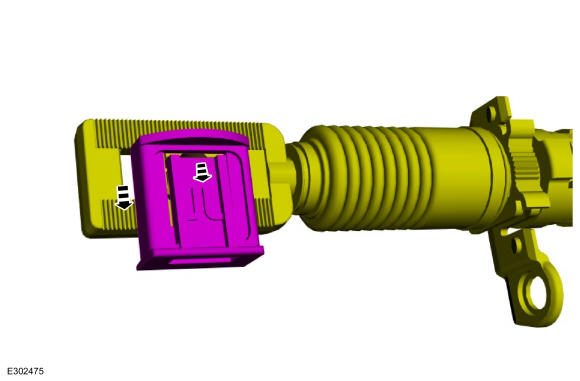

- Gently pry the center of the lock outward and slide the lock down to unlock the adjuster.

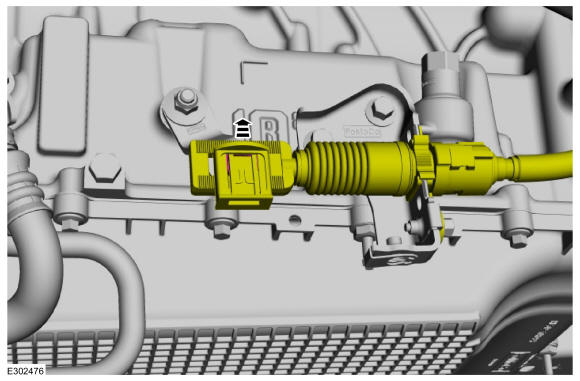

- Connect the selector lever cable to the transmission manual lever.

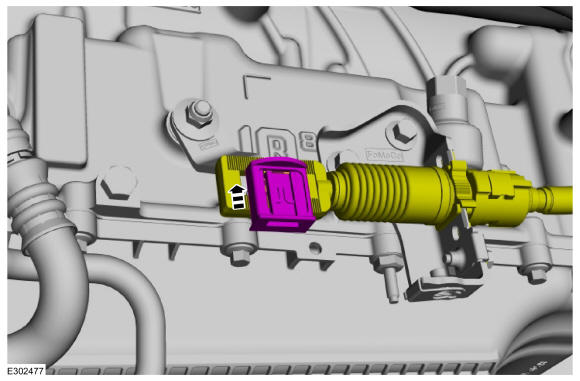

- Lock the selector lever cable adjuster.
- Verify the vehicle starts in P and N only and that the reverse lamps illuminate in R.
- Install the heat shield and the bolts.
Torque: 89 lb.in (10 Nm)
