Brake Shift Interlock Actuator Manual Override: Activation
WARNING: This page is about a different car, the 2021 Ford Police Interceptor Utility. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If it is necessary to use the brake shift interlock actuator override procedure to move the selector lever out of the PARK position, it is possible that a fuse has blown and the brake lights are not operational. Before driving the vehicle, verify the brake lights are working.
This vehicle is equipped with a brake shift interlock actuator feature that prevents the selector lever from being moved out of the PARK position when the ignition is in the ON position until the brake pedal is applied. If the selector lever cannot be moved out of the PARK position when the ignition is in the ON position and the brake pedal is applied:
- Apply the parking brake.
- Remove the steering column shrouds. Refer to: Steering Column Shrouds .
-
NOTE: To avoid a pinched finger, use a screwdriver to move the plunger.

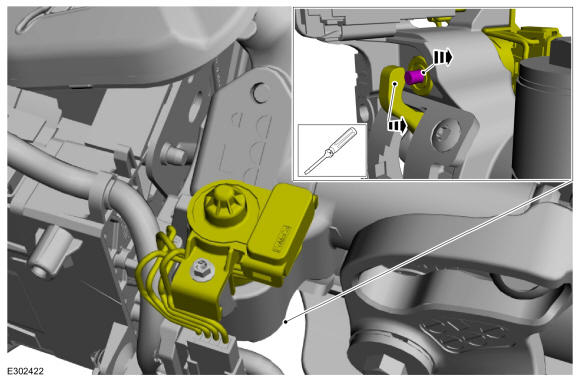

Move the brake shift interlock actuator spindle inward, apply the brake pedal and position the selector lever into N.
- Start the vehicle.
