Electronic Engine Controls - 3.3L TIVCT

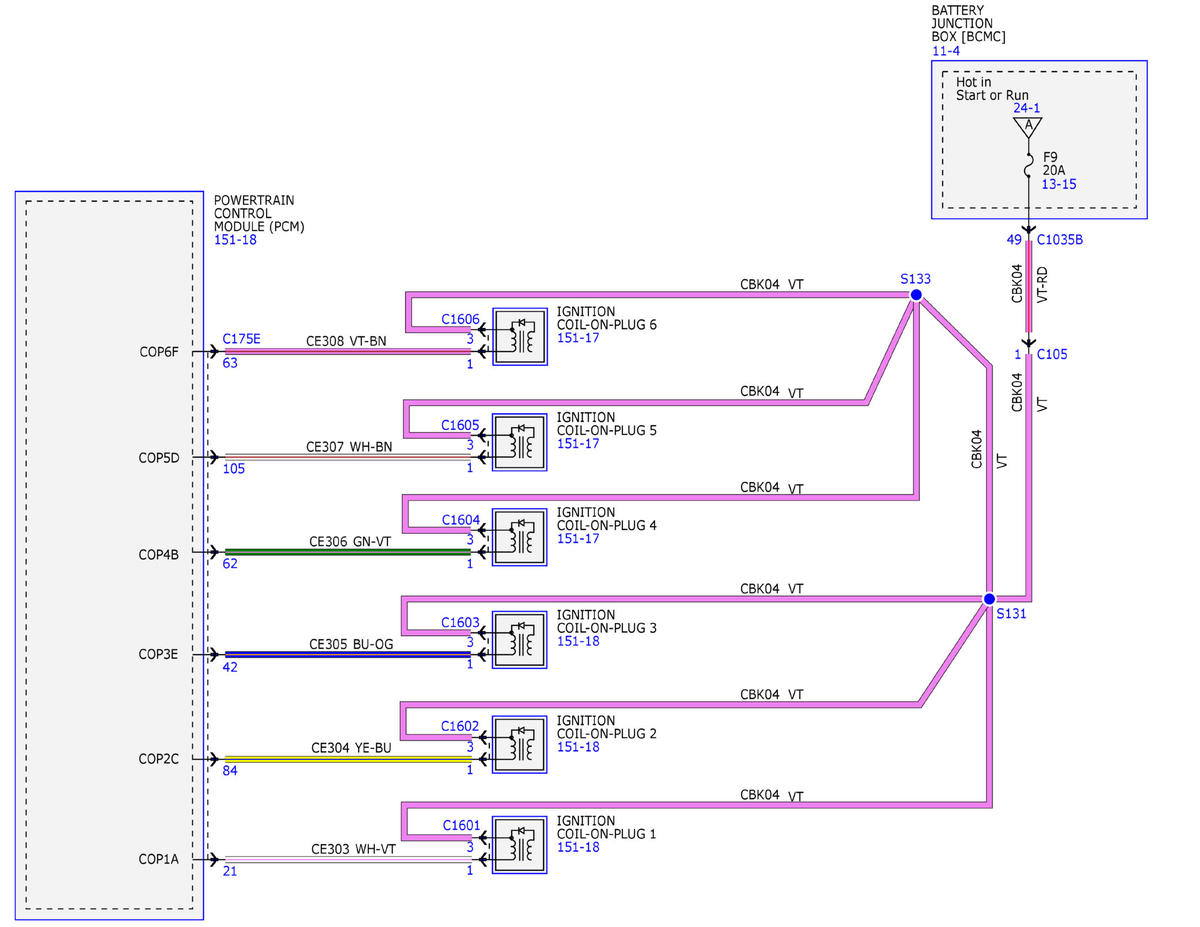

Fig 1: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (1 Of 21)

GFDWR94453

Courtesy of FORD MOTOR COMPANY

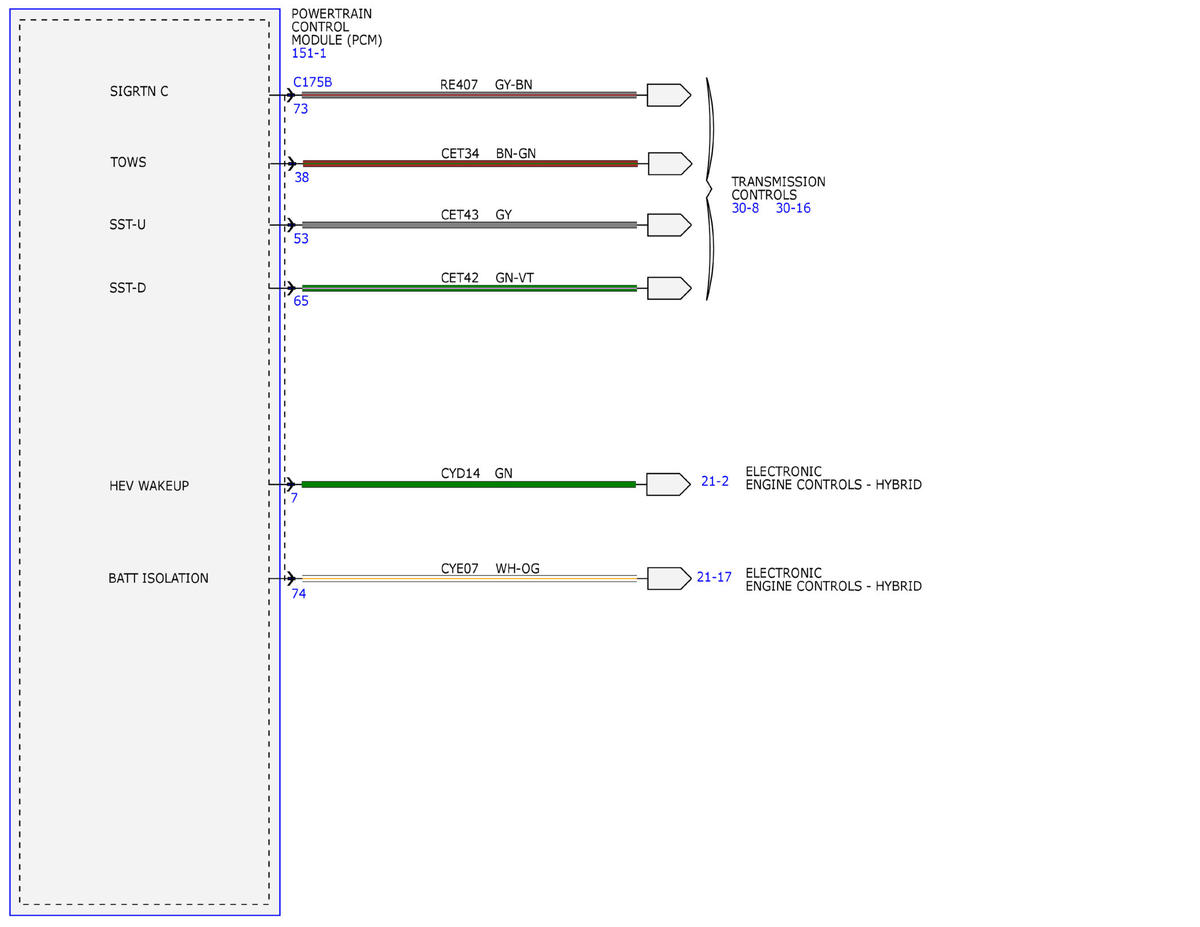

Fig 2: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (2 Of 21)

GFDWR94454

Courtesy of FORD MOTOR COMPANY

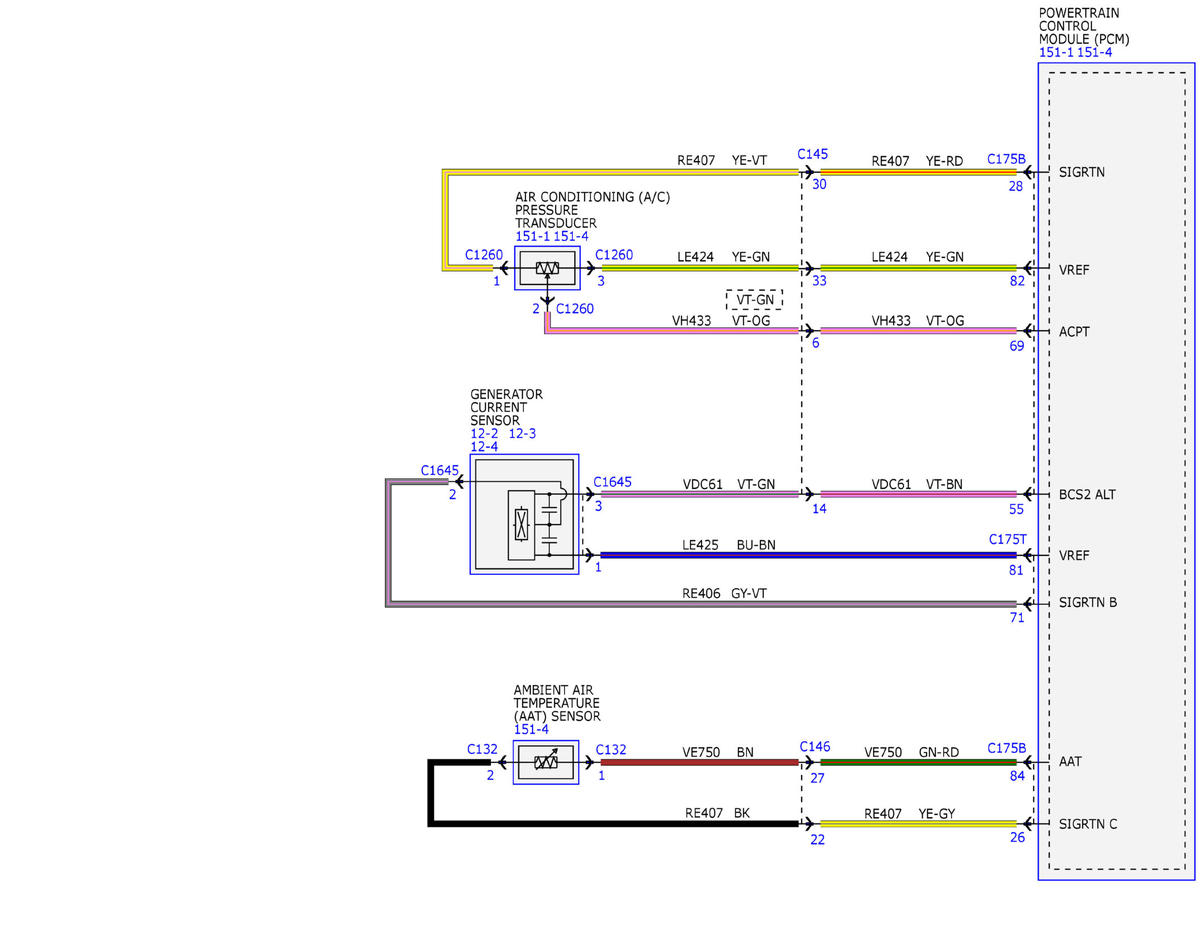

Fig 3: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (3 Of 21)

GFDWR94455

Courtesy of FORD MOTOR COMPANY

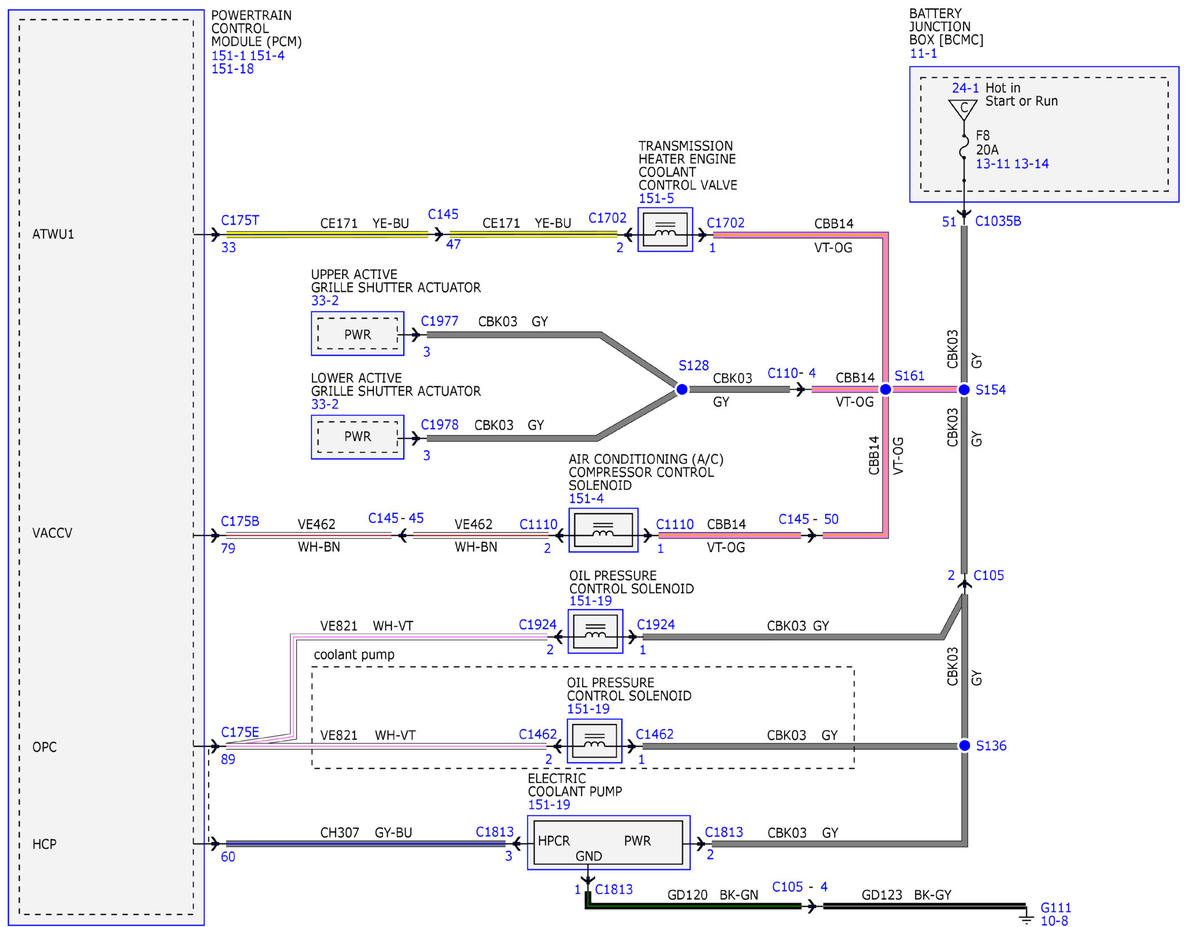

Fig 4: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (4 Of 21)

GFDWR94456

Courtesy of FORD MOTOR COMPANY

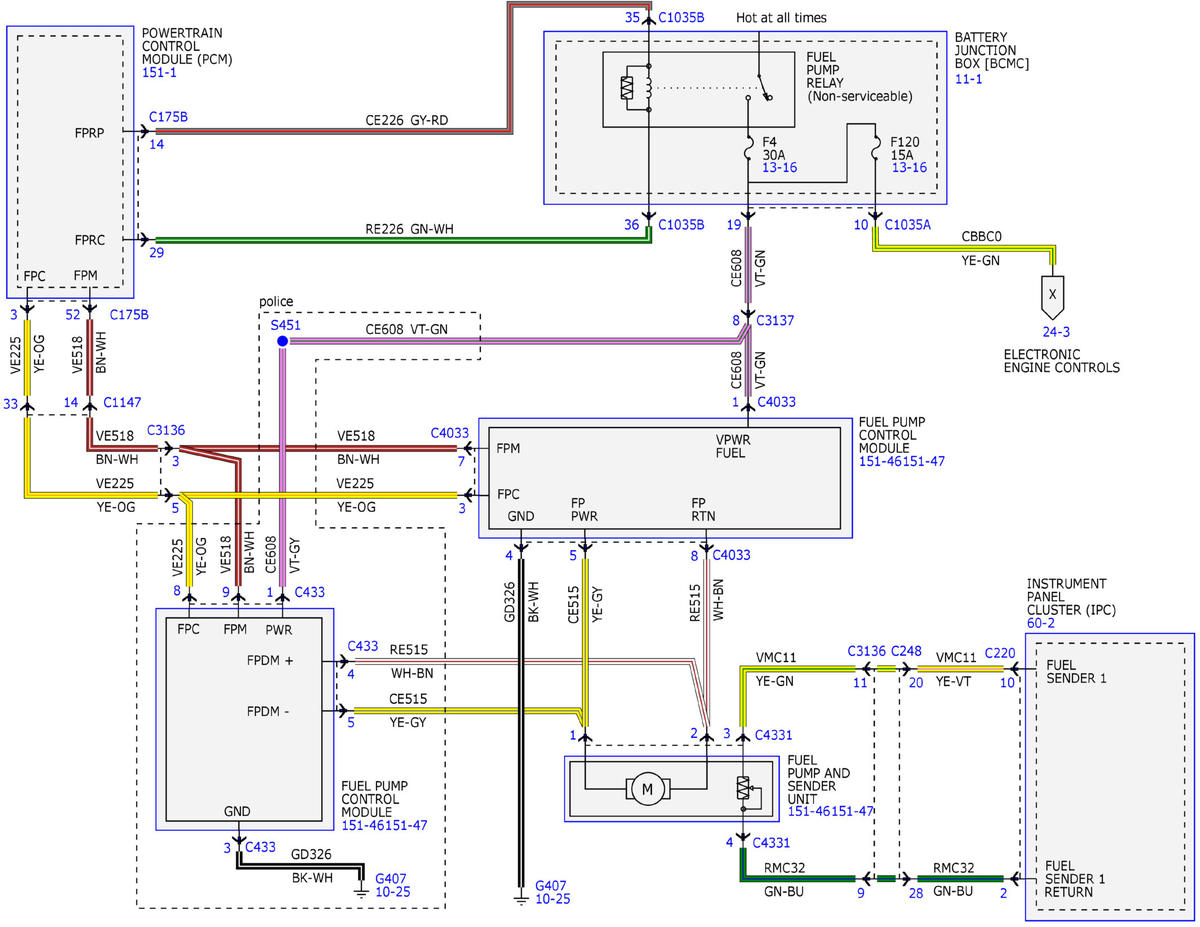

Fig 5: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (5 Of 21)

GFDWR94457

Courtesy of FORD MOTOR COMPANY

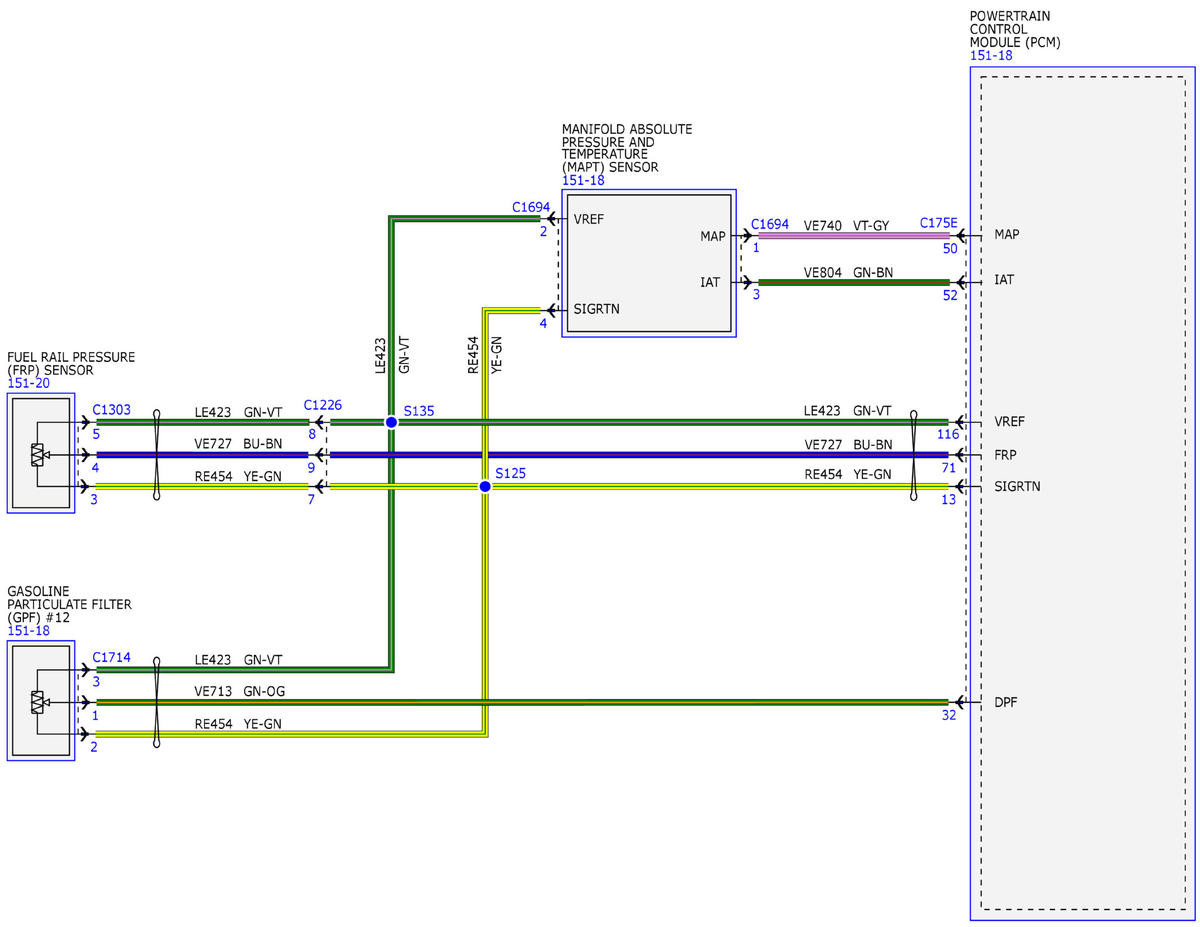

Fig 6: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (6 Of 21)

GFDWR94458

Courtesy of FORD MOTOR COMPANY

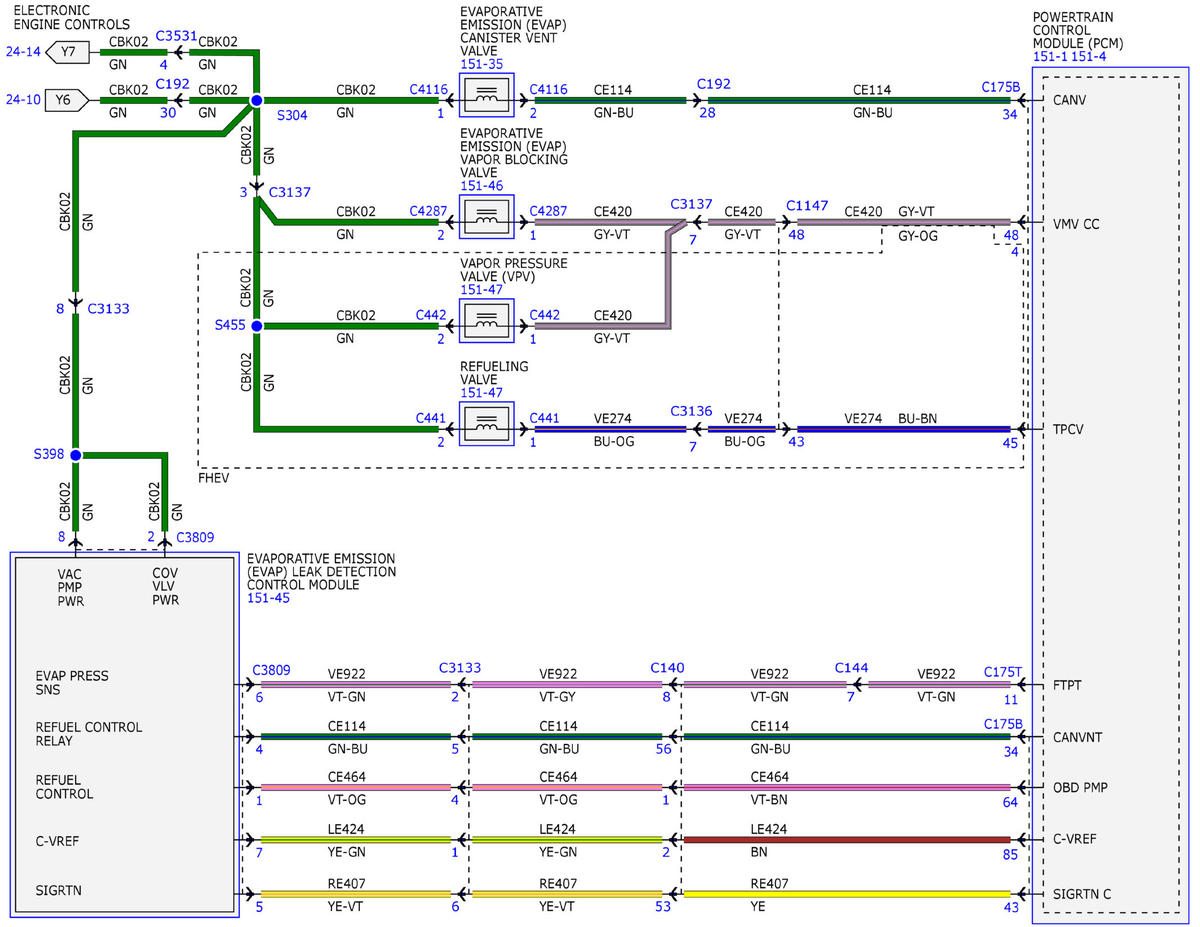

Fig 7: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (7 Of 21)

GFDWR94459

Courtesy of FORD MOTOR COMPANY

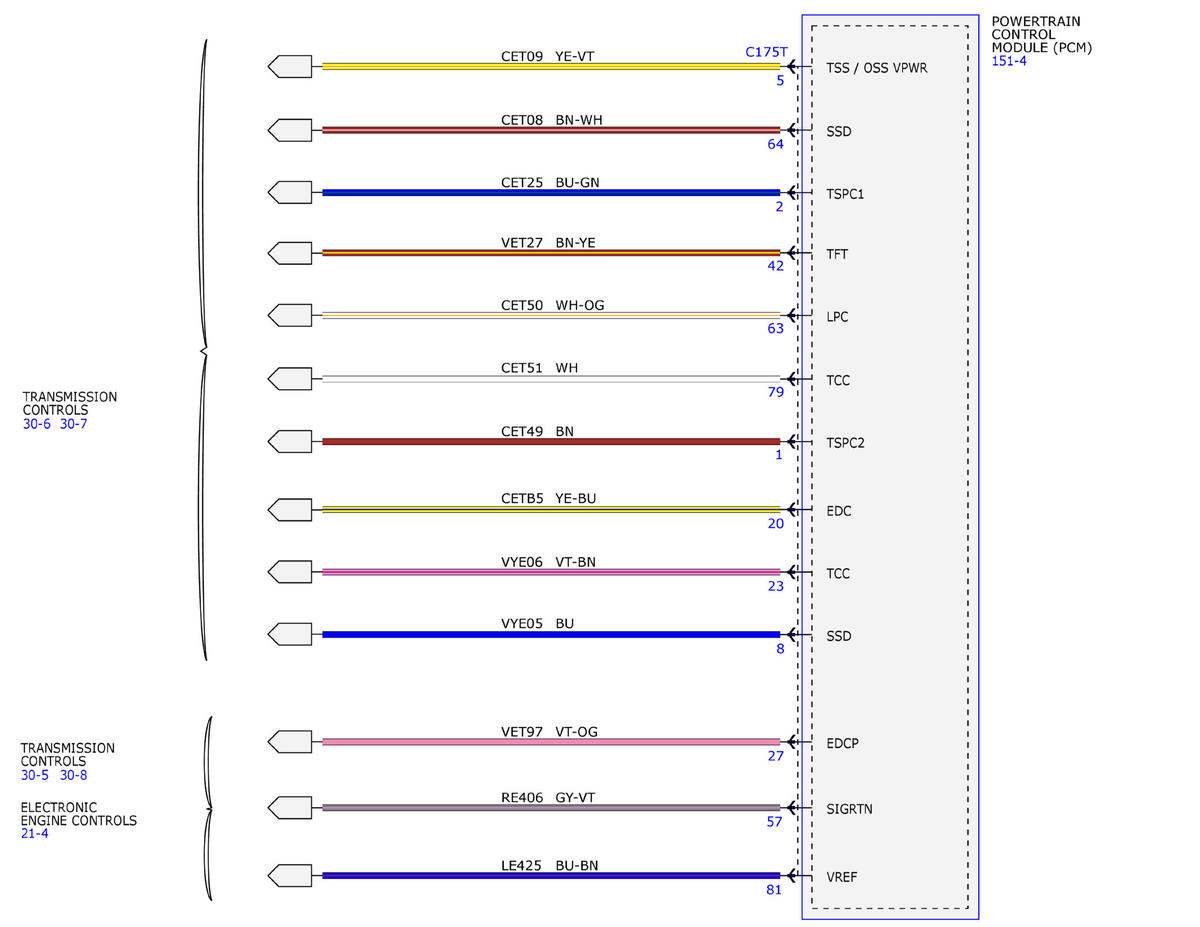

Fig 8: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (8 Of 21)

GFDWR94460

Courtesy of FORD MOTOR COMPANY

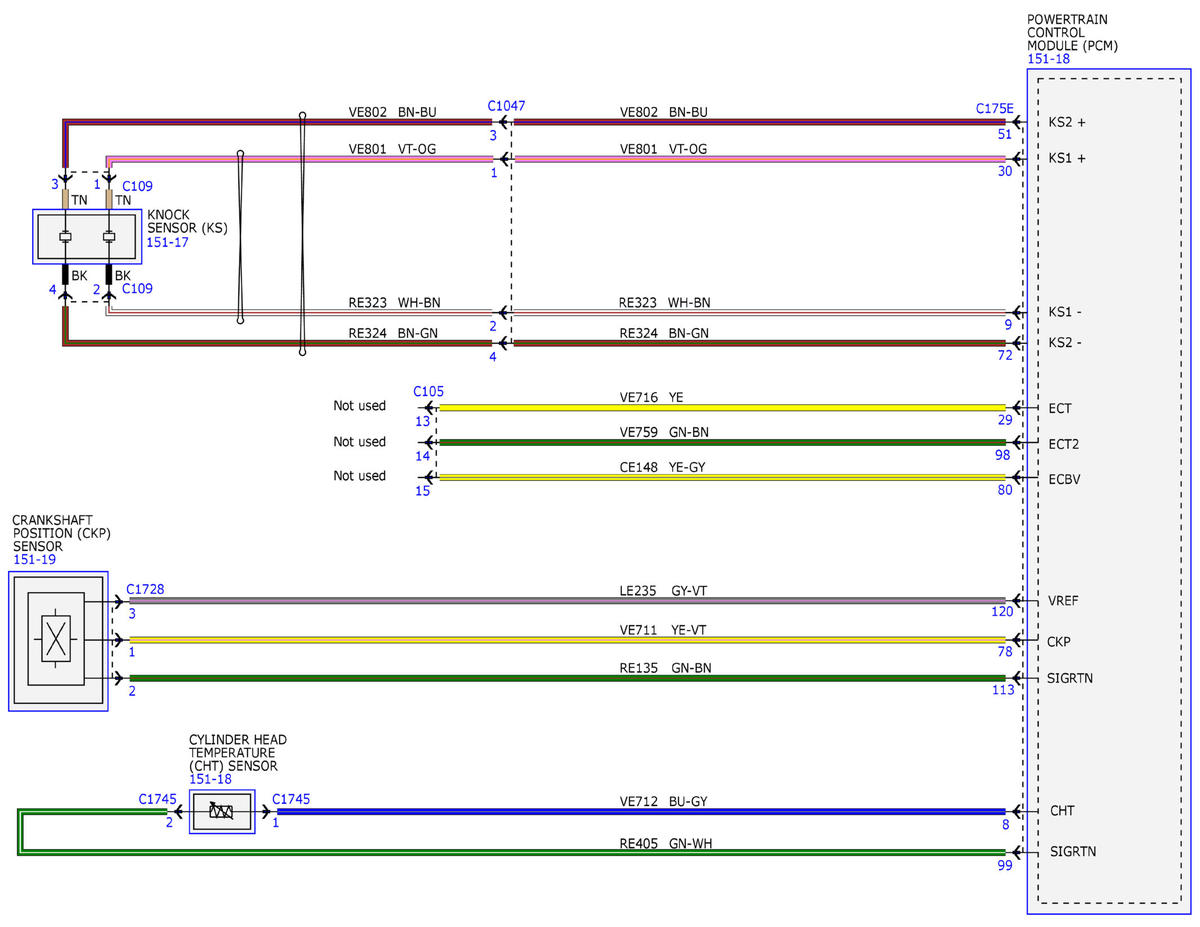

Fig 9: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (9 Of 21)

GFDWR94461

Courtesy of FORD MOTOR COMPANY

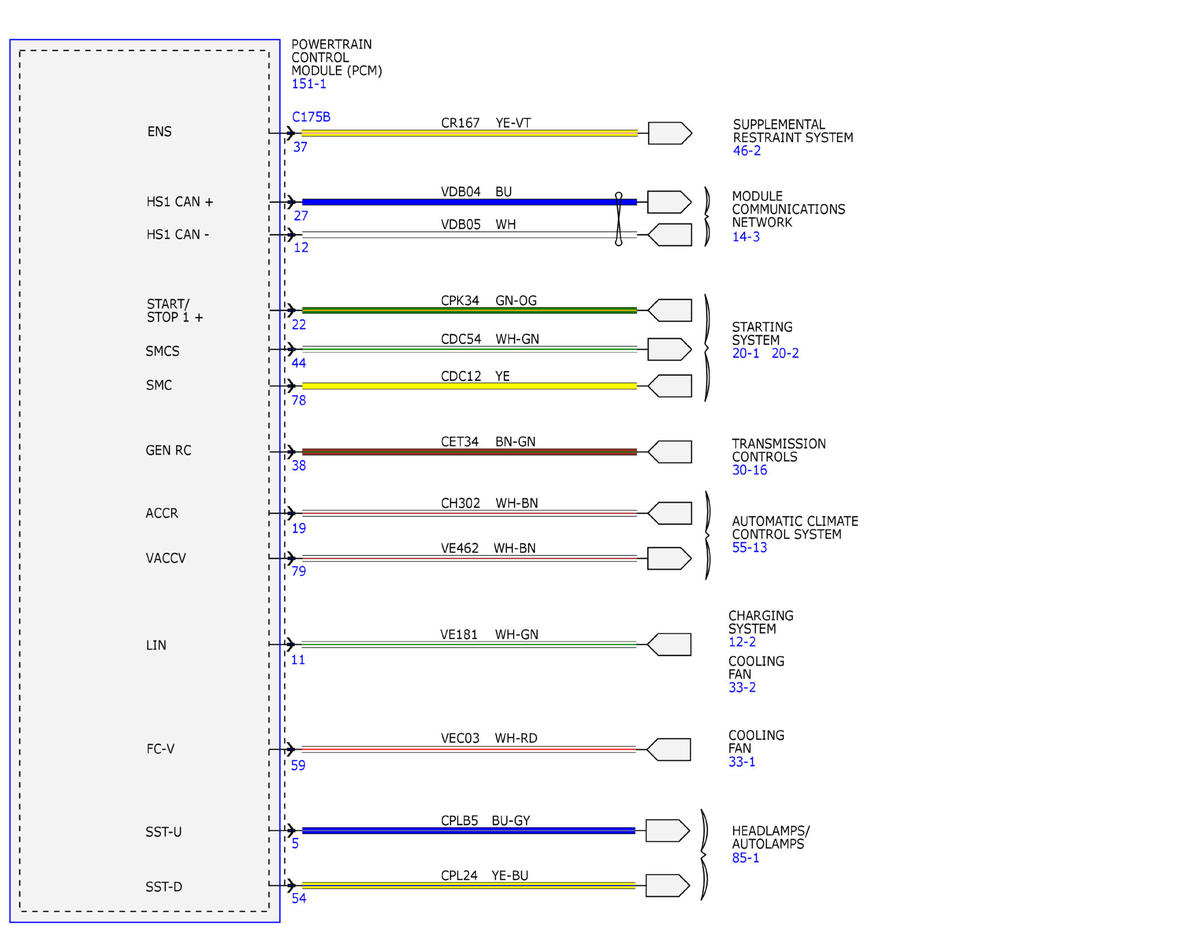

Fig 10: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (10 Of 21)

GFDWR94462

Courtesy of FORD MOTOR COMPANY

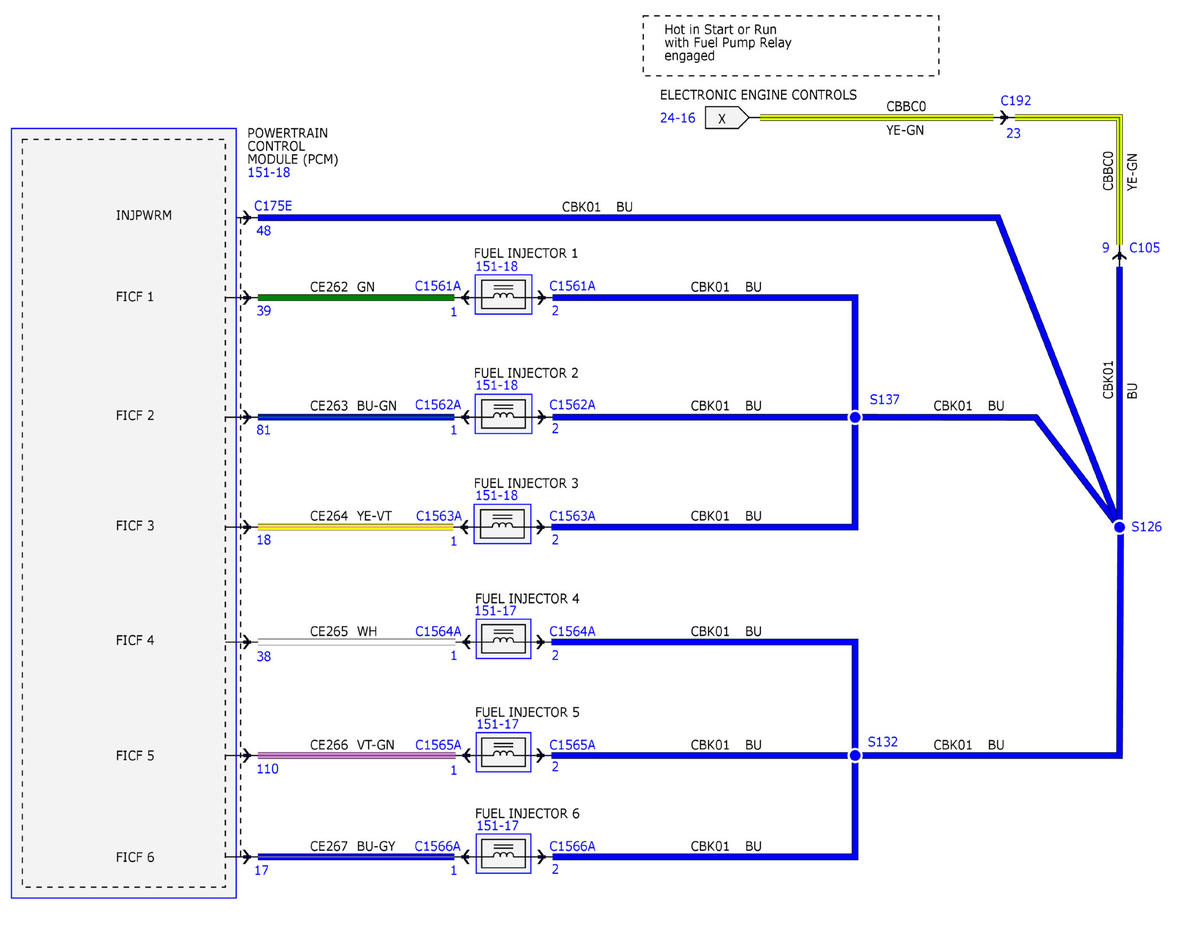

Fig 11: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (11 Of 21)

GFDWR94463

Courtesy of FORD MOTOR COMPANY

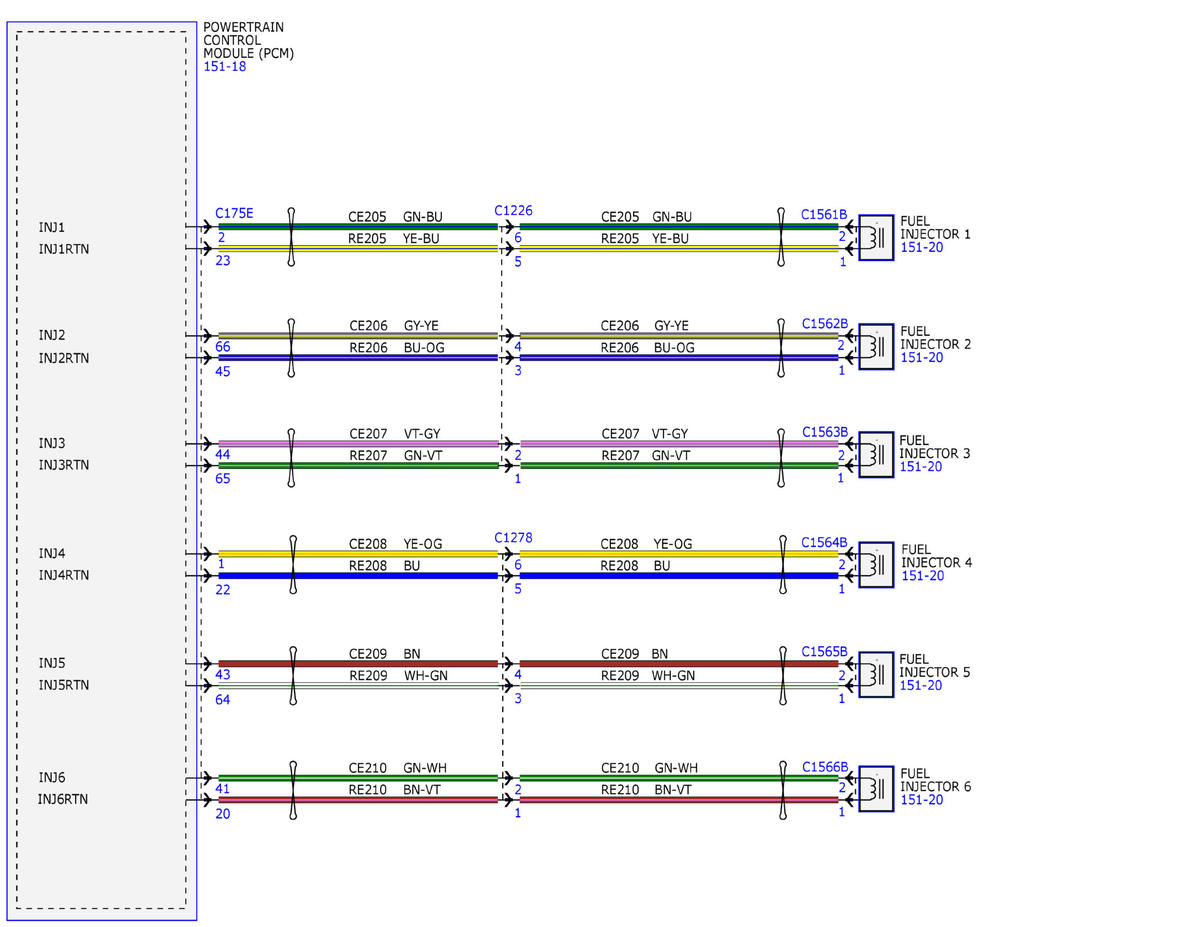

Fig 12: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (12 Of 21)

GFDWR94464

Courtesy of FORD MOTOR COMPANY

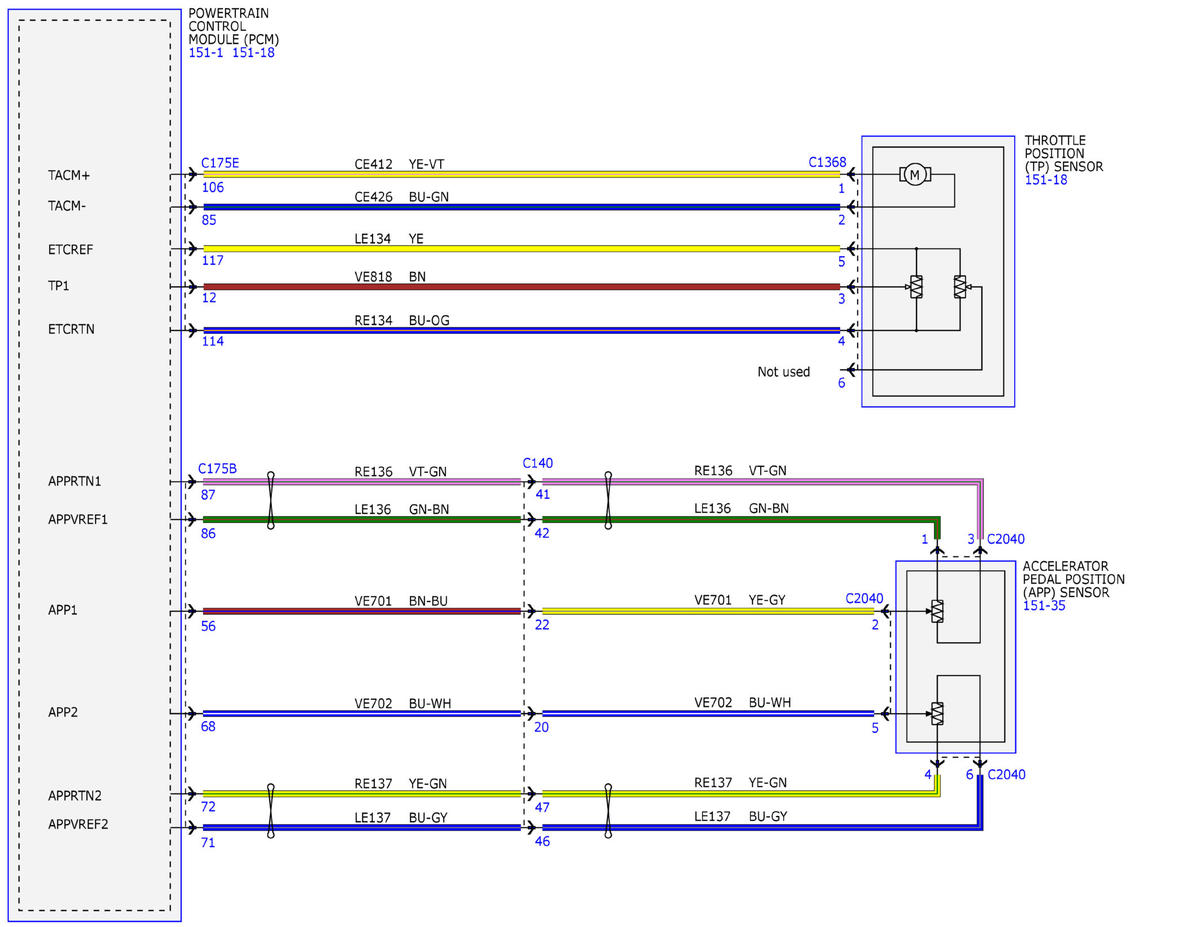

Fig 13: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (13 Of 21)

GFDWR94465

Courtesy of FORD MOTOR COMPANY

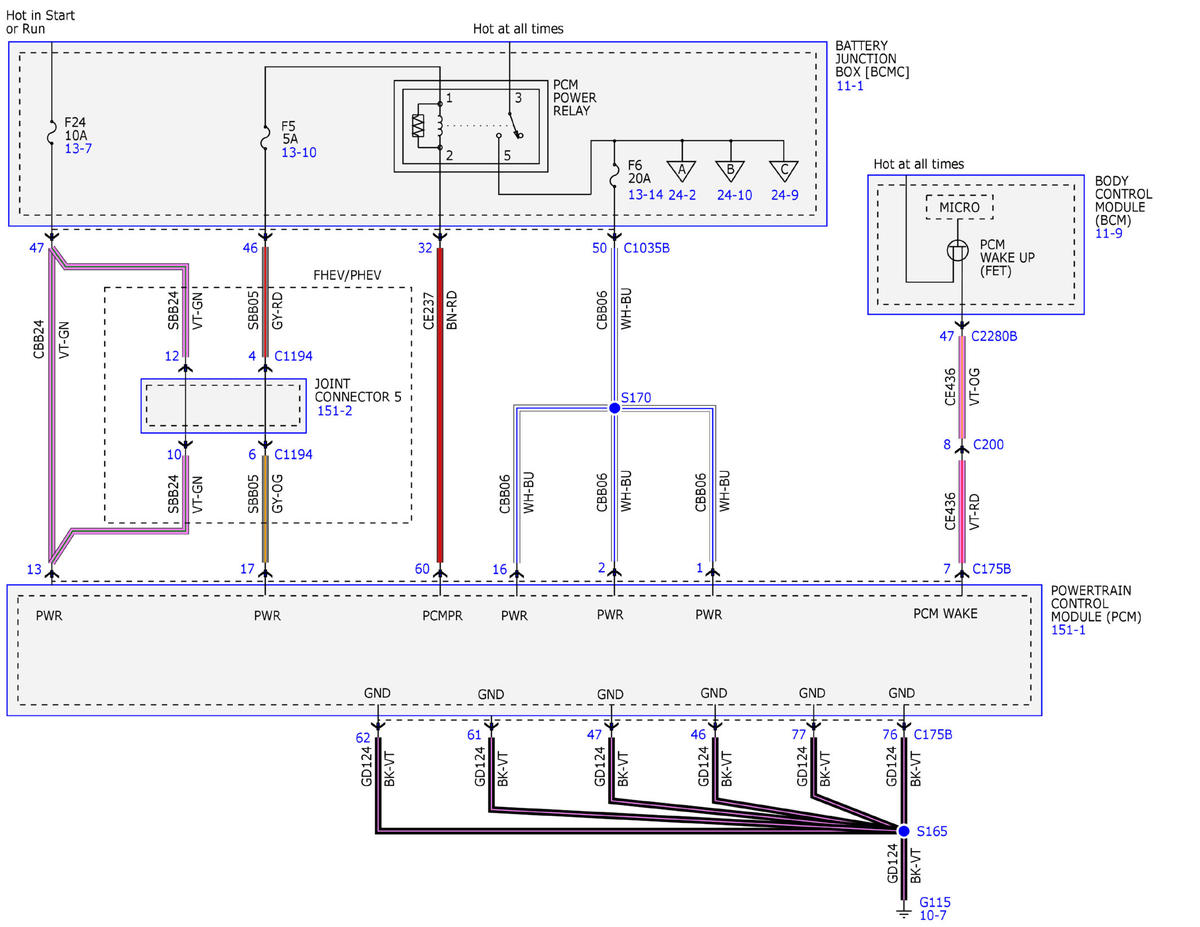

Fig 14: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (14 Of 21)

GFDWR94466

Courtesy of FORD MOTOR COMPANY

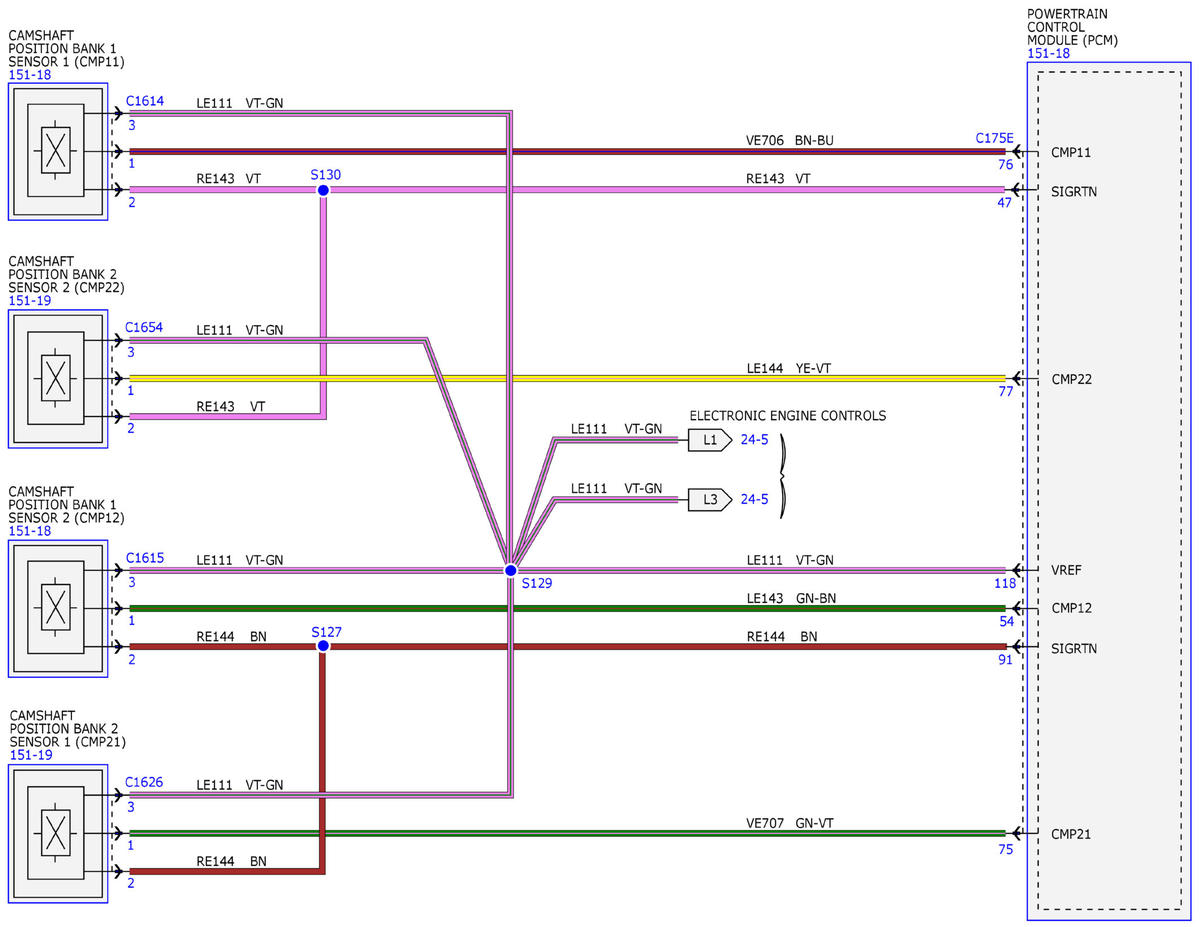

Fig 15: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (15 Of 21)

GFDWR94467

Courtesy of FORD MOTOR COMPANY

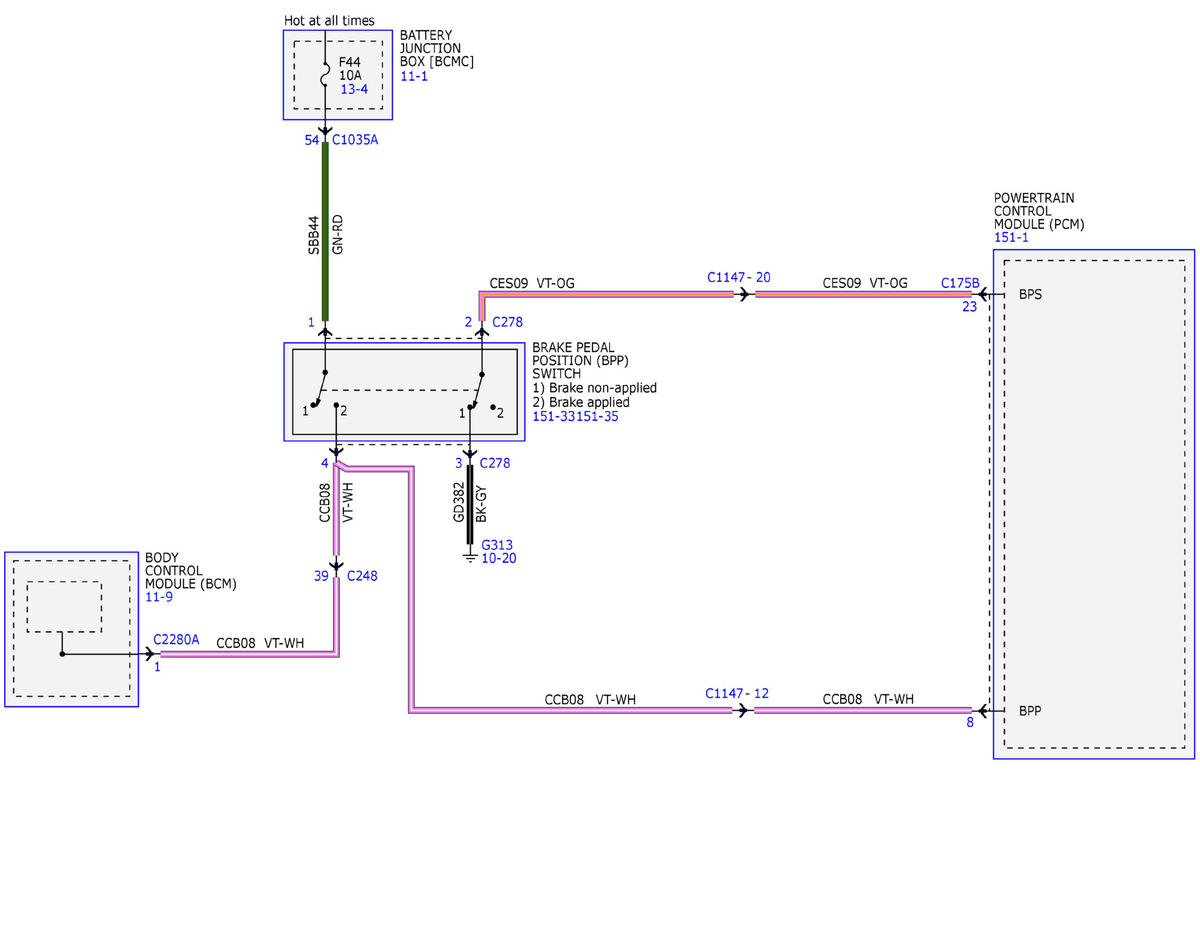

Fig 16: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (16 Of 21)

GFDWR94468

Courtesy of FORD MOTOR COMPANY

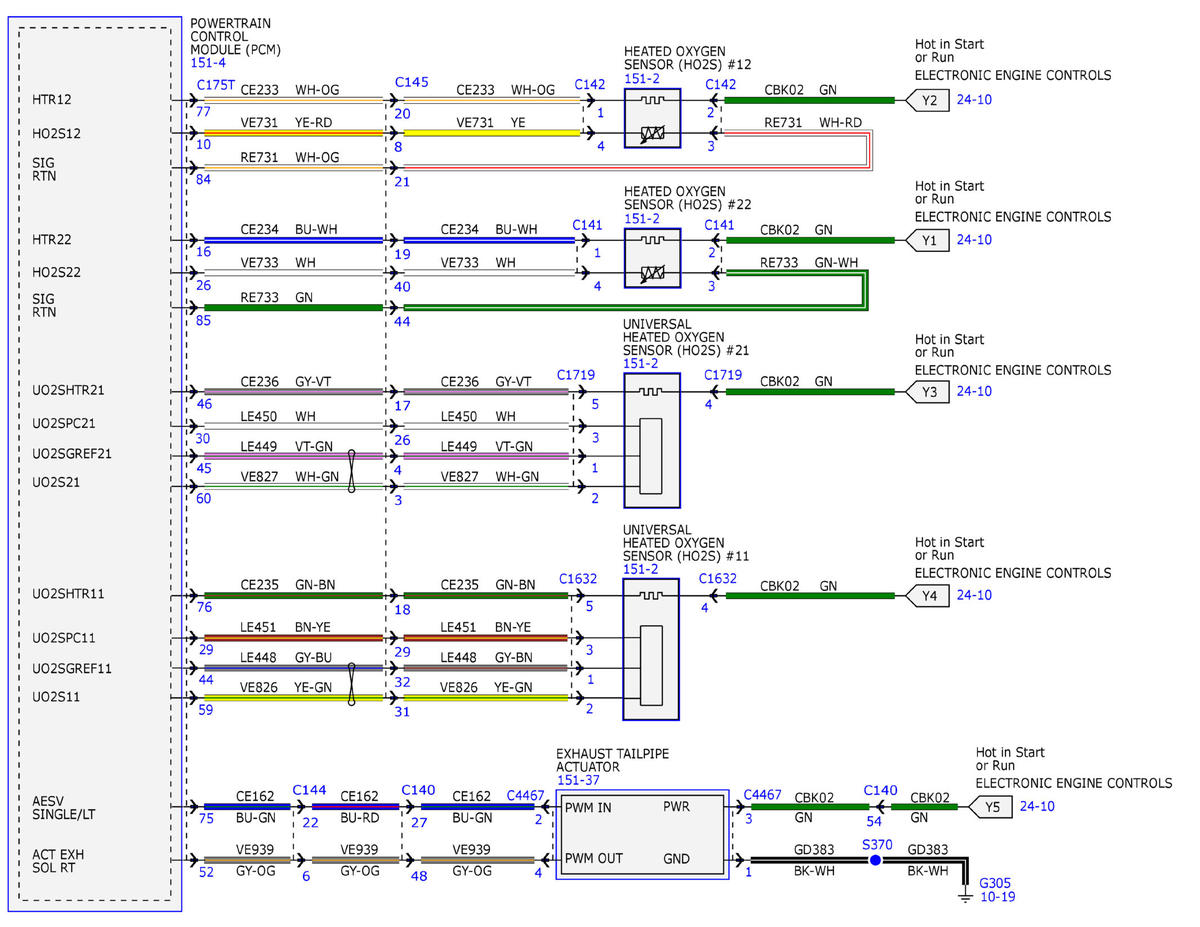

Fig 17: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (17 Of 21)

GFDWR94469

Courtesy of FORD MOTOR COMPANY

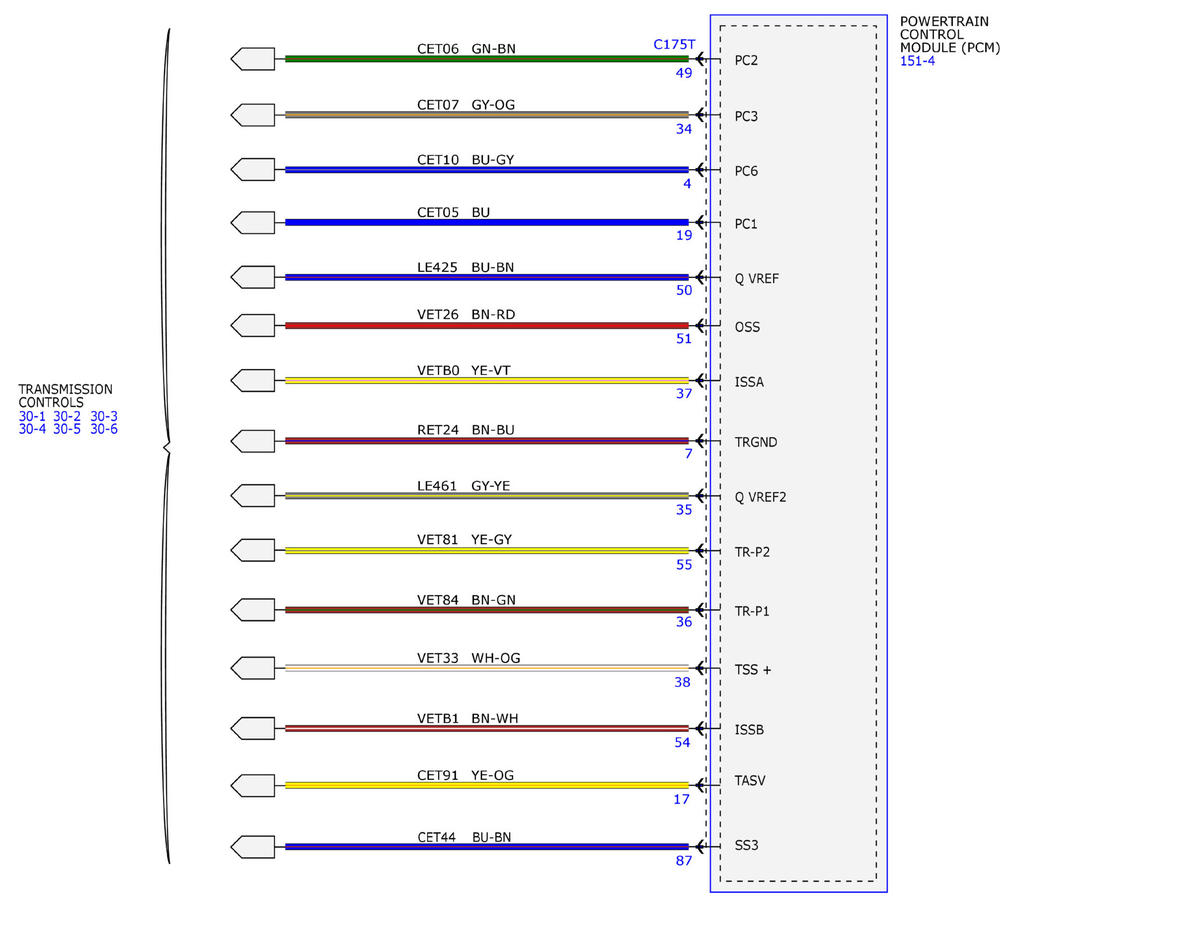

Fig 18: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (18 Of 21)

GFDWR94470

Courtesy of FORD MOTOR COMPANY

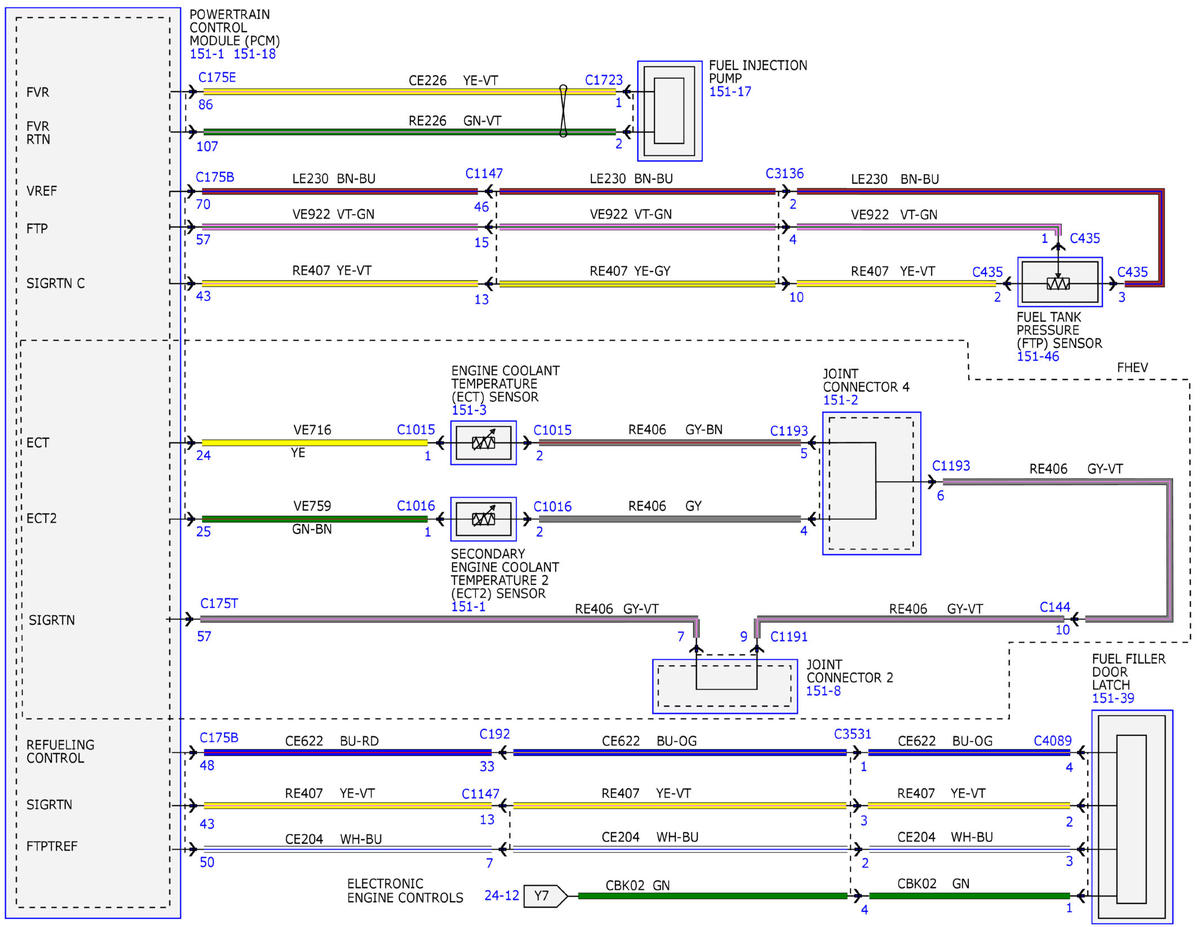

Fig 19: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (19 Of 21)

GFDWR94471

Courtesy of FORD MOTOR COMPANY

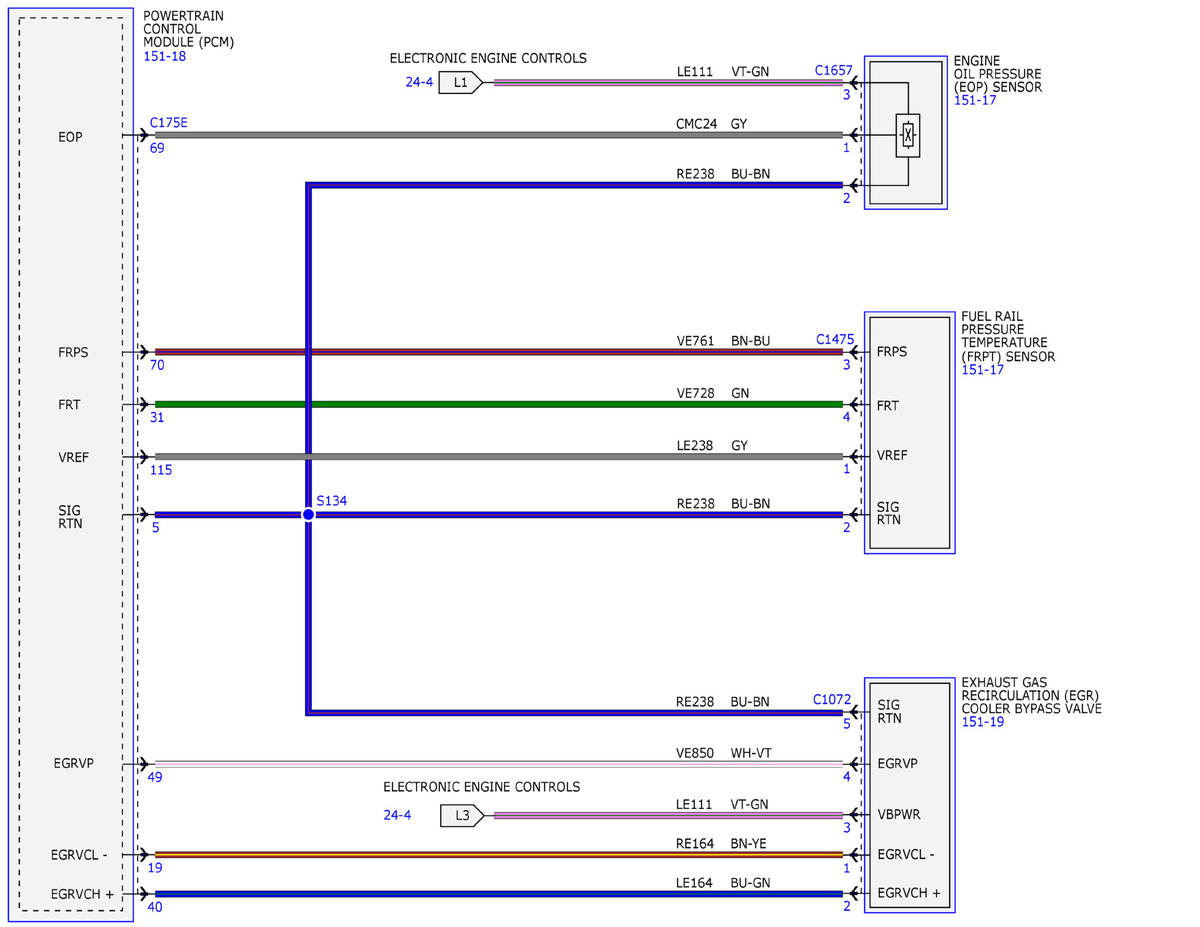

Fig 20: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (20 Of 21)

GFDWR94472

Courtesy of FORD MOTOR COMPANY

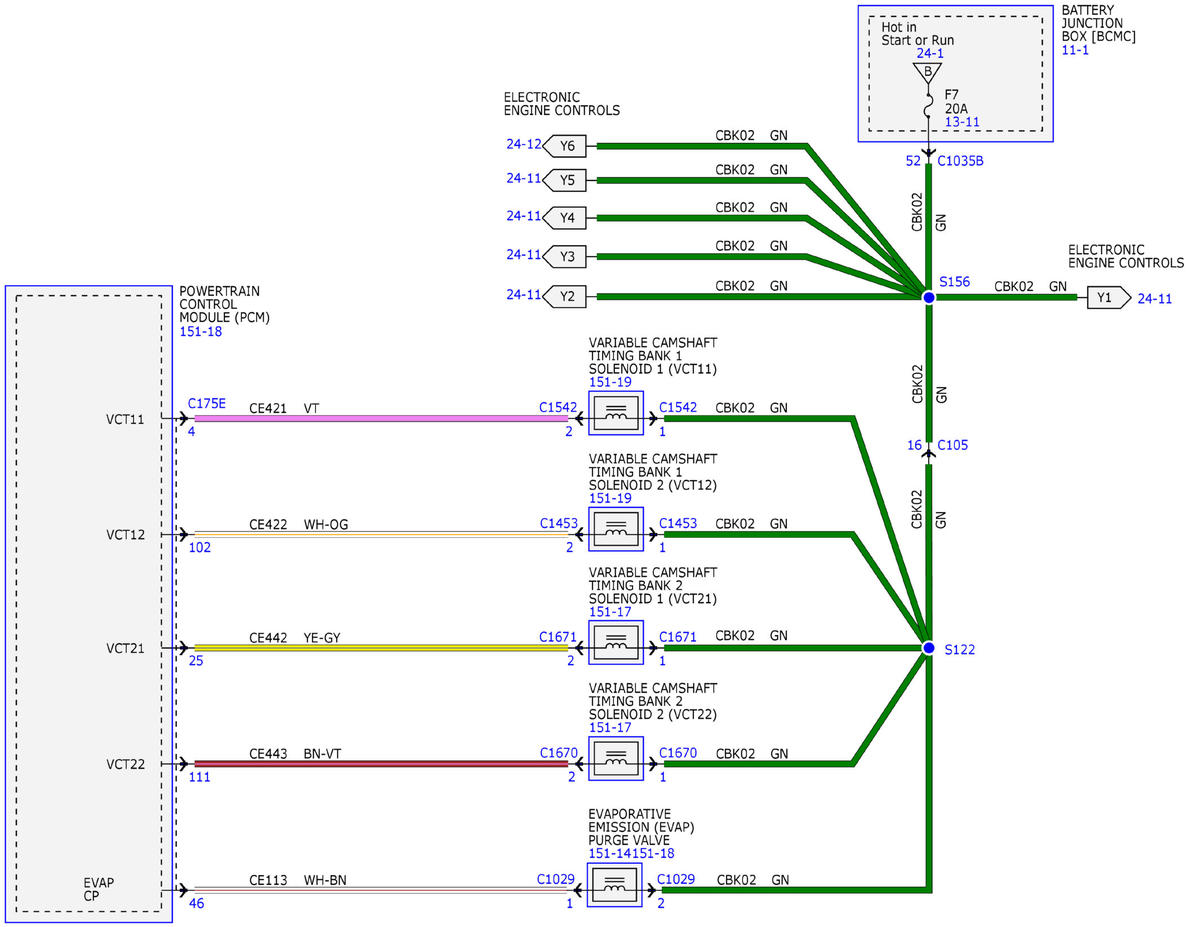

Fig 21: Electronic Engine Controls - 3.3L TIVCT System Wiring Diagrams (21 Of 21)

GFDWR94473

Courtesy of FORD MOTOR COMPANY
