Electronic Engine Controls - 3.0L GTDI

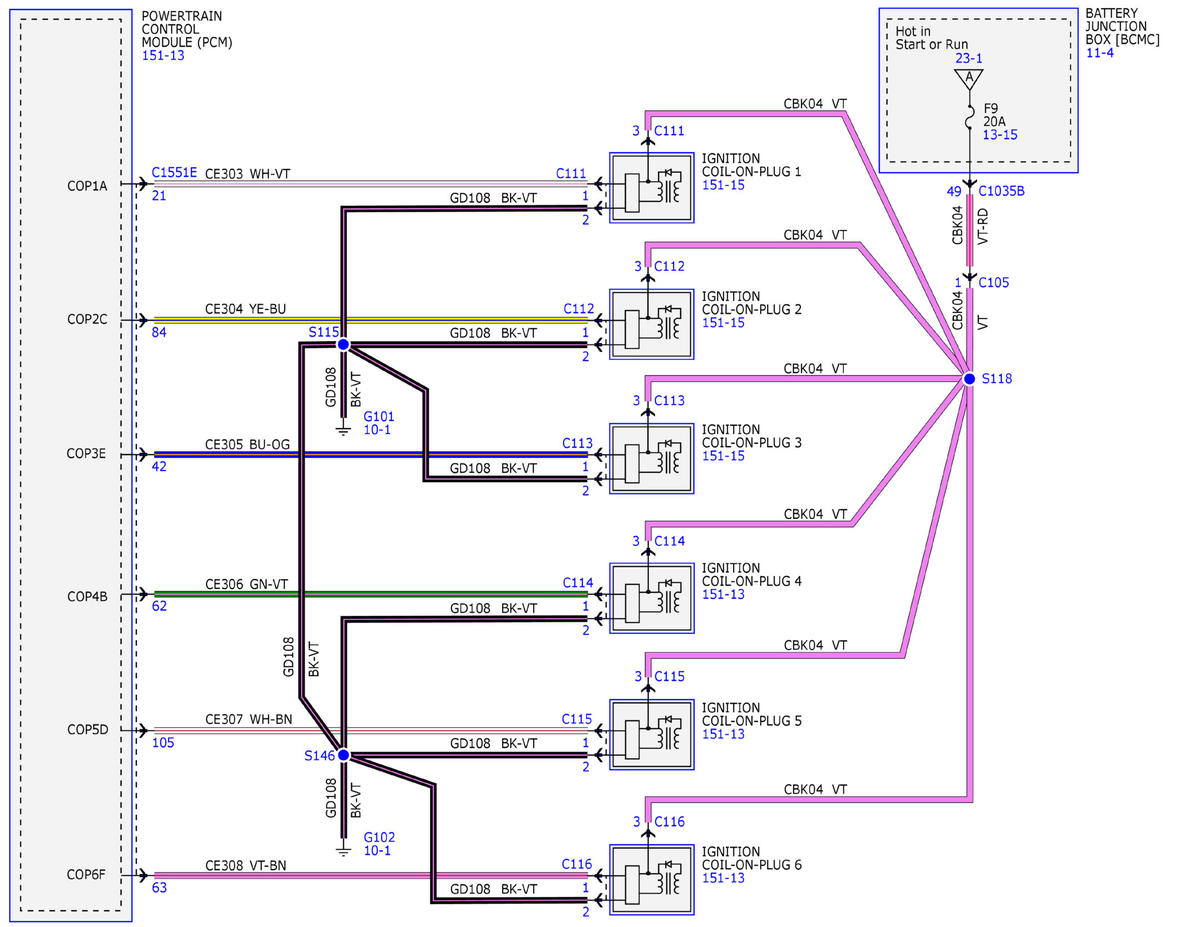

Fig 1: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (1 Of 22)

GFDWR94431

Courtesy of FORD MOTOR COMPANY

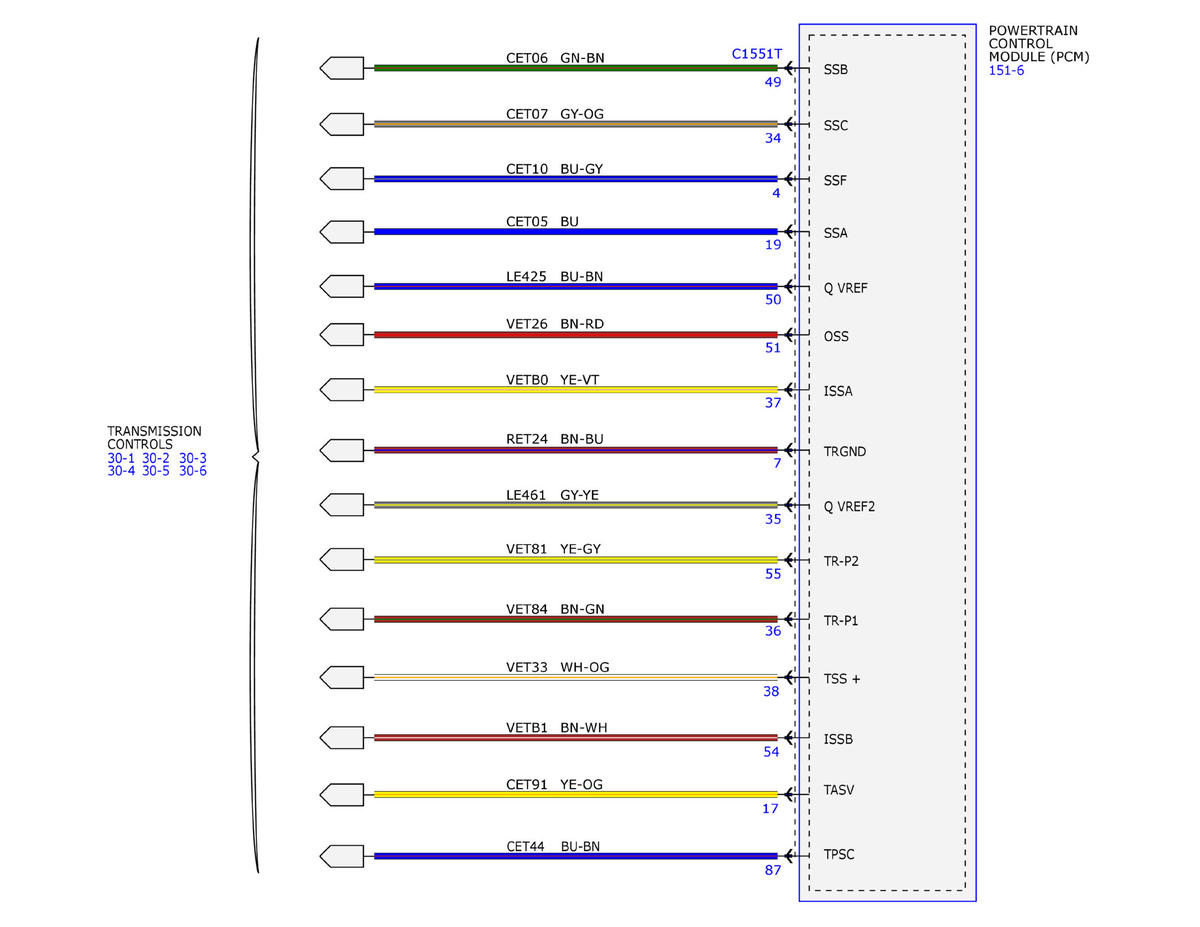

Fig 2: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (2 Of 22)

GFDWR94432

Courtesy of FORD MOTOR COMPANY

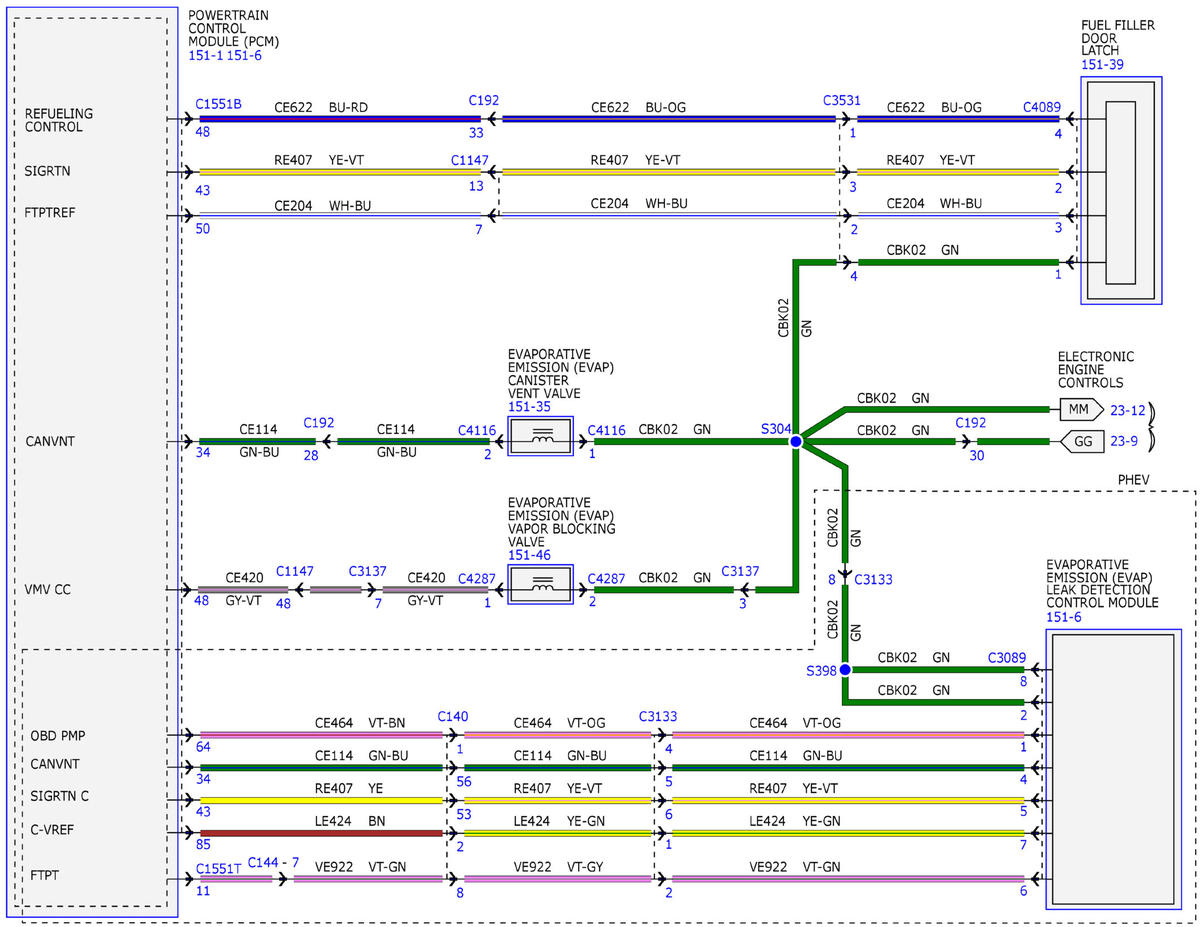

Fig 3: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (3 Of 22)

GFDWR94433

Courtesy of FORD MOTOR COMPANY

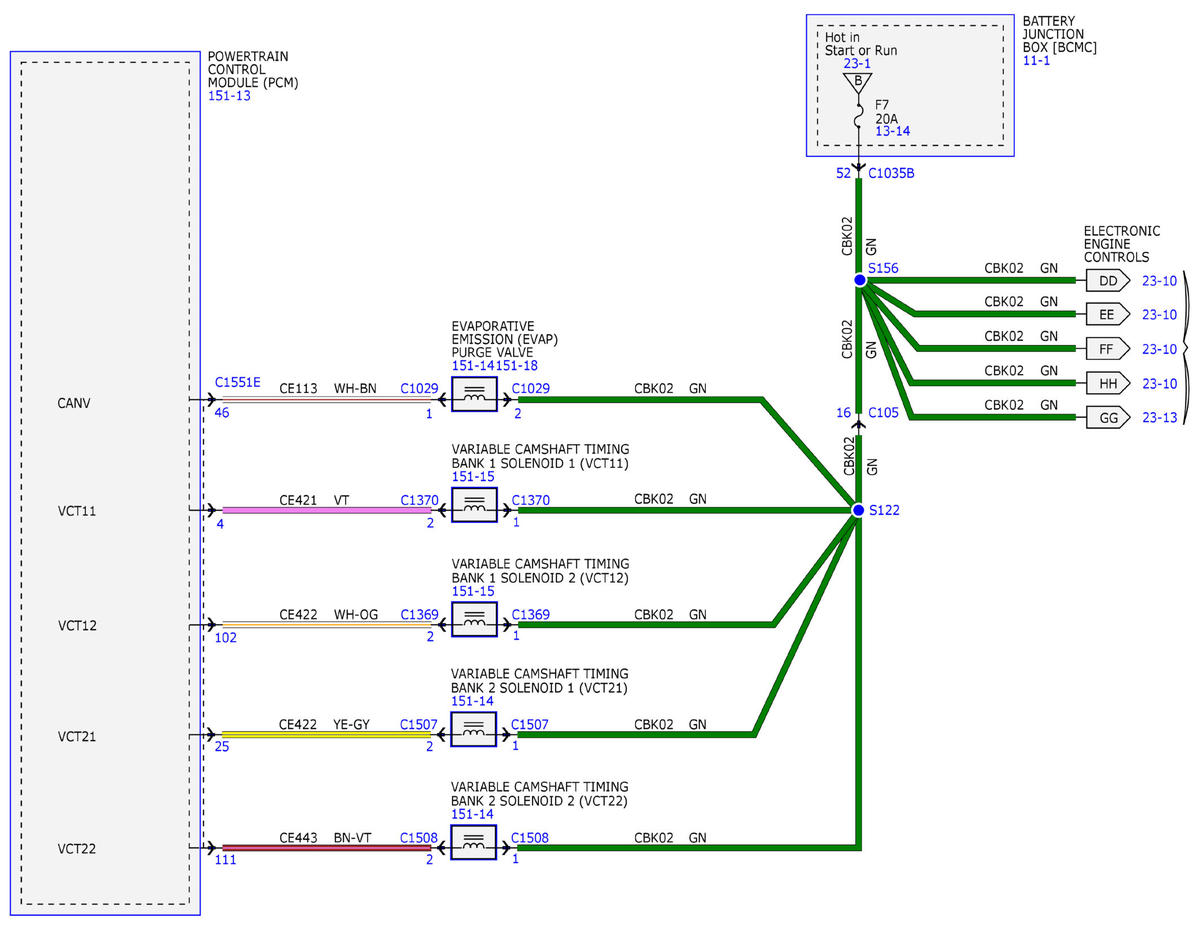

Fig 4: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (4 Of 22)

GFDWR94434

Courtesy of FORD MOTOR COMPANY

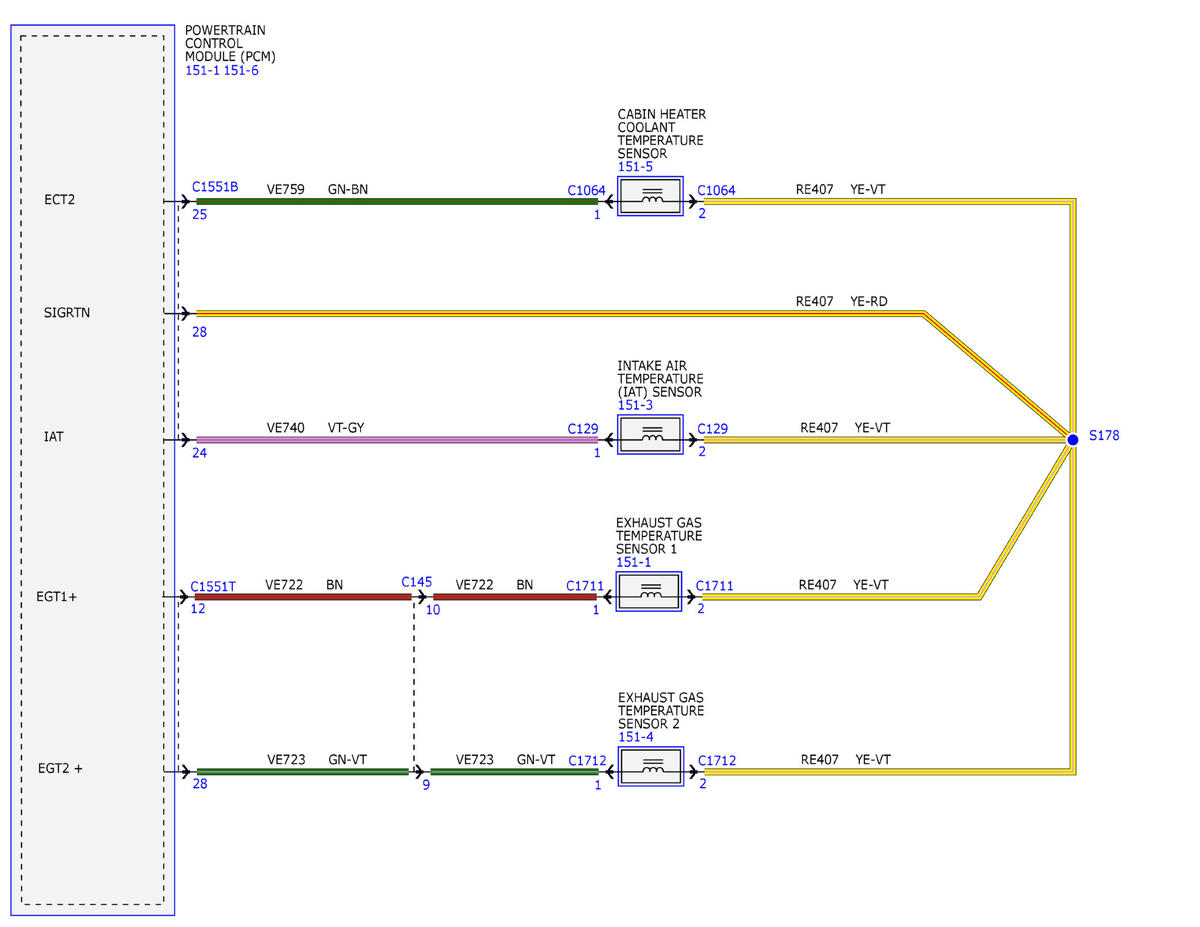

Fig 5: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (5 Of 22)

GFDWR94435

Courtesy of FORD MOTOR COMPANY

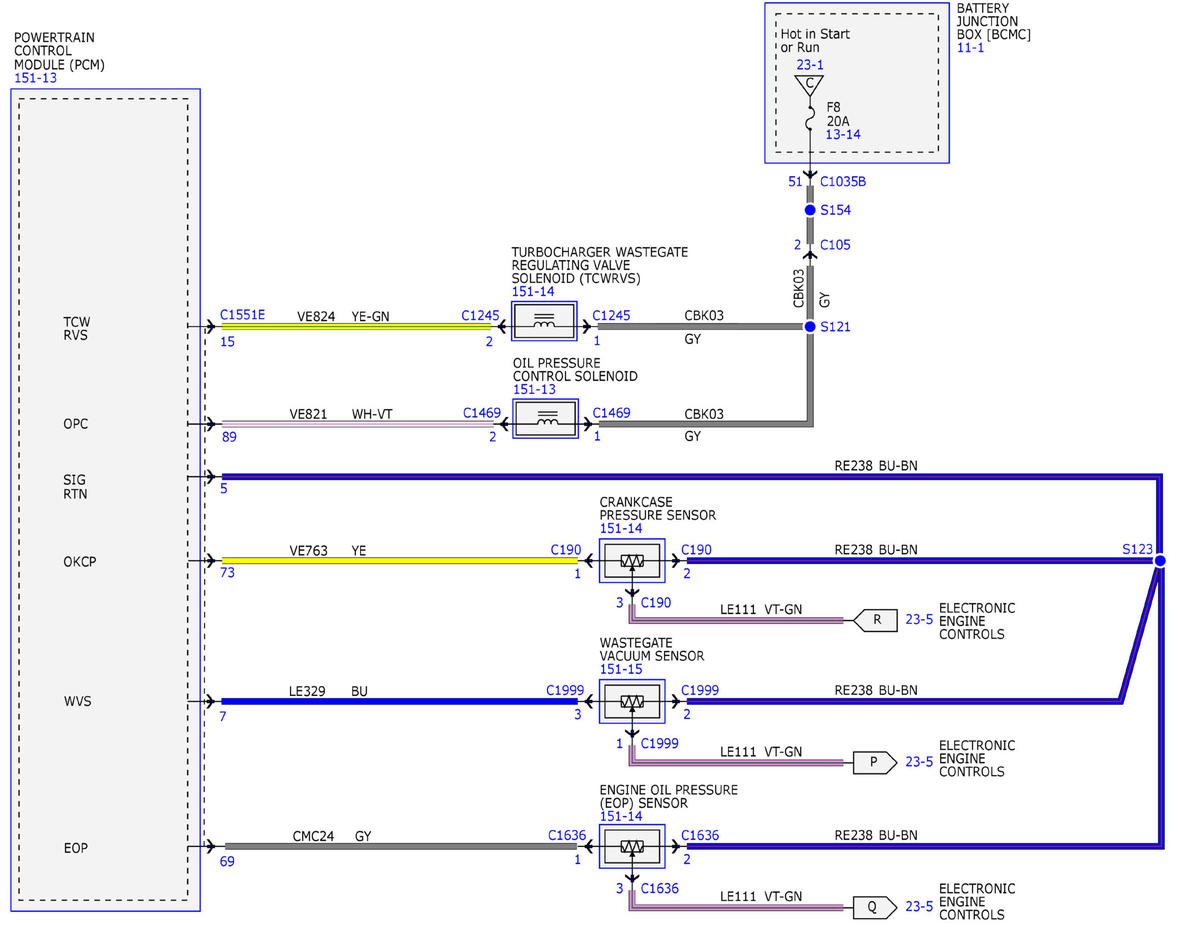

Fig 6: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (6 Of 22)

GFDWR94436

Courtesy of FORD MOTOR COMPANY

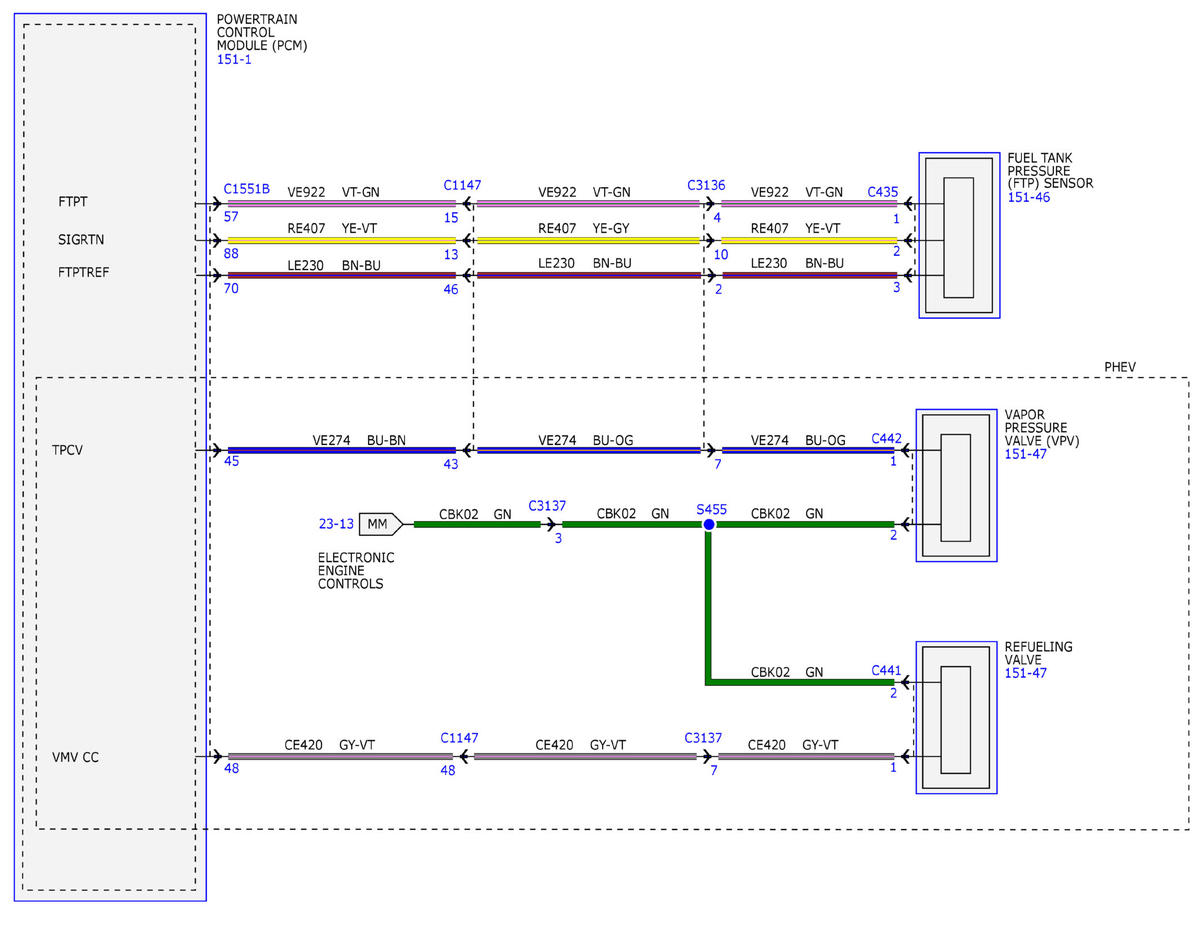

Fig 7: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (7 Of 22)

GFDWR94437

Courtesy of FORD MOTOR COMPANY

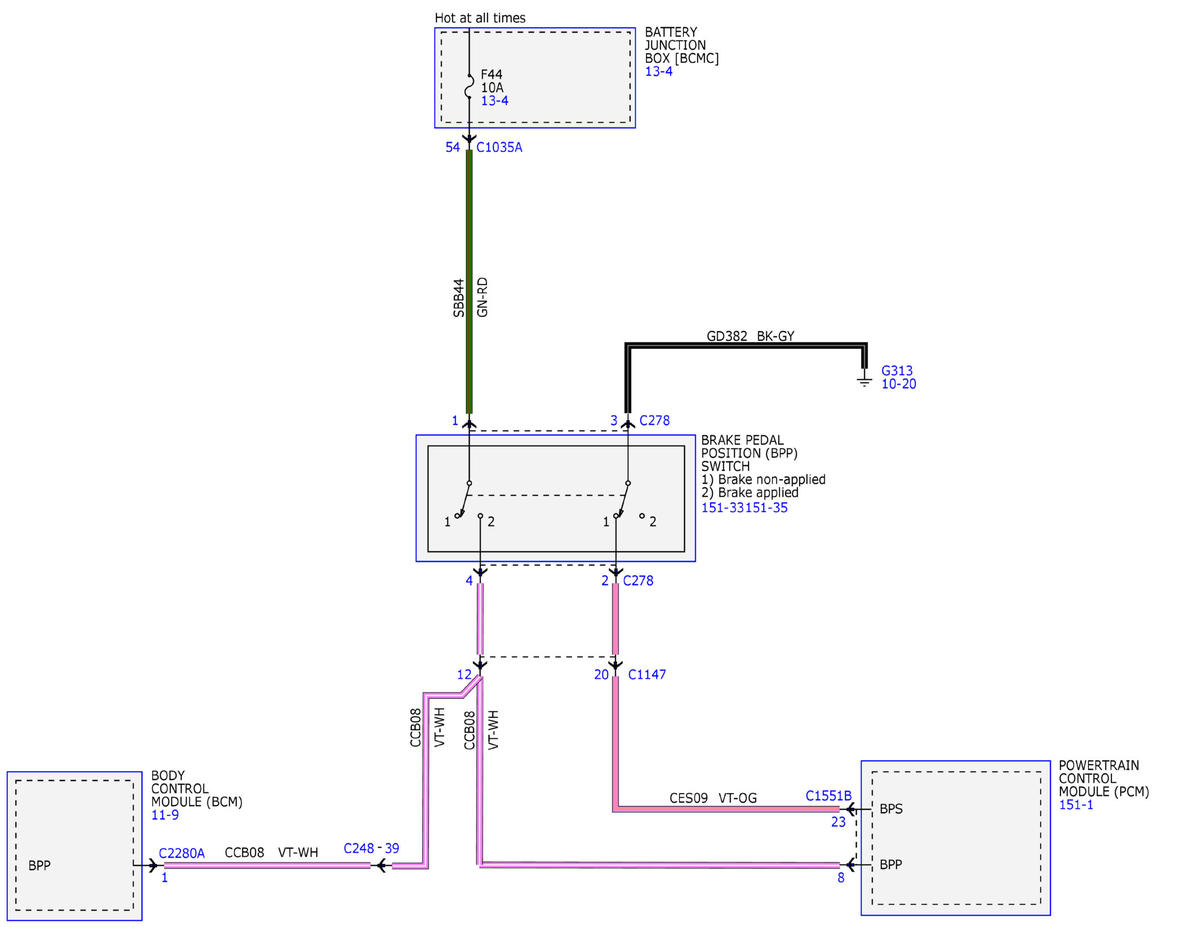

Fig 8: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (8 Of 22)

GFDWR94438

Courtesy of FORD MOTOR COMPANY

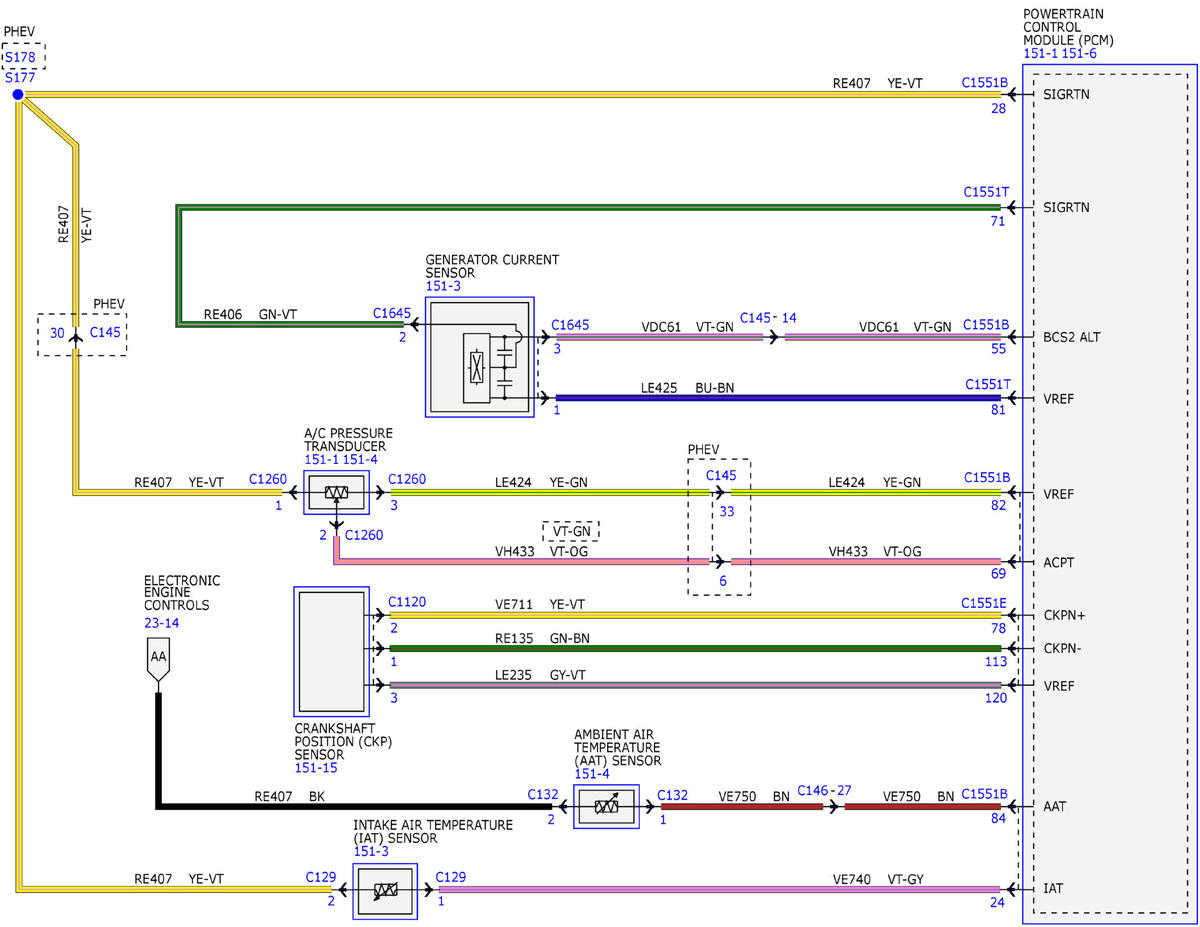

Fig 9: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (9 Of 22)

GFDWR94439

Courtesy of FORD MOTOR COMPANY

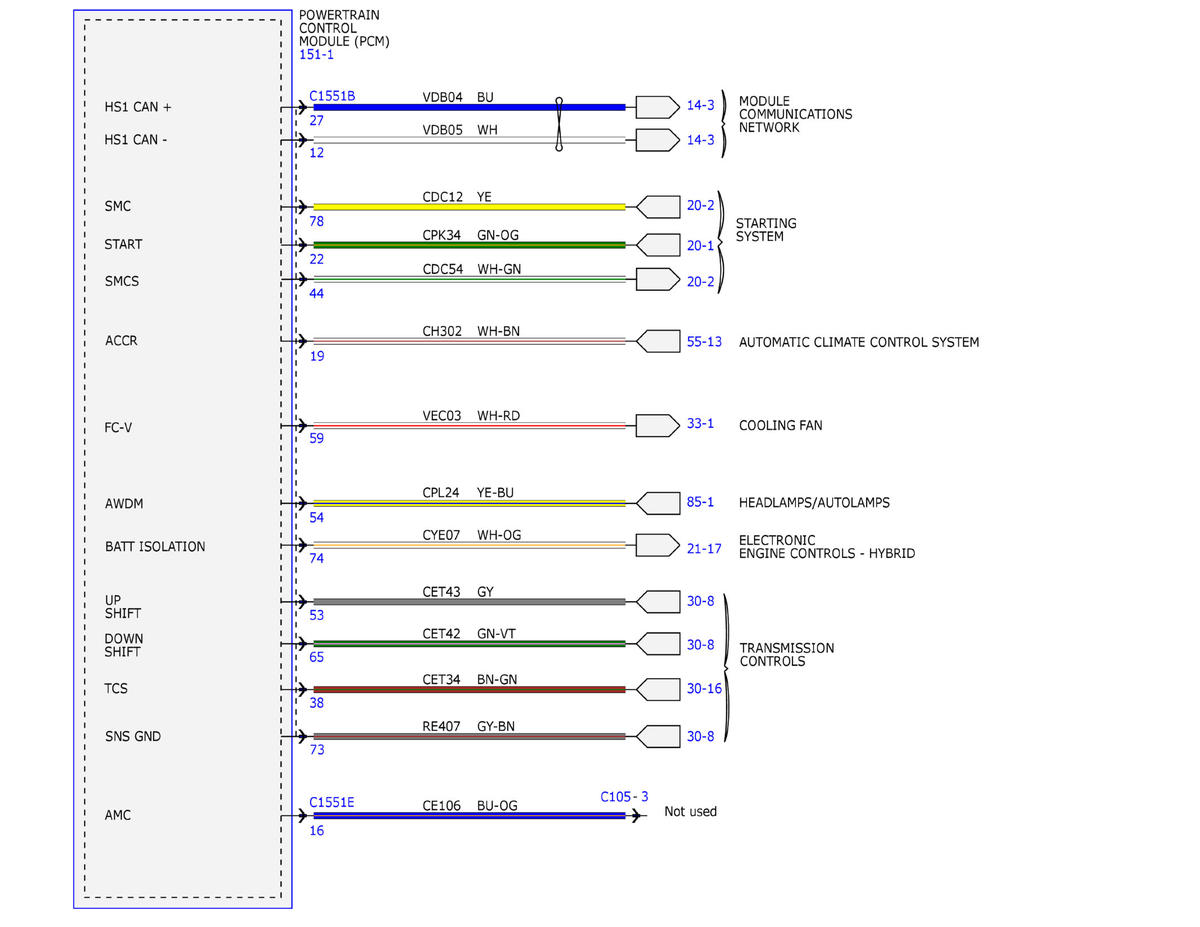

Fig 10: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (10 Of 22)

GFDWR94440

Courtesy of FORD MOTOR COMPANY

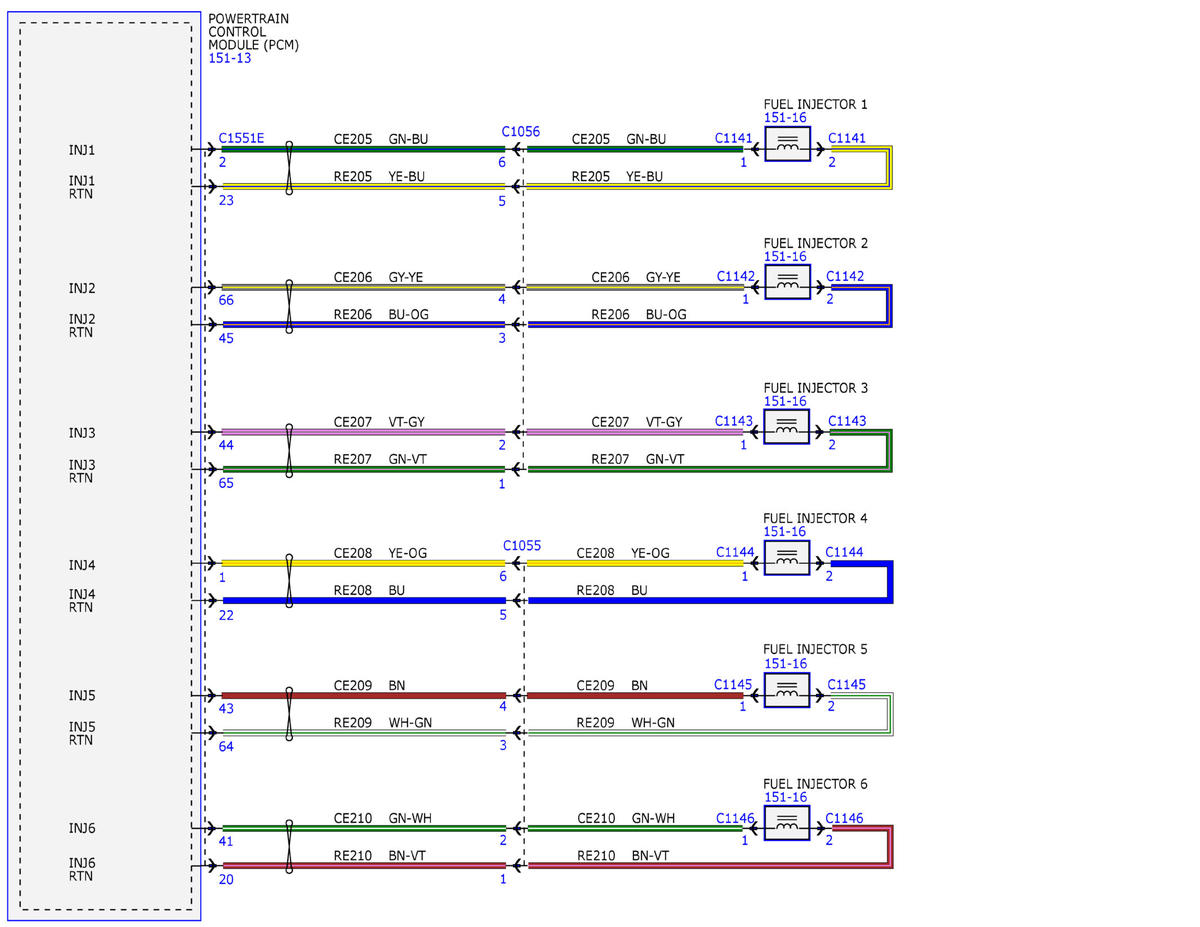

Fig 11: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (11 Of 22)

GFDWR94441

Courtesy of FORD MOTOR COMPANY

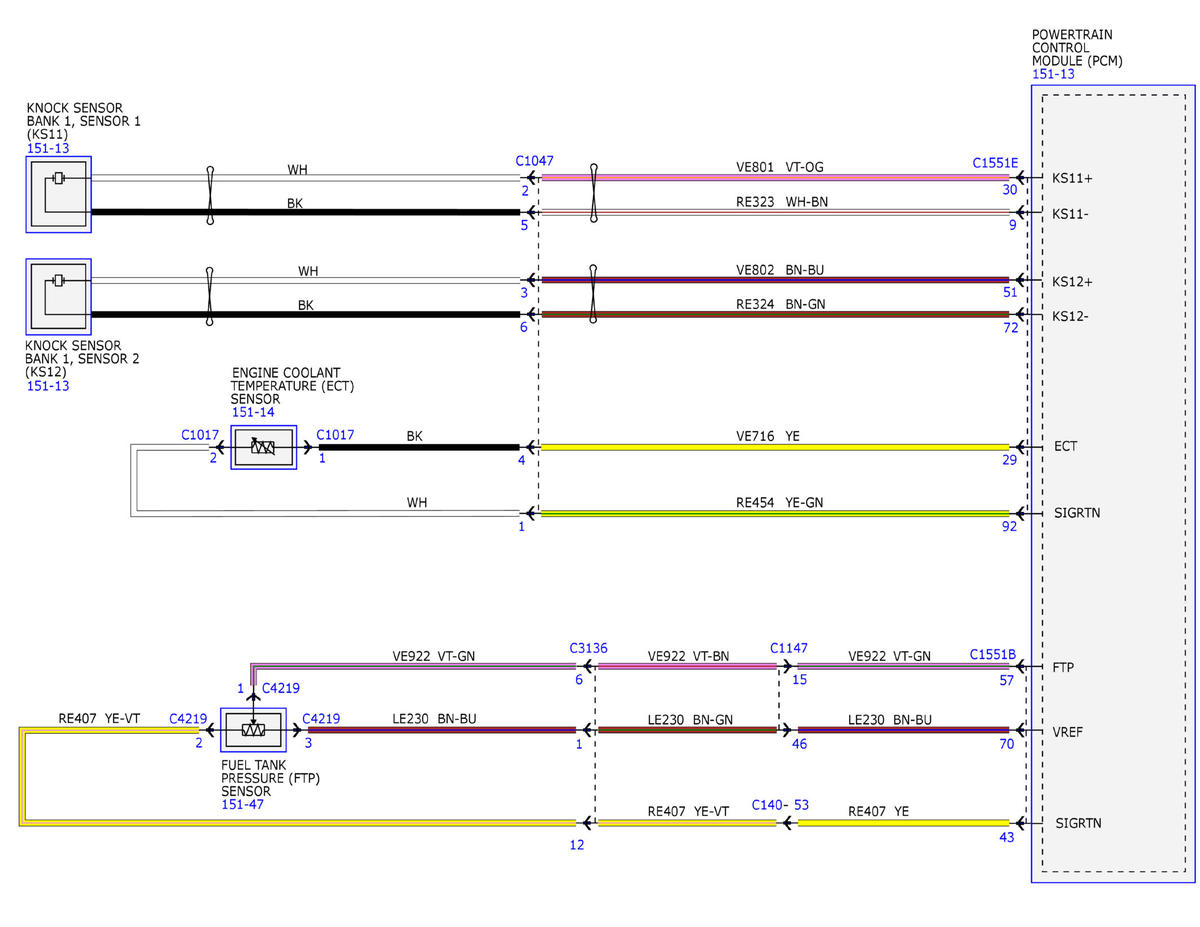

Fig 12: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (12 Of 22)

GFDWR94442

Courtesy of FORD MOTOR COMPANY

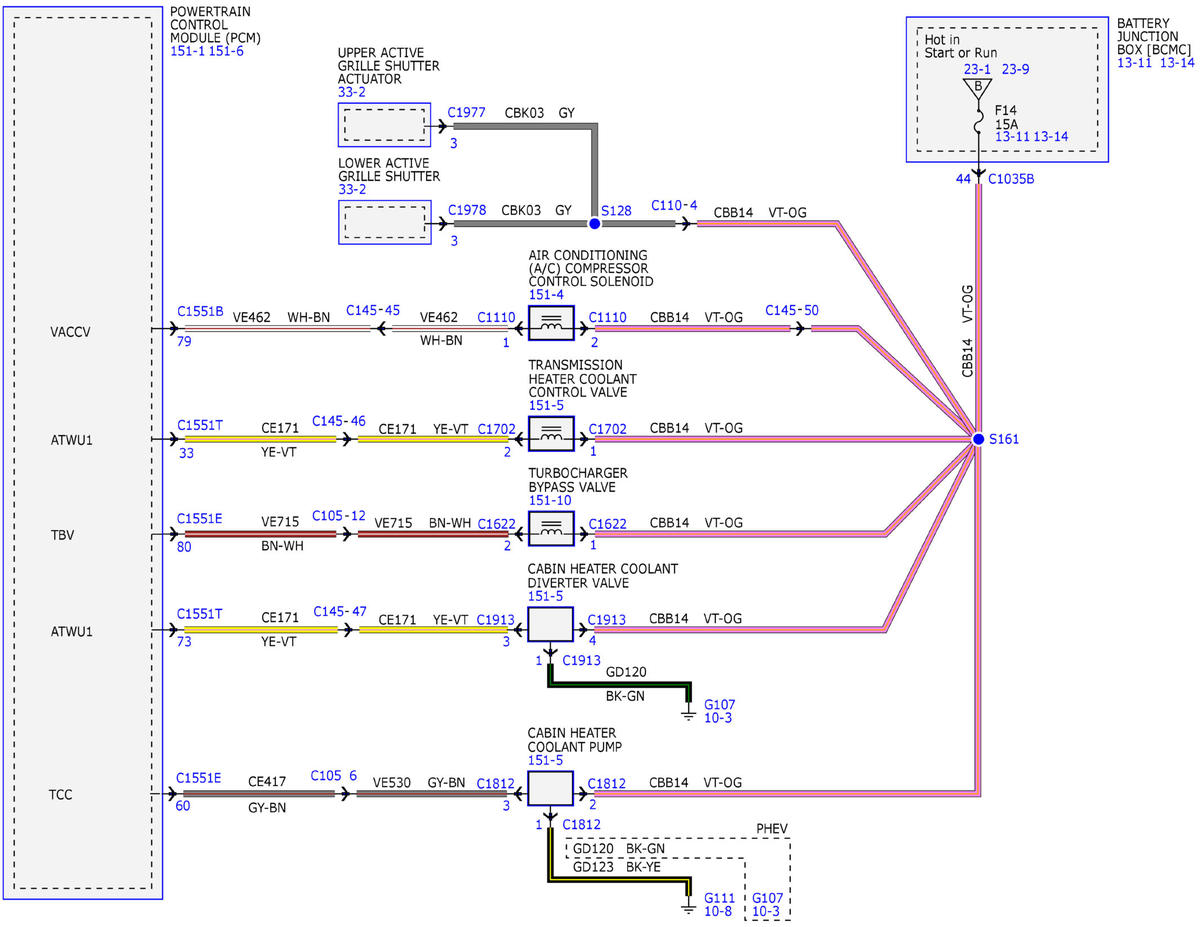

Fig 13: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (13 Of 22)

GFDWR94443

Courtesy of FORD MOTOR COMPANY

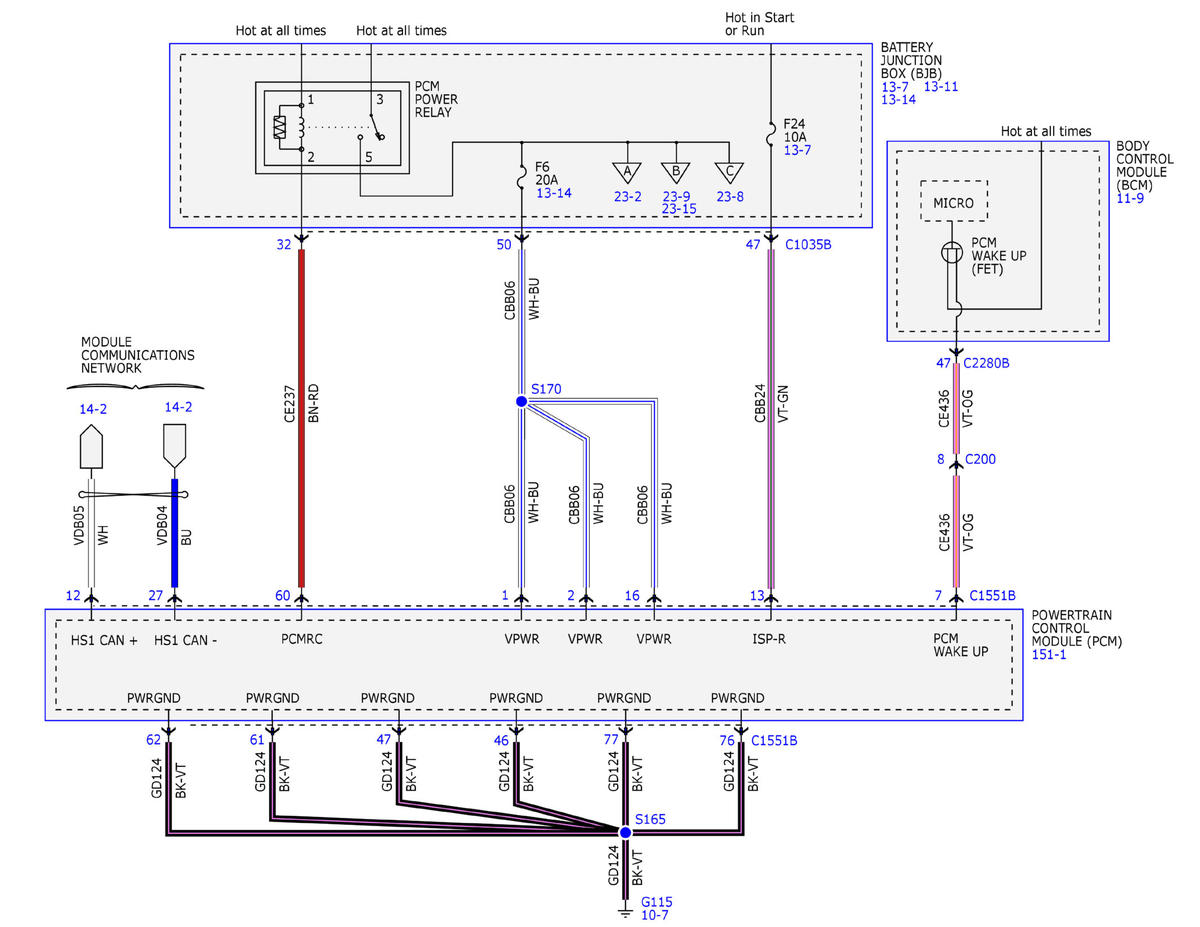

Fig 14: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (14 Of 22)

GFDWR94444

Courtesy of FORD MOTOR COMPANY

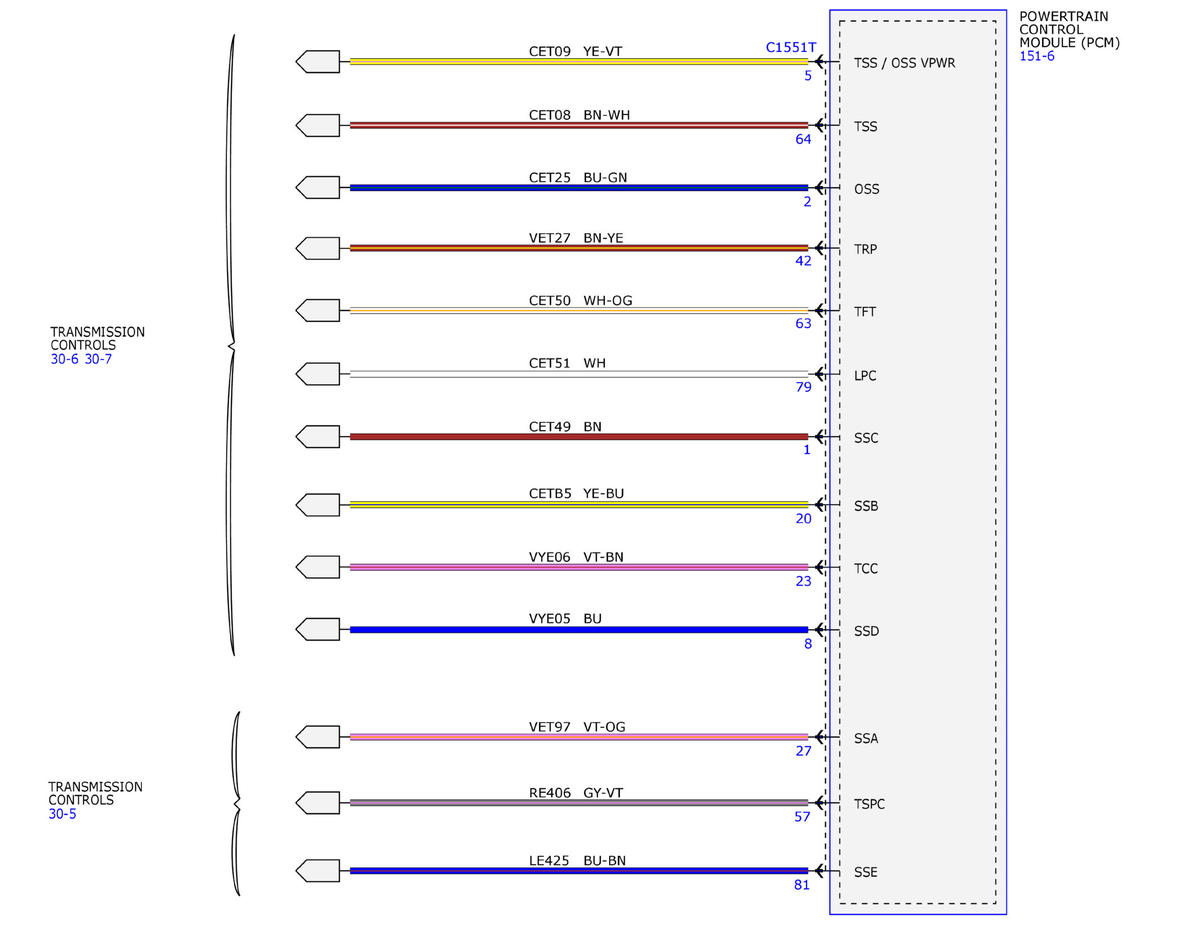

Fig 15: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (15 Of 22)

GFDWR94445

Courtesy of FORD MOTOR COMPANY

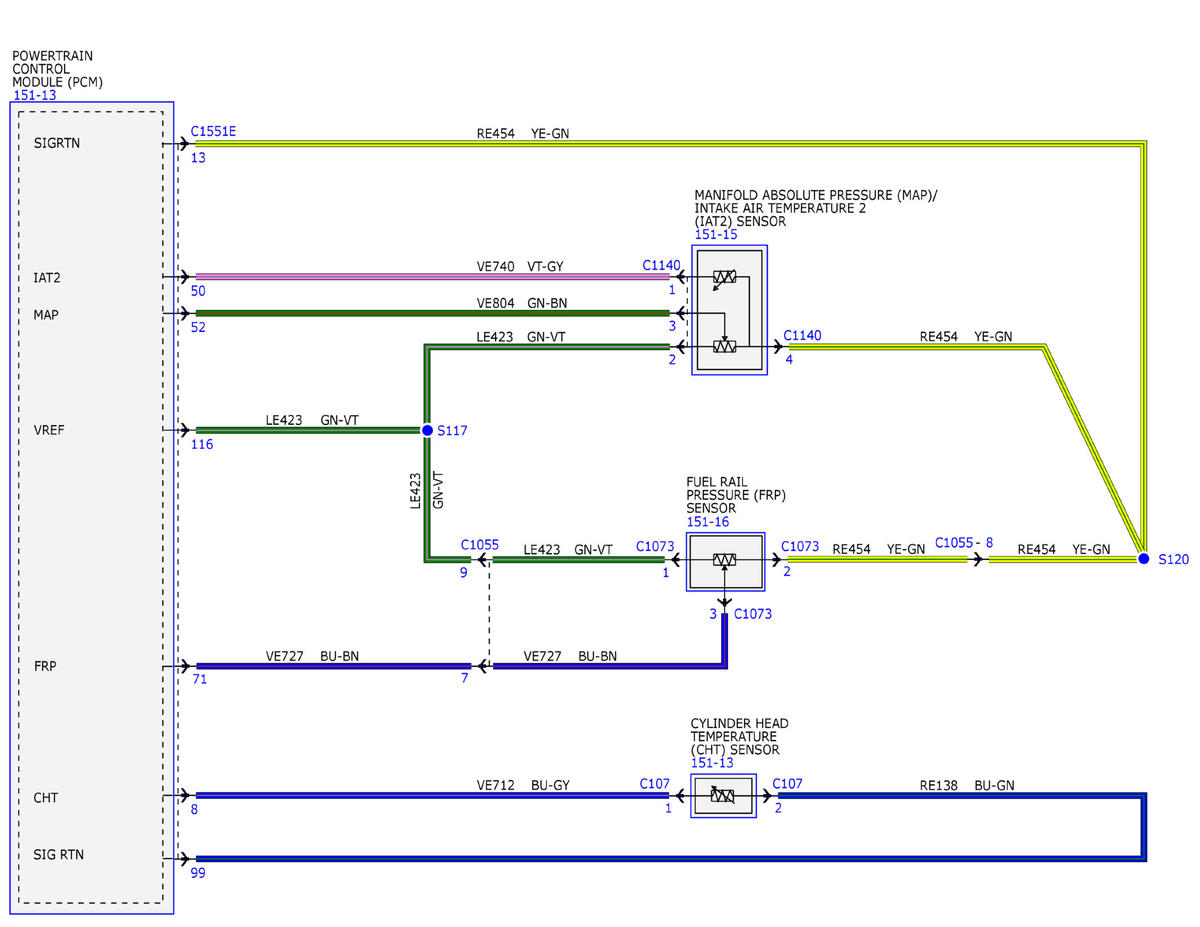

Fig 16: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (16 Of 22)

GFDWR94446

Courtesy of FORD MOTOR COMPANY

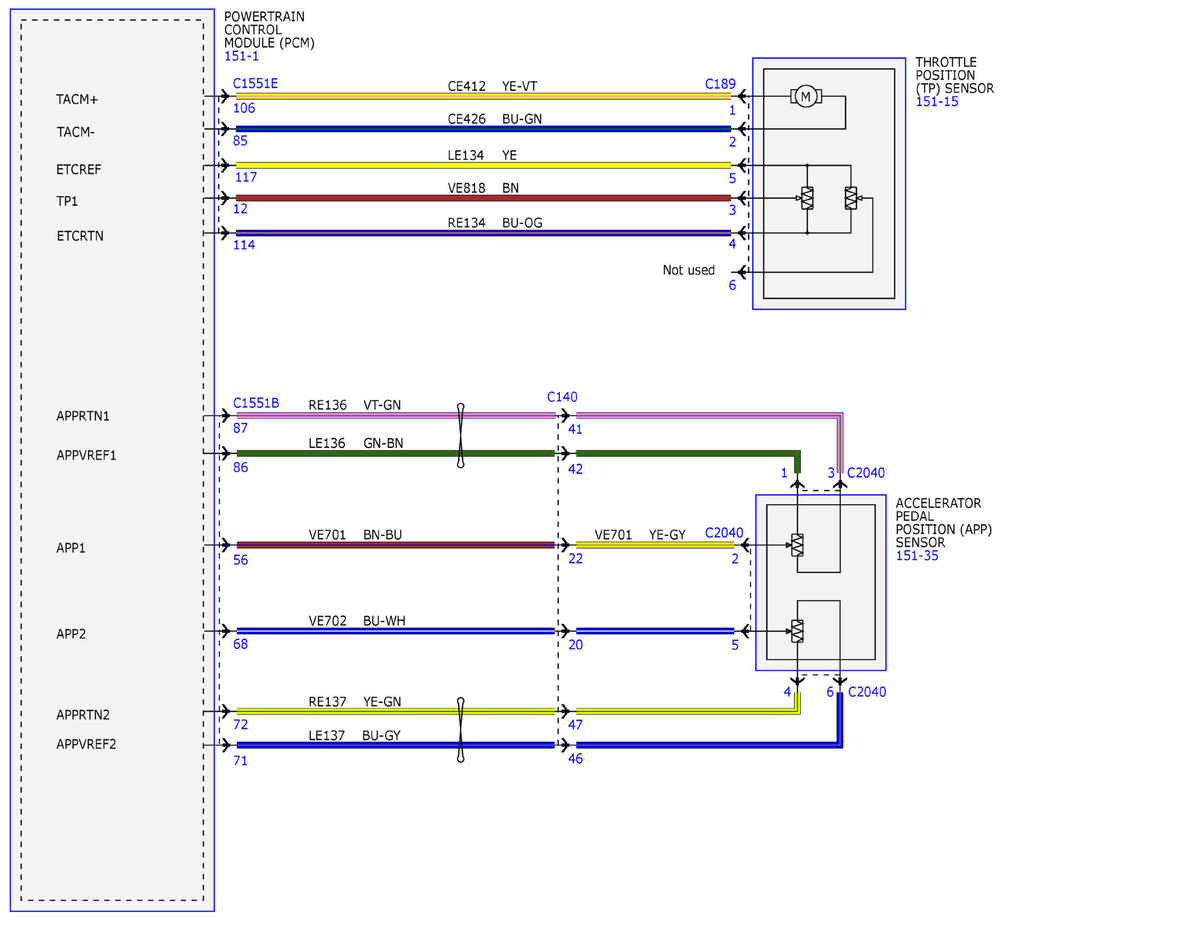

Fig 17: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (17 Of 22)

GFDWR94447

Courtesy of FORD MOTOR COMPANY

Fig 18: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (18 Of 22)

GFDWR94448

Courtesy of FORD MOTOR COMPANY

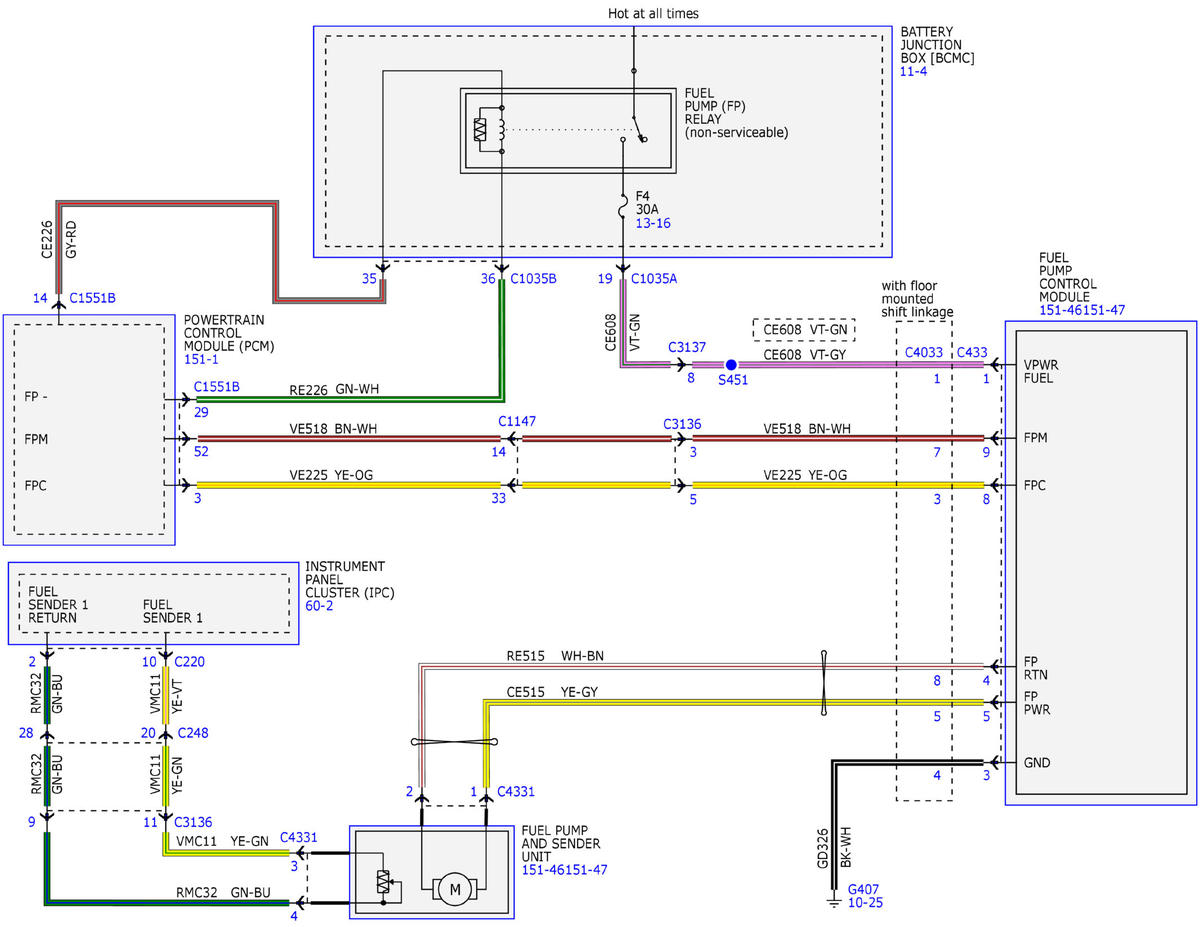

Fig 19: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (19 Of 22)

GFDWR94449

Courtesy of FORD MOTOR COMPANY

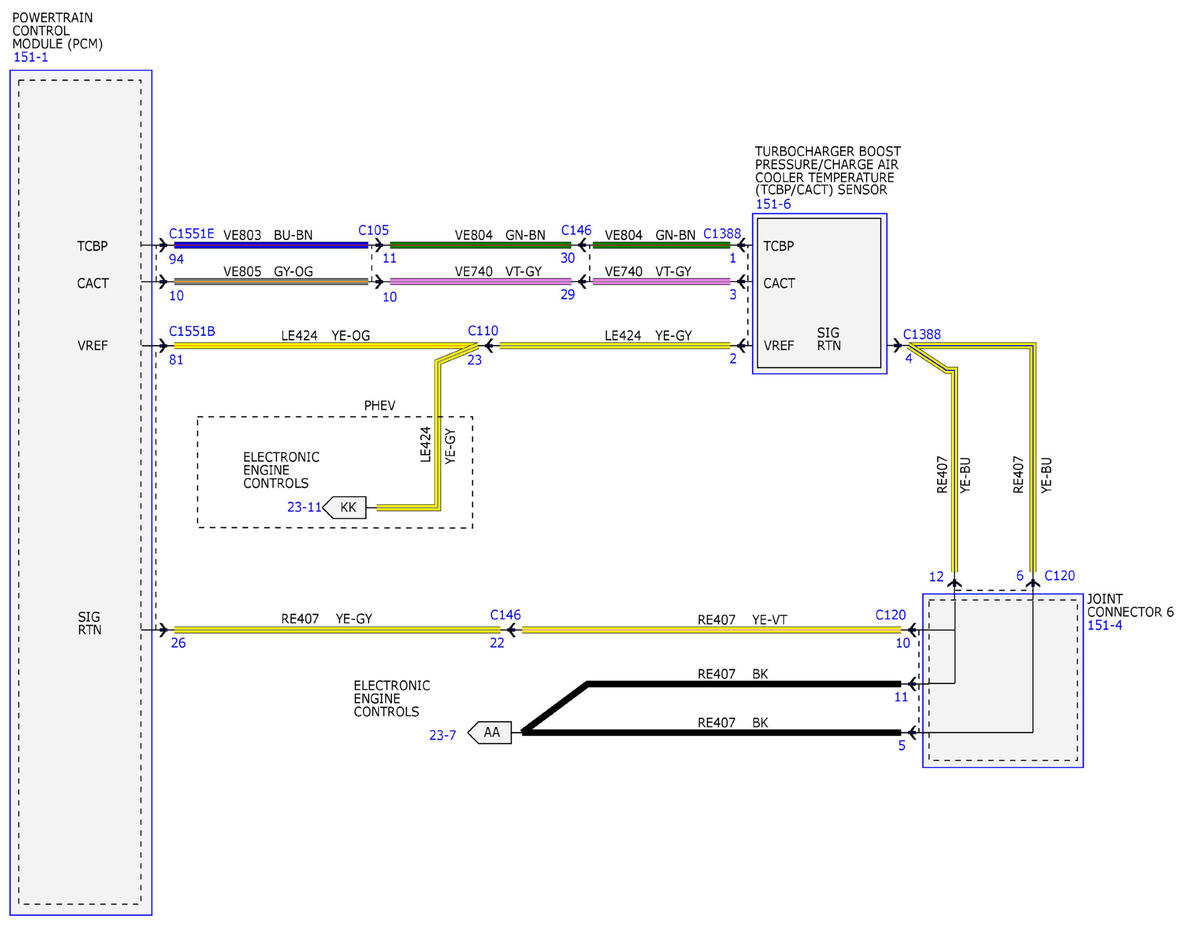

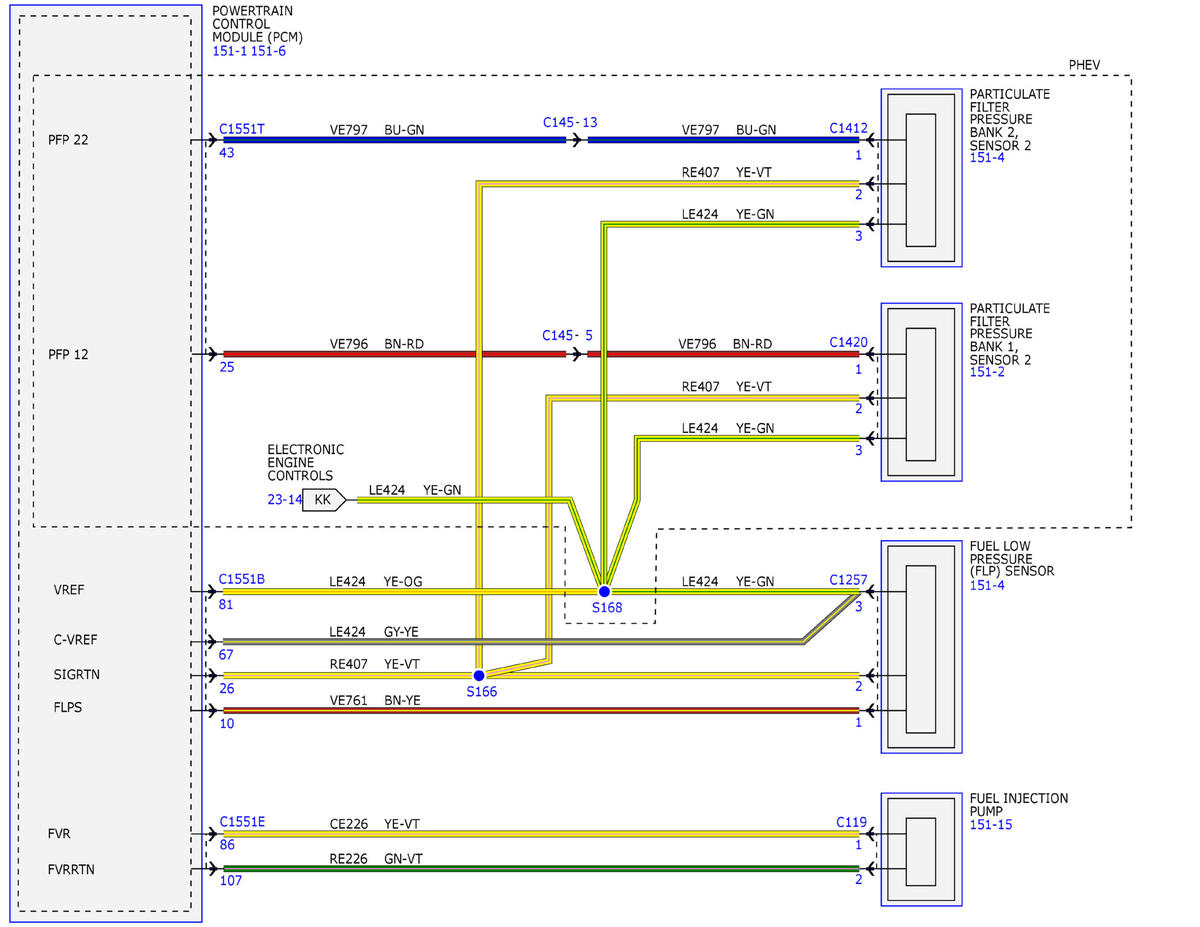

Fig 20: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (20 Of 22)

GFDWR94450

Courtesy of FORD MOTOR COMPANY

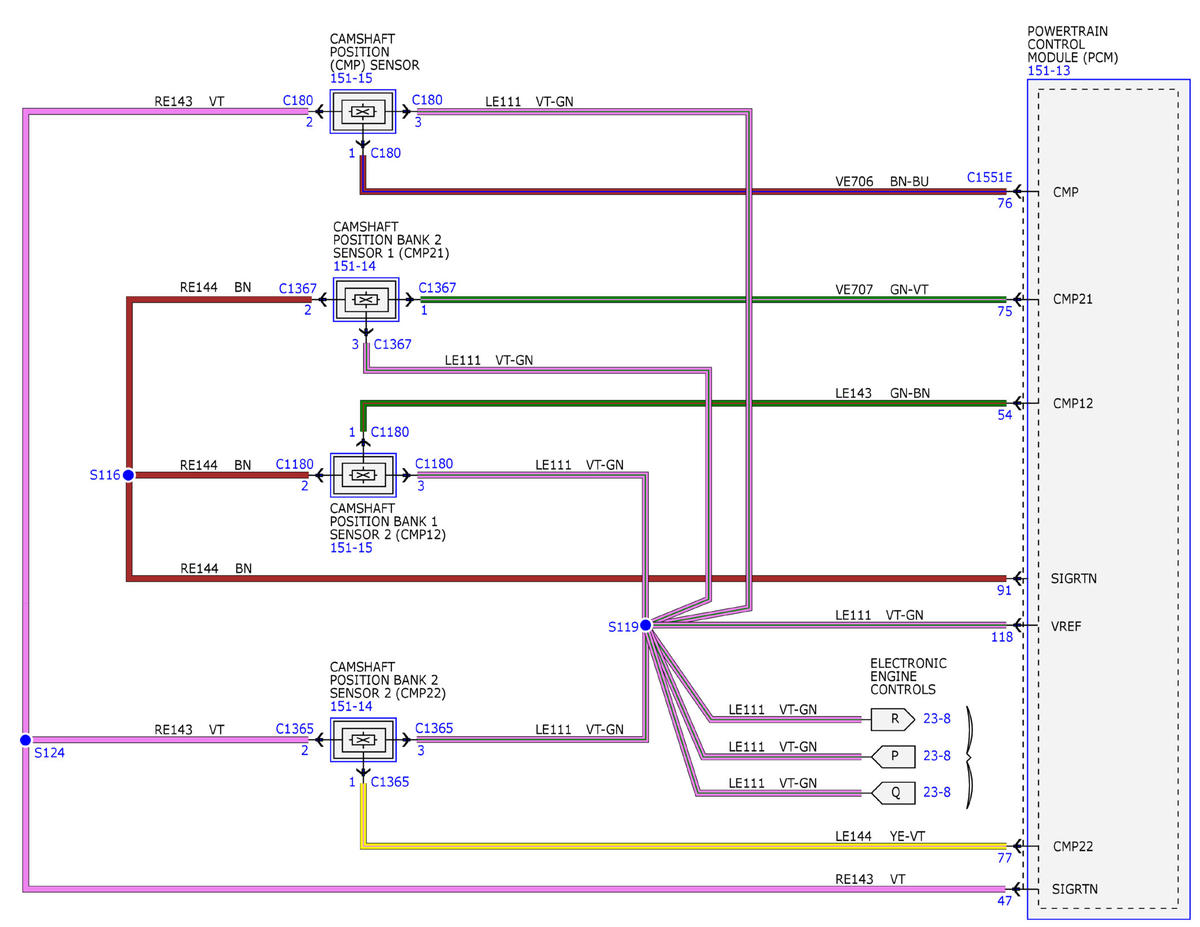

Fig 21: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (21 Of 22)

GFDWR94451

Courtesy of FORD MOTOR COMPANY

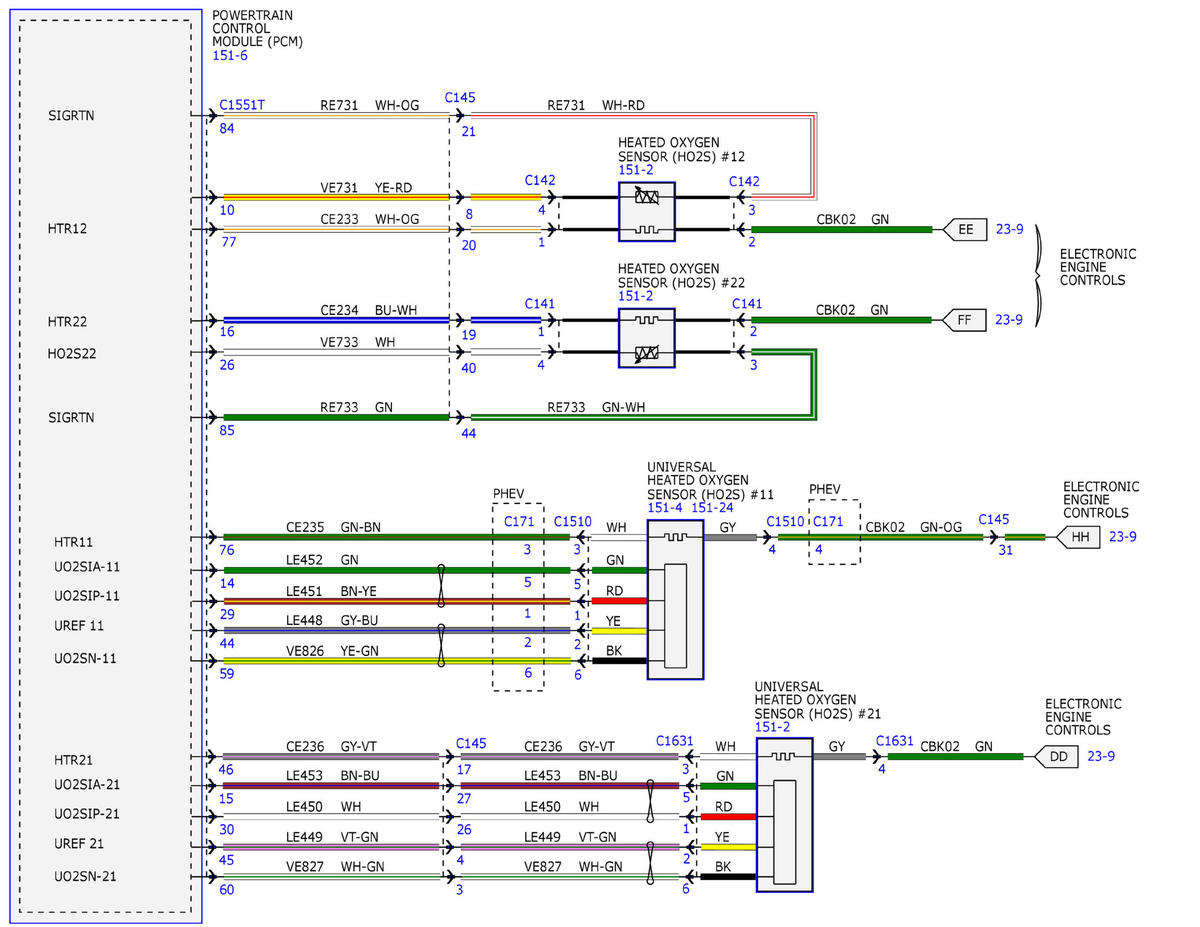

Fig 22: Electronic Engine Controls - 3.0L GTDI System Wiring Diagrams (22 Of 22)

GFDWR94452

Courtesy of FORD MOTOR COMPANY
