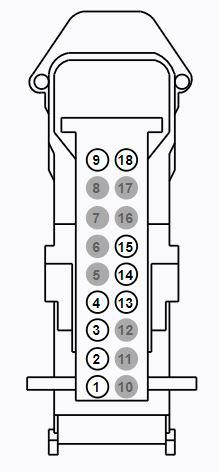

Connector End View (C3590) - GEAR SHIFT MODULE (GSM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3590	GEAR SHIFT MODULE (GSM)	14B079			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER	2L1T-14474-AA
2	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	2L1T-14474-LA
3	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	2L1T-14474-LA
4	CPL93 (GY-OG)	22	SWITCH - LATCH DRIVER UPPER # AJAR	2L1T-14474-AA
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	GD284 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 4TH POINT	2L1T-14474-AA
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	VYE06 (VT-BN)	22	TRANSMISSION CAN -	2L1T-14474-AA
14	VYE05 (BU)	22	TRANSMISSION CAN +	2L1T-14474-AA
15	CPL26 (GN-VT)	22	SWITCH - LATCH DRIVER # AJAR	2L1T-14474-AA
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	GD284 (BK-GY)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 4TH POINT	2L1T-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1399

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-LA

Gauge:

20

Pin material:

Tin (greased)

Cavities:

18

Vehicle Uses:

• Module - Gear Shift
