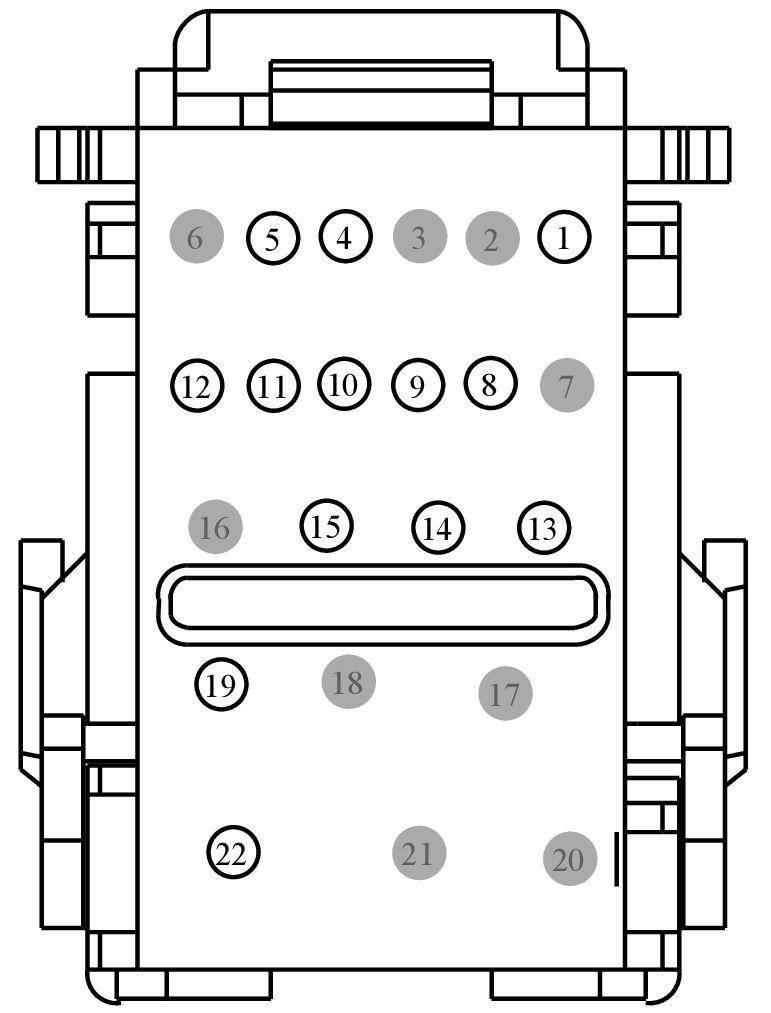

Connector End View (C2280A) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280A	BODY CONTROL MODULE (BCM)	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-UA	DU2Z-14474-DA	1.5
EU5T-14474-EA	EU2Z-14474-AA	2.8
EU5T-14474-FA	EU2Z-14474-AA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCB08 (VT-WH)	22	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	BU5T-14474-UA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CBP35 (YE-GY)	22	FUSE - 35 OR CIRCUIT BREAKER	BU5T-14474-UA
5	CBP17 (BN-GN)	22	FUSE - 17 OR CIRCUIT BREAKER	BU5T-14474-UA
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	SBP13 (GY-RD)	18	FUSE - 13 OR CIRCUIT BREAKER	7C3T-14474-DA
9	SBP31 (WH-RD)	22	FUSE - 31 OR CIRCUIT BREAKER	BU5T-14474-UA
10	SBP12 (GN-WH)	18	FUSE - 12 OR CIRCUIT BREAKER	7C3T-14474-DA|7C3T-14474-EA
10	SBP12 (GN-WH)	22	FUSE - 12 OR CIRCUIT BREAKER	7C3T-14474-DA|7C3T-14474-EA
11	SBP19 (BU-RD)	22	FUSE - 19 OR CIRCUIT BREAKER	BU5T-14474-UA
12	SBP20 (GN)	26	FUSE - 20 OR CIRCUIT BREAKER	7C3T-14474-DA|7C3T-14474-EA
12	SBP20 (GN-RD)	22	FUSE - 20 OR CIRCUIT BREAKER	7C3T-14474-DA|7C3T-14474-EA
12	SBP20 (GN-RD)	14	FUSE - 20 OR CIRCUIT BREAKER	7C3T-14474-DA|7C3T-14474-EA
13	CBP30 (YE-BU)	22	FUSE - 30 OR CIRCUIT BREAKER	EU5T-14474-EA|EU5T-14474-BAA
14	CDC35 (BU-WH)	22	SWITCH - IGNITION # RUN; START	EU5T-14474-EA
15	CBP36 (BU-BN)	18	FUSE - 36 OR CIRCUIT BREAKER	EU5T-14474-FA
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	SBP15 (WH-RD)	22	FUSE - 15 OR CIRCUIT BREAKER	EU5T-14474-BAA|EU5T-14474-FA
19	SBP15 (WH-RD)	14	FUSE - 15 OR CIRCUIT BREAKER	EU5T-14474-BAA|EU5T-14474-FA
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	SBP32 (VT-RD)	12	FUSE - 32 OR CIRCUIT BREAKER	CU5T-14474-RA
