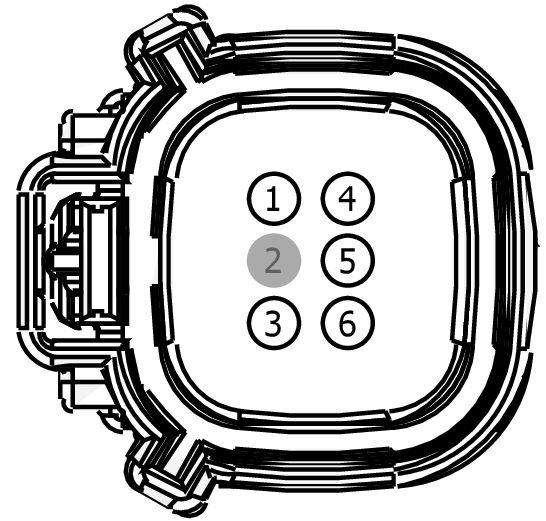

Connector End View (C1792) - TRANSMISSION FLUID AUXILIARY PUMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1792	TRANSMISSION FLUID AUXILIARY PUMP	NA	7G276	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (GN-VT)	14	RUN/START	N/A
2	*	*	Not Used	N/A
3	* (YE-OG)	20	TASV-B	N/A
4	* (GY-OG)	20	ATFPC CMD	N/A
5	* (VT)	20	ATFPM RPT	N/A
6	* (BK-YE)	14	GROUND	N/A
