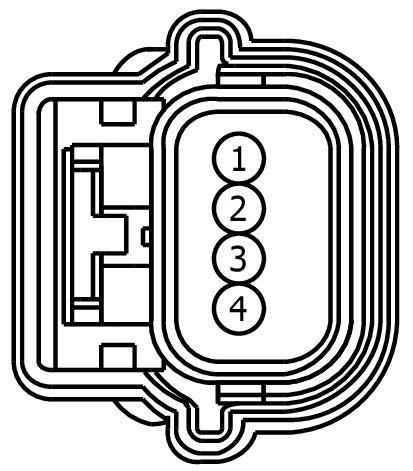

Connector End View (C167) - TRANSMISSION RANGER (TR) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C167	TRANSMISSION RANGER (TR) SENSOR	BN	7G276	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	N/A
2	* (BN-GN)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1)	N/A
3	* (YE-GY)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2)	N/A
4	* (BU)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1569

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGB

Gauge:

20

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Motor - Active Grill Shutter
• Sensor - Brake Pedal Position
• Sensor - Clutch Master Cylinder
• Sensor - Gear Neutral
