Remote Brake Fluid Reservoir: Installation

  1. To install, reverse the removal procedure.

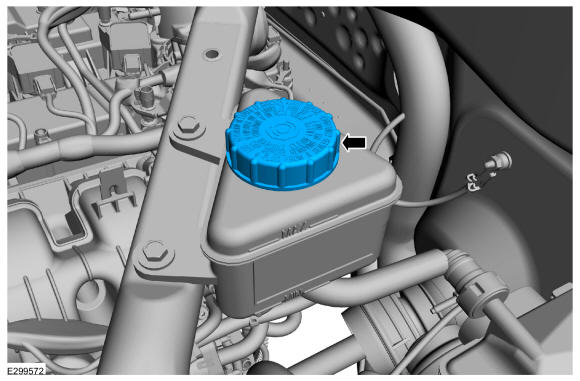

  2. Remove the remote brake fluid reservoir cap.
    GFD510237Courtesy of FORD MOTOR COMPANY

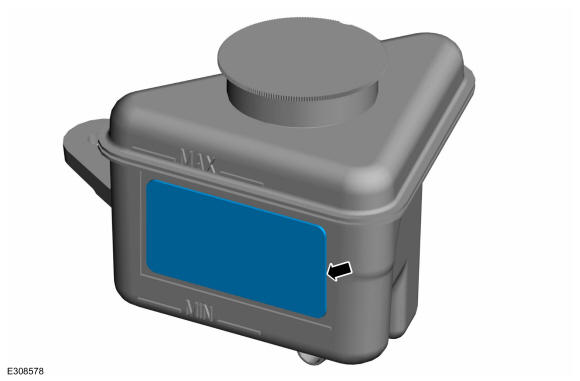

  3. If provided with the service kit. Replace the translation label.
    GFD510238Courtesy of FORD MOTOR COMPANY

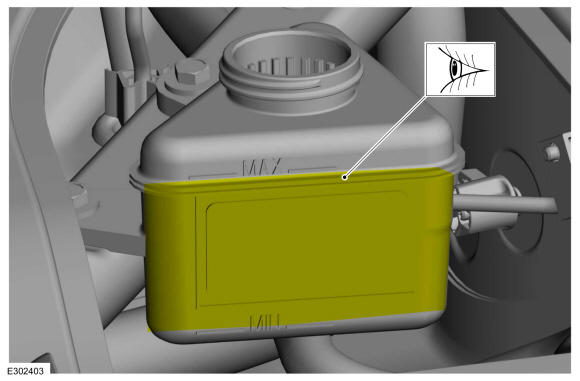

  4. Fill the reservoir with clean, specified brake fluid. Refer to: Specifications .
GFD510239Courtesy of FORD MOTOR COMPANY
