Brake Pedal and Bracket: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the BCM. Refer to: Body Control Module (BCM) .
NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. The switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

Remove the stoplamp switch. Refer to: Stoplamp Switch .

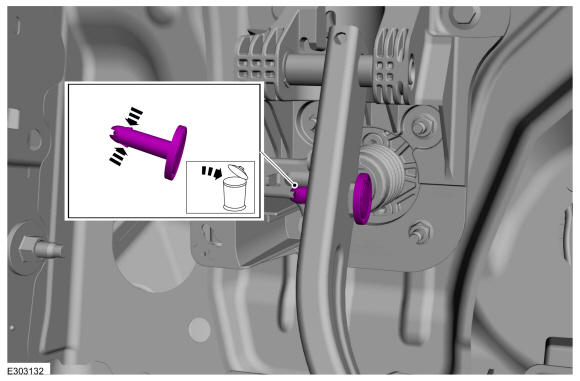

Push inward on the tabs and remove the clevis pin. Discard the clevis pin.

Courtesy of FORD MOTOR COMPANY

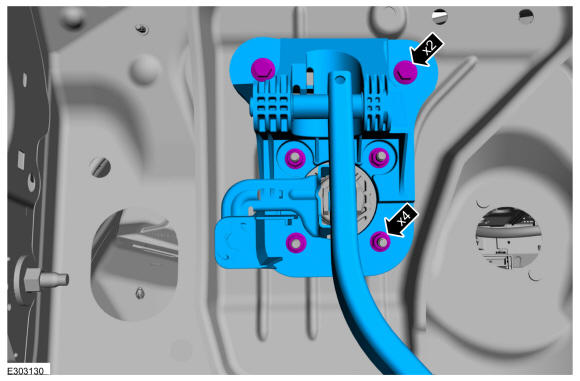

Remove the brake pedal and bracket assembly mounting nuts and bolts. Discard the nuts and bolts.

Courtesy of FORD MOTOR COMPANY
