Rear Parking Aid Sensor: Removal

WARNING: This page is about a different car, the 2020 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This procedure can be used for all locations of the component.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .
  2. Remove the rear parking aid sensor.

    1. Disconnect the rear parking aid sensor electrical connector.
    2. Release the tabs.
    3. Remove the rear parking aid sensor from the bracket.

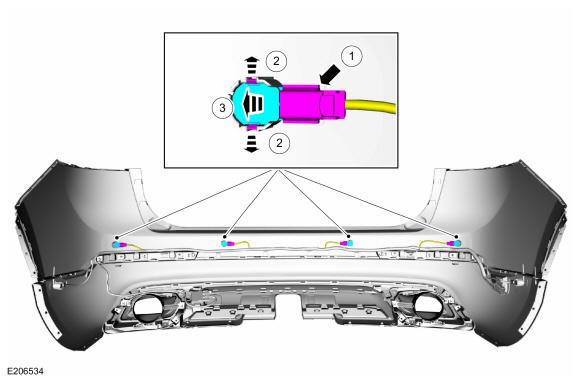

GFD539922Courtesy of FORD MOTOR COMPANY
