Module Communications Network

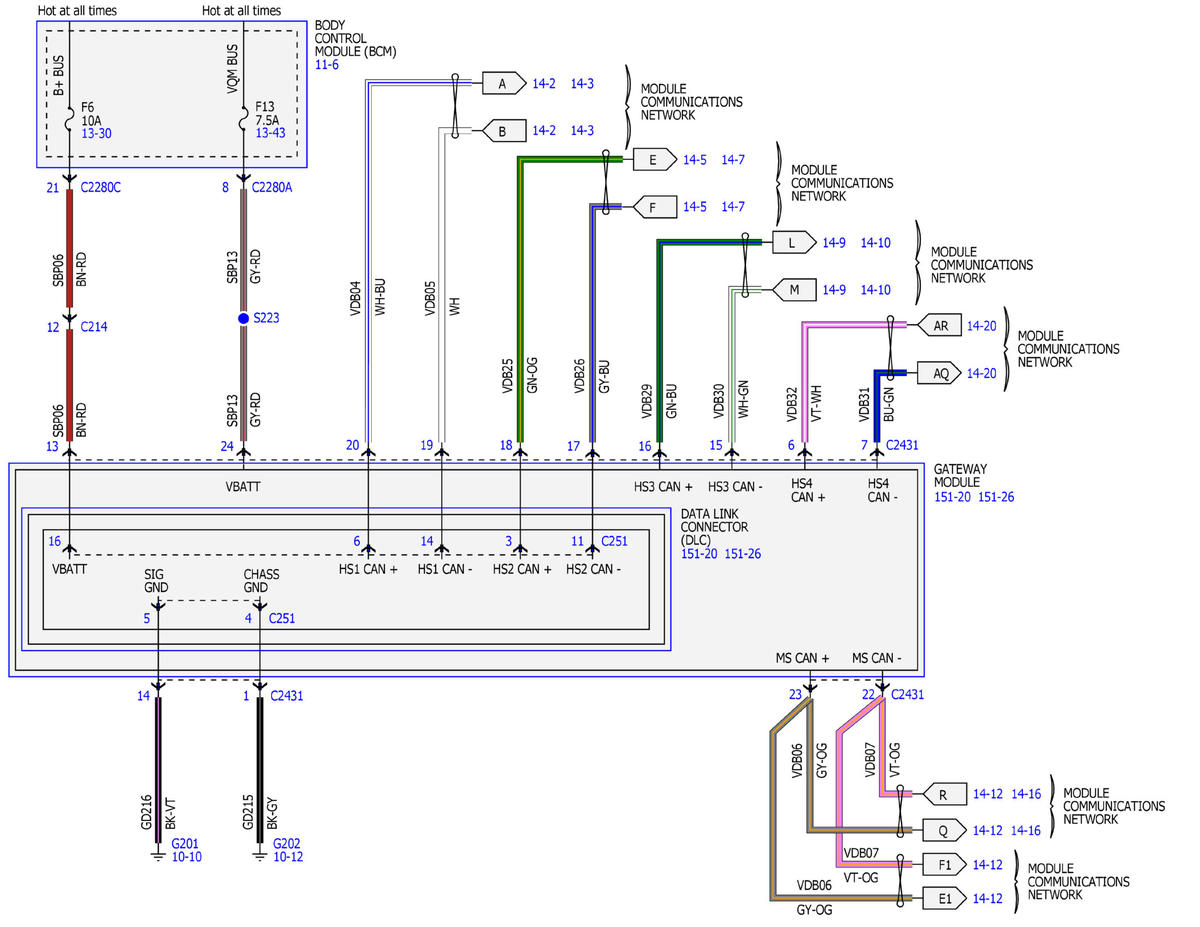

Fig 1: Module Communications Network Wiring Diagrams (1 Of 20)

GFDWR134992

Courtesy of FORD MOTOR COMPANY

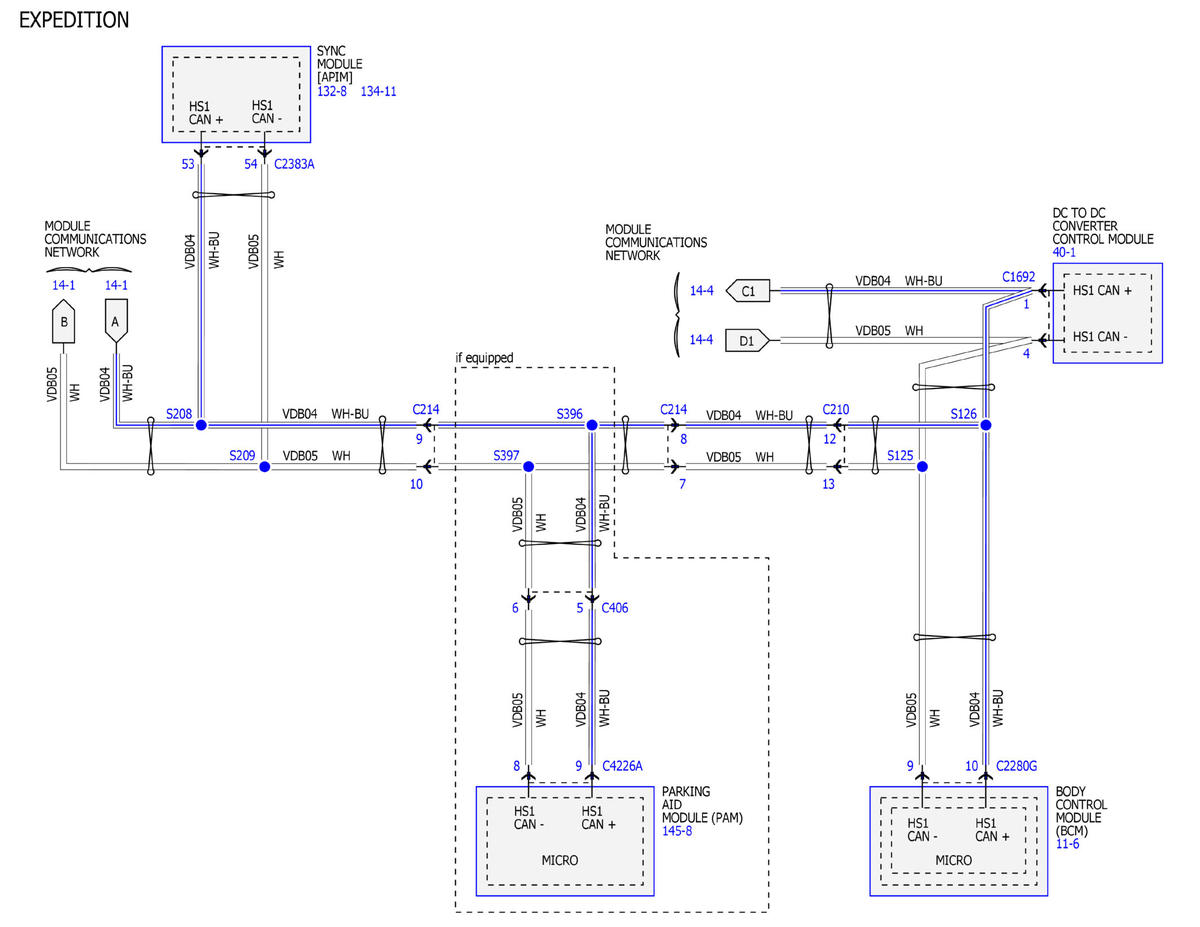

Fig 2: Module Communications Network Wiring Diagrams (2 Of 20)

GFDWR135003

Courtesy of FORD MOTOR COMPANY

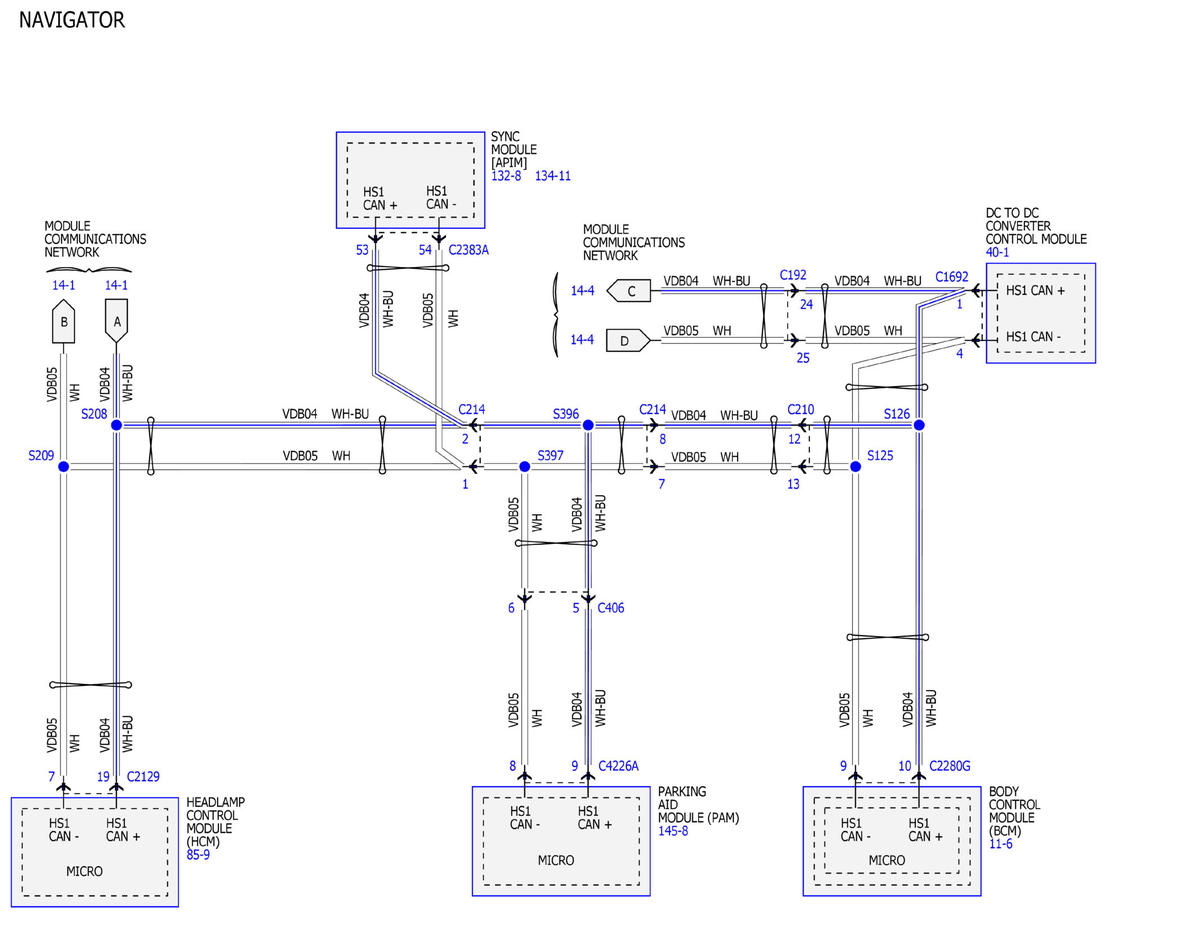

Fig 3: Module Communications Network Wiring Diagrams (3 Of 20)

GFDWR135005

Courtesy of FORD MOTOR COMPANY

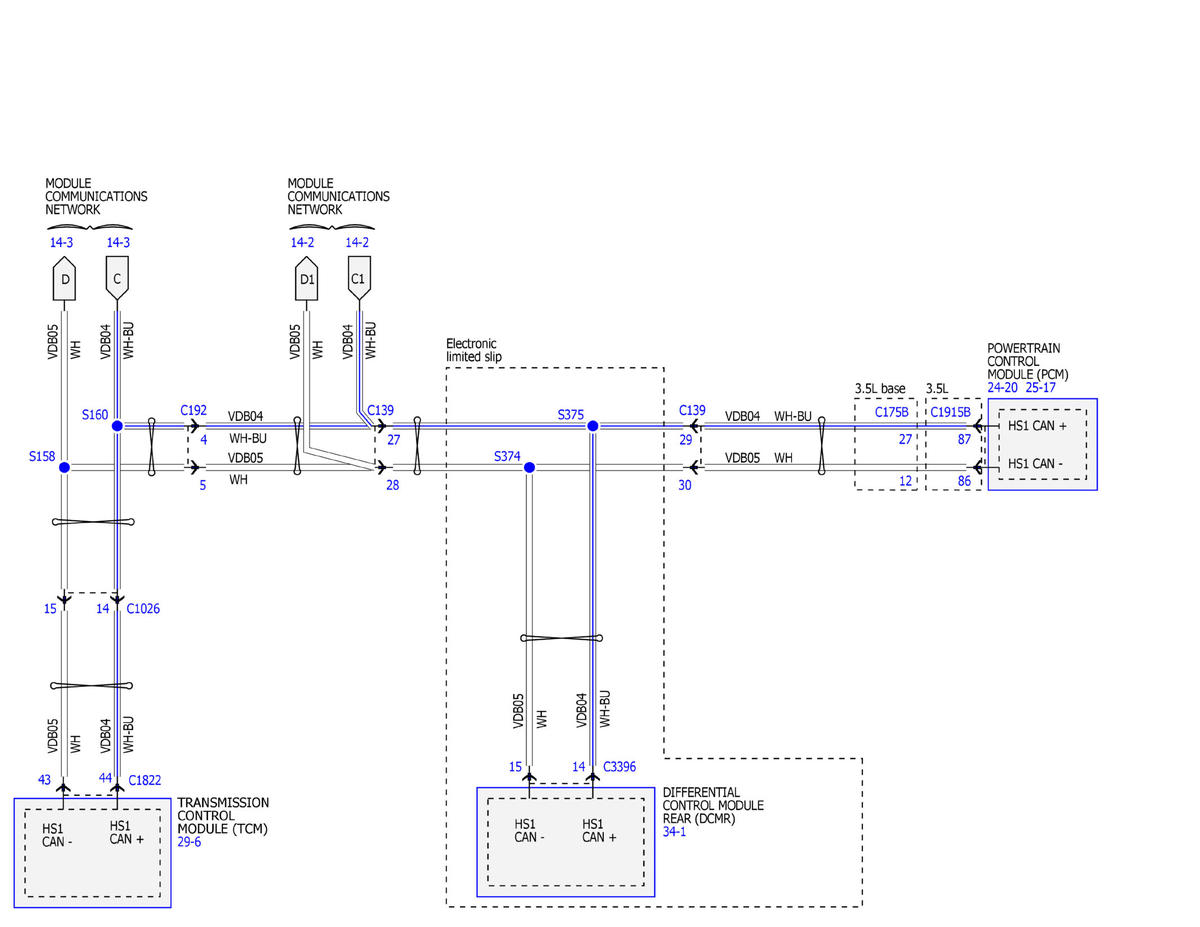

Fig 4: Module Communications Network Wiring Diagrams (4 Of 20)

GFDWR135006

Courtesy of FORD MOTOR COMPANY

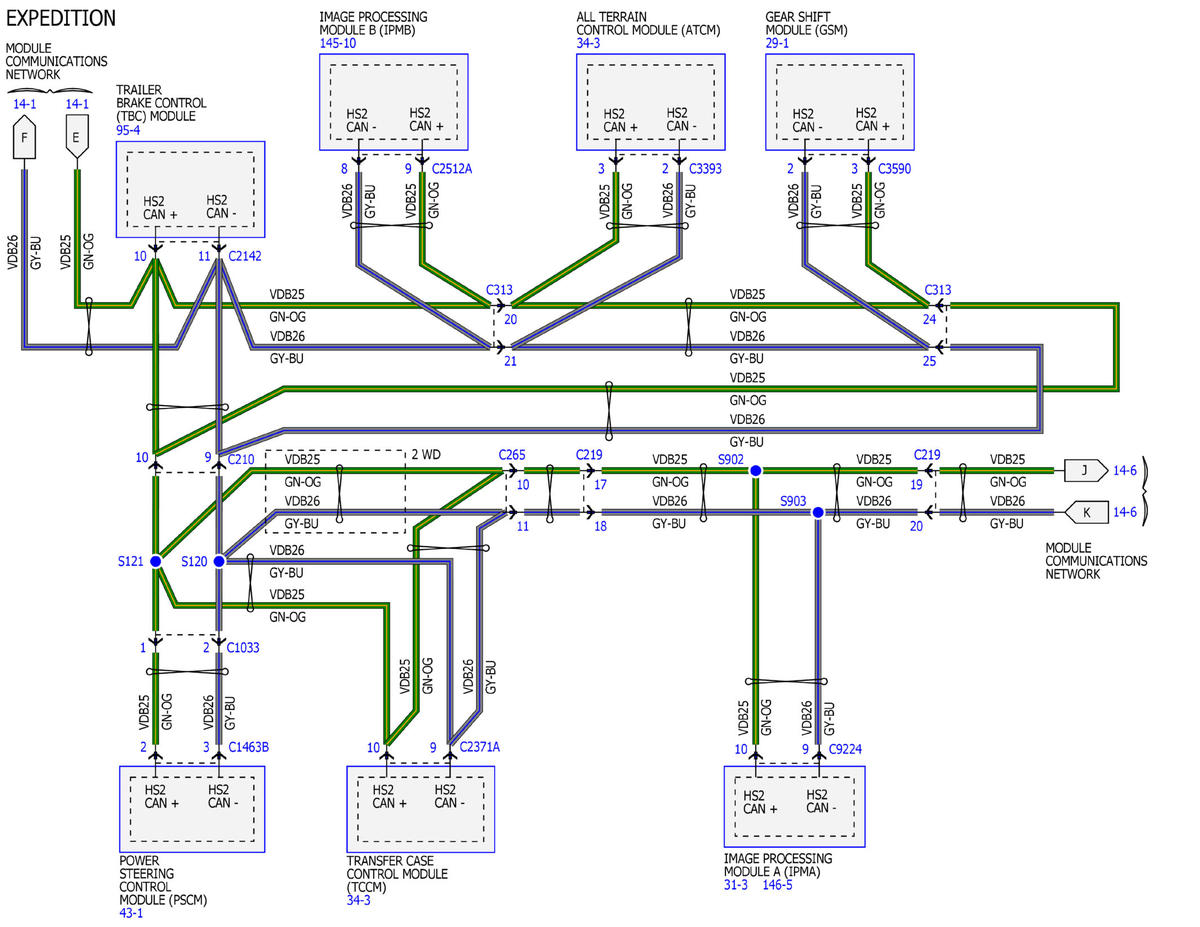

Fig 5: Module Communications Network Wiring Diagrams (5 Of 20)

GFDWR135007

Courtesy of FORD MOTOR COMPANY

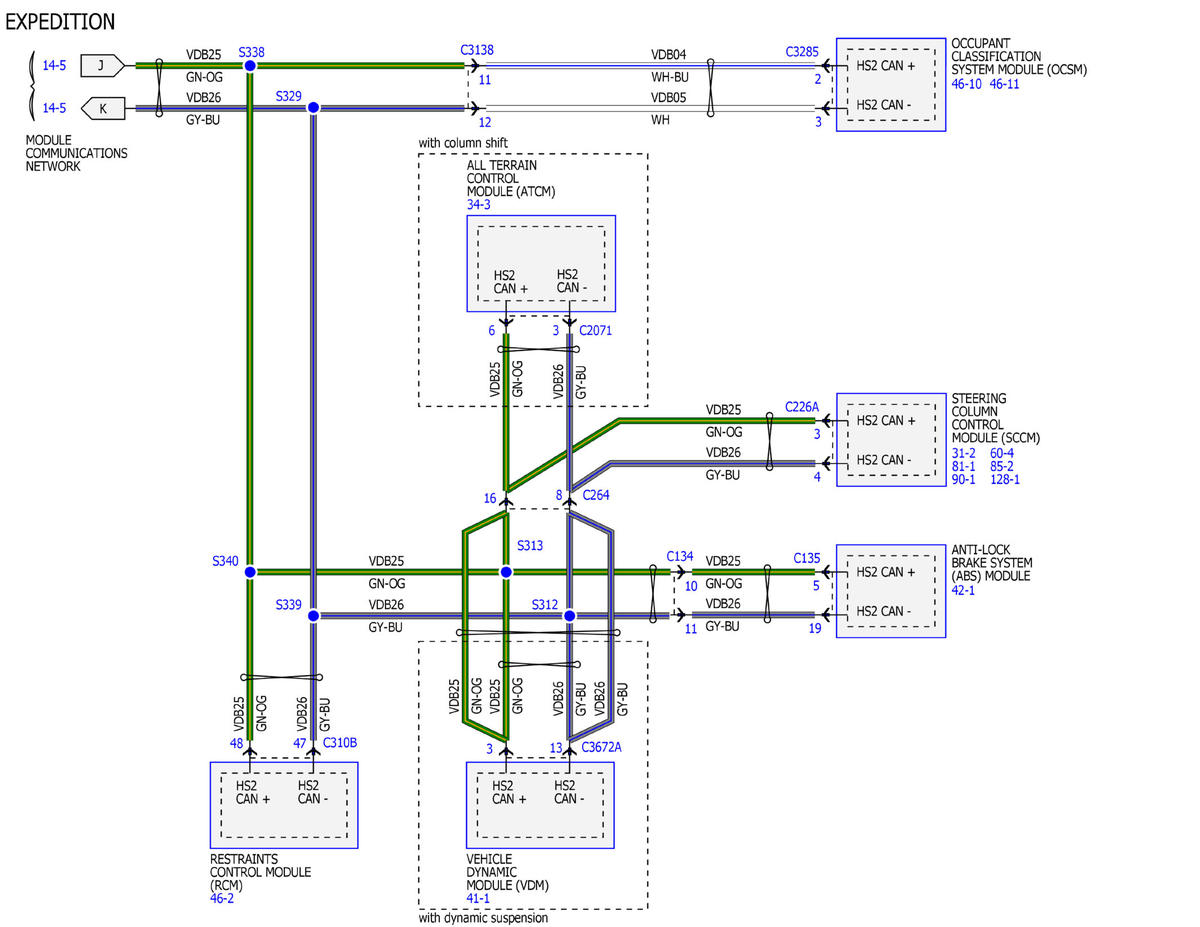

Fig 6: Module Communications Network Wiring Diagrams (6 Of 20)

GFDWR135008

Courtesy of FORD MOTOR COMPANY

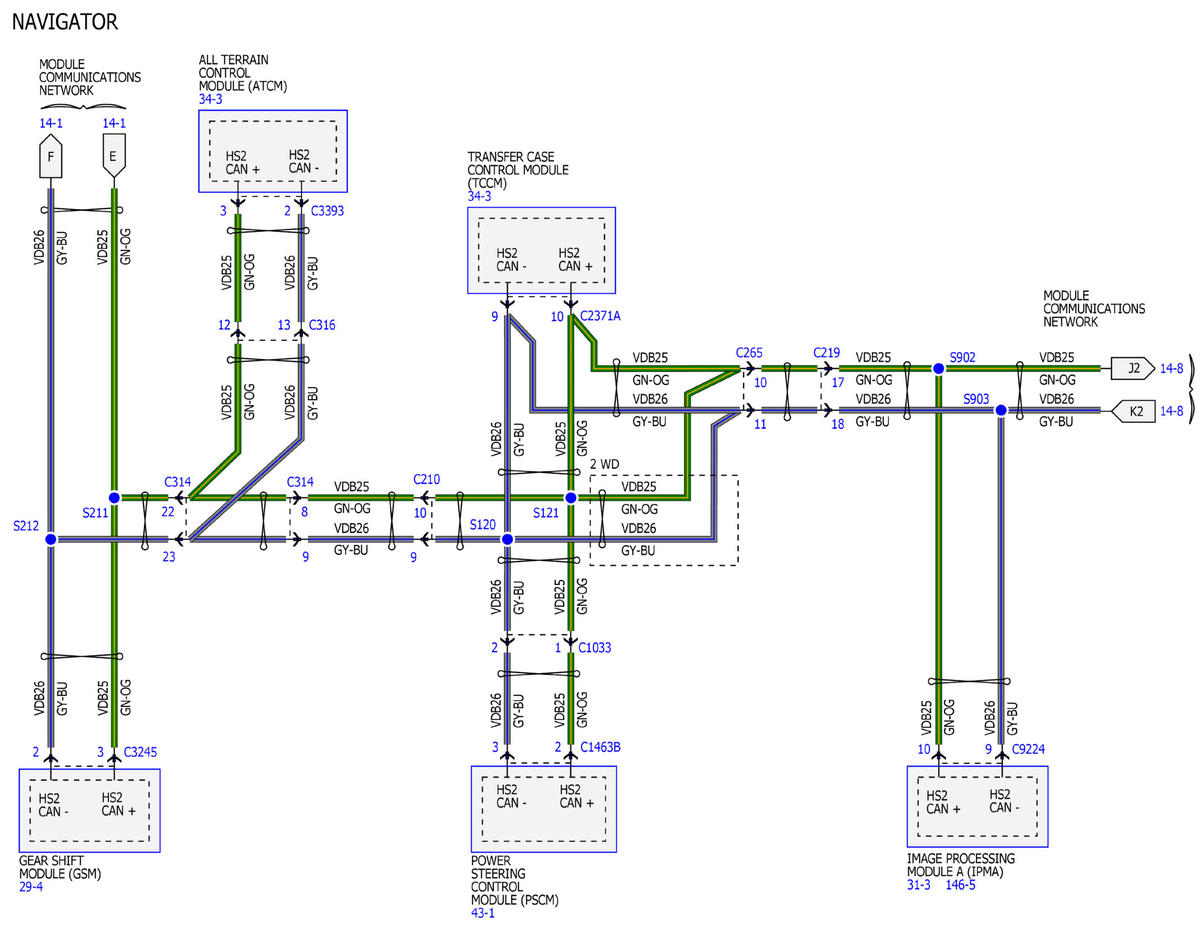

Fig 7: Module Communications Network Wiring Diagrams (7 Of 20)

GFDWR135009

Courtesy of FORD MOTOR COMPANY

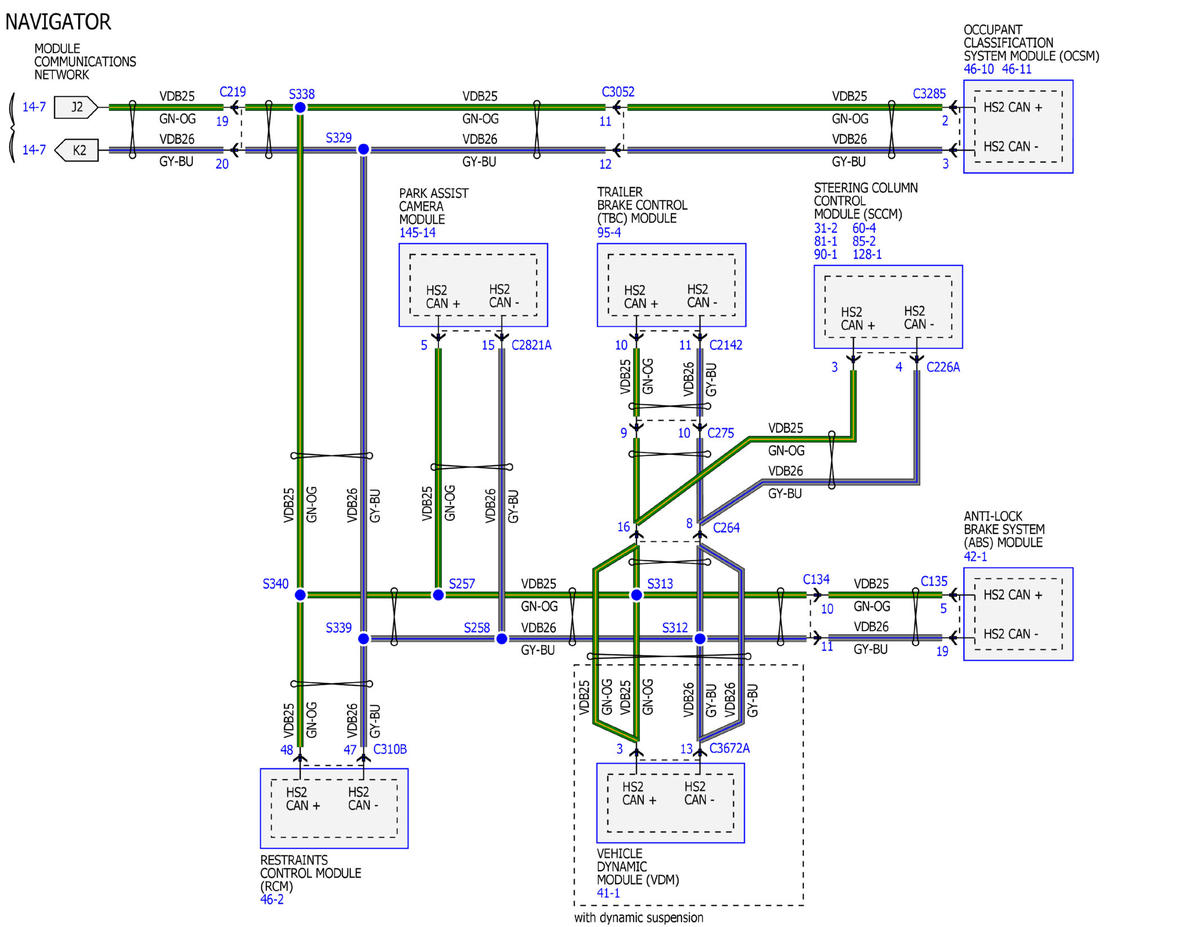

Fig 8: Module Communications Network Wiring Diagrams (8 Of 20)

GFDWR135010

Courtesy of FORD MOTOR COMPANY

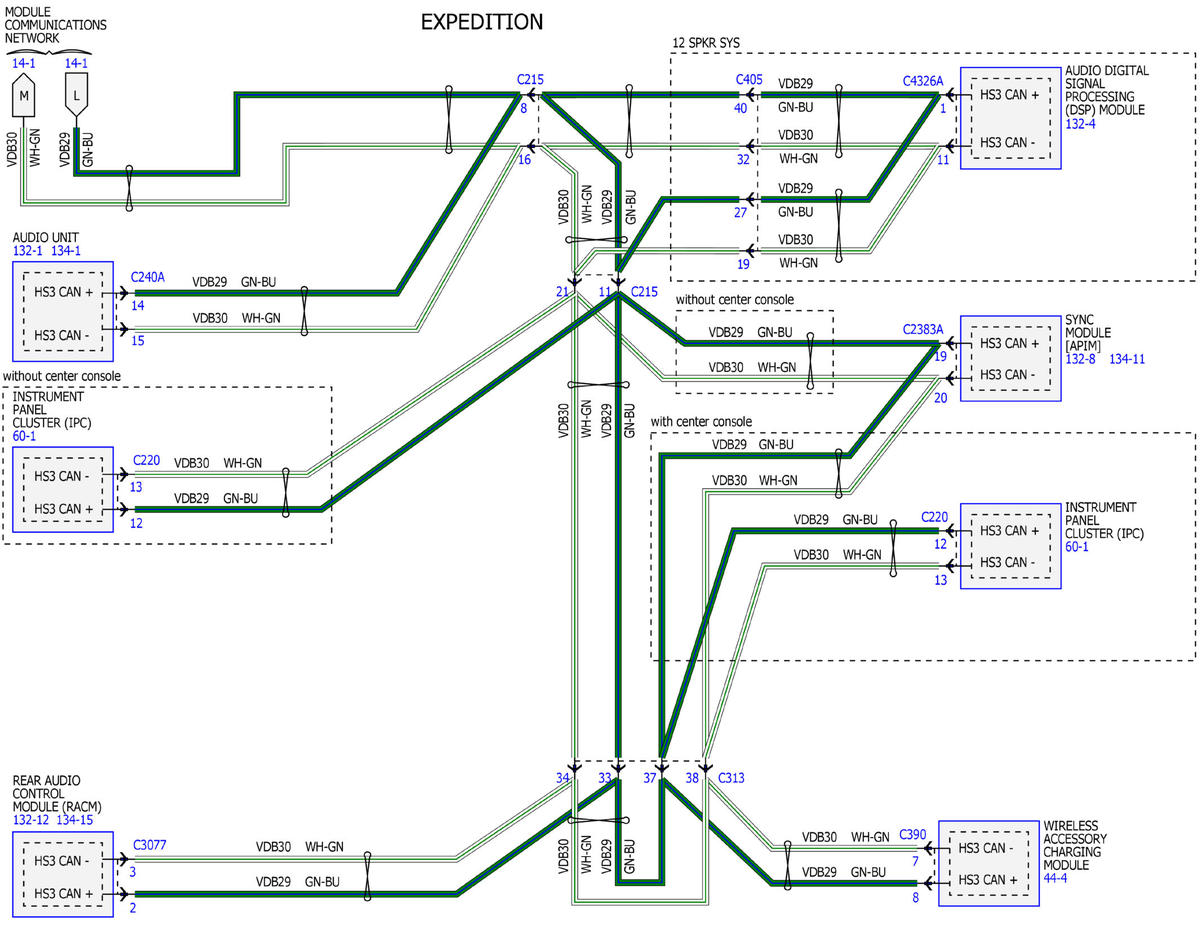

Fig 9: Module Communications Network Wiring Diagrams (9 Of 20)

GFDWR135011

Courtesy of FORD MOTOR COMPANY

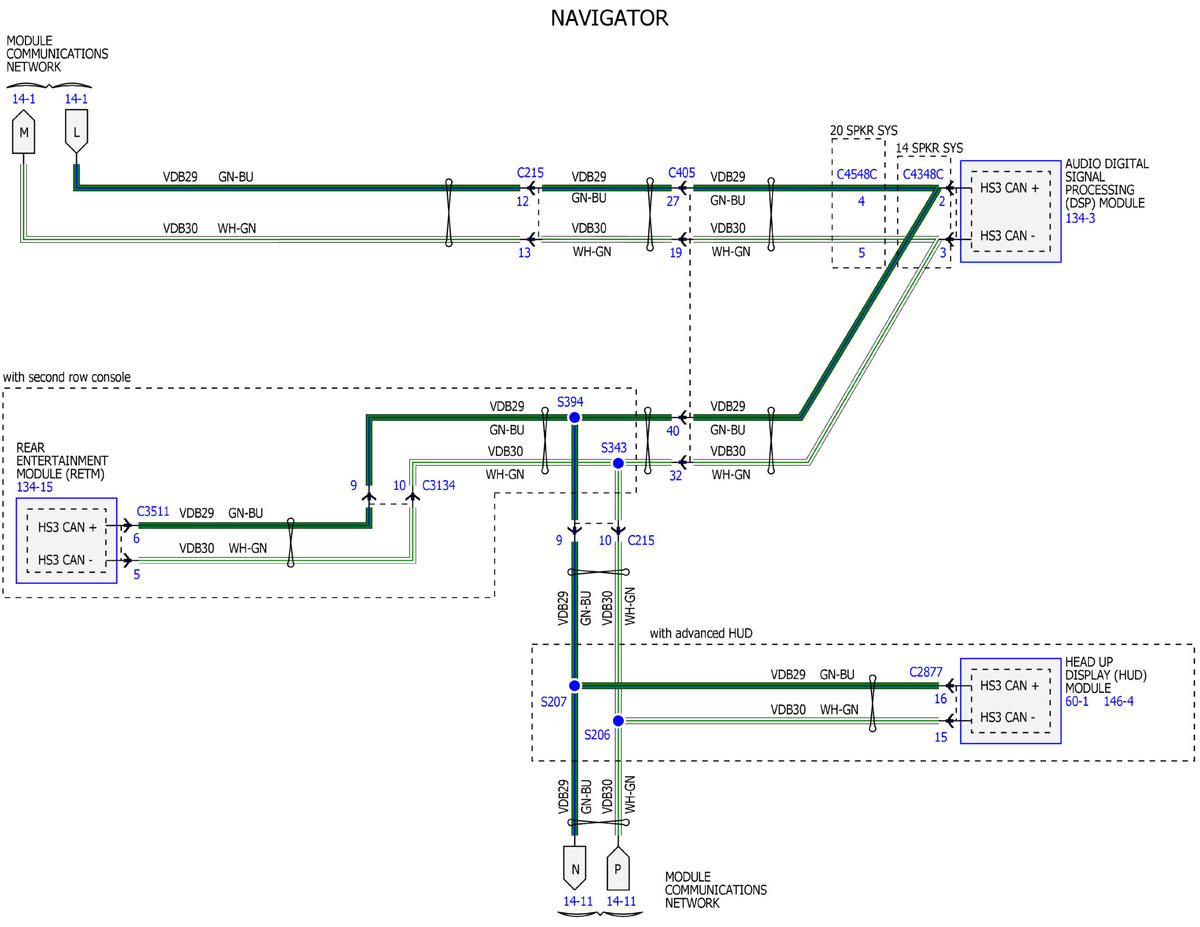

Fig 10: Module Communications Network Wiring Diagrams (10 Of 20)

GFDWR134993

Courtesy of FORD MOTOR COMPANY

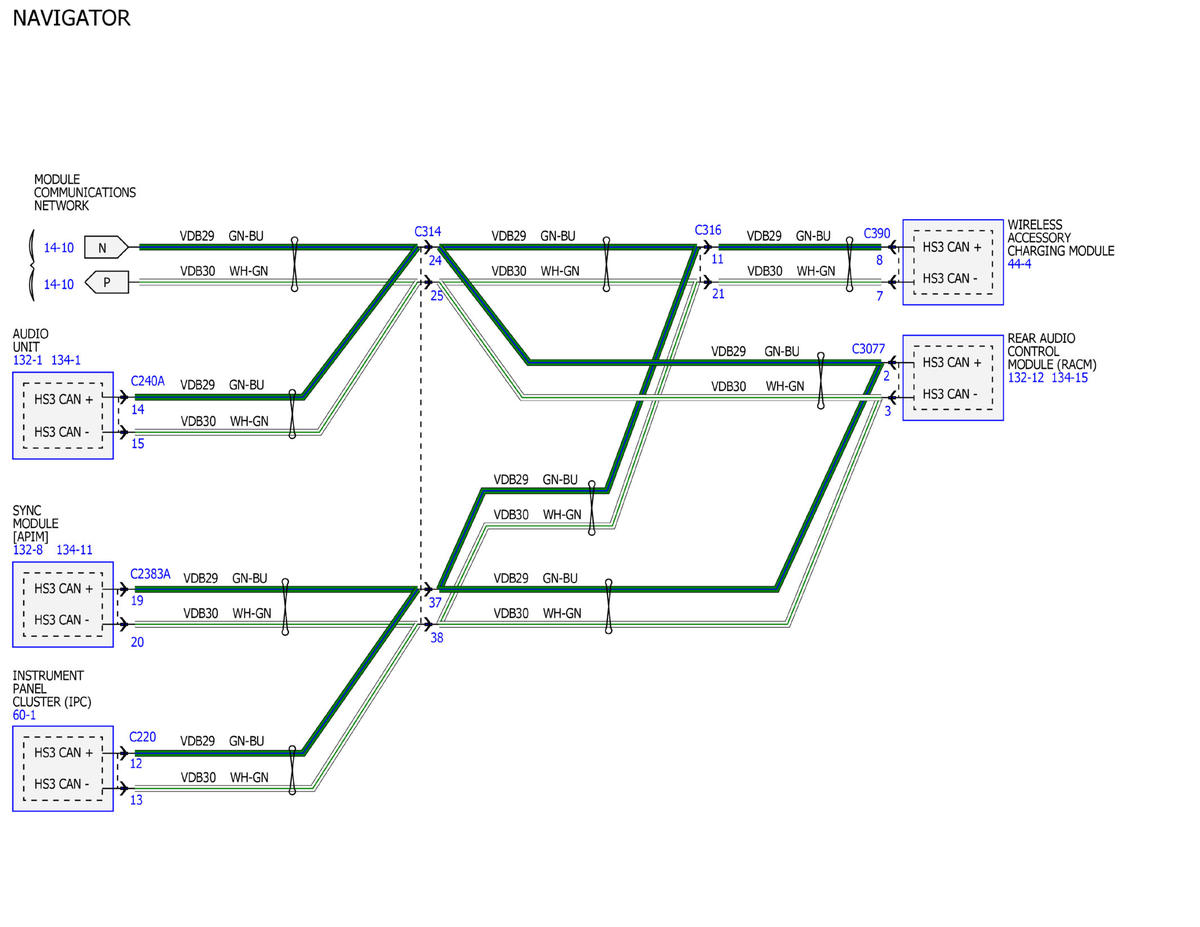

Fig 11: Module Communications Network Wiring Diagrams (11 Of 20)

GFDWR134994

Courtesy of FORD MOTOR COMPANY

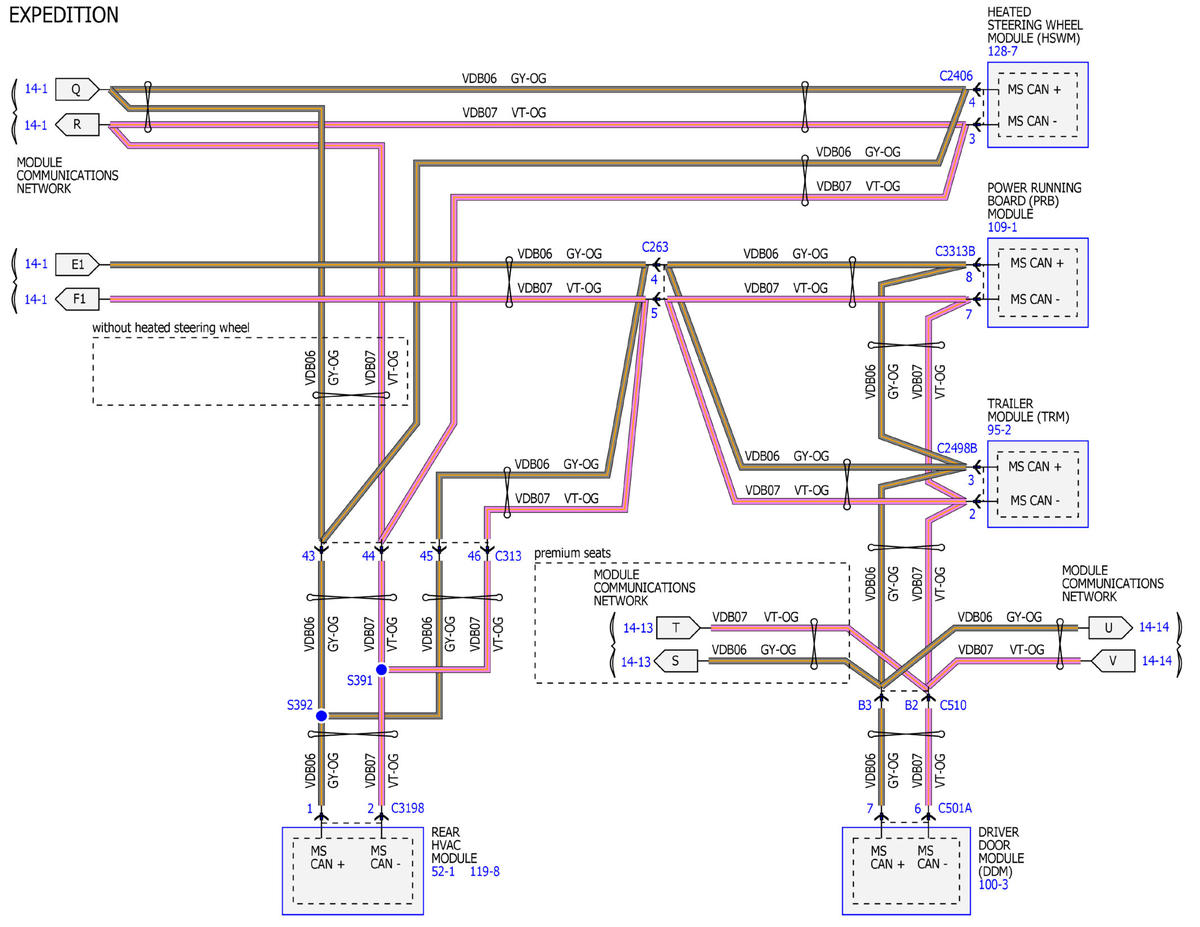

Fig 12: Module Communications Network Wiring Diagrams (12 Of 20)

GFDWR134995

Courtesy of FORD MOTOR COMPANY

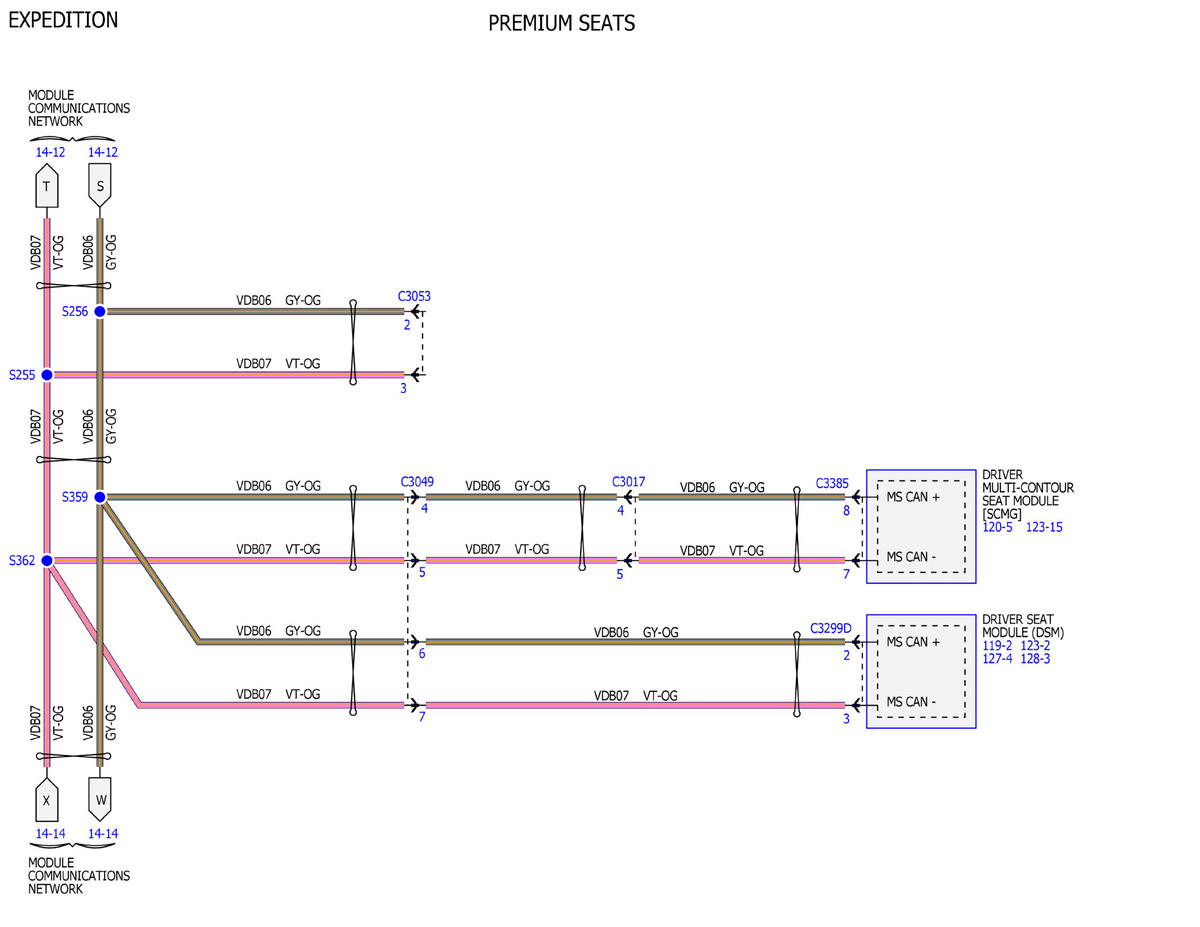

Fig 13: Module Communications Network Wiring Diagrams (13 Of 20)

GFDWR134996

Courtesy of FORD MOTOR COMPANY

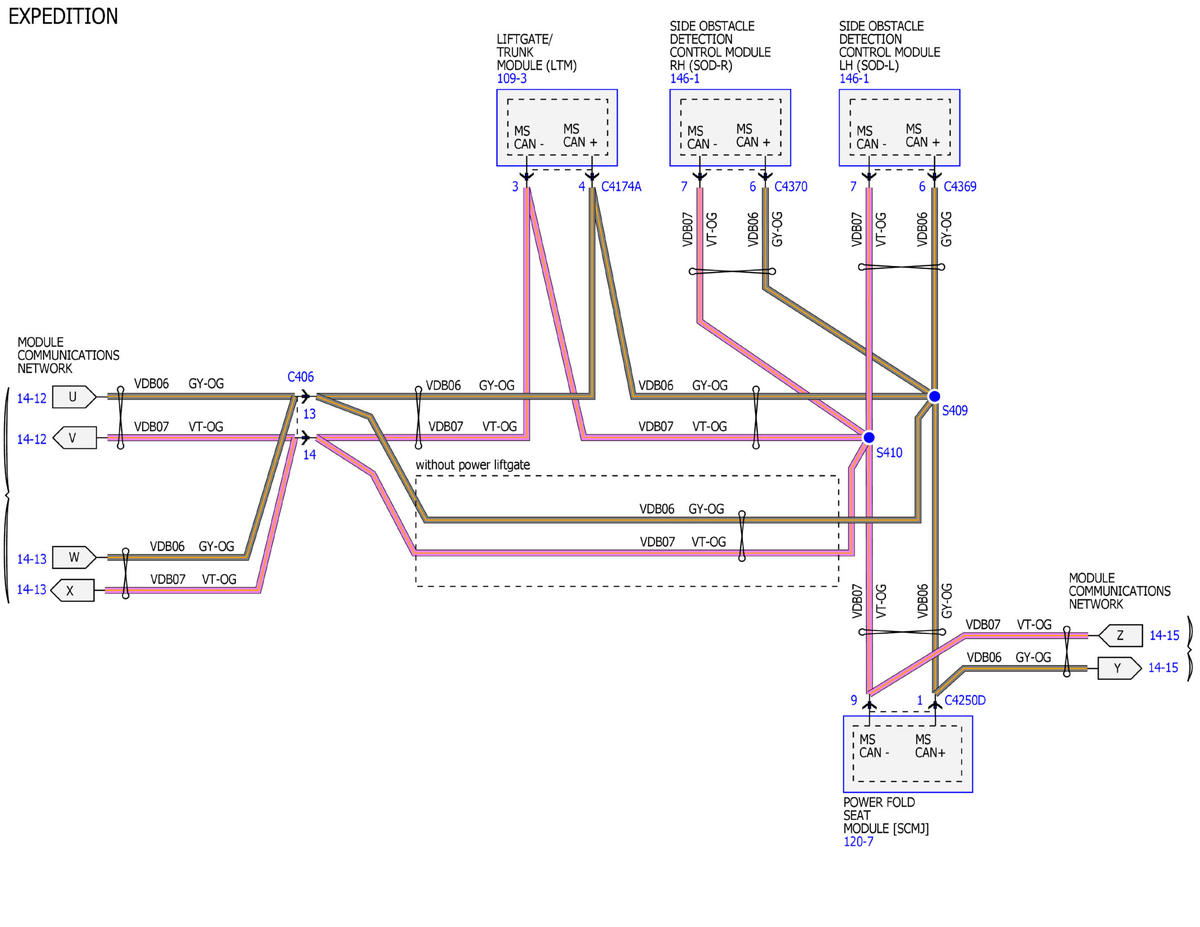

Fig 14: Module Communications Network Wiring Diagrams (14 Of 20)

GFDWR134997

Courtesy of FORD MOTOR COMPANY

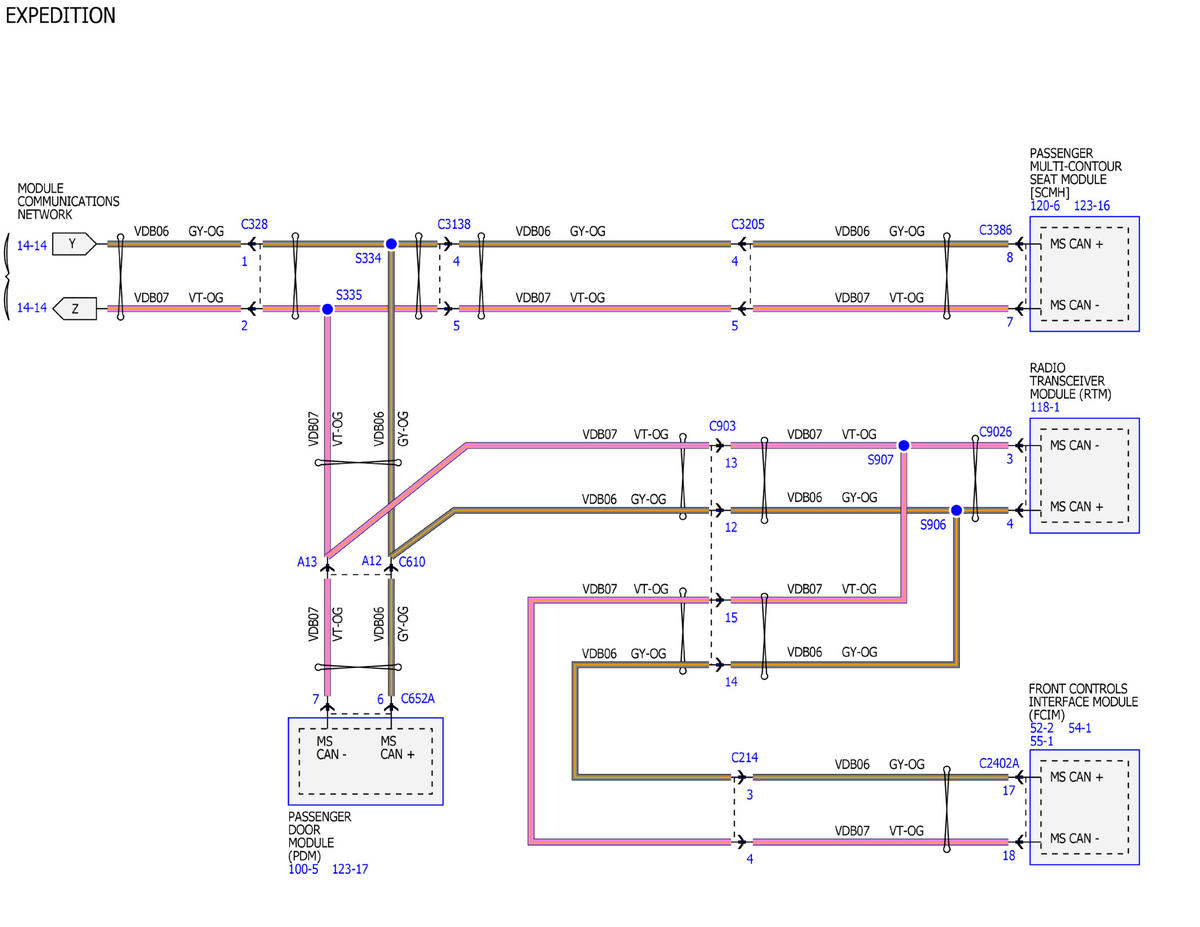

Fig 15: Module Communications Network Wiring Diagrams (15 Of 20)

GFDWR134998

Courtesy of FORD MOTOR COMPANY

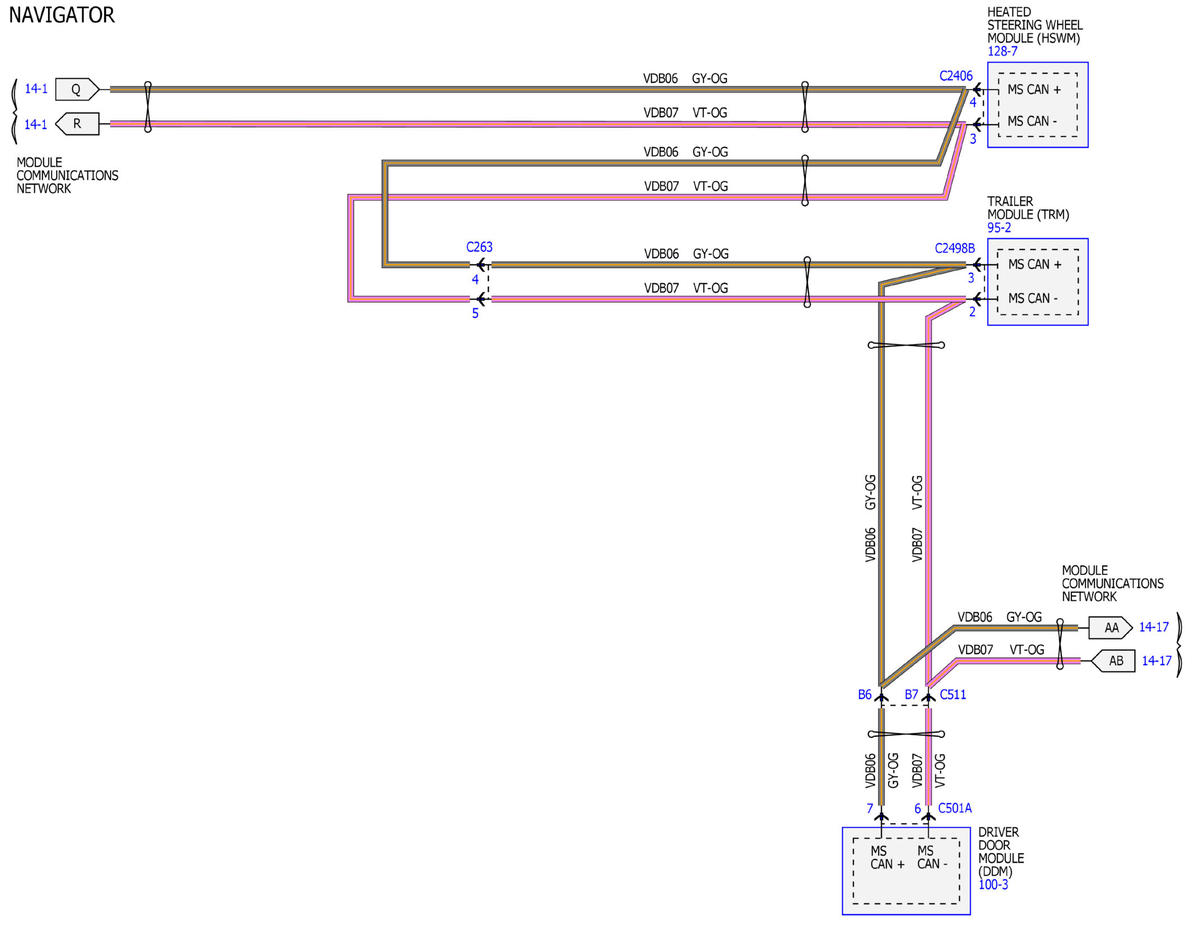

Fig 16: Module Communications Network Wiring Diagrams (16 Of 20)

GFDWR134999

Courtesy of FORD MOTOR COMPANY

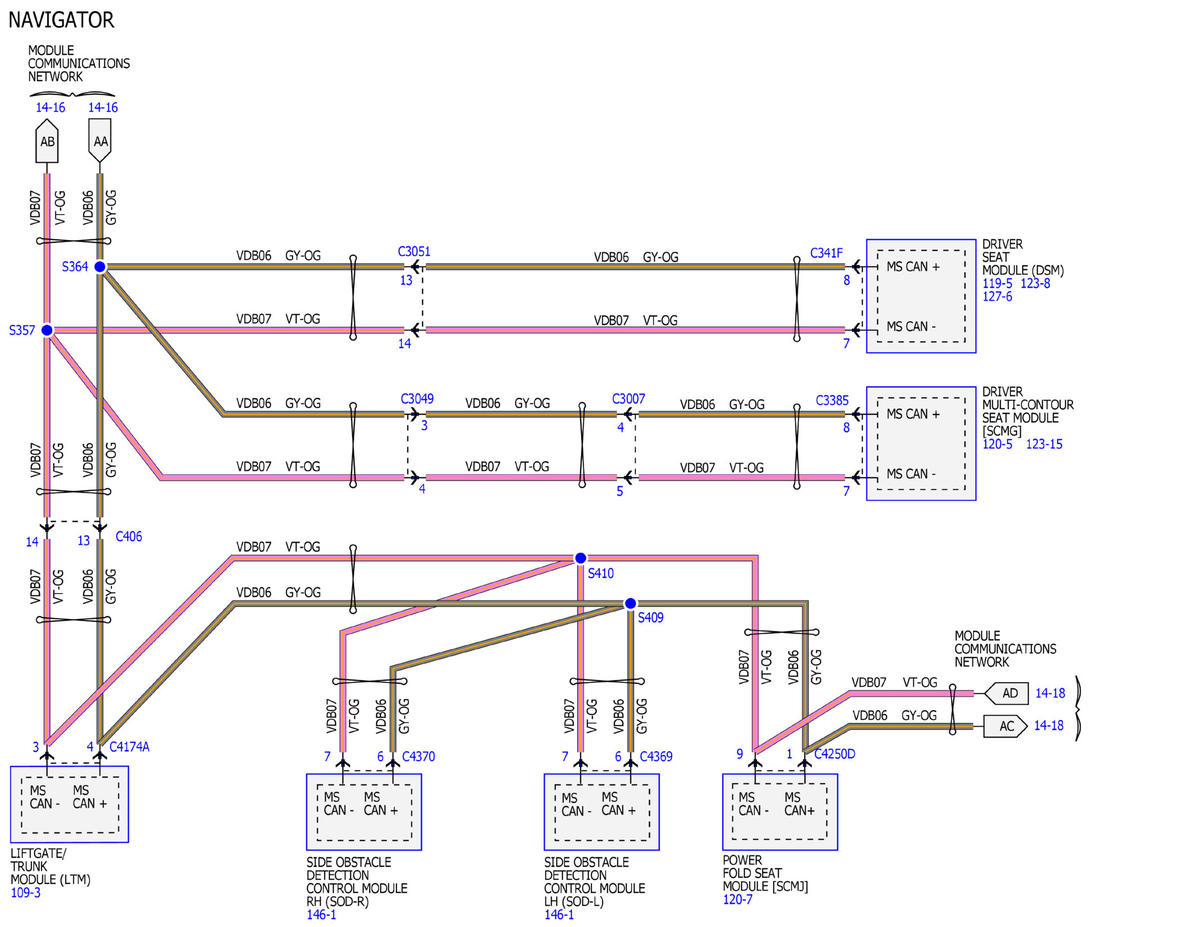

Fig 17: Module Communications Network Wiring Diagrams (17 Of 20)

GFDWR135000

Courtesy of FORD MOTOR COMPANY

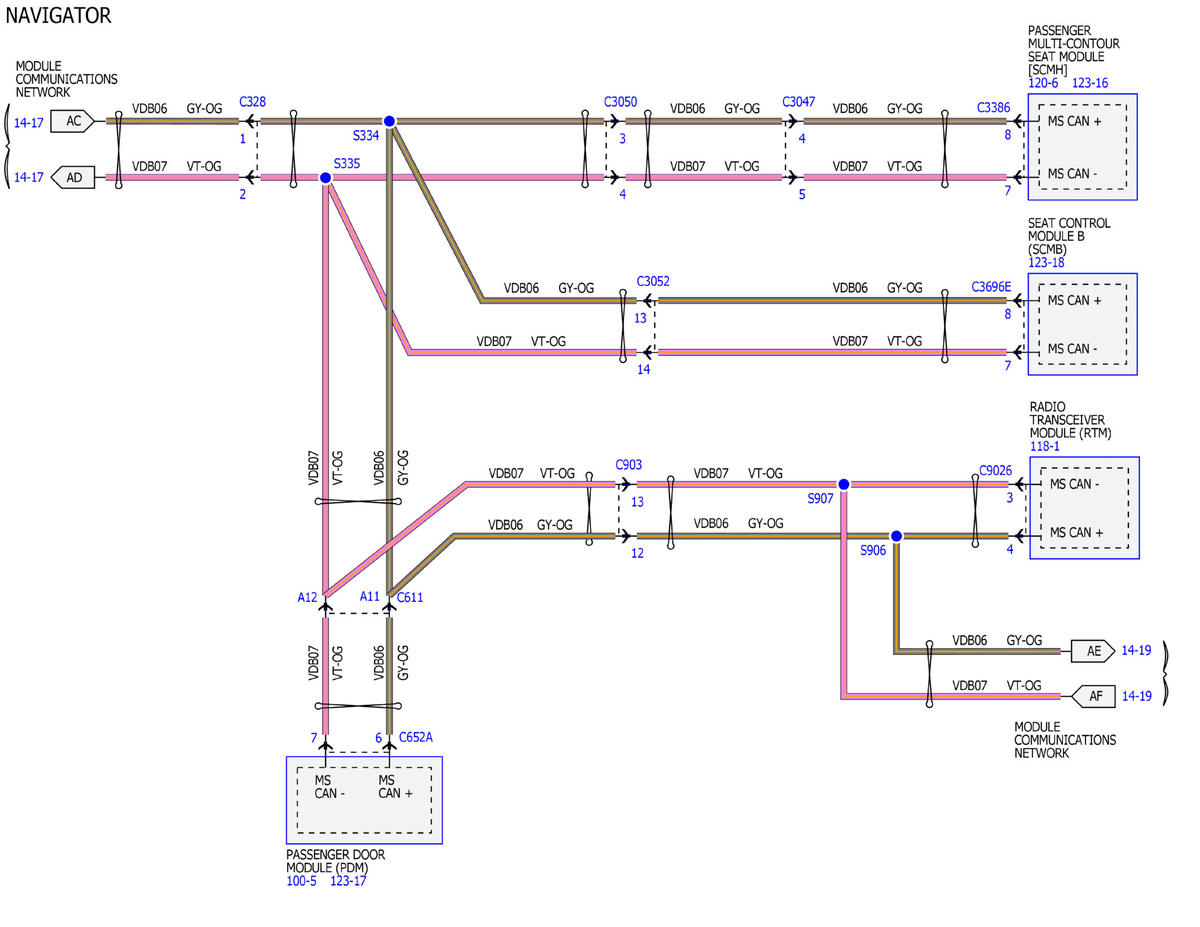

Fig 18: Module Communications Network Wiring Diagrams (18 Of 20)

GFDWR135001

Courtesy of FORD MOTOR COMPANY

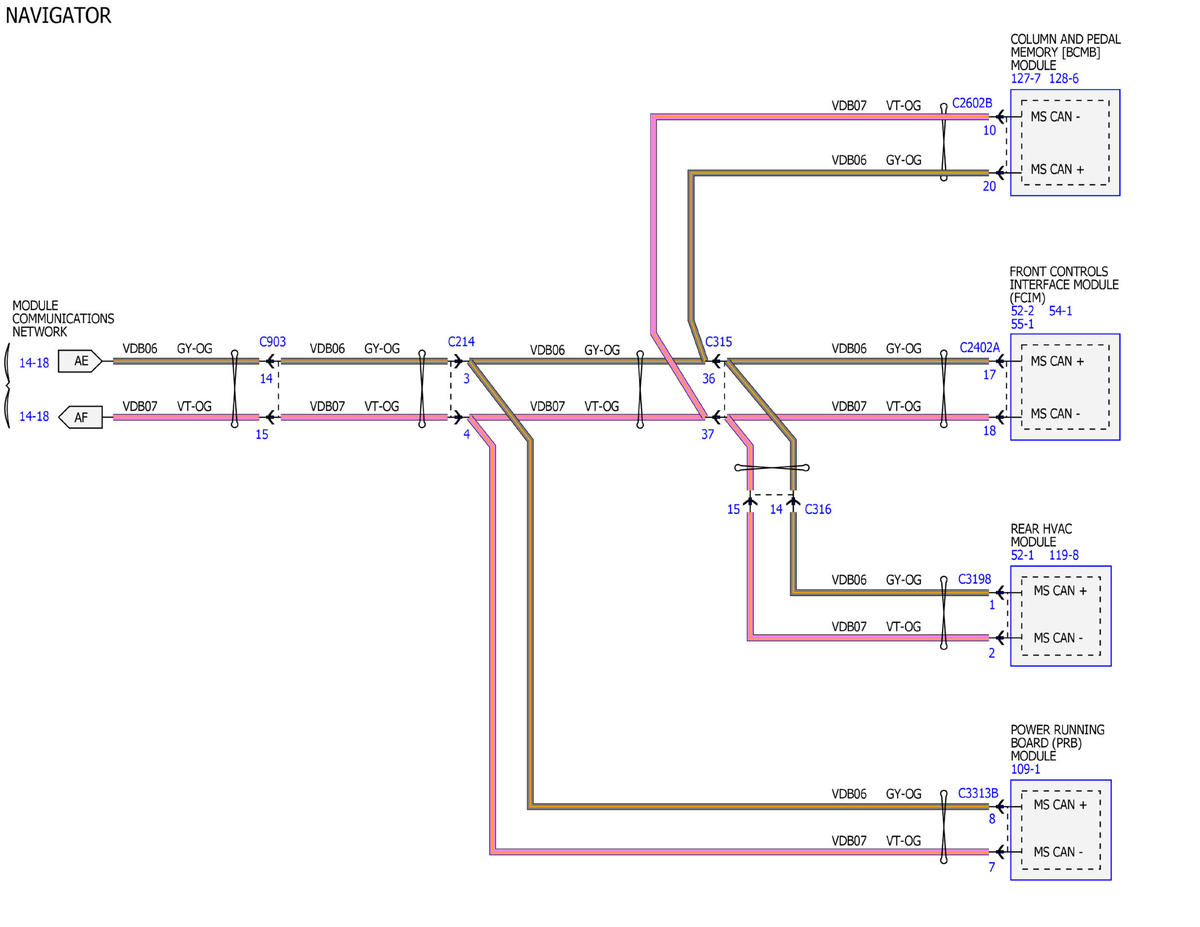

Fig 19: Module Communications Network Wiring Diagrams (19 Of 20)

GFDWR135002

Courtesy of FORD MOTOR COMPANY

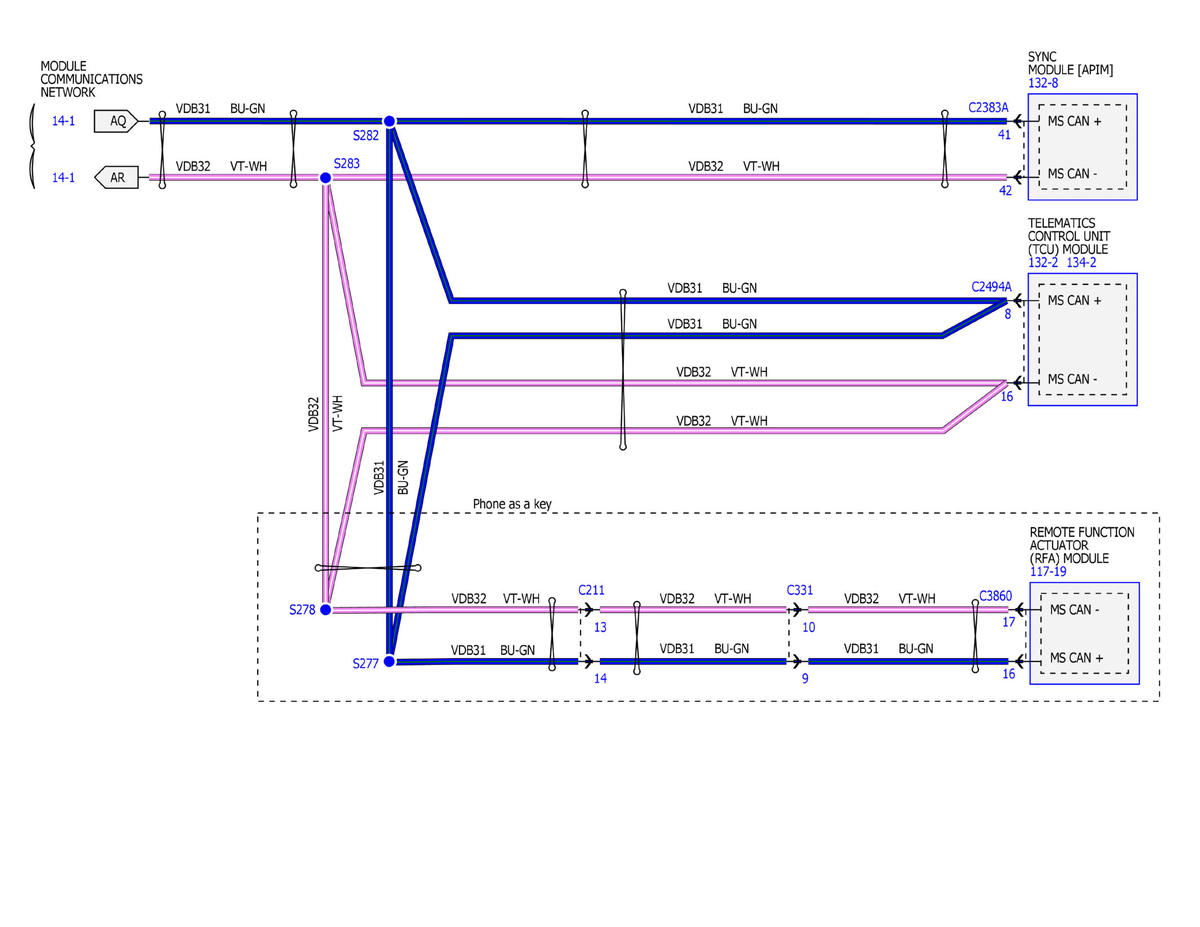

Fig 20: Module Communications Network Wiring Diagrams (20 Of 20)

GFDWR135004

Courtesy of FORD MOTOR COMPANY
