Instrument Panel: Removal

All vehicles

1. Depower the SRS Refer to: Supplemental Restraint System (SRS) Depowering .
2. Remove both A-pillar trim panels. Refer to: A-Pillar Trim Panel .
3. Remove both front seats. Refer to: Front Seat .

   Vehicles with floor console

4. Remove the floor console. Refer to: Floor Console  .

   Vehicles without floor console

5. Remove the bolts and the instrument panel lower trim panel.

   Torque

   : 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

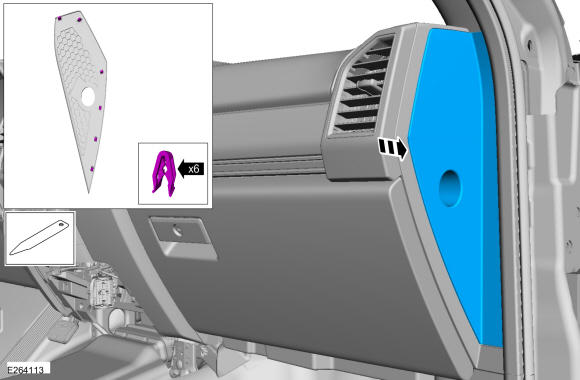

6. Release the clips and remove the RH instrument panel finish panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

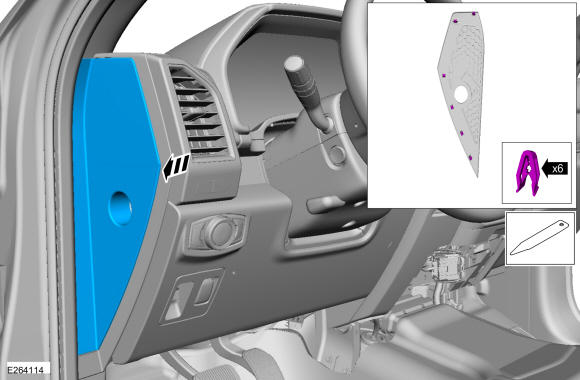

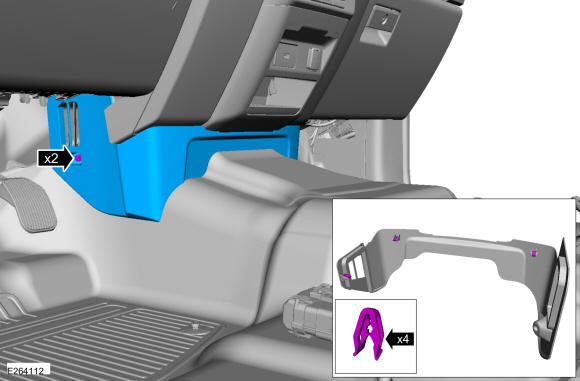

7. Release the clips and remove the LH instrument panel finish panel. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

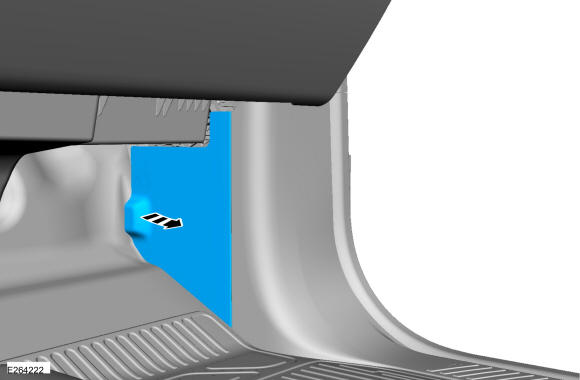

8. Remove the lower RH access door.

   Courtesy of FORD MOTOR COMPANY

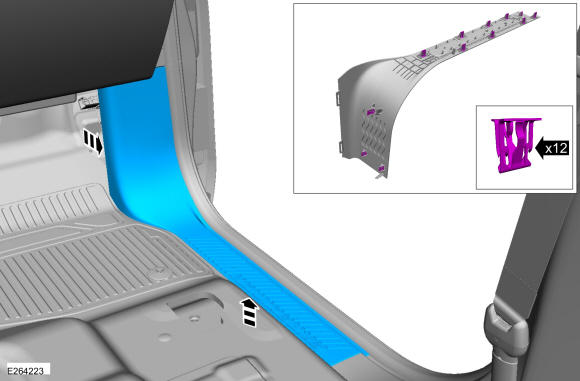

9. Release the clips and remove the RH scuff plate.

   Courtesy of FORD MOTOR COMPANY

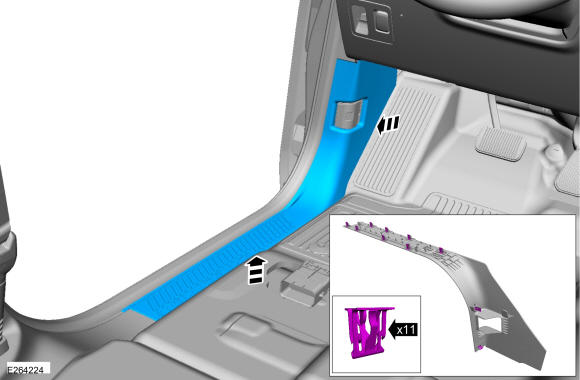

10. Release the clips and remove the LH scuff plate.

    Courtesy of FORD MOTOR COMPANY

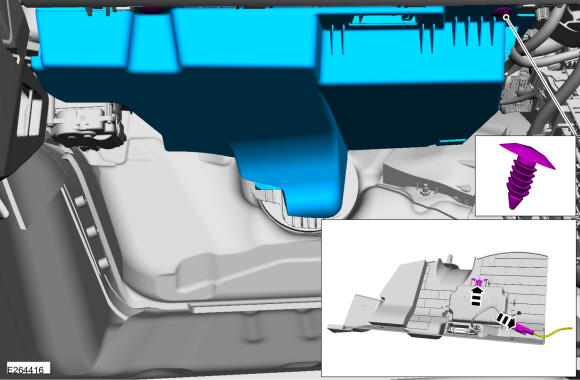

11. Remove the push pin and the remove RH insulation panel.
    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

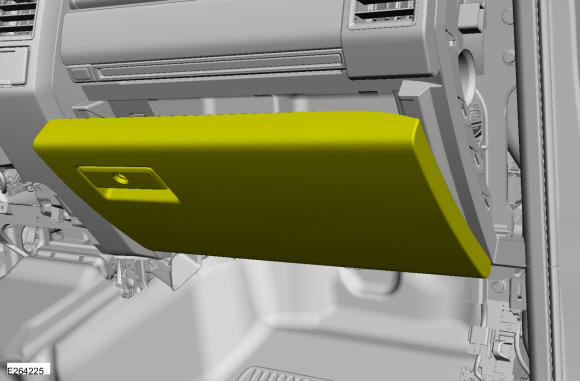

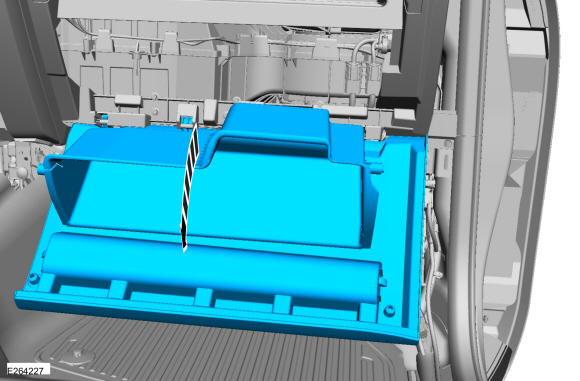

12. Partially lower the glove compartment door.

    Courtesy of FORD MOTOR COMPANY

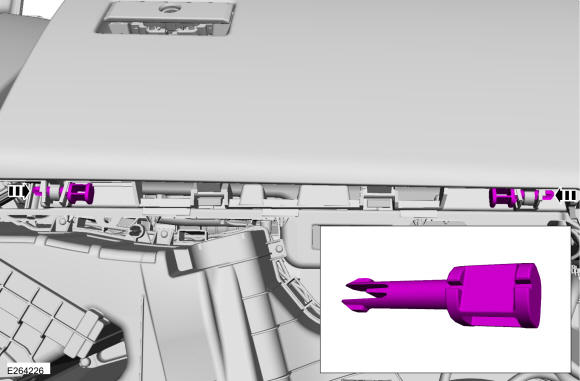

13. Remove the glove compartment hinge pins.

    Courtesy of FORD MOTOR COMPANY

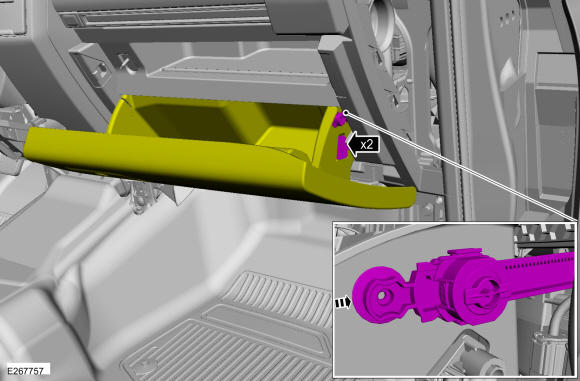

14. Remove the glove compartment check strap and release the stops.

    Courtesy of FORD MOTOR COMPANY

15. Rotate the glove compartment on the hinge and remove.

    Courtesy of FORD MOTOR COMPANY

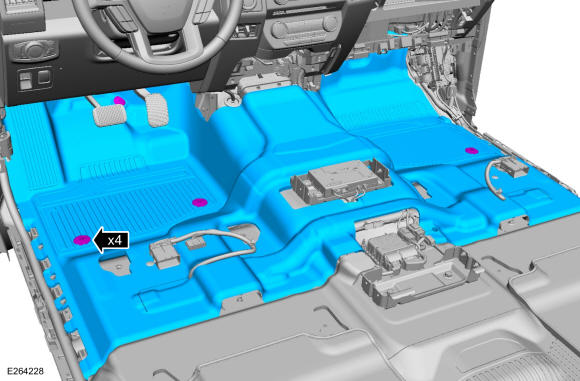

16. Release the front floor covering retainers and remove the front floor covering.

    Courtesy of FORD MOTOR COMPANY

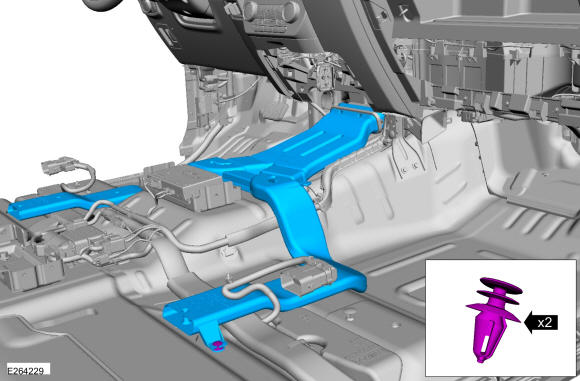

17. Remove the rear HVAC duct retainers and remove the duct.

    Courtesy of FORD MOTOR COMPANY

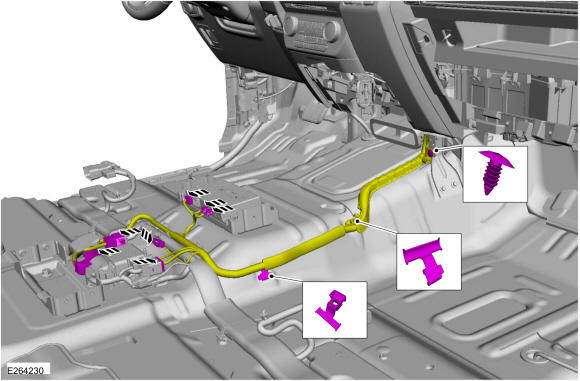

18. Disconnect the electrical connectors, detach the harness retainers and position the harness aside.

    Courtesy of FORD MOTOR COMPANY

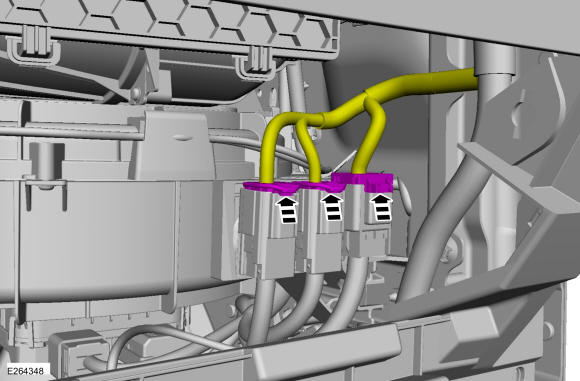

19. Disconnect the lower RH instrument panel electrical connectors and detach the harness retainers.

    Courtesy of FORD MOTOR COMPANY

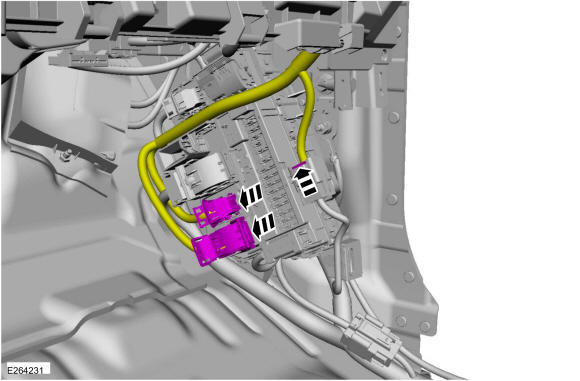

20. Disconnect the electrical connectors and remove the bolt and the LH glove compartment opening.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

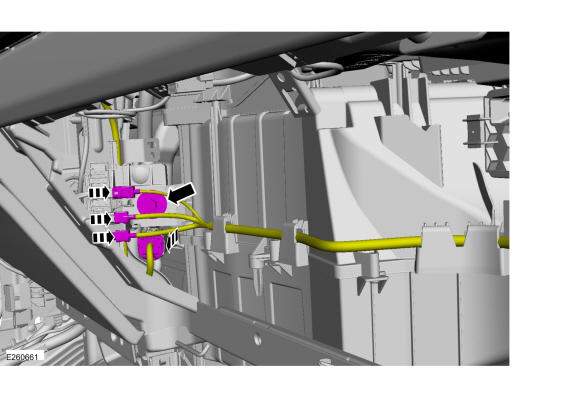

21. Disconnect the electrical connectors at the RH glove compartment opening.

    Courtesy of FORD MOTOR COMPANY

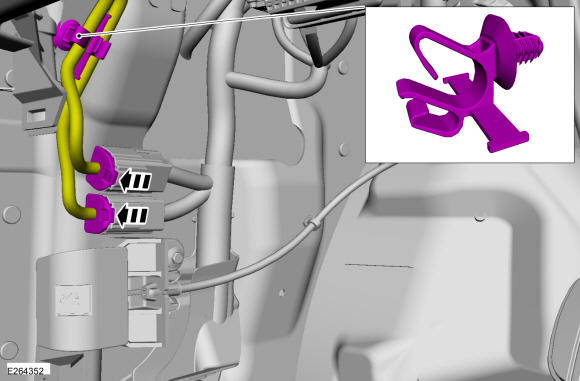

22. Disconnect the lower LH instrument panel electrical connectors and detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

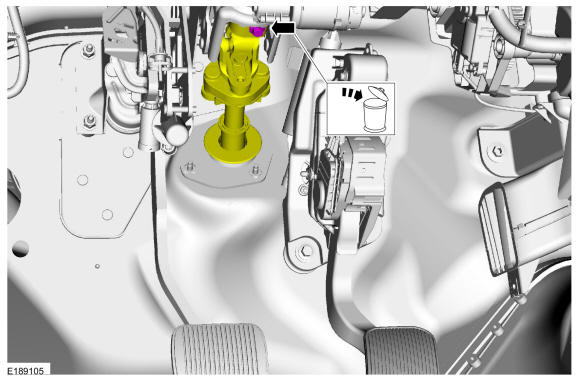

23. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    NOTE: Do not allow the steering wheel to rotate while the steering column shaft is disconnected or damage to the clockspring may result.

    Remove and discard the bolt and disconnect the upper steering column shaft.

    Torque

    : 21 lb.ft (28 Nm)

    Courtesy of FORD MOTOR COMPANY

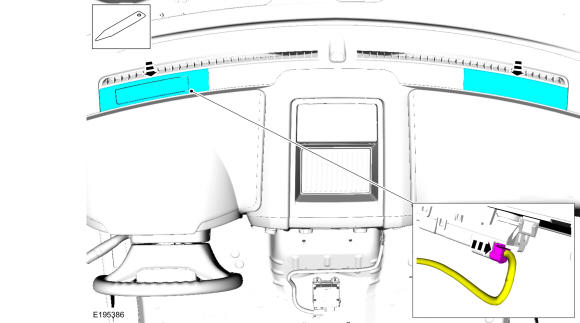

24. Remove the LH and RH instrument panel access trim covers.
    • Disconnect the electrical connector on the LH trim cover. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

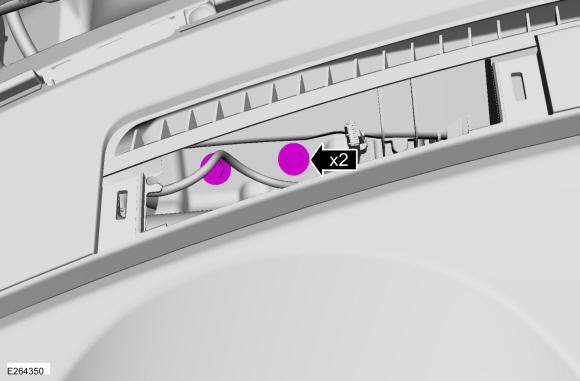

25. Remove the LH upper instrument panel bolts.

    Torque

    : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

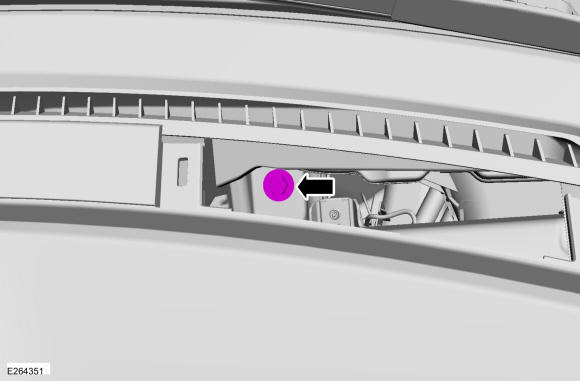

26. Remove the RH upper instrument panel bolt.

    Torque

    : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

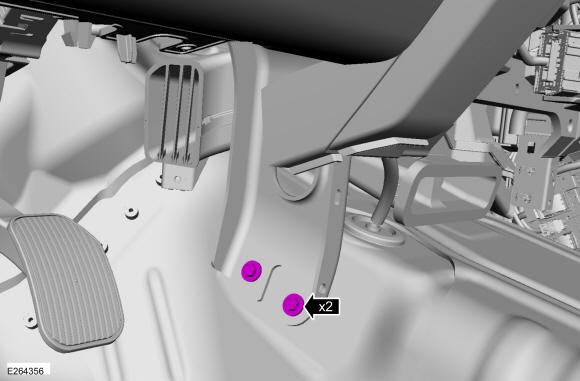

27. Remove the LH instrument panel center support bolts.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

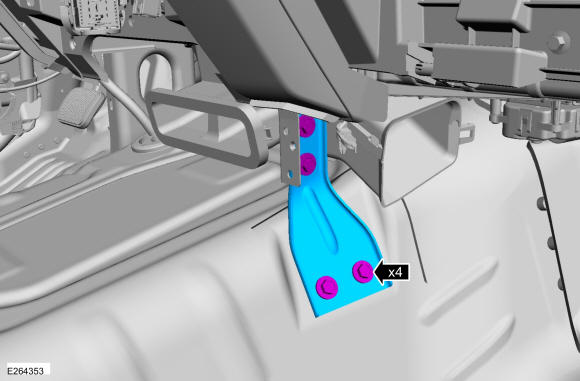

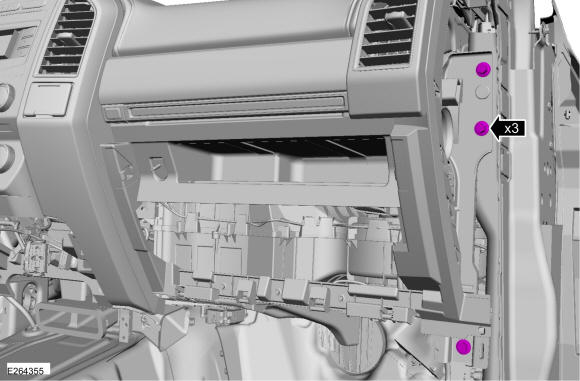

28. Remove the RH instrument panel center support bolts and bracket.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

29. NOTE: Leave one bolt finger tight to hold the instrument panel prior to removal.

    Remove the bolts.

    Torque

    : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

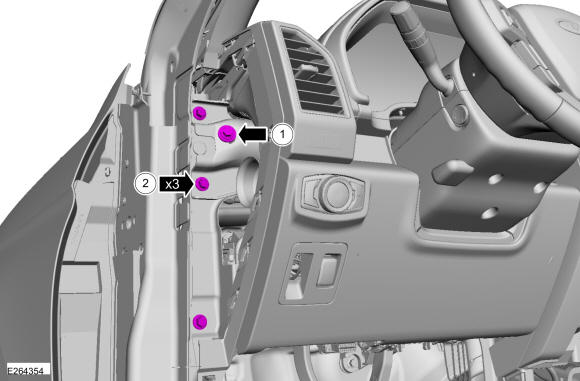

30. NOTE: Leave one bolt finger tight to hold the instrument panel prior to removal.
    1. Remove the bolt.

       Torque

       : 18 lb.ft (25 Nm)

    2. Remove the bolts.

       Torque

       : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

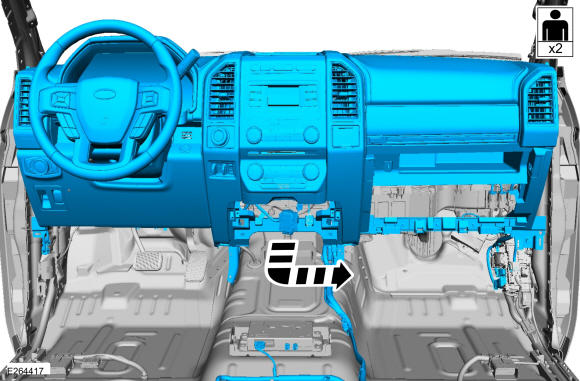

31. NOTE: To avoid damaging the instrument panel, and assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connector and wiring and not hindered before removing the instrument panel or damage to the components may occur.

    Rotate the instrument panel face down and remove through the RH front door opening.

Courtesy of FORD MOTOR COMPANY
