Instrument Panel Upper Section: Removal

All vehicles

1. Remove the instrument panel. Refer to: Instrument Panel  .

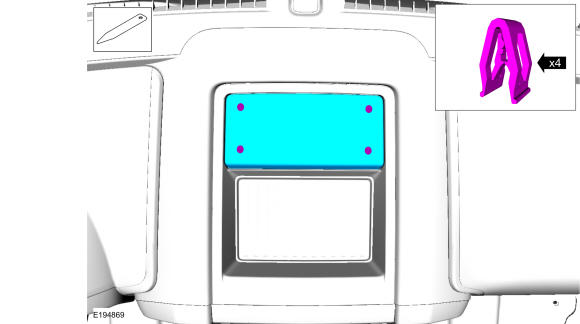

2. NOTE: Upper instrument panel storage tray with speaker shown in illustration, others similar.

   If equipped, release the clips and remove the instrument panel speaker grille. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

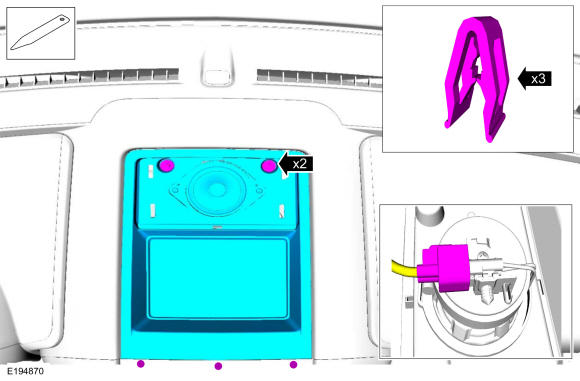

3. NOTE: Upper instrument panel storage tray with speaker shown in illustration, others similar.

   Remove the bolts, release the clips and remove the upper instrument panel storage tray.

   • Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

4. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

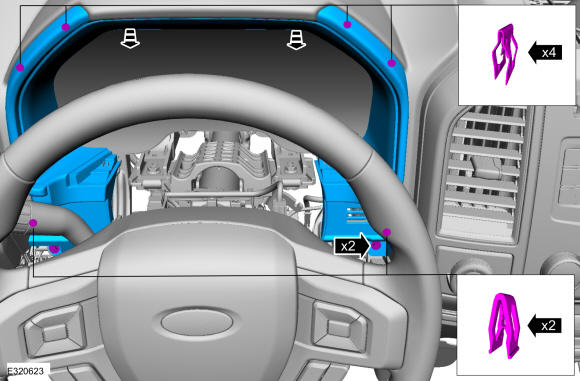

5. Remove the 2 bolts, release the clips and remove the IPC trim panel.

   Torque

   : 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

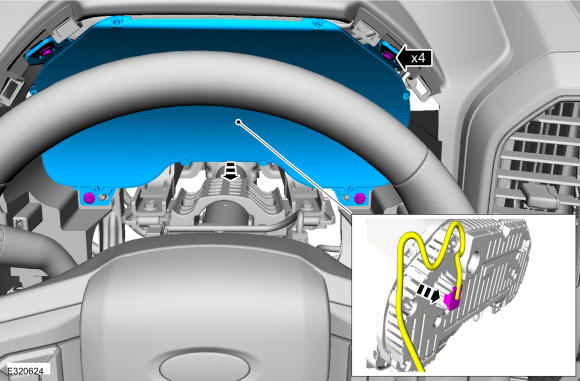

6. Remove the bolts and the IPC.
   • Disconnect the electrical connector.

     Torque

     : 21 lb.in (2.4 Nm)

   Courtesy of FORD MOTOR COMPANY

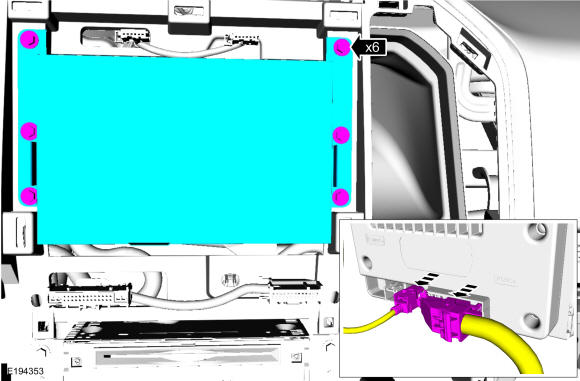

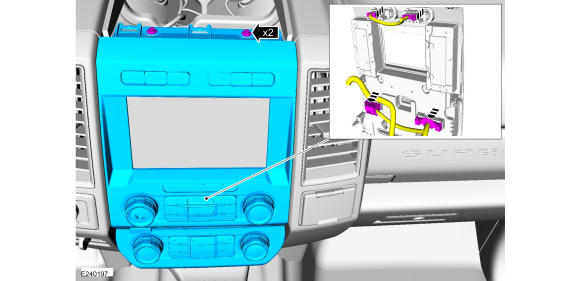

7. NOTE: FCIM with touchscreen shown in illustration. FCIM without touch screen similar.

   Remove the bolts and the FCIM.

   • Disconnect the electrical connectors

     Torque

     : 22 lb.in (2.5 Nm)

   Courtesy of FORD MOTOR COMPANY

8. NOTE: If equipped.

   Remove the nuts and the IPMB.

   • Disconnect the electrical connectors.

   Courtesy of FORD MOTOR COMPANY

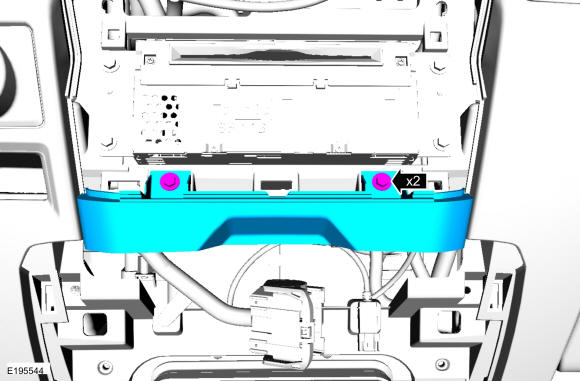

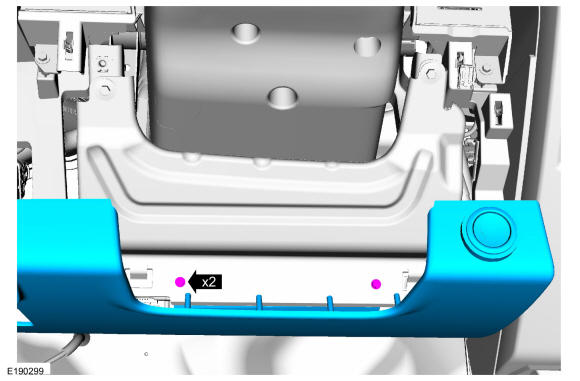

9. Remove the bolts and the instrument panel lower finish panel.

   Torque

   : 48 lb.in (5.4 Nm)

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Instrument panel center trim panel with floor console shown in illustration, without floor console similar.

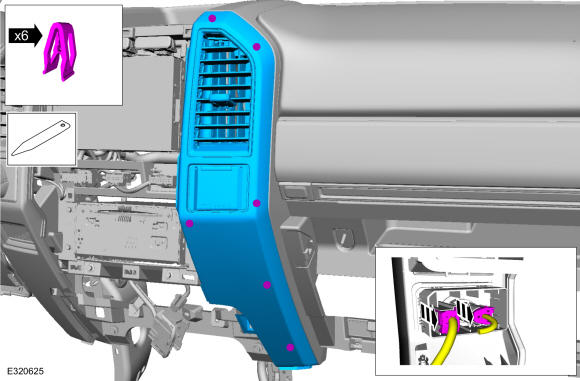

    Release the clips and remove the RH instrument panel center trim panel.

    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

11. NOTE: Instrument panel center trim panel with floor console shown in illustration, without floor console similar.

    Release the clips and remove the LH instrument panel center trim panel.

    • Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: If equipped.

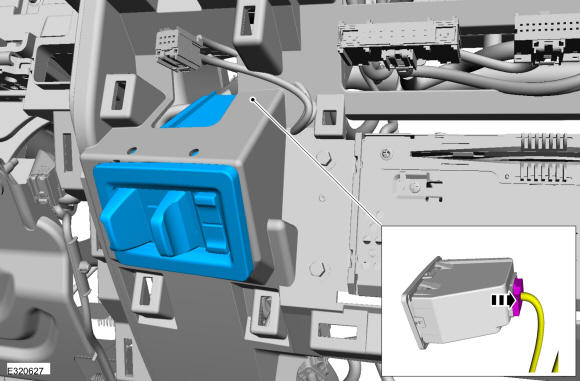

    Remove the trailer brake controller module.

    • Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

    Vehicles without touchscreen

13. Remove the bolts and the FCDIM.
    • Disconnect the electrical connector.

      Torque

      : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

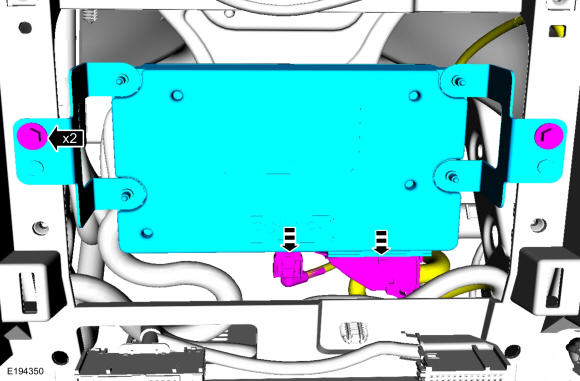

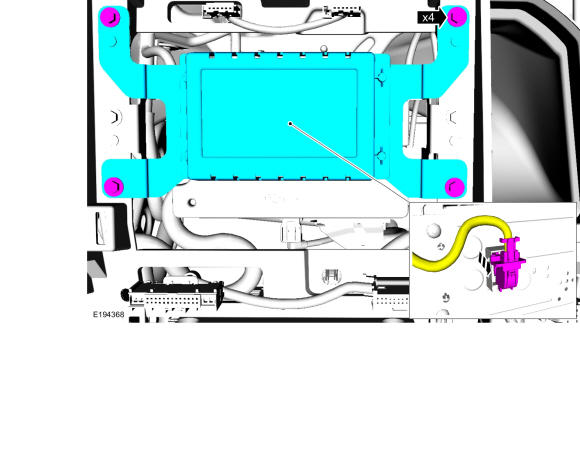

14. Remove the two bolts and the APIM.
    • Disconnect the electrical connectors.

      Torque

      : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    Vehicles with touchscreen

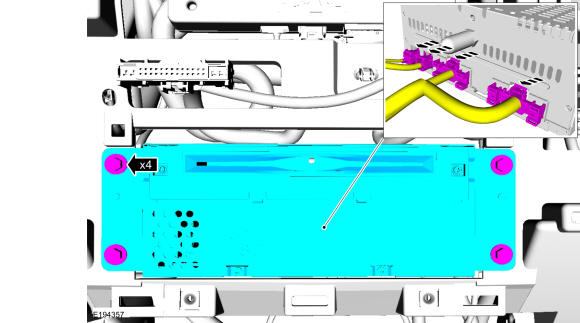

15. Remove the bolts and the FDIM.
    • Disconnect the electrical connectors.

      Torque

      : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

    Vehicles without floor console

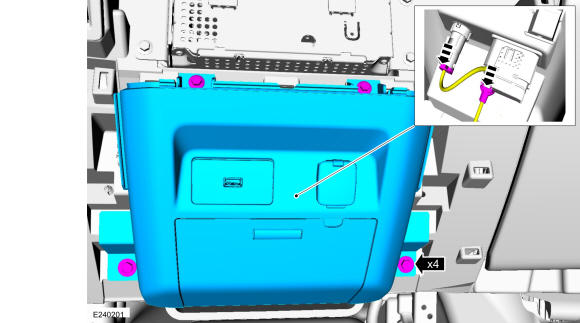

16. Remove the bolts and the lower instrument panel finish panel.
    • Disconnect the electrical connectors

      Torque

      : 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

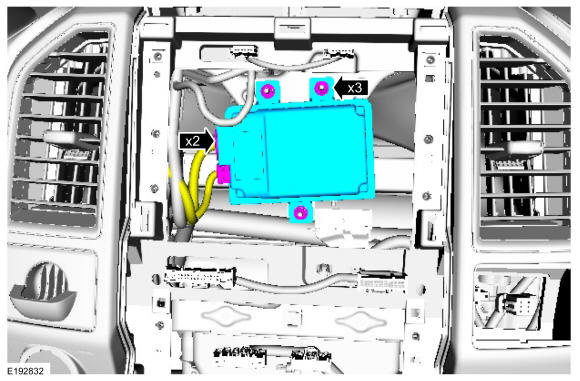

17. Remove the bolts and the ACM.
    • Disconnect the electrical connectors.

      Torque

      : 22 lb.in (2.5 Nm)

    Courtesy of FORD MOTOR COMPANY

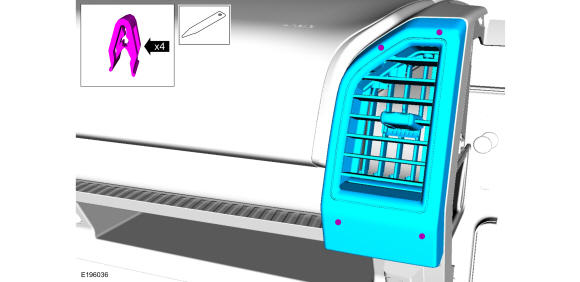

18. Release the clips and remove the RH register finish panel.

    Courtesy of FORD MOTOR COMPANY

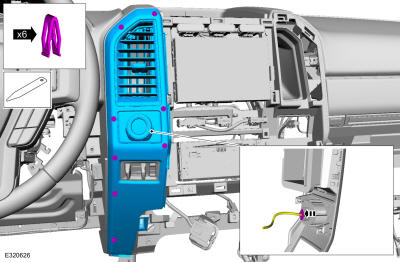

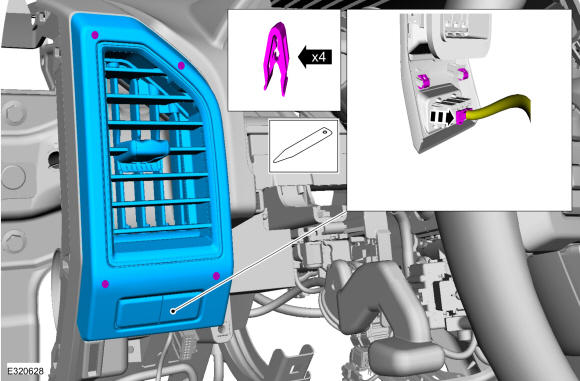

19. Release the clips and remove the LH register finish panel.
    • NOTE: If equipped.

      Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

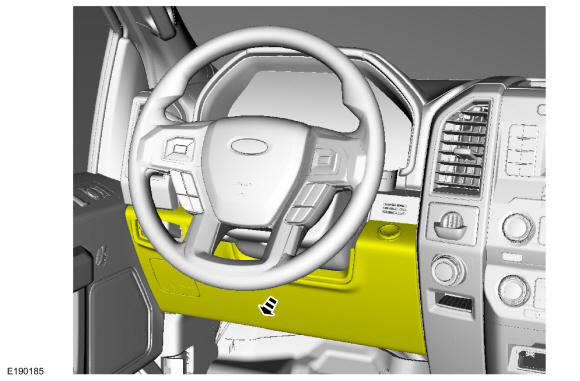

20. NOTE: Vehicles with push button start shown in illustration, all others similar.

    Fully lower the steering column opening trim panel.

    Courtesy of FORD MOTOR COMPANY

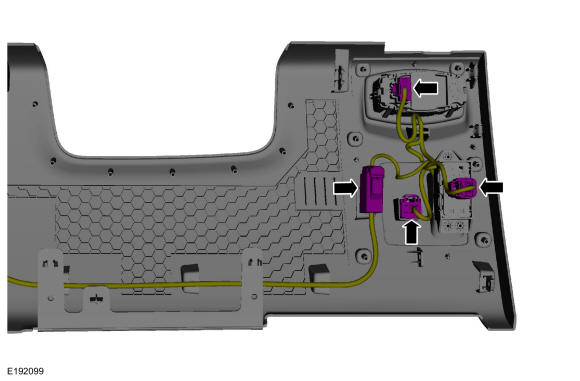

21. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

22. Remove the bolts and the steering column opening trim panel.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

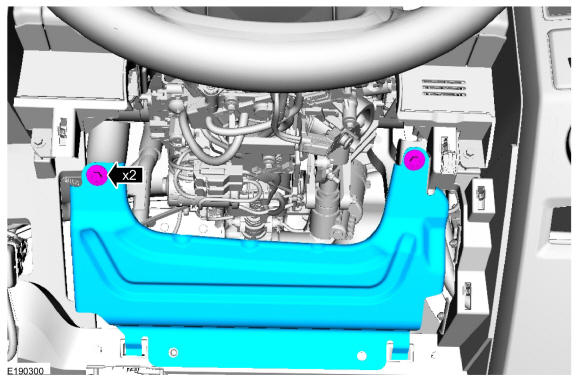

23. Remove the bolts and the steering column reinforcement panel.

    Torque

    : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

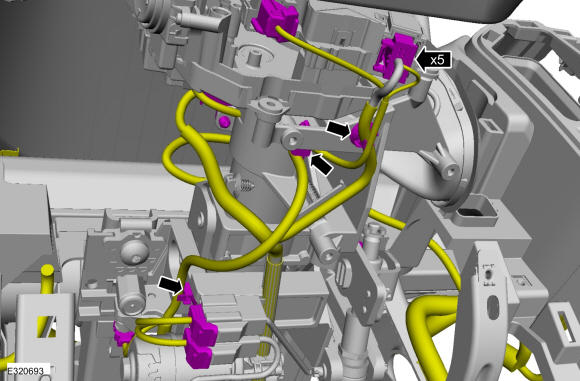

24. Disconnect the steering column electrical connectors, release the harness retainer and position aside the harness.

    Courtesy of FORD MOTOR COMPANY

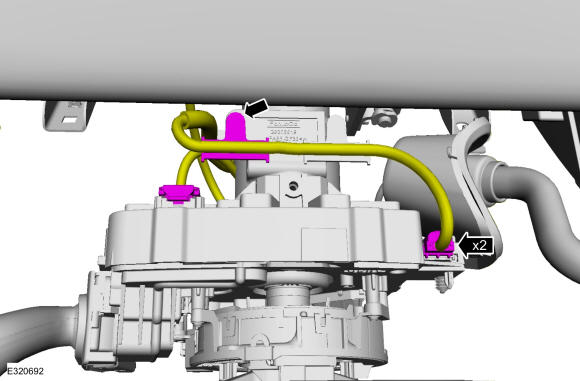

25. Disconnect the lower steering column electrical connectors, release the harness retainers and position aside the harness.

    Courtesy of FORD MOTOR COMPANY

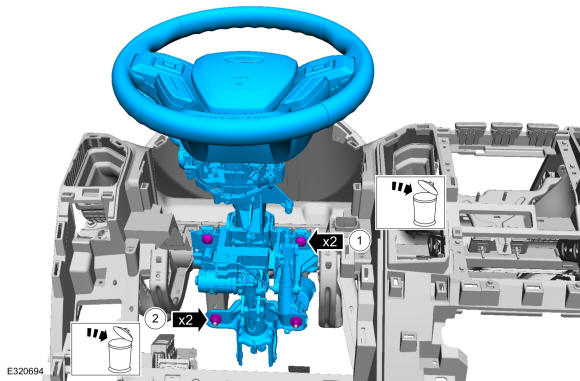

26. WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).
    NOTE: Do not allow the steering wheel to rotate or damage to the clock spring may occur.
    NOTE: Harness shown in illustration, removed for clarity.
    1. Remove and discard the bolts.

       Torque

       : 21 lb.ft (28 Nm)

    2. Remove and discard the nuts.

       Torque

       : 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

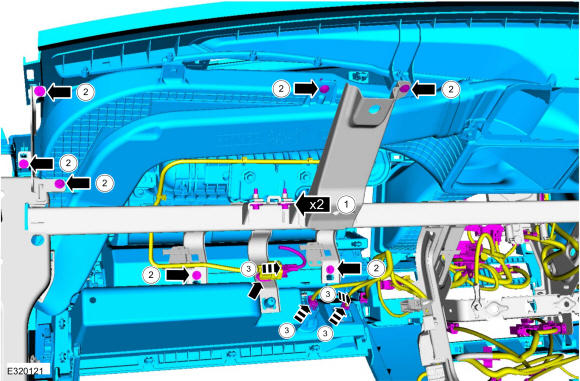

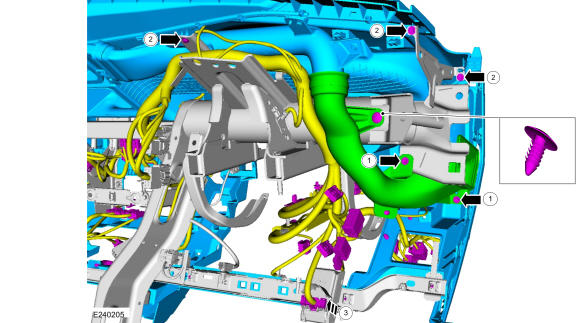

27. Disconnect the electrical connectors, release the harness retainers, and position aside the electrical harness.
    1. Remove the bolts, the push pin and the HVAC duct.

       Torque

       : 22 lb.in (2.5 Nm)

    2. Remove the bolts.

       Torque

       : 22 lb.in (2.5 Nm)

    3. Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

28. Disconnect the electrical connectors, release the harness retainers and position aside the electrical harness.
    1. Remove the bolts.

       Torque

       : 80 lb.in (9 Nm)

    2. Remove the bolts.

       Torque

       : 22 lb.in (2.5 Nm)

    3. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

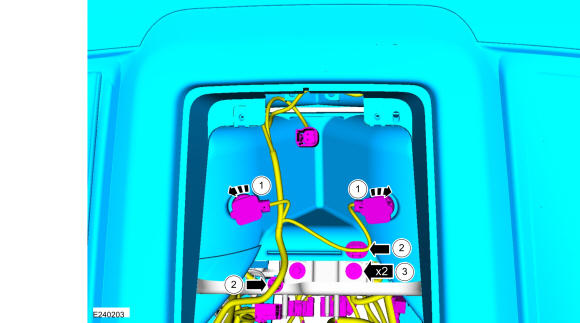

29. 1. Disconnect the electrical connectors.
    2. Release the harness retainers.
    3. Remove the bolts.

       Torque

       : 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

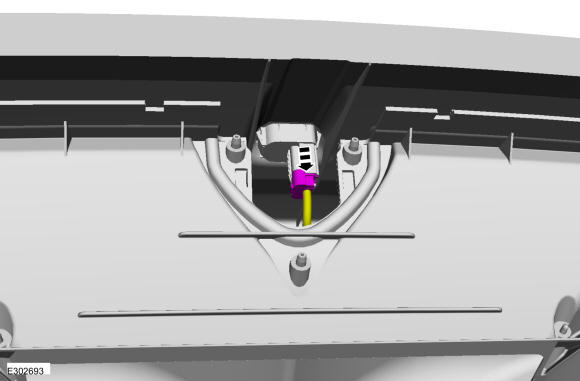

30. Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

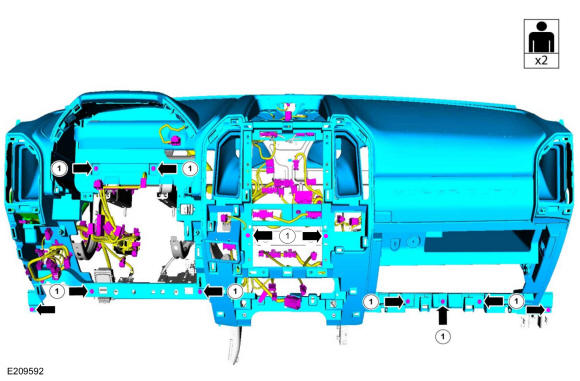

31. Disconnect the electrical connectors, release the harness retainers and position aside the electrical harness.
    1. Remove the bolts.

       Torque

       : 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
