Instrument Panel Passenger Side Finish Panel: Removal

1. Remove the floor console. Refer to: Floor Console  .
2. Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) .

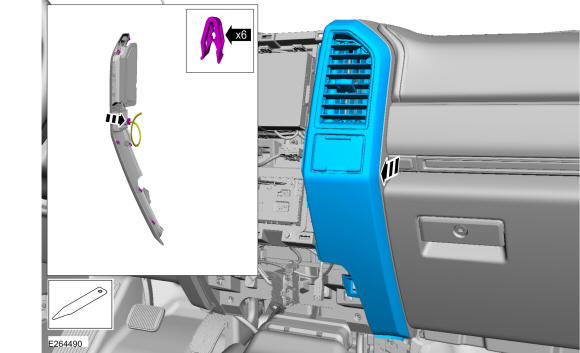

3. Release the clips and remove the passenger side instrument panel finish panel.
   • Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
