Instrument Panel Driver Side Finish Panel: Removal
- Remove the floor console. Refer to: Floor Console .
- Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) .

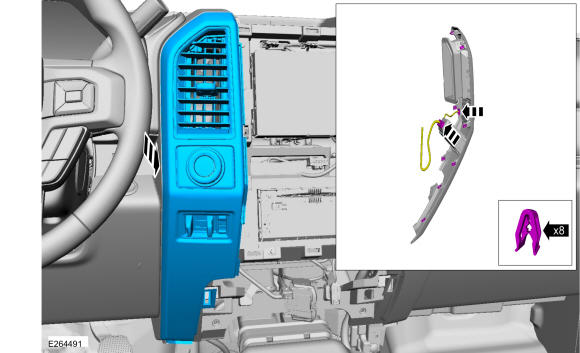

- Release the clips and remove the driver side instrument panel finish panel.
- Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover
