Parking Aid

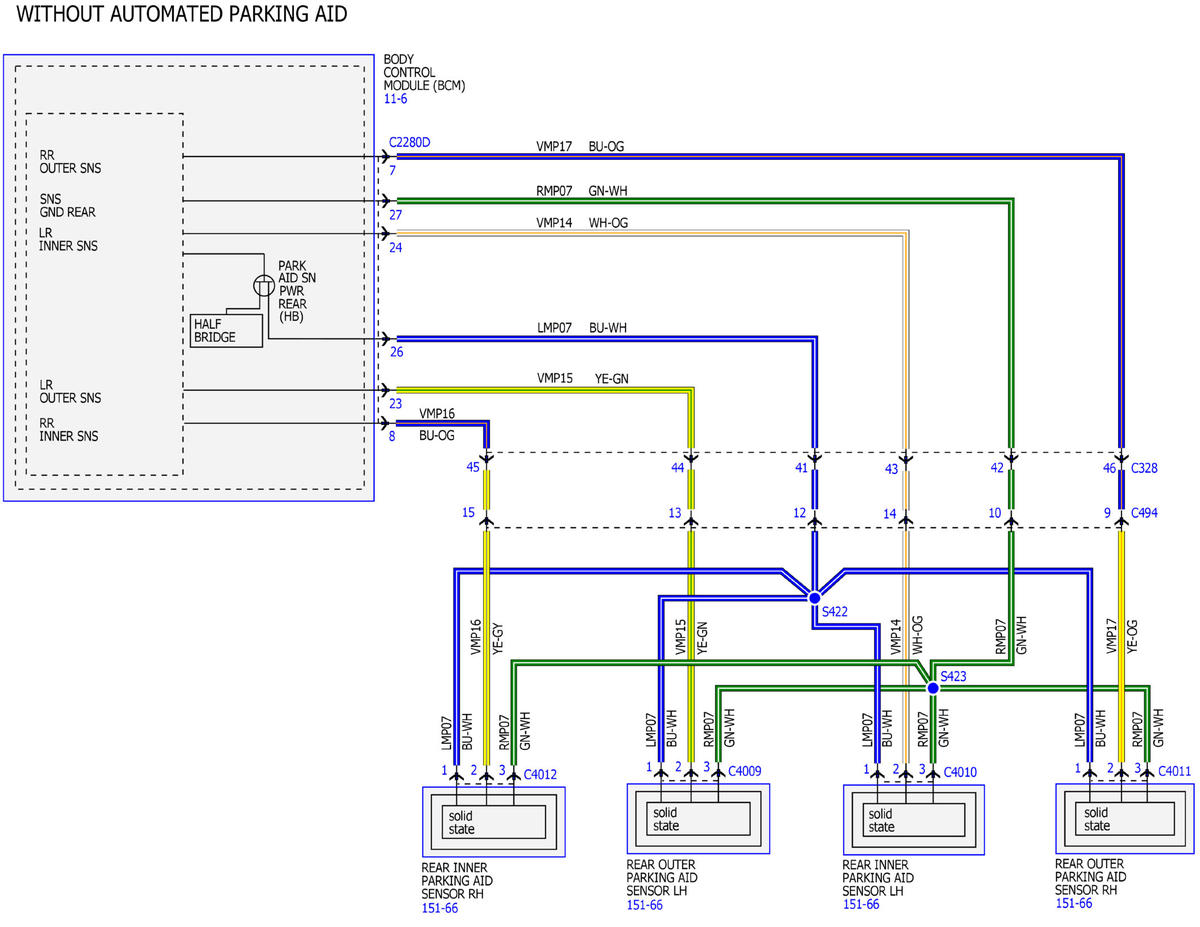

Fig 1: Parking Aid Wiring Diagrams (1 Of 16)

GFDWR135012

Courtesy of FORD MOTOR COMPANY

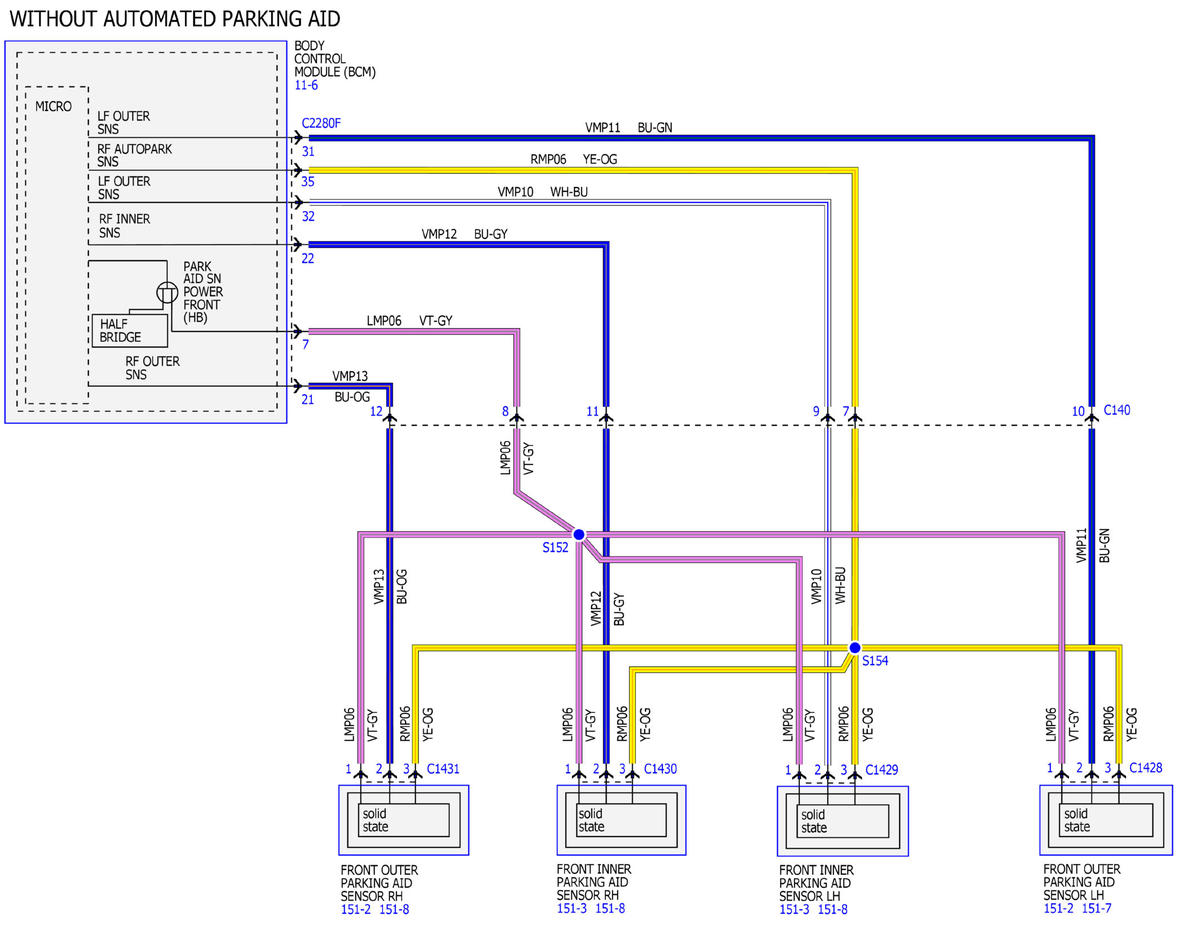

Fig 2: Parking Aid Wiring Diagrams (2 Of 16)

GFDWR135020

Courtesy of FORD MOTOR COMPANY

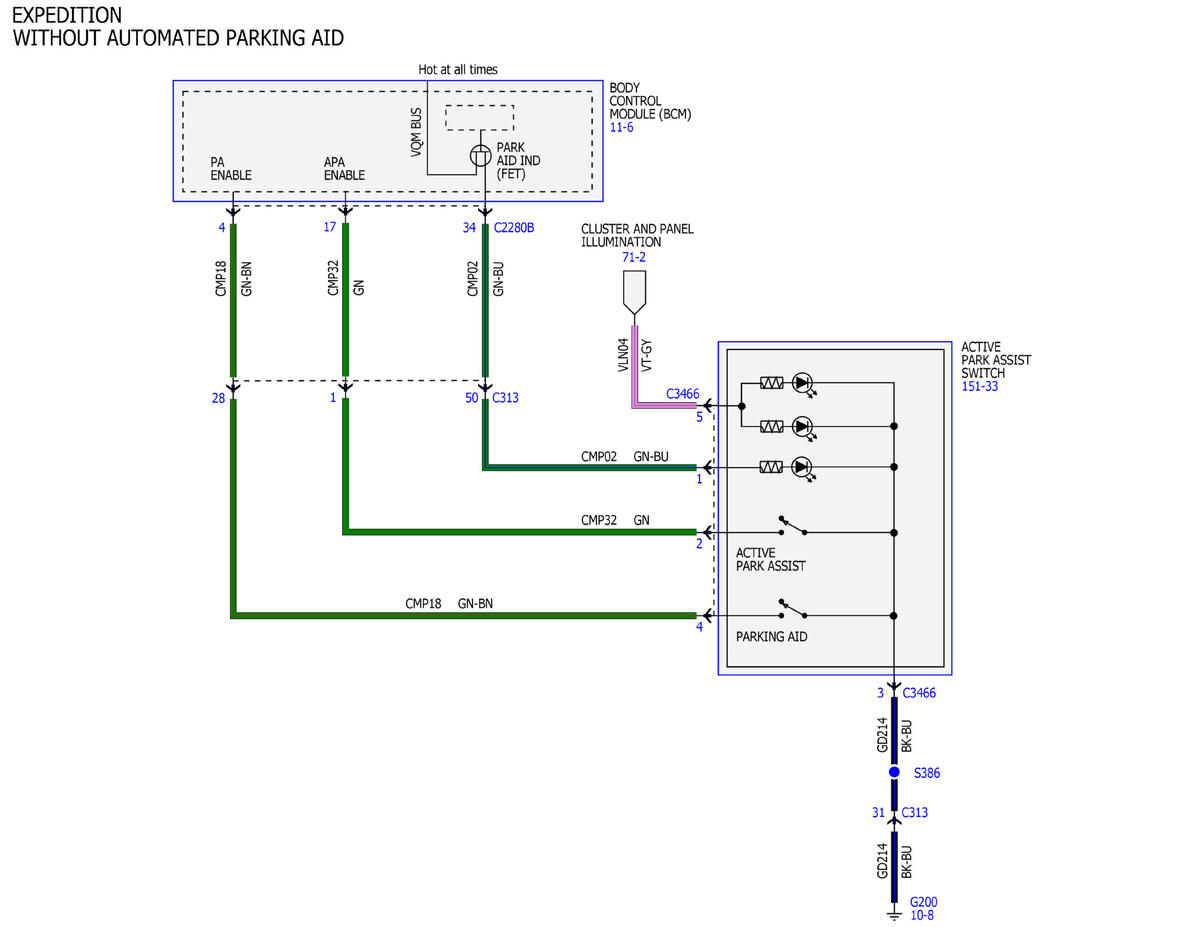

Fig 3: Parking Aid Wiring Diagrams (3 Of 16)

GFDWR135021

Courtesy of FORD MOTOR COMPANY

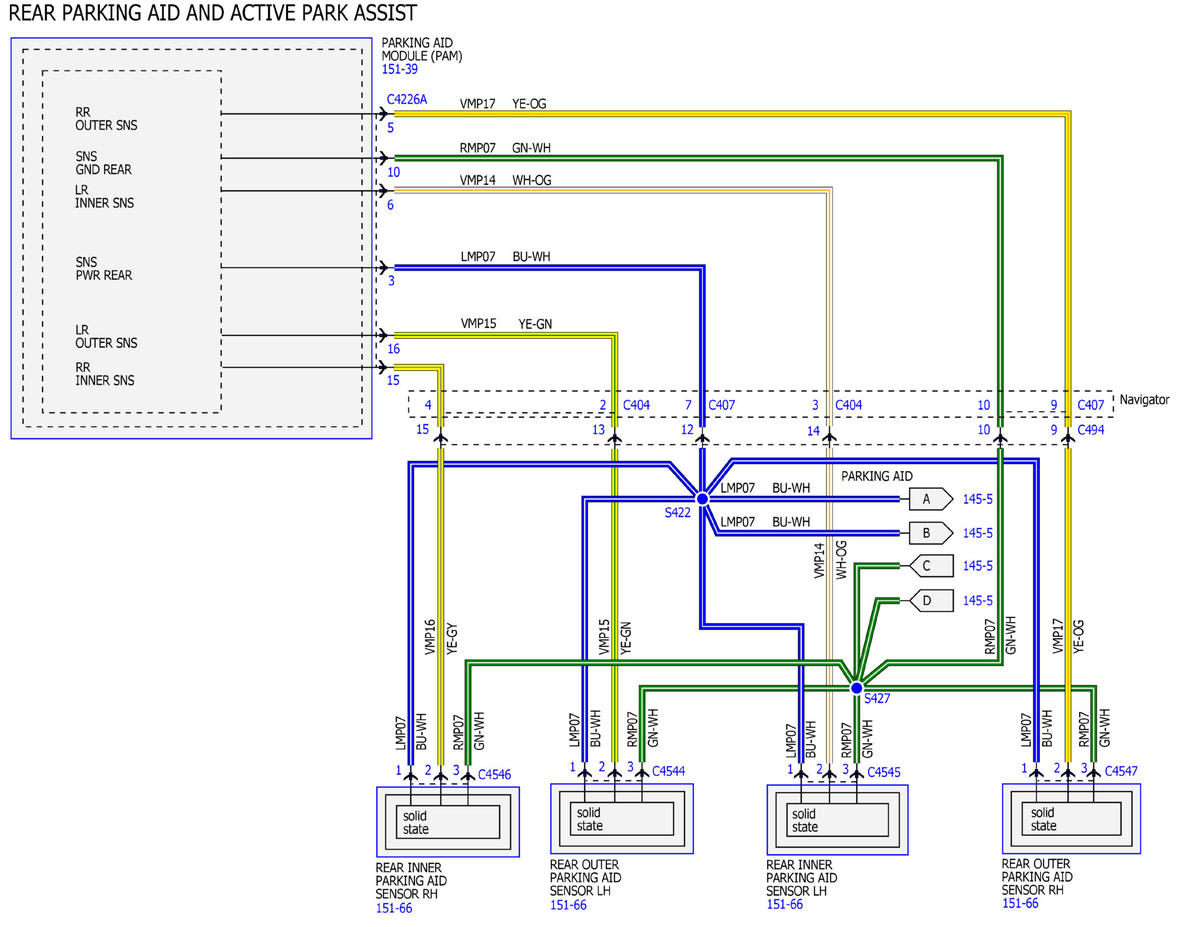

Fig 4: Parking Aid Wiring Diagrams (4 Of 16)

GFDWR135022

Courtesy of FORD MOTOR COMPANY

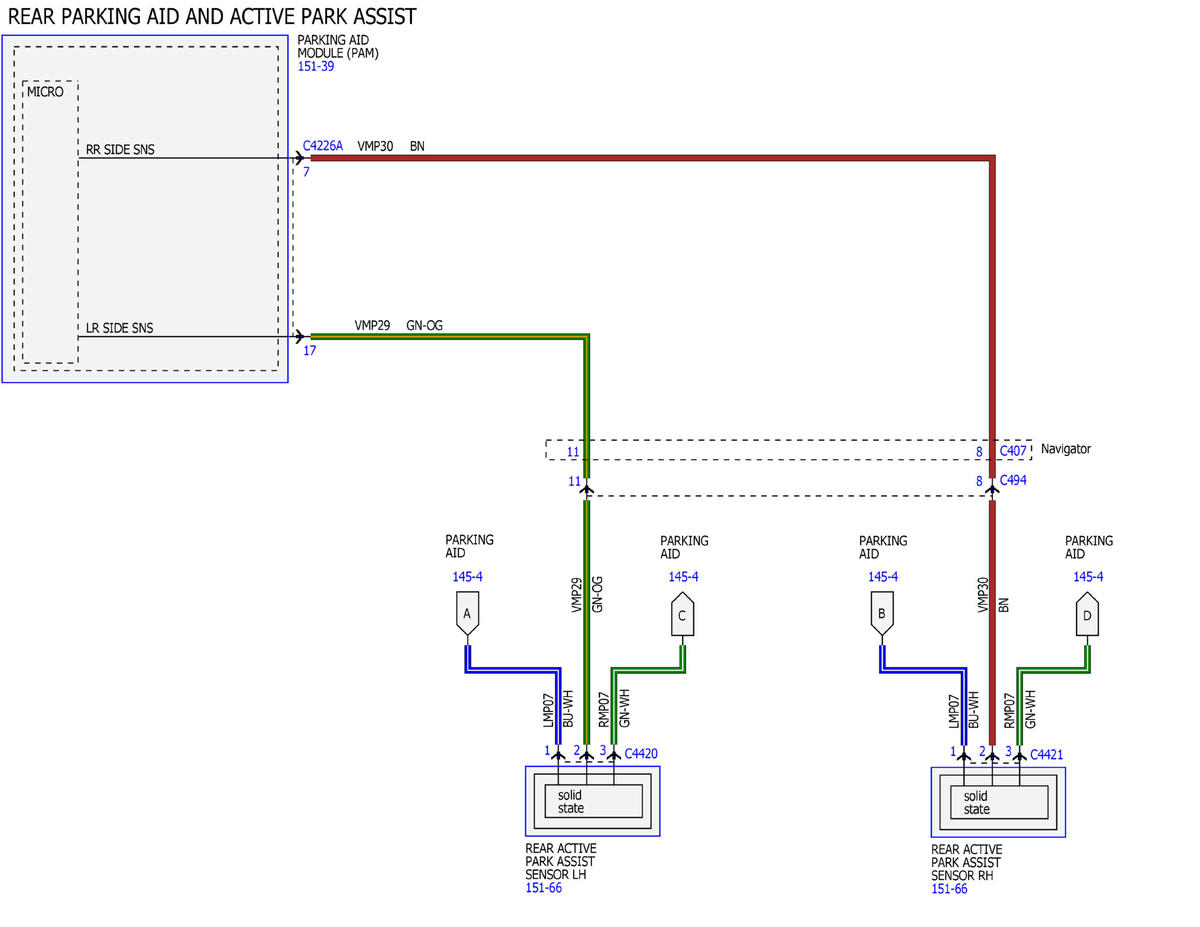

Fig 5: Parking Aid Wiring Diagrams (5 Of 16)

GFDWR135023

Courtesy of FORD MOTOR COMPANY

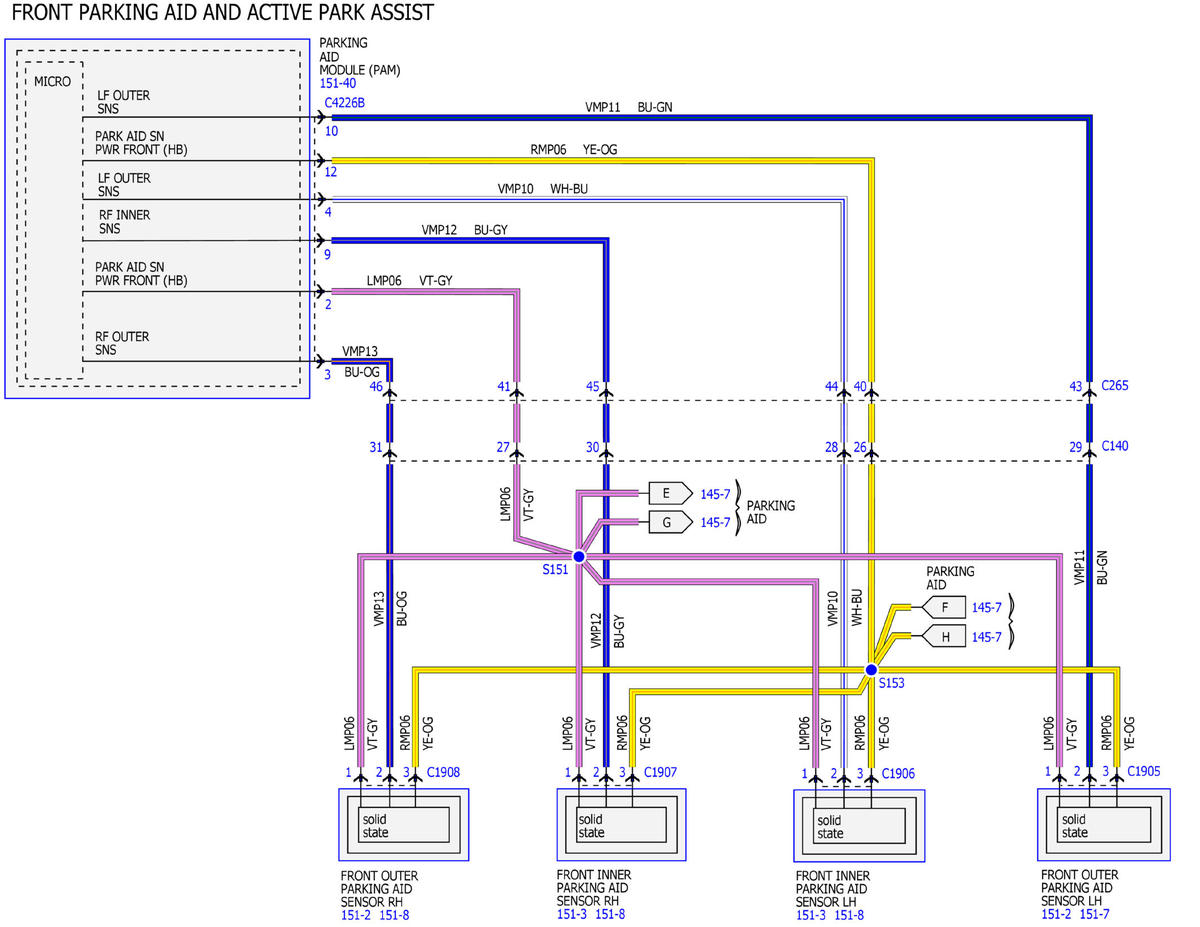

Fig 6: Parking Aid Wiring Diagrams (6 Of 16)

GFDWR135024

Courtesy of FORD MOTOR COMPANY

Fig 7: Parking Aid Wiring Diagrams (7 Of 16)

GFDWR135025

Courtesy of FORD MOTOR COMPANY

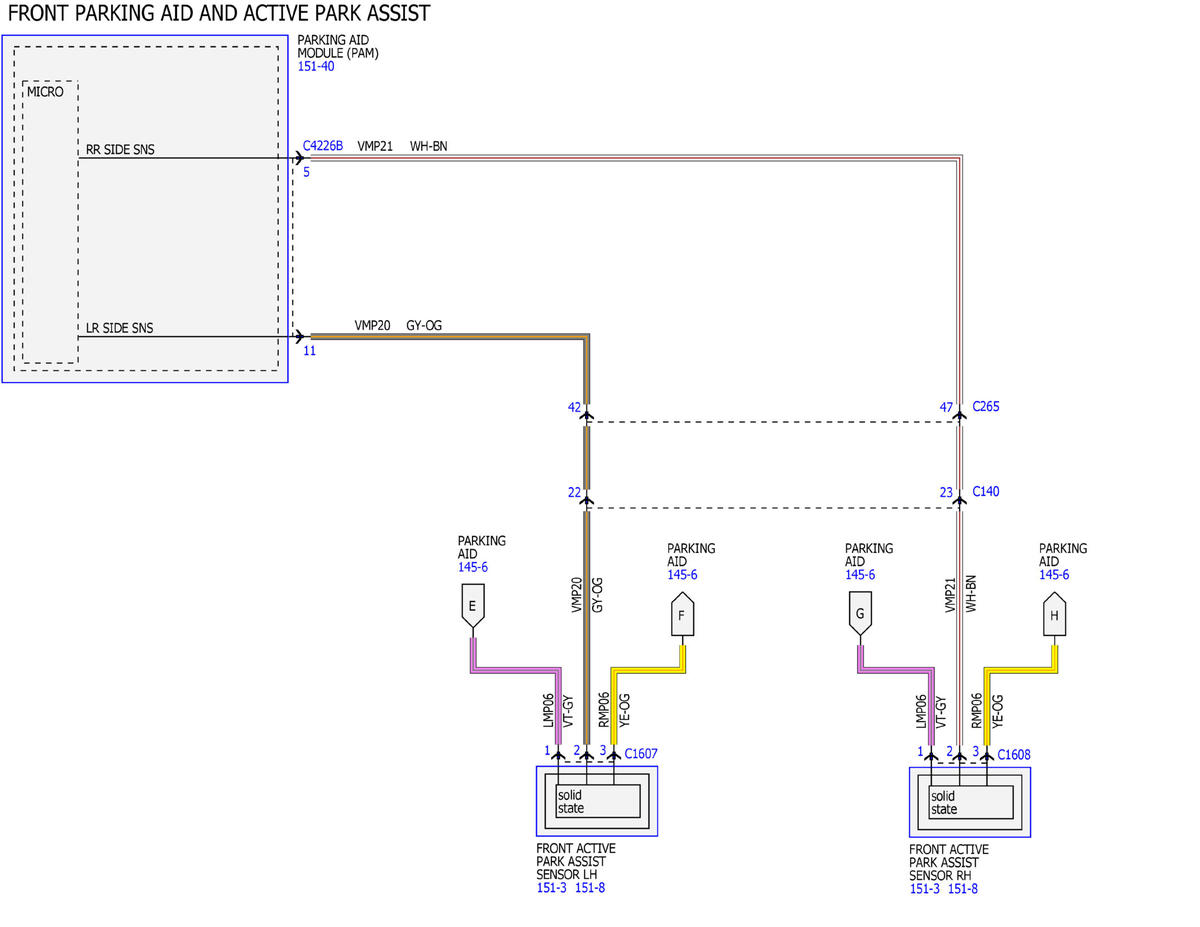

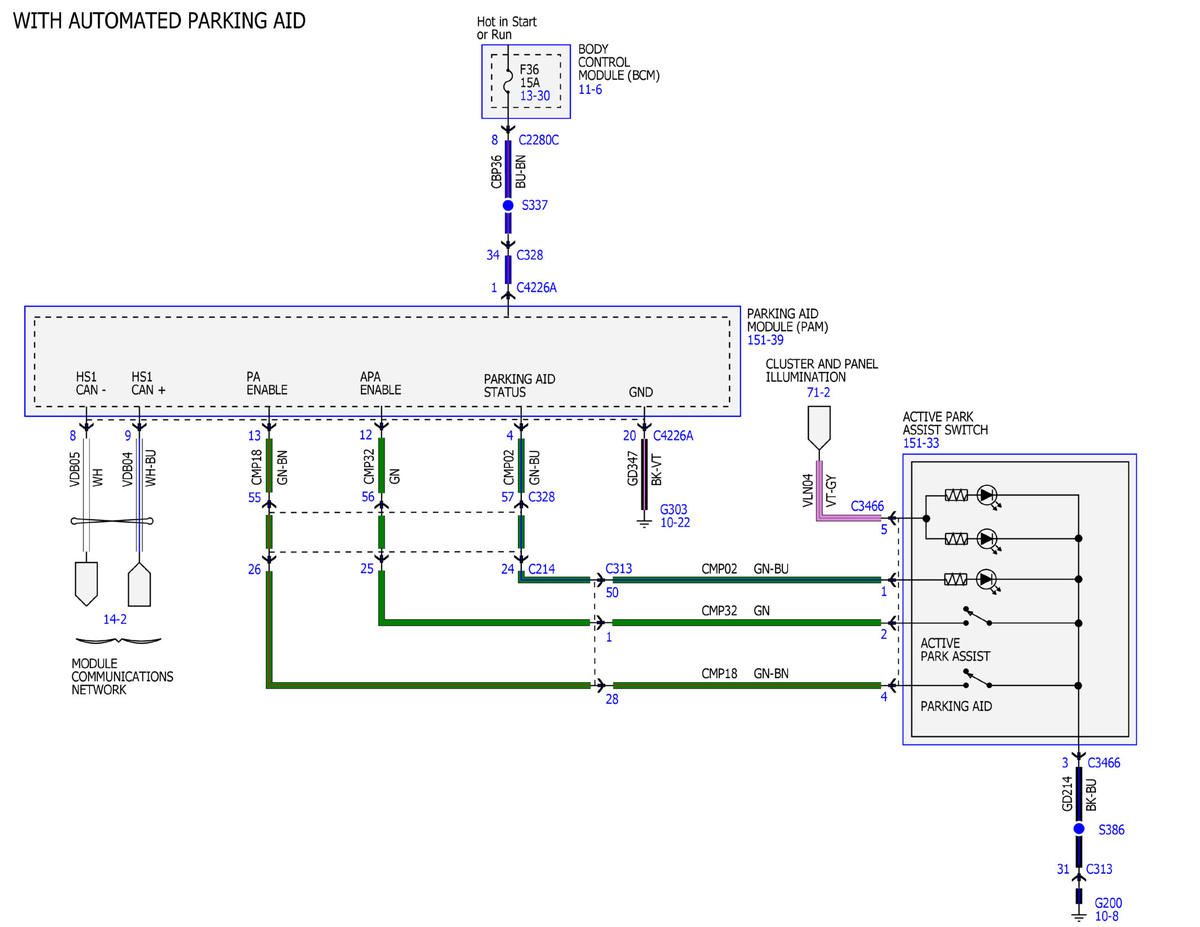

Fig 8: Parking Aid Wiring Diagrams (8 Of 16)

GFDWR135026

Courtesy of FORD MOTOR COMPANY

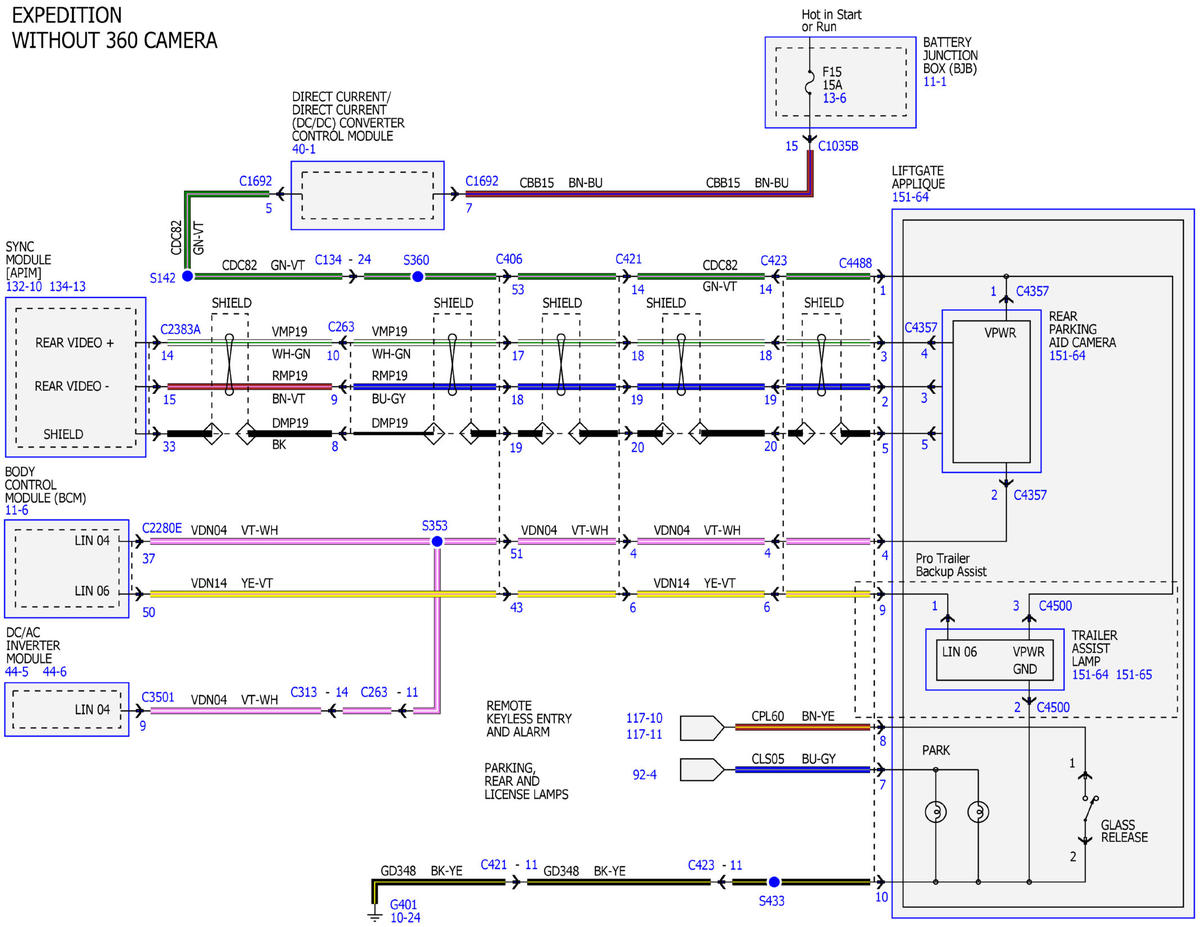

Fig 9: Parking Aid Wiring Diagrams (9 Of 16)

GFDWR135027

Courtesy of FORD MOTOR COMPANY

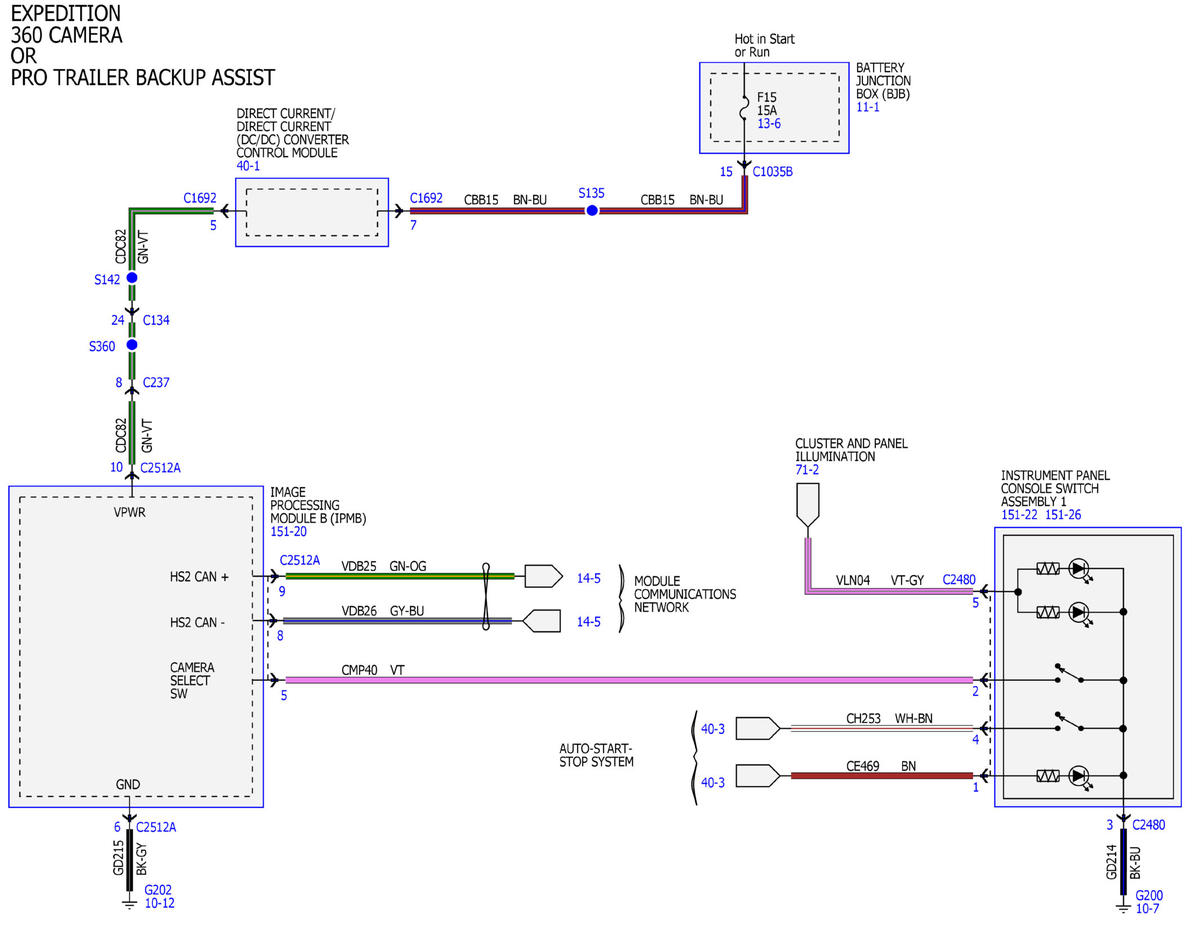

Fig 10: Parking Aid Wiring Diagrams (10 Of 16)

GFDWR135013

Courtesy of FORD MOTOR COMPANY

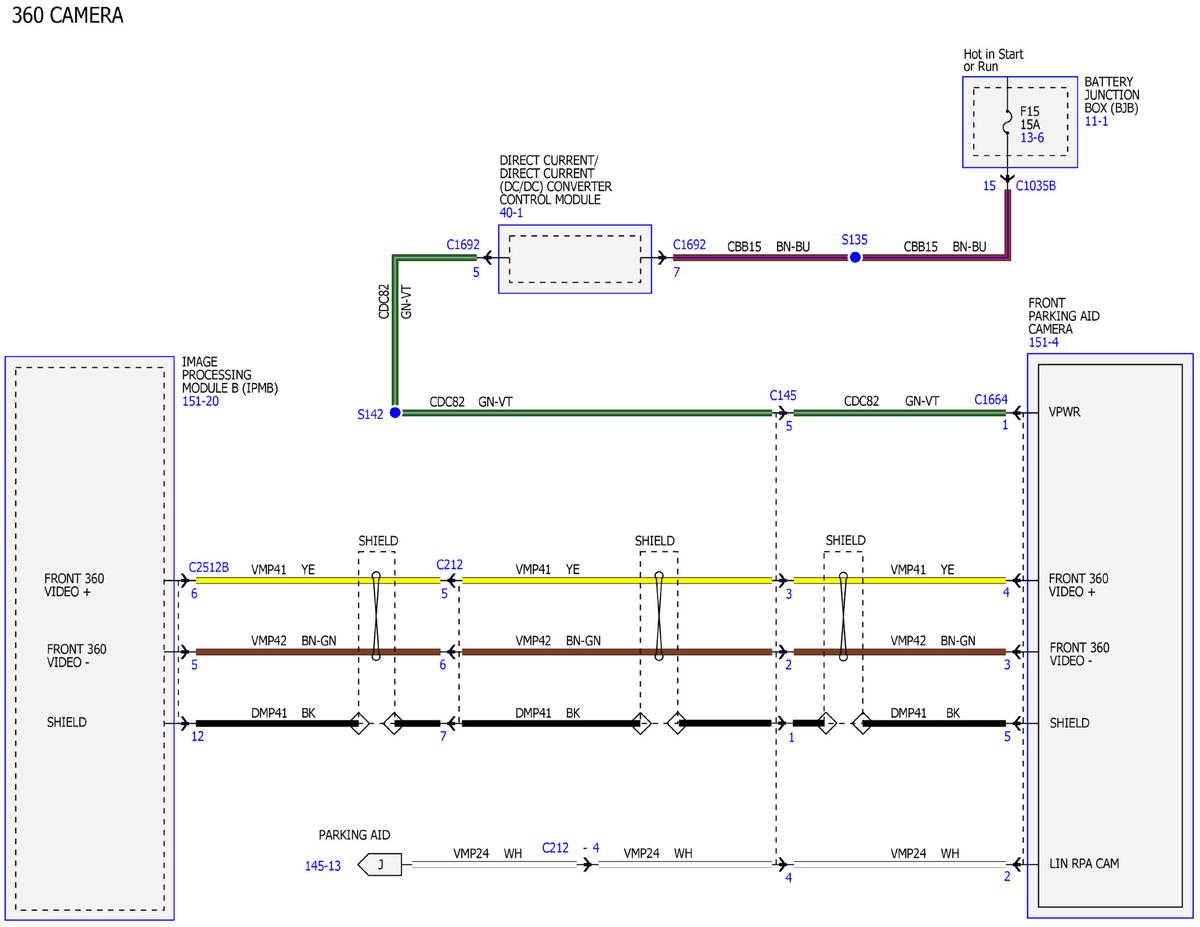

Fig 11: Parking Aid Wiring Diagrams (11 Of 16)

GFDWR135014

Courtesy of FORD MOTOR COMPANY

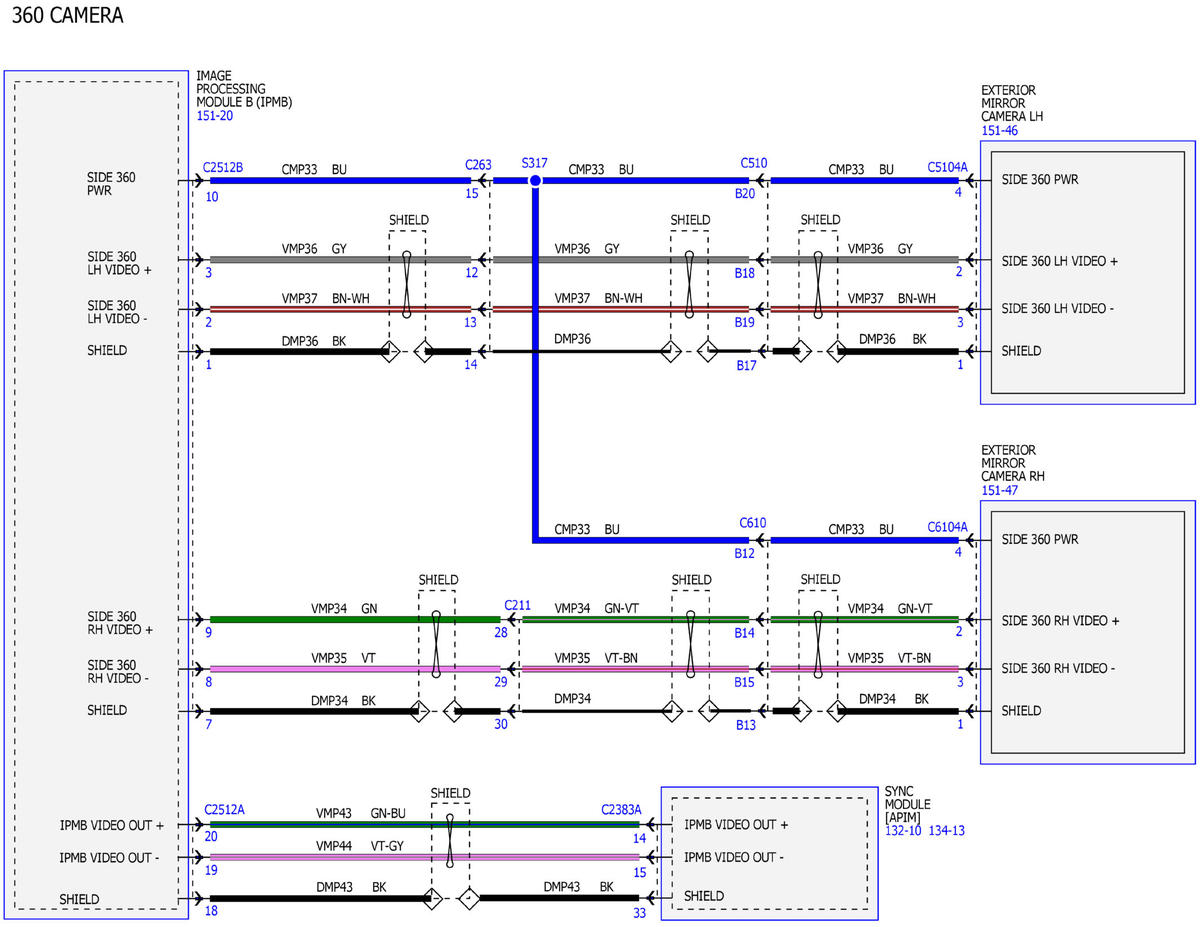

Fig 12: Parking Aid Wiring Diagrams (12 Of 16)

GFDWR135015

Courtesy of FORD MOTOR COMPANY

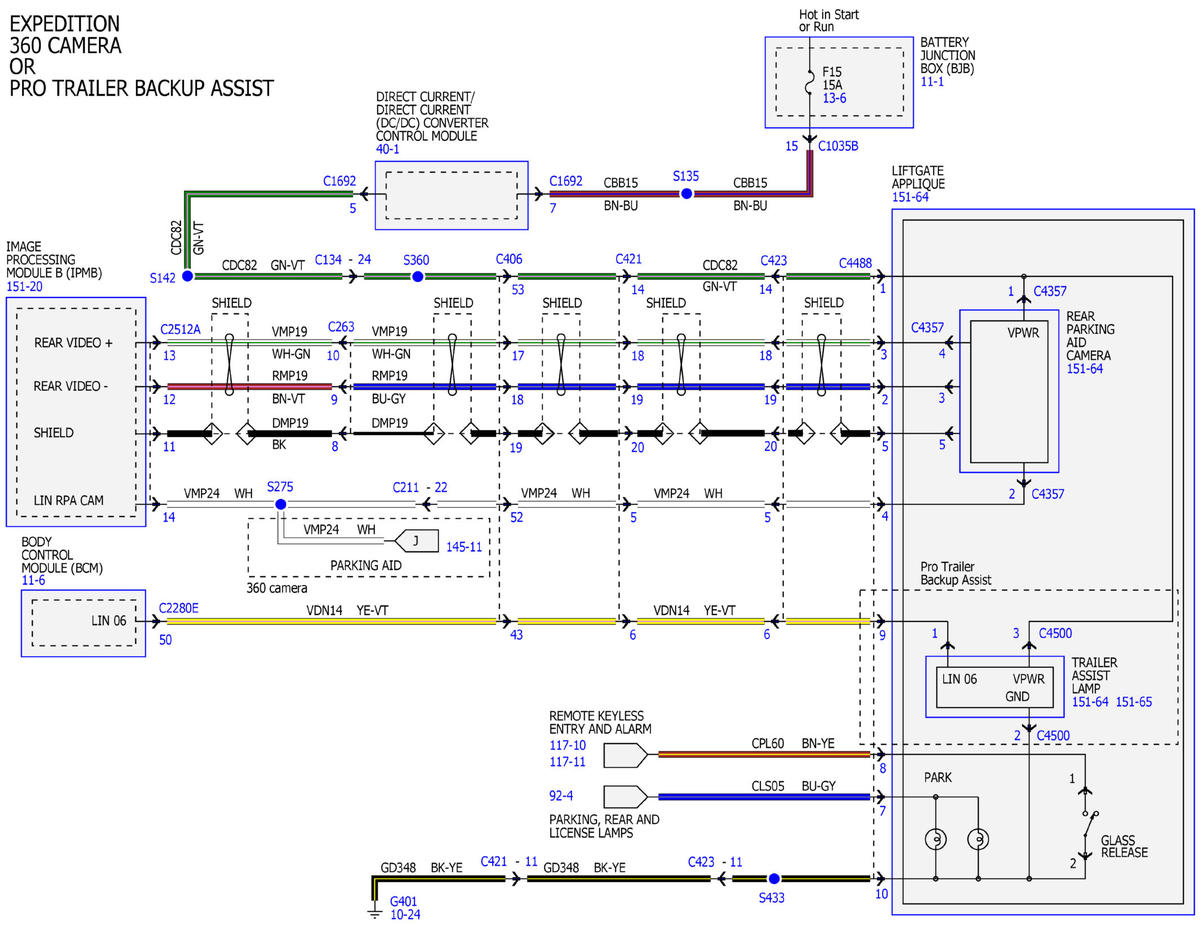

Fig 13: Parking Aid Wiring Diagrams (13 Of 16)

GFDWR135016

Courtesy of FORD MOTOR COMPANY

Fig 14: Parking Aid Wiring Diagrams (14 Of 16)

GFDWR135017

Courtesy of FORD MOTOR COMPANY

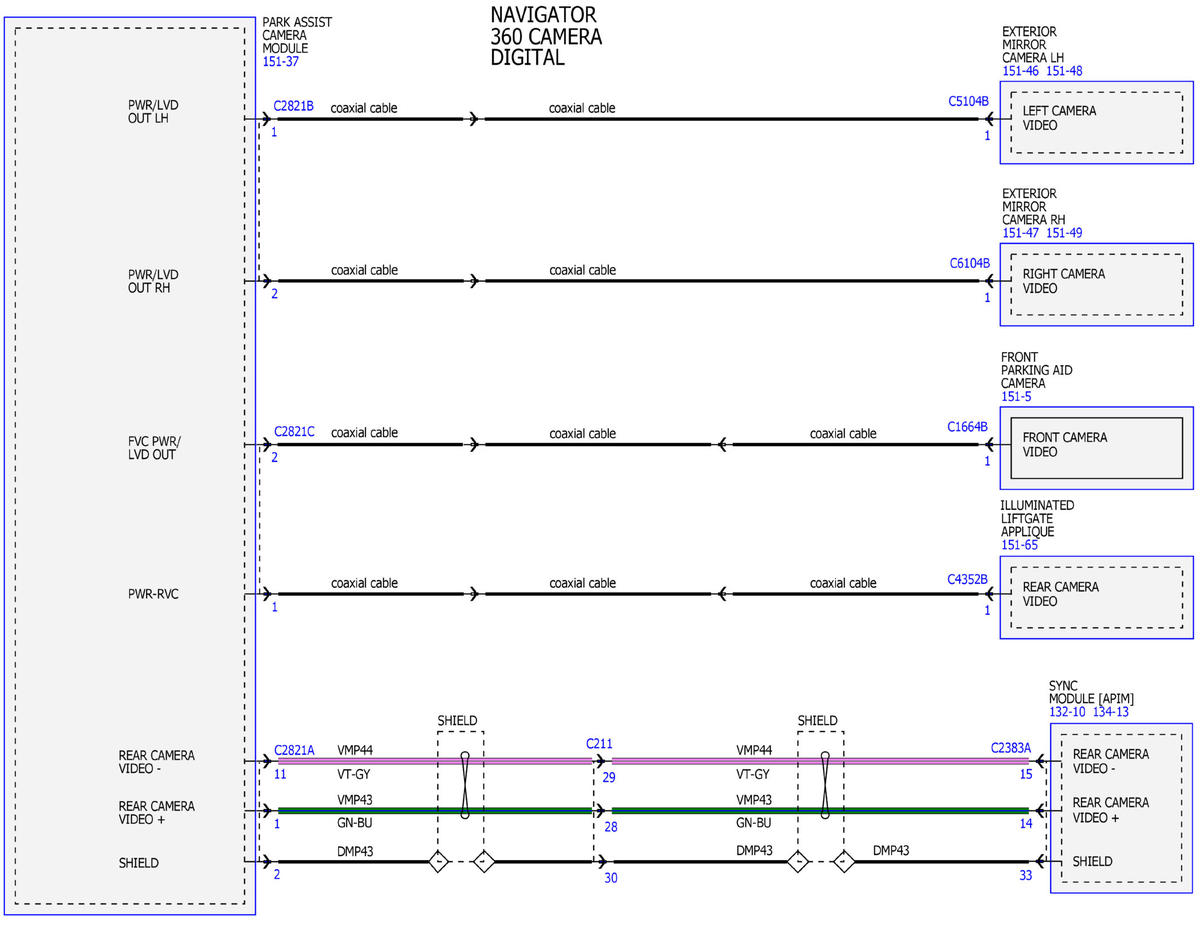

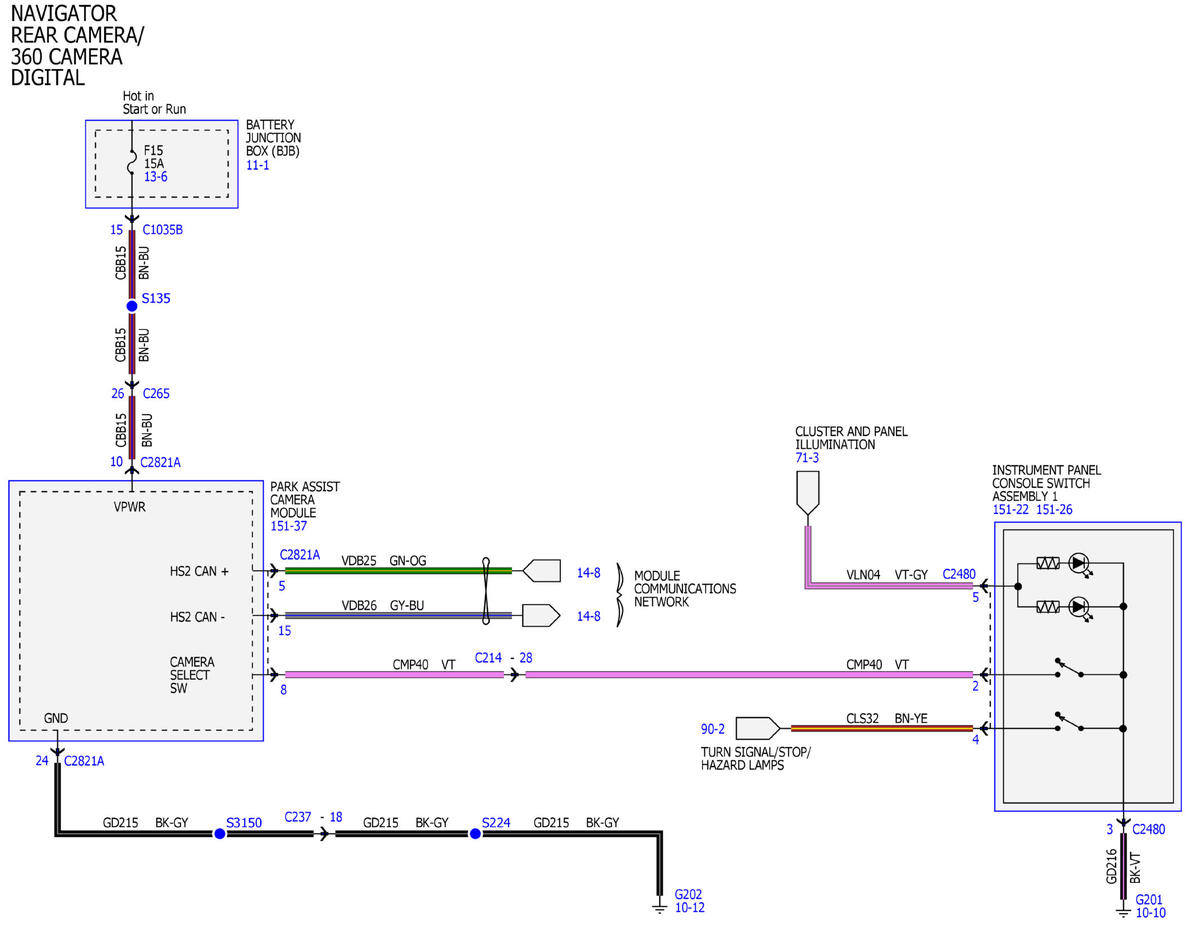

Fig 15: Parking Aid Wiring Diagrams (15 Of 16)

GFDWR135018

Courtesy of FORD MOTOR COMPANY

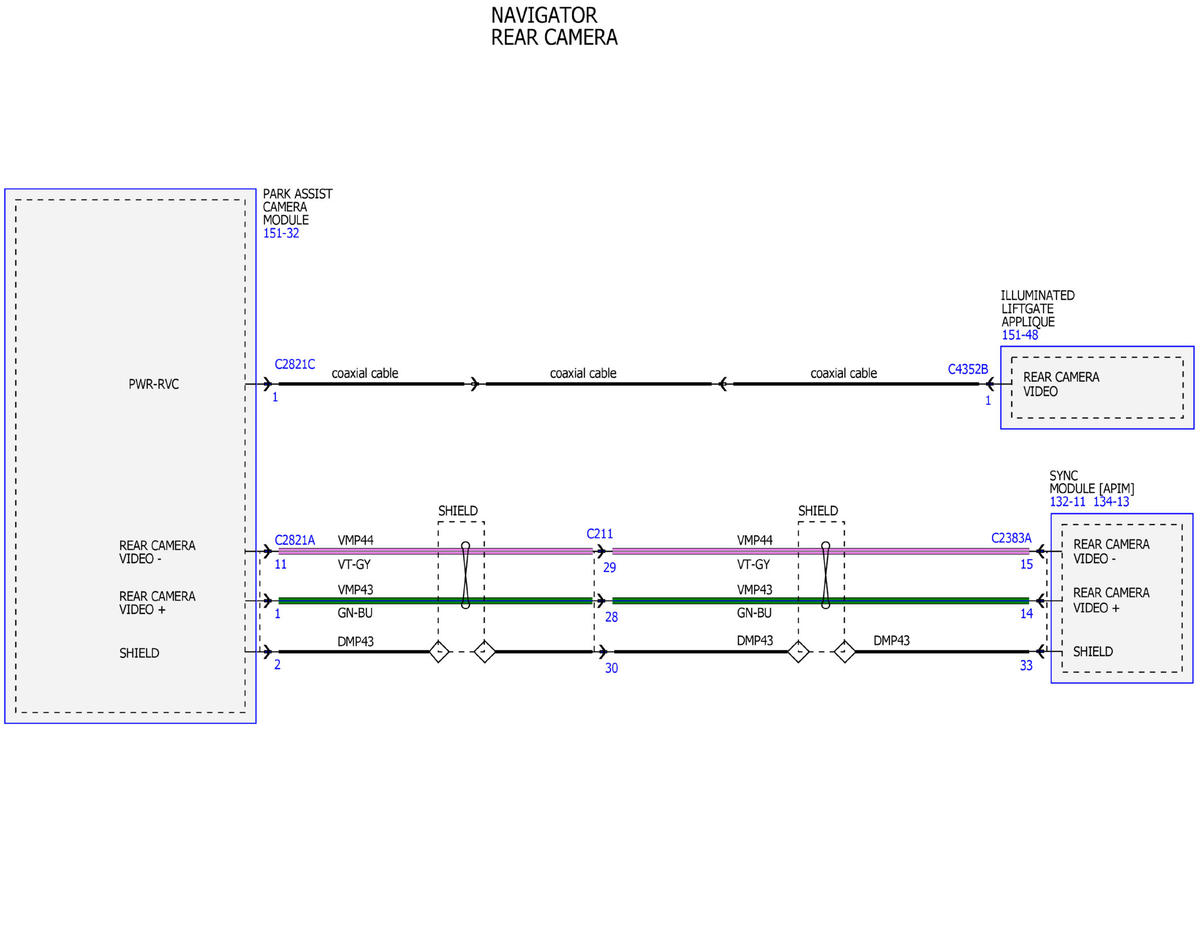

Fig 16: Parking Aid Wiring Diagrams (16 Of 16)

GFDWR135019

Courtesy of FORD MOTOR COMPANY
