Cruise Control
Cruise Control

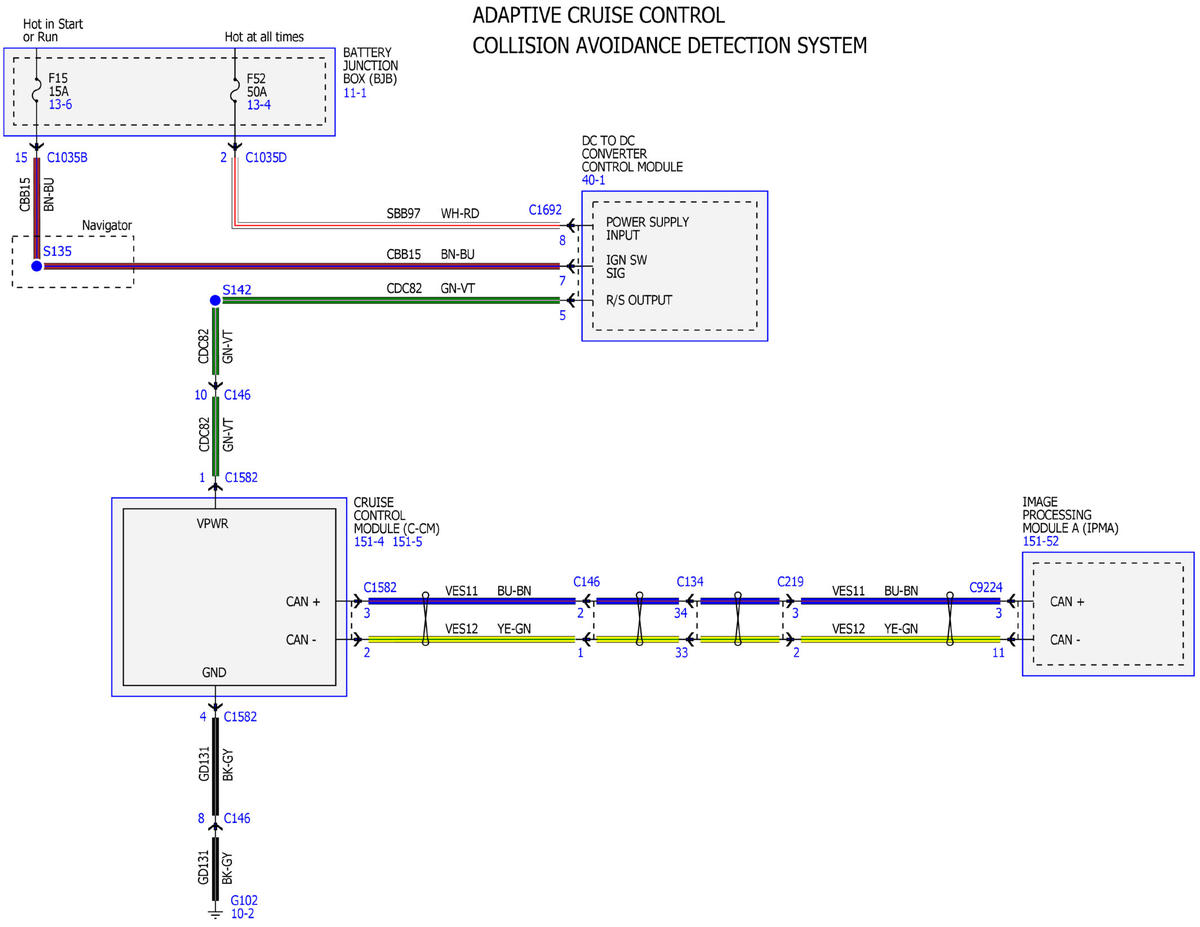

Fig 1: Cruise Control Wiring Diagrams (1 Of 7)
Courtesy of FORD MOTOR COMPANY

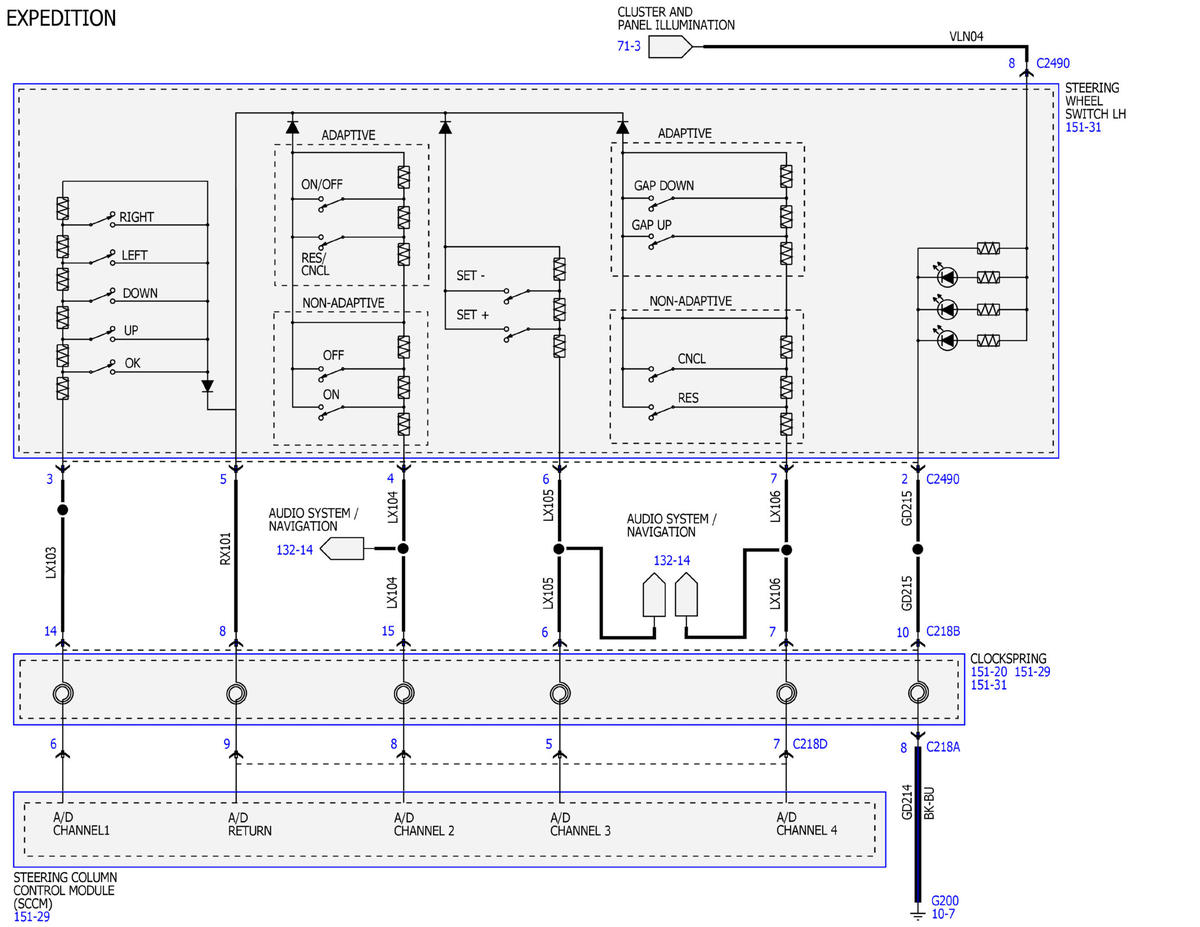

Fig 2: Cruise Control Wiring Diagrams (2 Of 7)
Courtesy of FORD MOTOR COMPANY

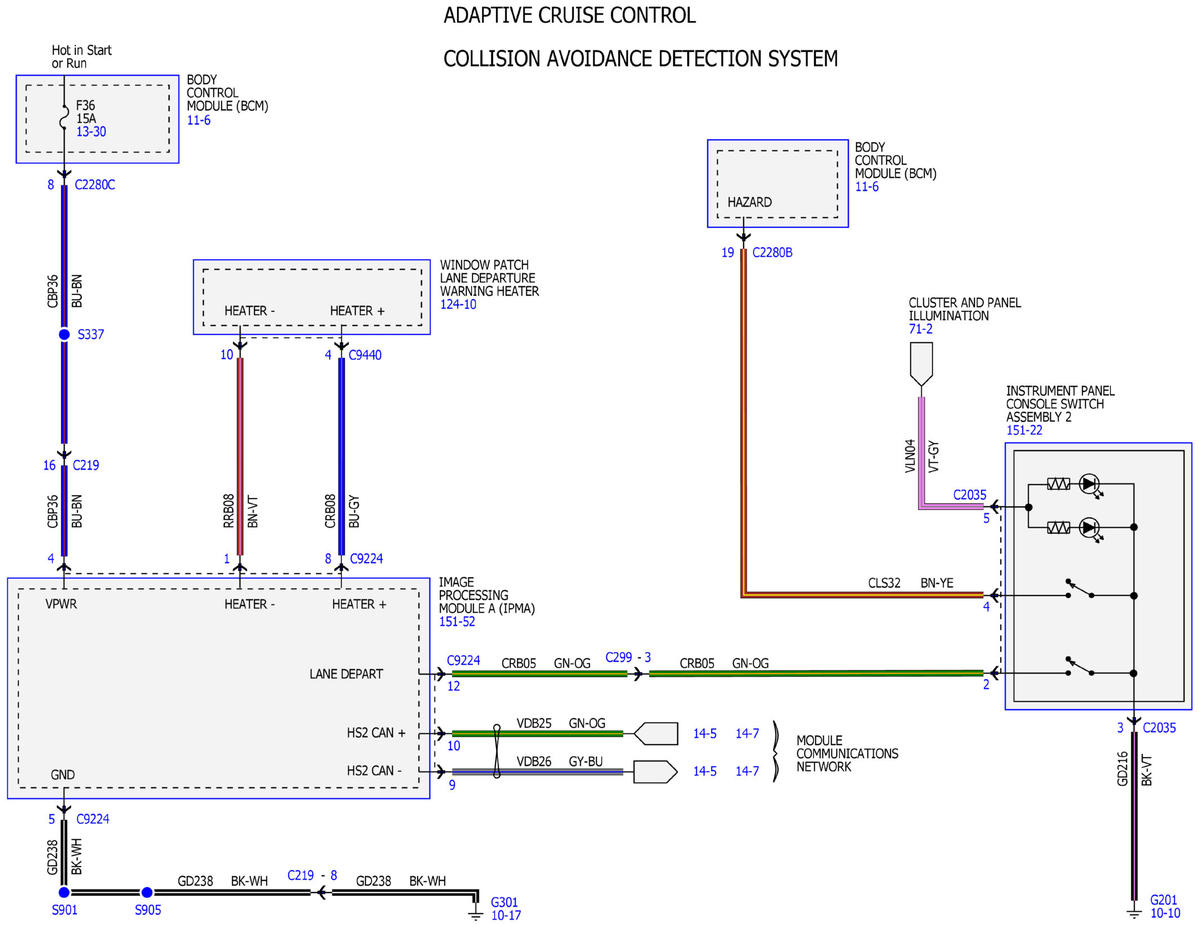

Fig 3: Cruise Control Wiring Diagrams (3 Of 7)
Courtesy of FORD MOTOR COMPANY

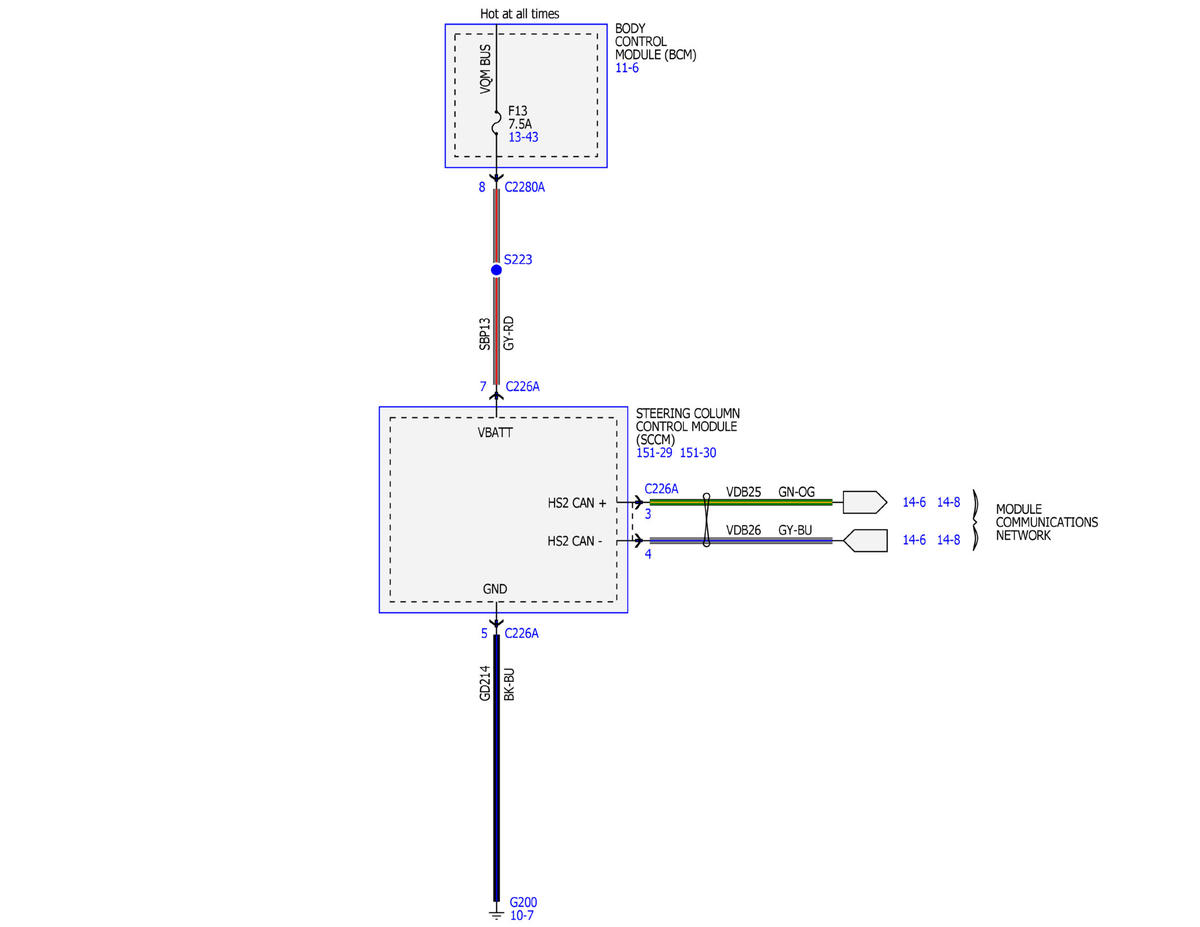

Fig 4: Cruise Control Wiring Diagrams (4 Of 7)
Courtesy of FORD MOTOR COMPANY

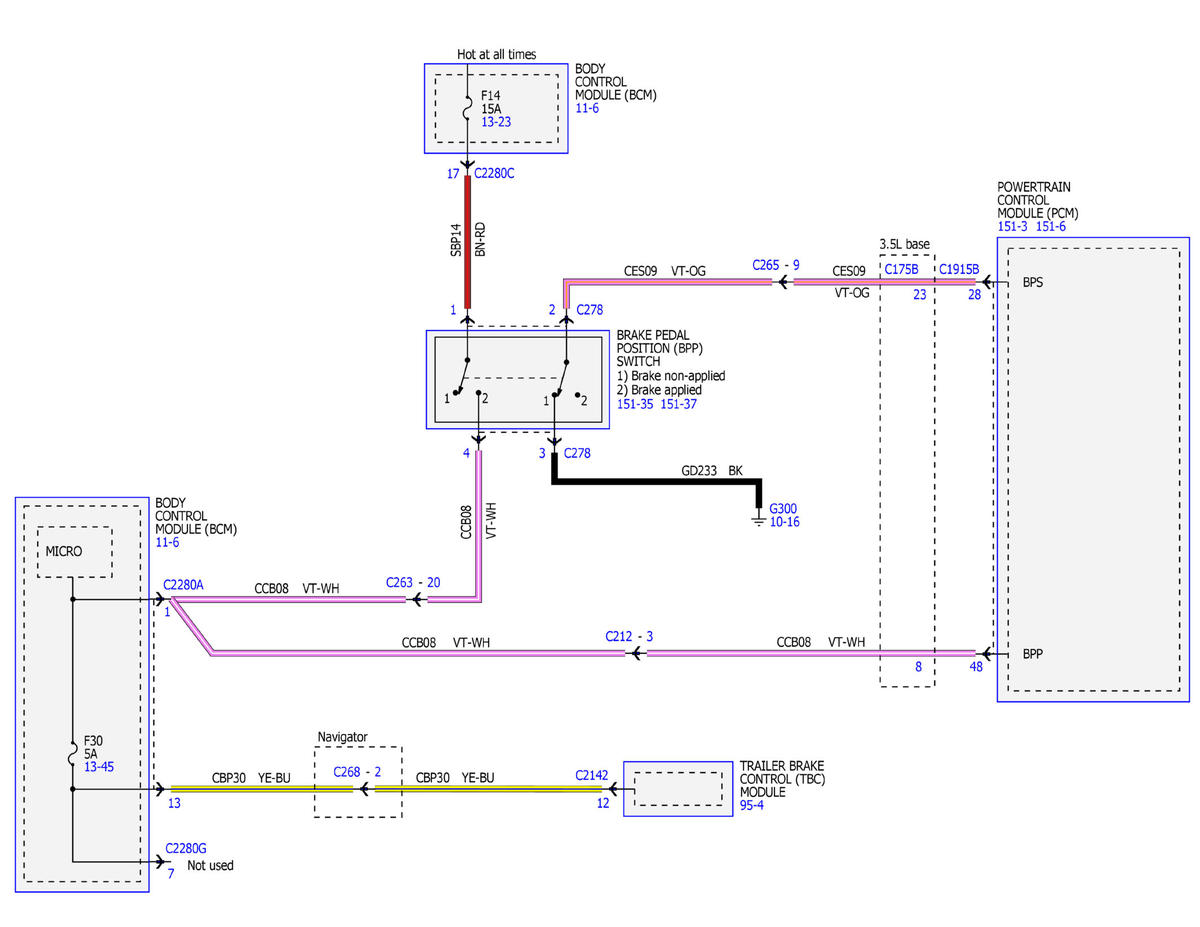

Fig 5: Cruise Control Wiring Diagrams (5 Of 7)
Courtesy of FORD MOTOR COMPANY
Fig 6: Cruise Control Wiring Diagrams (6 Of 7)
Courtesy of FORD MOTOR COMPANY
Fig 7: Cruise Control Wiring Diagrams (7 Of 7)
Courtesy of FORD MOTOR COMPANY
