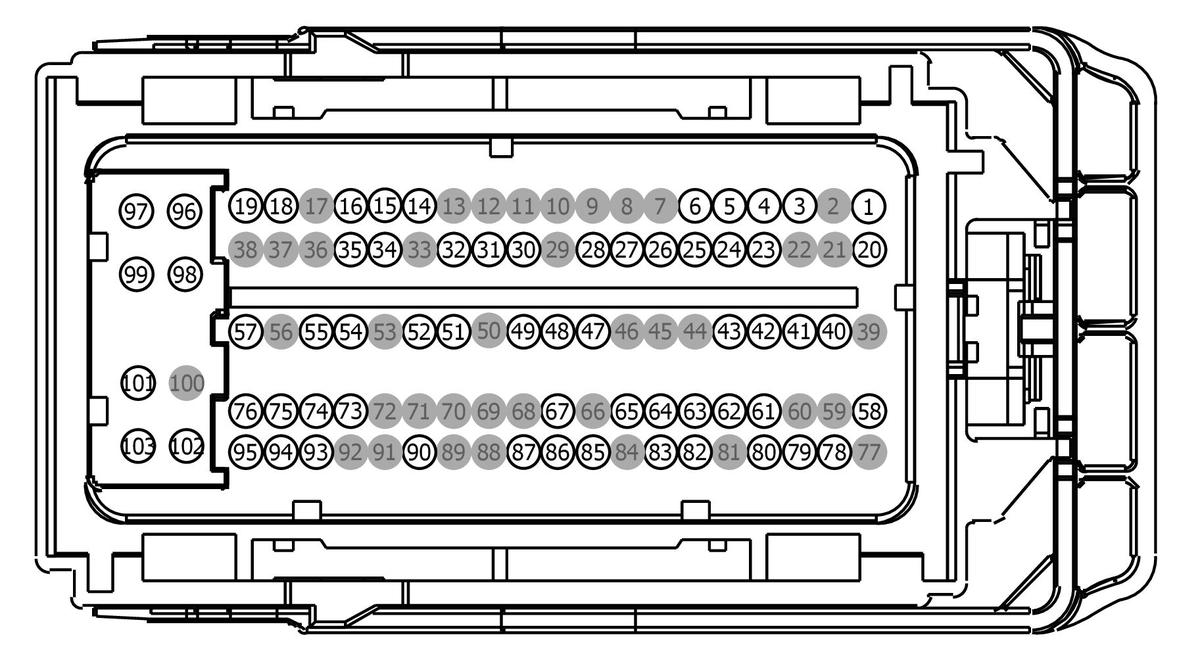

| 1 |
CE233 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
|
BU5T-14474-BB |
| 2 |
* |
* |
Not Used |
|
N/A |
| 3 |
CET45 (YE-BU) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 4 (SS4) |
|
BU5T-14474-AB |
| 4 |
CDC12 (YE) |
22 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
|
BU5T-14474-AB |
| 5 |
LE424 (YE-GN) |
22 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) |
|
BU5T-14474-AB |
| 6 |
RE230 (WH-VT) |
22 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER |
|
BU5T-14474-AB |
| 7 |
* |
* |
Not Used |
|
N/A |
| 8 |
* |
* |
Not Used |
|
N/A |
| 9 |
* |
* |
Not Used |
|
N/A |
| 10 |
* |
* |
Not Used |
|
N/A |
| 11 |
* |
* |
Not Used |
|
N/A |
| 12 |
* |
* |
Not Used |
|
N/A |
| 13 |
* |
* |
Not Used |
|
N/A |
| 14 |
LE137 (BU-GY) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) |
|
BU5T-14474-AB |
| 15 |
RE137 (YE-GN) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) |
|
BU5T-14474-AB |
| 16 |
LE230 (BN-BU) |
22 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) |
|
BU5T-14474-AB |
| 17 |
* |
* |
Not Used |
|
N/A |
| 18 |
LE136 (GN-OG) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) |
|
BU5T-14474-AB |
| 19 |
RE136 (VT-GN) |
22 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) |
|
BU5T-14474-AB |
| 20 |
CE114 (GN-BU) |
18 |
CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANV) |
|
BU5T-14474-BB |
| 21 |
* |
* |
Not Used |
|
N/A |
| 22 |
* |
* |
Not Used |
|
N/A |
| 23 |
VE225 (YE-OG) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) |
|
BU5T-14474-AB |
| 24 |
RE226 (GN-VT) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - |
|
BU5T-14474-AB |
| 25 |
CE302 (YE-BU) |
22 |
CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) |
|
BU5T-14474-AB |
| 26 |
CDC15 (VT) |
22 |
GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) |
|
BU5T-14474-AB |
| 27 |
CE261 (GY-OG) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES) |
|
BU5T-14474-AB |
| 28 |
CES09 (VT-OG) |
22 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + |
|
BU5T-14474-AB |
| 29 |
* |
* |
Not Used |
|
N/A |
| 30 |
RE407 (YE-VT) |
22 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) |
|
BU5T-14474-AB |
| 31 |
VE722 (BN) |
20 |
SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT) |
|
BU5T-14474-AB |
| 32 |
VE788 (BU-WH) |
20 |
SENSOR - PARTICULATE FILTER PRESSURE OUTLET LEFT OR SINGLE (PFP_O) |
|
BU5T-14474-AB |
| 33 |
* |
* |
Not Used |
|
N/A |
| 34 |
VE740 (VT-GY) |
20 |
SENSOR - INTAKE AIR TEMPERATURE (IAT) |
|
BU5T-14474-AB |
| 35 |
VE751 (BN-VT) |
20 |
SENSOR - INTAKE AIR TEMPERATURE 2ND (IAT2) |
|
BU5T-14474-AB |
| 36 |
* |
* |
Not Used |
|
N/A |
| 37 |
* |
* |
Not Used |
|
N/A |
| 38 |
* |
* |
Not Used |
|
N/A |
| 39 |
* |
* |
Not Used |
|
N/A |
| 40 |
CE420 (GY-VT) |
18 |
CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) |
|
BU5T-14474-BB |
| 41 |
CEC02 (GN-BU) |
22 |
CTRL MOD. - COOLING FAN CONTROL (FC1) |
|
BU5T-14474-AB |
| 42 |
CDC70 (BU-BN) |
22 |
CTRL MOD. - VOLTAGE QUALITY # ENGINE START (ENG START SIG) |
|
BU5T-14474-AB |
| 43 |
CE188 (BN) |
22 |
CTRL MOD. - POWERTRAIN # CHARGE AIR COOLING FAN RELAY |
|
BU5T-14474-AB |
| 44 |
* |
* |
Not Used |
|
N/A |
| 45 |
* |
* |
Not Used |
|
N/A |
| 46 |
* |
* |
Not Used |
|
N/A |
| 47 |
CDC35 (BU-WH) |
22 |
SWITCH - IGNITION # START |
|
BU5T-14474-AB |
| 48 |
CCB08 (VT-WH) |
22 |
SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
|
BU5T-14474-AB |
| 49 |
CET40 (GN-OG) |
20 |
SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN) |
|
BU5T-14474-AB |
| 50 |
* |
* |
Not Used |
|
N/A |
| 51 |
VE750 (GN-BU) |
22 |
SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) |
|
BU5T-14474-AB |
| 52 |
VH433 (VT-OG) |
22 |
TRANSDUCER - A/C PRESSURE (ACPT) + |
|
BU5T-14474-AB |
| 53 |
* |
* |
Not Used |
|
N/A |
| 54 |
VE702 (BU-WH) |
22 |
SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) |
|
BU5T-14474-AB |
| 55 |
VE701 (YE-OG) |
22 |
SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) |
|
BU5T-14474-AB |
| 56 |
* |
* |
Not Used |
|
N/A |
| 57 |
CE226 (YE-VT) |
22 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
|
BU5T-14474-AB |
| 58 |
CE465 (YE-GY) |
20 |
CTRL MOD. - POWERTRAIN # VACUUM SOLENOID VALVE (VSV) + |
|
BU5T-14474-AB |
| 59 |
* |
* |
Not Used |
|
N/A |
| 60 |
* |
* |
Not Used |
|
N/A |
| 61 |
CDC10 (BU-OG) |
22 |
CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) |
|
BU5T-14474-AB |
| 62 |
CDC54 (WH-GN) |
22 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) |
|
BU5T-14474-AB |
| 63 |
VDN06 (WH-GN) |
22 |
CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 [OBSOLETE - REPLACED BY VE181] |
|
BU5T-14474-AB |
| 64 |
VE474 (BU-GN) |
22 |
CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED HIGH |
|
BU5T-14474-AB |
| 65 |
VE475 (WH-VT) |
22 |
CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED LOW |
|
BU5T-14474-AB |
| 66 |
* |
* |
Not Used |
|
N/A |
| 67 |
VE518 (BN-WH) |
22 |
MONITOR - FUEL PUMP (FPM) |
|
BU5T-14474-AB |
| 68 |
* |
* |
Not Used |
|
N/A |
| 69 |
* |
* |
Not Used |
|
N/A |
| 70 |
* |
* |
Not Used |
|
N/A |
| 71 |
* |
* |
Not Used |
|
N/A |
| 72 |
* |
* |
Not Used |
|
N/A |
| 73 |
VE922 (VT-GN) |
22 |
TRANSDUCER - FUEL TANK PRESSURE (FTPT) |
|
BU5T-14474-AB |
| 74 |
VE805 (GY-OG) |
20 |
SENSOR - MANIFOLD TEMPERATURE + |
|
BU5T-14474-AB |
| 75 |
RE731 (WH) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) |
|
BU5T-14474-BB |
| 76 |
VE731 (YE-GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
|
BU5T-14474-BB |
| 77 |
* |
* |
Not Used |
|
N/A |
| 78 |
CE234 (BU-WH) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) |
|
BU5T-14474-BB |
| 79 |
VE462 (WH-BN) |
22 |
CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE |
|
BU5T-14474-AB |
| 80 |
CEC01 (WH-BU) |
22 |
CTRL MOD. - COOLING FAN CONTROL (FC2) |
|
BU5T-14474-AB |
| 81 |
* |
* |
Not Used |
|
N/A |
| 82 |
CH302 (WH-BN) |
22 |
CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) |
|
BU5T-14474-AB |
| 83 |
CBB16 (BU-GN) |
22 |
FUSE - 16 OR CIRCUIT BREAKER |
|
BU5T-14474-AB |
| 84 |
* |
* |
Not Used |
|
N/A |
| 85 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
|
BU5T-14474-AB |
| 86 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
BU5T-14474-AB |
| 87 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
BU5T-14474-AB |
| 88 |
* |
* |
Not Used |
|
N/A |
| 89 |
* |
* |
Not Used |
|
N/A |
| 90 |
CR167 (YE-VT) |
22 |
CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) |
|
BU5T-14474-AB |
| 91 |
* |
* |
Not Used |
|
N/A |
| 92 |
* |
* |
Not Used |
|
N/A |
| 93 |
VE787 (WH-OG) |
20 |
SENSOR - PARTICULATE FILTER PRESSURE OUTLET RIGHT (PFP_O) |
|
BU5T-14474-AB |
| 94 |
RE733 (GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) |
|
BU5T-14474-BB |
| 95 |
VE733 (WH) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) |
|
BU5T-14474-BB |
| 96 |
GD113 (BK-YE) |
22 |
GROUND - COWL TOP RIGHT |
|
BU5T-14474-UA |
| 97 |
GD113 (BK-YE) |
22 |
GROUND - COWL TOP RIGHT |
|
BU5T-14474-UA |
| 98 |
GD113 (BK-YE) |
22 |
GROUND - COWL TOP RIGHT |
|
BU5T-14474-UA |
| 99 |
GD113 (BK-YE) |
22 |
GROUND - COWL TOP RIGHT |
|
BU5T-14474-UA |
| 100 |
* |
* |
Not Used |
|
N/A |
| 101 |
CBB38 (GY-BU) |
20 |
FUSE - 38 OR CIRCUIT BREAKER |
|
BU5T-14474-UA |
| 102 |
CBB38 (GY-BU) |
20 |
FUSE - 38 OR CIRCUIT BREAKER |
|
BU5T-14474-UA |
| 103 |
CBB38 (GY-BU) |
20 |
FUSE - 38 OR CIRCUIT BREAKER |
|
BU5T-14474-UA |
