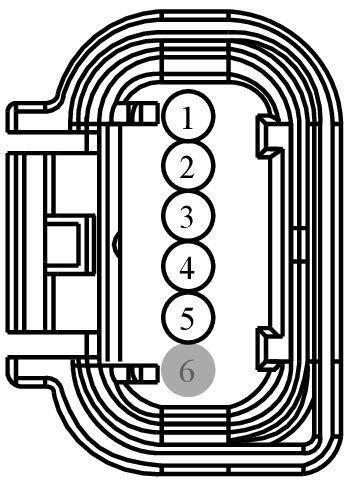

Connector End View C1664 - Front Parking Aid Camera

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1664	FRONT PARKING AID CAMERA		13A840	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CDC82 (GN-VT)	20	CTRL MOD. - VOLTAGE QUALITY # RUN/START OUT		8U5T-14474-BB
2	VMP24 (WH)	20	CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS		8U5T-14474-BB
3	VMP42 (BN-GN)	20	CAMERA - FRONT 360 VIDEO-		8U5T-14474-BB
4	VMP41 (YE)	20	CAMERA - FRONT 360 VIDEO+		8U5T-14474-BB
5	DMP41 (BK)	20	CAMERA - FRONT 360 VIDEO D		8U5T-14474-BB
6	*	*	Not Used		N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1556

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEB

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Front
• Camera - Reverse Park Aid

Pigtail Kit Part Number WPT-1280

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AEA

Gauge:

20

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Camera - Reverse Park Aid
