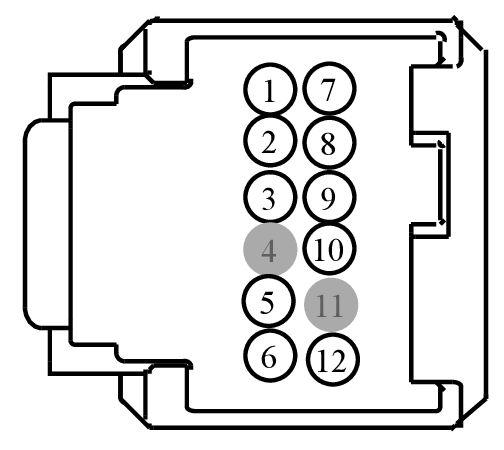

Connector End View C2512B - Image Processing Module B (IPMB)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2512B | IMAGE PROCESSING MODULE B (IPMB) | 14401 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-DB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number |
|---|---|---|---|---|---|
| 1 | DMP36 (BK) | 22 | CTRL MOD. - CAMERA SIDE 360 LEFT D | 9U5T-14474-DB | |
| 2 | VMP37 (BN-WH) | 22 | CAMERA - SIDE 360 LEFT VIDEO- | 9U5T-14474-DB | |
| 3 | VMP36 (GY) | 22 | CAMERA - SIDE 360 LEFT VIDEO+ | 9U5T-14474-DB | |
| 4 | * | * | Not Used | N/A | |
| 5 | VMP42 (BN-GN) | 22 | CAMERA - FRONT 360 VIDEO- | 9U5T-14474-DB | |
| 6 | VMP41 (YE) | 22 | CAMERA - FRONT 360 VIDEO+ | 9U5T-14474-DB | |
| 7 | DMP34 (BK) | 22 | CTRL MOD. - CAMERA SIDE 360 RIGHT D | 9U5T-14474-DB | |
| 8 | VMP35 (VT-BN) | 22 | CAMERA - SIDE 360 RIGHT VIDEO- | 9U5T-14474-DB | |
| 9 | VMP34 (GN-VT) | 22 | CAMERA - SIDE 360 RIGHT VIDEO+ | 9U5T-14474-DB | |
| 10 | CMP33 (BU) | 22 | CTRL MOD. - CAMERA SIDE 360 # POWER | 9U5T-14474-DB | |
| 11 | * | * | Not Used | N/A | |
| 12 | DMP41 (BK) | 22 | CAMERA - FRONT 360 VIDEO D | 9U5T-14474-DB |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1401
Service Part Number:
EU2Z-14S411-SA
Gauge:
20
Pin material:
Tin
Cavities:
12
Vehicle Uses:
- Module - Climate Control Seat
- Module - Heated Seat (Rear)
- Module - Image Processing
- Module - Media Gateway
- Module - Power Steering
- Monitor - Video/DVD
