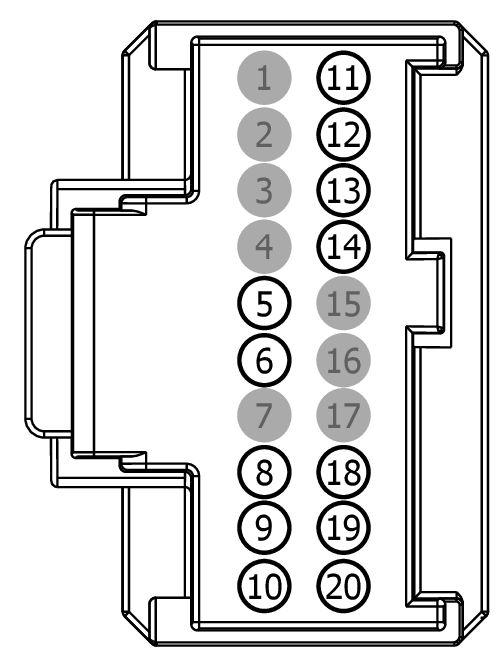

Connector End View C2512A - Image Processing Module B (IPMB)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2512A	IMAGE PROCESSING MODULE B (IPMB)		14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used		N/A
2	*	*	Not Used		N/A
3	*	*	Not Used		N/A
4	*	*	Not Used		N/A
5	CMP40 (VT)	22	SWITCH - FRONT 360 CAMERA ENABLE		9U5T-14474-DB
6	GD215 (BK-GY)	20	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT		9U5T-14474-DB
7	*	*	Not Used		N/A
8	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW		9U5T-14474-DB
9	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH		9U5T-14474-DB
10	CDC82 (GN-VT)	20	CTRL MOD. - VOLTAGE QUALITY # RUN/START OUT		9U5T-14474-DB
11	DMP19 (BK)	22	CAMERA - PARKING AID REAR VIDEO D		9U5T-14474-DB
12	RMP19 (BN-VT)	22	CAMERA - PARKING AID REAR VIDEO -		9U5T-14474-DB
13	VMP19 (WH-GN)	22	CAMERA - PARKING AID REAR VIDEO +		9U5T-14474-DB
14	VMP24 (WH)	22	CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS		9U5T-14474-DB
15	*	*	Not Used		N/A
16	*	*	Not Used		N/A
17	*	*	Not Used		N/A
18	DMP43 (BK)	22	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT D		9U5T-14474-DB
19	VMP44 (VT-GY)	22	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT -		9U5T-14474-DB
20	VMP43 (GN-BU)	22	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT +		9U5T-14474-DB

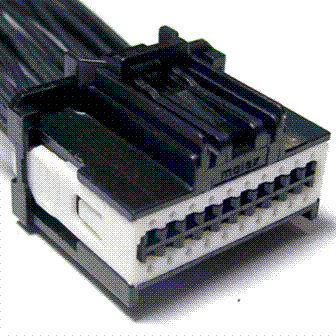

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

20

Pin material:

Tin

Cavities:

20

Vehicle Uses:

• Camera - Reverse Park Aid
• Module - Image Processing
• Radio - Amplifier
