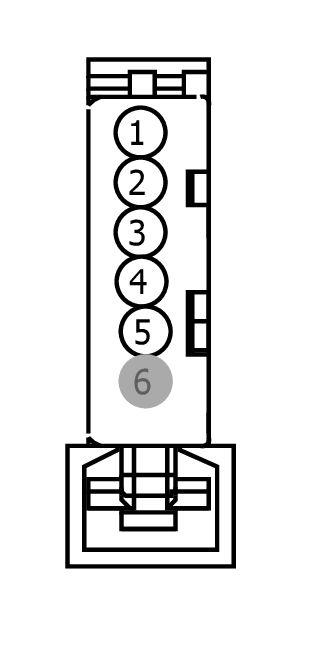

Connector End View C2480 - Instrument Panel Console Switch Assembly 1

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2480	INSTRUMENT PANEL CONSOLE SWITCH ASSEMBLY 1		14401	part# N/A	See Below

Pin: 5 - VLN04(VT-GY)-CTRL MOD. - IP/SWITCH ILLUMINATION, Gauge 22

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Terminal Part Number
1	CE469 (BN)	22	CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR	9U5T-14474-LA
2	CMP40 (VT)	22	SWITCH - FRONT 360 CAMERA ENABLE	9U5T-14474-LA
3	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	9U5T-14474-LA
3	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	9U5T-14474-LA
4	CH253 (WH-BN)	22	CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE	9U5T-14474-LA
4	CLS32 (BN-YE)	22	SWITCH - HAZARD	9U5T-14474-LA
5	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	9U5T-14474-LA
6	*	*	Not Used	N/A

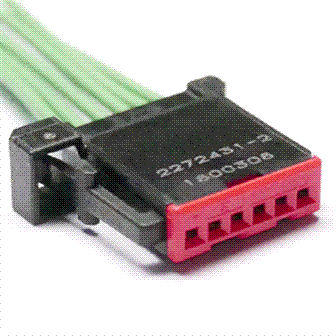

Available Pigtail Kits

Pigtail Kit Part Number WPT-1553

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ZA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:
