Connector End View C2383A - Sync Module [APIM]

Connector: Description Color Harness Base Part # Service Pigtail
C2383A SYNC MODULE [APIM]   14401 part# N/A Not Available

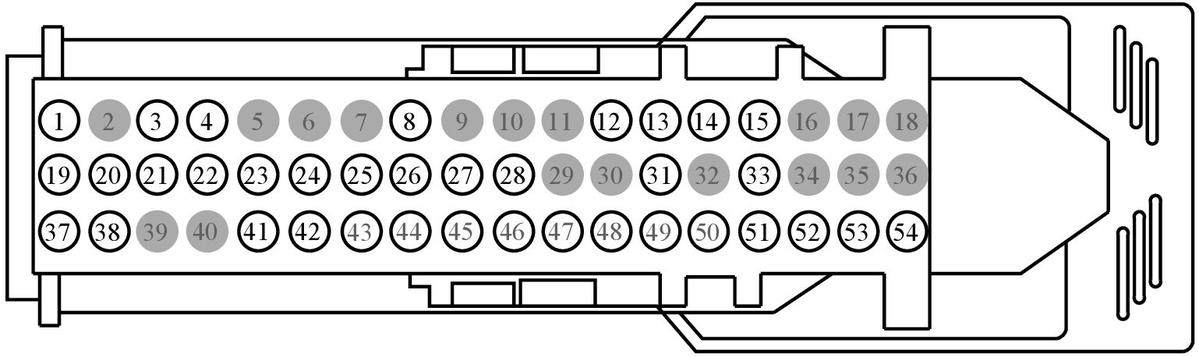

GFDWR134443Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-EB DU2Z-14474-AA 0.64
9U5T-14474-DB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SBP15 (WH-RD) 18 FUSE - 15 OR CIRCUIT BREAKER   9U5T-14474-EB
2 * * Not Used   N/A
3 VME80 (VT-GN) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+)   9U5T-14474-DB
4 RME80 (BU-GY) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-)   9U5T-14474-DB
5 * * Not Used   N/A
6 * * Not Used   N/A
7 * * Not Used   N/A
8 LME89 (YE-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY POWER   9U5T-14474-DB
9 * * Not Used   N/A
10 * * Not Used   N/A
11 * * Not Used   N/A
12 VMM23 (BN-VT) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL +   9U5T-14474-DB
13 RMM23 (WH-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL -   9U5T-14474-DB
14 VMP19 (WH-GN) 22 CAMERA - PARKING AID REAR VIDEO +   9U5T-14474-DB
14 VMP43 (GN-BU) 22 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT +   9U5T-14474-DB
15 RMP19 (BN-VT) 22 CAMERA - PARKING AID REAR VIDEO -   9U5T-14474-DB
15 VMP44 (VT-GY) 22 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT -   9U5T-14474-DB
16 * * Not Used   N/A
17 * * Not Used   N/A
18 * * Not Used   N/A
19 VDB29 (GN-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH   9U5T-14474-DB
20 VDB30 (WH-GN) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW   9U5T-14474-DB
21 DME80 (BK) 22 CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 D   9U5T-14474-DB
22 DME52 (BK) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO D   9U5T-14474-DB
23 VME52 (BU) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT +   9U5T-14474-DB
24 RME52 (GY-OG) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT -   9U5T-14474-DB
25 VME53 (VT-GN) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT +   9U5T-14474-DB
26 RME53 (BN-WH) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT -   9U5T-14474-DB
27 VMEF7 (BN-BU) 22 CTRL MOD. - AUDIO HEAD UNIT DRDL_TX_+   9U5T-14474-DB
28 VMEF8 (BU-GY) 22 CTRL MOD. - AUDIO HEAD UNIT DRDL_TX_-   9U5T-14474-DB
29 * * Not Used   N/A
30 * * Not Used   N/A
31 DMM23 (BK) 22 CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL D   9U5T-14474-DB
32 * * Not Used   N/A
33 DMP19 (BK) 22 CAMERA - PARKING AID REAR VIDEO D   9U5T-14474-DB
33 DMP43 (BK) 22 CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT D   9U5T-14474-DB
34 * * Not Used   N/A
35 * * Not Used   N/A
36 * * Not Used   N/A
37 GD215 (BK-GY) 18 GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT   9U5T-14474-EB
38 RME89 (WH-BU) 22 CTRL MOD. - MEDIA CONNECTIVITY GROUND   9U5T-14474-DB
39 * * Not Used   N/A
40 * * Not Used   N/A
41 VDB31 (BU-GN) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 (LOWER) HIGH   9U5T-14474-DB
42 VDB32 (VT-GN) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 (LOWER) LOW   9U5T-14474-DB
42 VDB32 (VT-WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 4 (LOWER) LOW   9U5T-14474-DB
43 * * Not Used   N/A
44 * * Not Used   N/A
45 * * Not Used   N/A
46 * * Not Used   N/A
47 * * Not Used   N/A
48 * * Not Used   N/A
49 * * Not Used   N/A
50 * * Not Used   N/A
51 VME90 (GY-BU) 22 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H)   9U5T-14474-DB
52 VME91 (WH-BN) 22 CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L)   9U5T-14474-DB
53 VDB04 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH   9U5T-14474-DB
54 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW   9U5T-14474-DB
