Parking Aid - Component Location

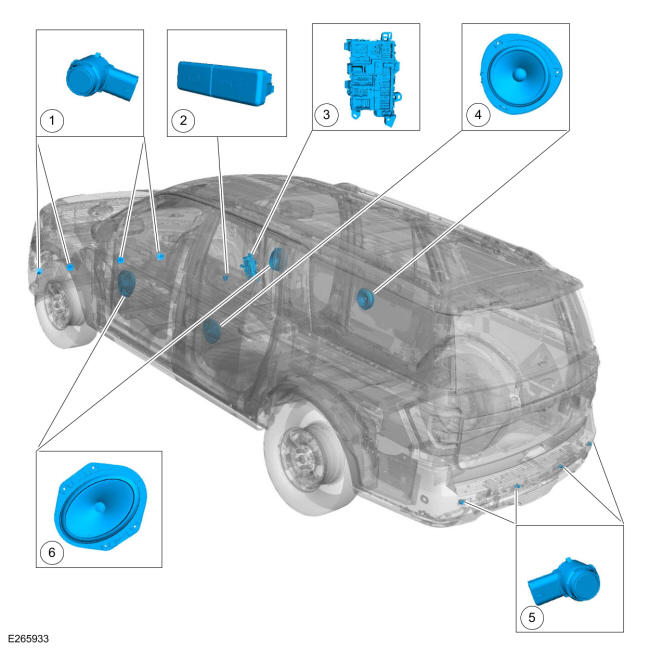

Component Location Parking Aid - Audible (without Active Park Assist)
| Item | Description |
|---|---|
| 1 | Front parking aid sensors |
| 2 | Parking aid switch |
| 3 | PAM (integral to the BCM) |
| 4 | Rear speakers (part of the audio system) |
| 5 | Rear parking aid sensors |
| 6 | Front speakers (part of the audio system) |

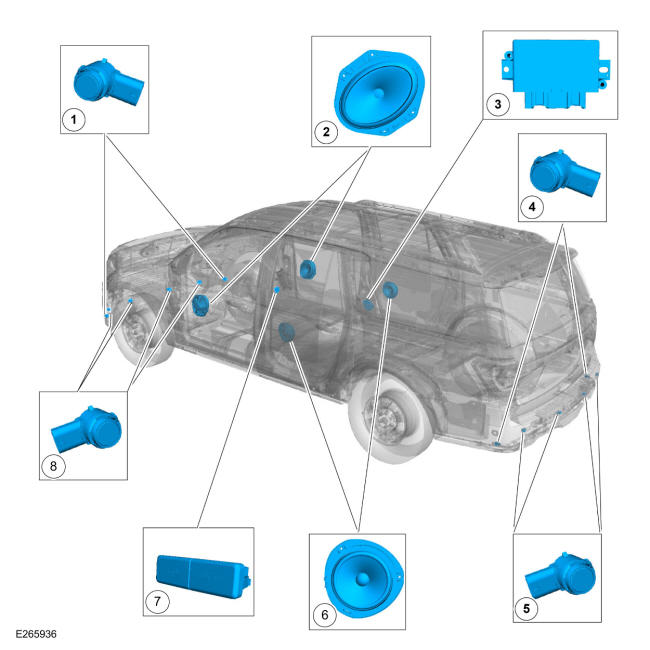

Component Location Parking Aid - Audible (with Active Park Assist)
| Item | Description |
|---|---|
| 1 | Front active park assist sensors |
| 2 | Front speakers (part of the audio system) |
| 3 | PAM |
| 4 | Rear active park assist sensors |
| 5 | Rear parking aid sensors |
| 6 | Rear speakers (part of the audio system) |
| 7 | Parking aid switch |
| 8 | Front parking aid sensors |
