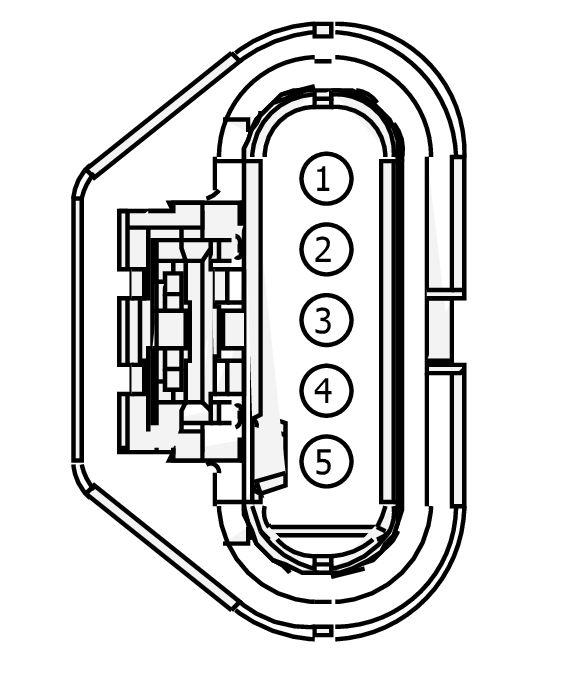

Connector End View C1896 - Turbocharger Wastegate Motor 2

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1896	TURBOCHARGER WASTEGATE MOTOR 2		12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-GAB	KU2Z-14474-CA	1.20

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE466 (BU-BN)	18	CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR +		EU5T-14474-GAB
2	VE836 (VT-GN)	18	SENSOR - WASTEGATE POSITION (WGT_PS)		EU5T-14474-GAB
3	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2		EU5T-14474-GAB
3	RE401 (GN-BU)	18	CTRL MOD. - POWERTRAIN # SCREEN GROUNDS -		EU5T-14474-GAB
4	LE111 (VT-GN)	18	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)		EU5T-14474-GAB
5	RE466 (GN-BN)	18	CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR -		EU5T-14474-GAB

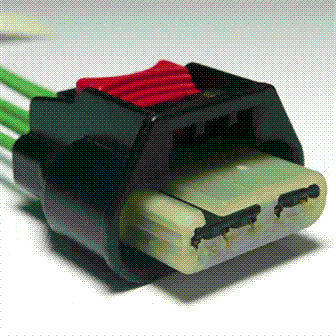

Available Pigtail Kits

Pigtail Kit Part Number WPT-1504

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-LA

Gauge:

18

Pin material:

Silver

Cavities:

5

Vehicle Uses:

• Actuator - Turbocharger Waste Gate
• Module - NOX Sensor
• Solenoid - EGR Cooler Bypass
• Valve - EGR
