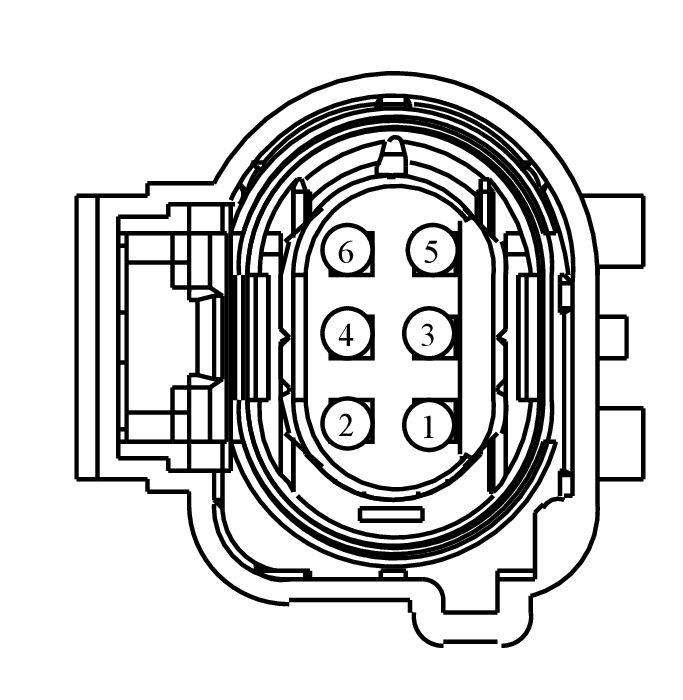

Connector End View C1631 - Universal Heated Oxygen Sensor (HO2S) #11

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1631	UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11		7C078/12C508	part# N/A	See Below

Pin: 4 - CBK02(GN)-FUSE - 2 OR CIRCUIT BREAKER (VPWR 2), Gauge 18

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6G9T-14474-DGA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE450 (WH)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21)		6G9T-14474-DGA
2	LE449 (VT-GN)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21)		6G9T-14474-DGA
3	CE236 (GY-VT)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21)		6G9T-14474-DGA
4	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)		6G9T-14474-DGA
5	LE453 (BN-BU)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED 2ND (UO2SIA-21)		6G9T-14474-DGA
6	VE827 (WH-GN)	18	SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21)		6G9T-14474-DGA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1549

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-AHA

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Sensor - O2 (HEGO/ EGO)
