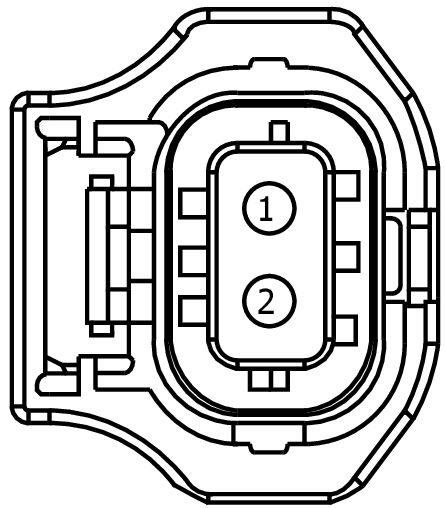

Connector End View C1452 - Variable Camshaft Timing Bank 1 Solenoid 2 (VCT12)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1452	VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 2 (VCT12)		12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-SB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)		EU5T-14474-SB
2	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2)		EU5T-14474-SB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1506

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-DB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Actuator - Door Lock
• Fuel Injector
• Injector - UREA
• Sensor - Fuel Rail Pressure
• Solenoid - Engine Variable Timing
• Solenoid - Fuel Volume Regulator Control
• Valve - Fuel Metering
• Valve - Heated PCV
• Valve - Vapor Management
