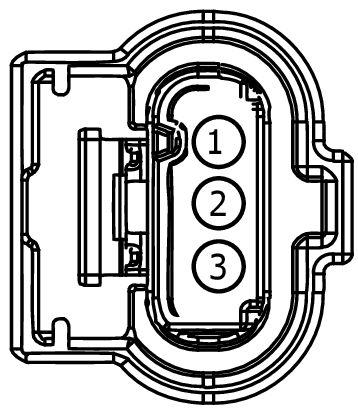

Connector End View C4421 - Rear Active Parking Aid Sensor RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4421	REAR ACTIVE PARKING AID SENSOR RH		15K868	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-DAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LMP07 (BU-WH)	20	CTRL MOD. - PARKING AID # SENSORS REAR +		EU5T-14474-DAB
2	VMP30 (BN)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) REAR RIGHT SIDE		EU5T-14474-DAB
3	RMP07 (GN-WH)	20	CTRL MOD. - PARKING AID # SENSORS REAR -		EU5T-14474-DAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1492

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-BA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
• Monitor - Crankcase Ventilation
• Motor - Intercooler Pump
• Sensor - Cam Shaft Position
• Sensor - Crank Shaft Position
• Sensor - Delta Pressure Feedback EGR
• Sensor - Exhaust Gas Pressure
• Sensor - Intake Manifold Runner Control
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Oil Pressure
