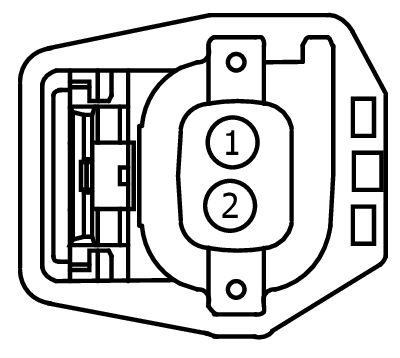

Connector End View C3656 - Hydraulic Solenoid Valve, Right Rear

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3656	HYDRAULIC SOLENOID VALVE, RIGHT REAR		14405	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-AEA	LU2Z-14474-CA	1.50

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CCD06 (VT-GY)	18	CTRL MOD. - CCD # SOLENOID DAMPER REAR RIGHT +		97BG-14474-AEA
2	RCD06 (BU-BN)	18	CTRL MOD. - CCD # SOLENOID DAMPER REAR RIGHT -		97BG-14474-AEA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1448

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AUA

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Switch - Deck Lid / Lift Gate (ANTI-THEFT)
