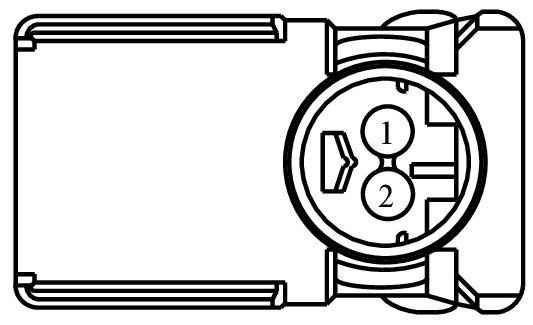

Connector End View C303 - Passenger Seatbelt Pretensioner
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C303 | PASSENGER SEATBELT PRETENSIONER | 14A005 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number |
|---|---|---|---|---|---|
| 1 | CR179 (BU) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD + | N/A | |
| 2 | RR179 (GY-BU) | 20 | CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD - | N/A |
