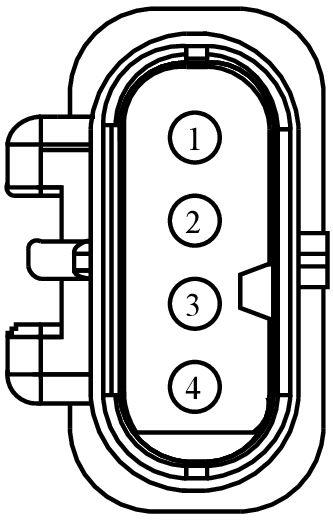

Connector End View C141 - Heated Oxygen Sensor (HO2S) #22

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C141	HEATED OXYGEN SENSOR (HO2S) #22		7C078	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14421-NA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)		EU5T-14421-NA
2	CE234 (BU-GY)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22)		EU5T-14421-NA
2	CE234 (BU-WH)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22)		EU5T-14421-NA
3	RE733 (GN)	18	SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)		EU5T-14421-NA
3	RE733 (BK-GN)	18	SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)		EU5T-14421-NA
4	VE733 (WH)	18	SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)		EU5T-14421-NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1381

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-EA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Sensor - Catalyst Monitor
