Pinpoint Tests JF: Integrated Ignition Coil On Plug Coils A Through J Failure: Introduction
This pinpoint test is intended to diagnose the following:
- ignition coils (12029)
- ignition coil harness
- PCM (12A650)

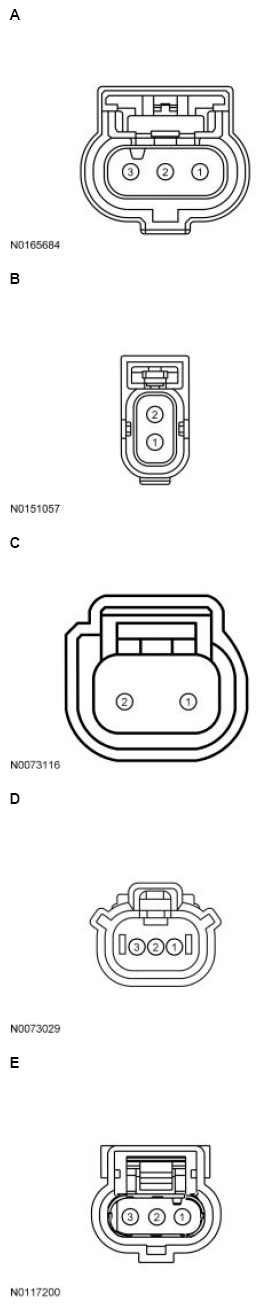

| Vehicle | Connector | Pin | Circuit | |
|---|---|---|---|---|
| Corsair 2.5L, Escape/Kuga 2.5L, Explorer 3.3L, F-150 3.3L, Mustang 5.2L, Transit TiVCT 3.5L | A | 1 3 |
COP VPWR |
|
| E-Series F-150 5.0L, F-650/F-750, F-Series Super Duty, Motorhome/Stripped Chassis/Step Van, | A | 3 1 |
COP VPWR | |
| EcoSport 1.5L, KA | B | 1 2 | COP VPWR | |
| Mustang 5.0L | A | 1 1 (Cylinder 3), 3 (All Others) |
COP VPWR |
|
| Ranger 2.5L, Transit Connect 2.5L | C | 1 2 |
COP VPWR |
|
| Transit GTDI 3.5L | D | 2 1 3 |
COP GND VPWR |
|
| All other vehicles | E | 1 2 3 | COP GND VPWR |
|
Powertrain Control Module (PCM) Connector
For PCM connector views or Reference values, Refer to Reference Values.
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Aviator, Edge 2.7L, Expedition Base, Explorer 3.0L, Explorer 3.3L, Nautilus 2.7L, Navigator Base, Transit | 306 PIN | E63 E105 E62 E42 E84 E21 |
COP6 COP5 COP4 COP3 COP2 COP1 |
| Bronco Sport 1.5L, Escape/Kuga 1.5L, | 198 PIN | E58 E59 |
COP3 COP2 |
| Transit Connect 1.0L | E60 | COP1 | |
| Continental, EcoSport 2.0L | 198 PIN | E43 E72 E57 E42 |
COP4 COP3 COP2 COP1 |
| Corsair 2.5L, Escape/Kuga 2.5L, Transit Connect 2.5L | 198 PIN | E89 E84 E94 E79 |
COP4 COP3 COP2 COP1 |
| E-Series, F-650/F-750, F-Series Super Duty, Motorhome/Stripped Chassis/Step Van, Mustang 5.0L, Mustang 5.2L Supercharged | 306 PIN | E105 E83 E42 E62 E84 E63 E126 E21 |
COP8 COP7 COP6 COP5 COP4 COP3 COP2 COP1 |
| EcoSport 1.0L Automatic Transmission | 198 PIN | E72 E57 E42 |
COP3 COP2 COP1 |
| EcoSport 1.0L Manual Transmission | 198 PIN | E52 E51 E50 |
COP3 COP2 COP1 |
| EcoSport 1.5L Automatic Transmission, KA 1.5L Automatic Transmission | 198 PIN | E89 E84 E79 |
COP3 COP2 COP1 |
| EcoSport 1.5L Manual Transmission, KA 1.2L, KA 1.5L Manual Transmission | 112 PIN | E54 E52 E53 |
COP3 COP2 COP1 |
| Expedition High Output, | 198 PIN | E57 | COP6 |
| Navigator High Output | E56 E71 E70 E55 E41 |
COP5 COP4 COP3 COP2 COP1 |
|
| F-150 2.7L, F-150 3.3L | 306 PIN | E20 E62 E41 E40 E42 E19 |
COP6 COP5 COP4 COP3 COP2 COP1 |
| F-150 3.5L | 306 PIN | E20 E52 E41 E40 E42 E19 |
COP6 COP5 COP4 COP3 COP2 COP1 |
| F-150 5.0L | 306 PIN | E63 E42 E40 E20 E21 E41 E62 E19 |
COP8 COP7 COP6 COP5 COP4 COP3 COP2 COP1 |
| Ford GT | 198 PIN | E73 E58 E43 E72 E57 E42 |
COP6 COP5 COP4 COP3 COP2 COP1 |
| KA 1.0L | 128 PIN | T8 T24 T16 |
COP3 COP2 COP1 |
| Mustang TiVCT 5.2L | 198 PIN | E90 E94 E95 E89 E92 E88 E87 E93 |
COP8 COP7 COP6 COP5 COP4 COP3 COP2 COP1 |
| Ranger 2.5L | 128 PIN | T8 T24 T7 T16 |
COP4 COP3 COP2 COP1 |
| All other vehicles | 198 PIN | E58 E59 E45 E60 |
COP4 COP3 COP2 COP1 |
