Parking Aid - Component Location

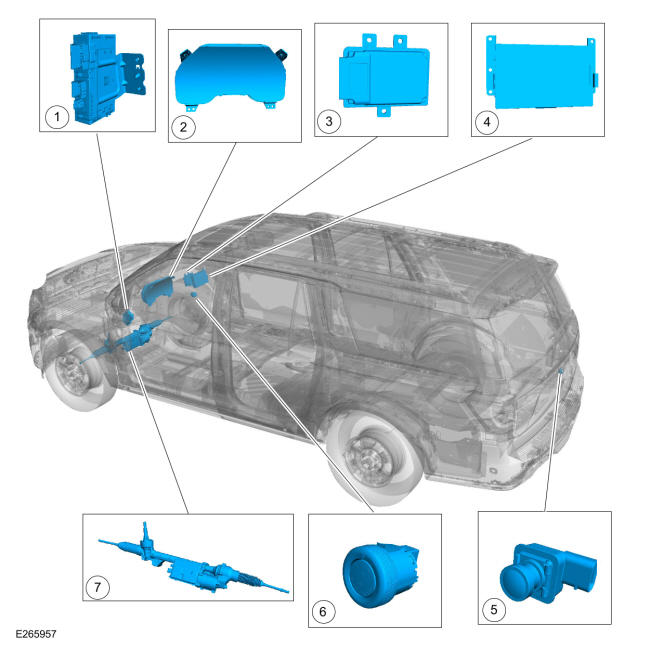

Component Location - Pro Trailer Backup Assist™
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
TRM |
| 2 |
IPC |
| 3 |
IPMB |
| 4 |
FDIM |
| 5 |
Rear parking aid camera (rear only parking aid camera system shown in illustration 360 degree view camera system similar) |
| 6 |
PTBA control knob |
| 7 |
PSCM (integral to the steering gear) |
