System Diagram

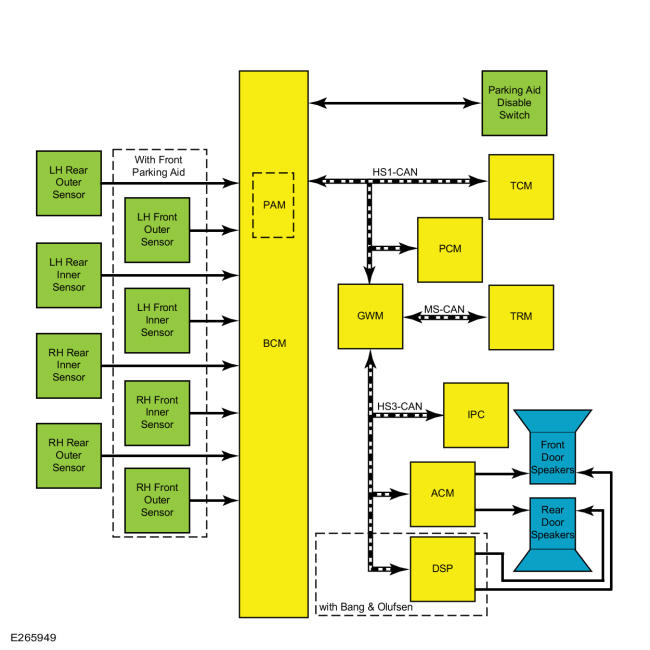

System Diagram Without Active Park Assist

GFD583584Courtesy of FORD MOTOR COMPANY

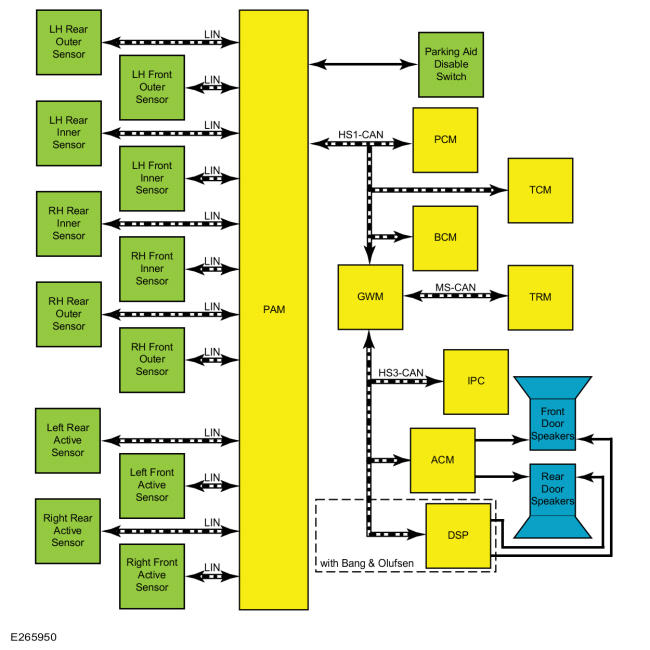

System Diagram With Active Park Assist

GFD583585Courtesy of FORD MOTOR COMPANY
