Side Parking Aid Camera: Removal

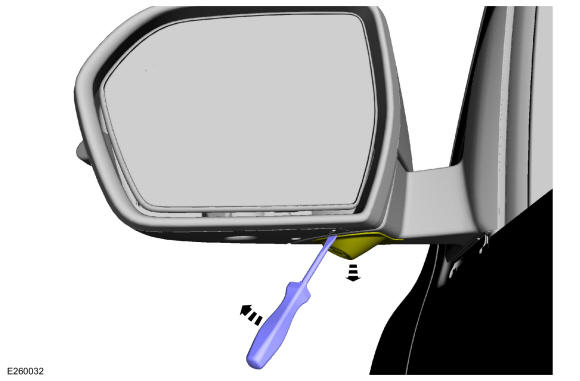

  1. Release the tab and lower the side parking aid camera bracket. Use the General Equipment: Flat-Bladed Screwdriver
    GFD583617Courtesy of FORD MOTOR COMPANY

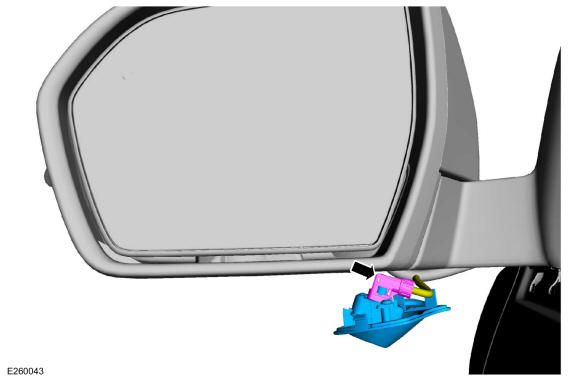

  2. Disconnect the co-ax connector and remove the side parking aid camera and bracket assembly.
    GFD583618Courtesy of FORD MOTOR COMPANY

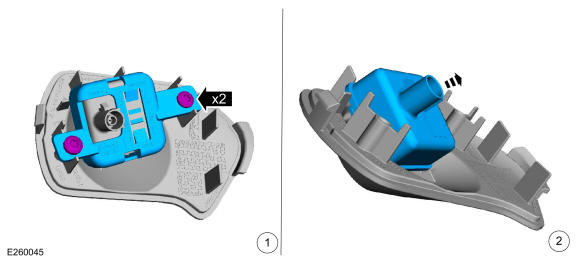

  3. Remove the side parking aid camera.

    1. Remove the screws and the side parking aid camera bracket.
    2. Separate the side parking aid camera from the bracket.

GFD583619Courtesy of FORD MOTOR COMPANY
