Rear Parking Aid Camera: Removal

  1. Remove the liftgate moulding. Refer to: Liftgate Moulding .

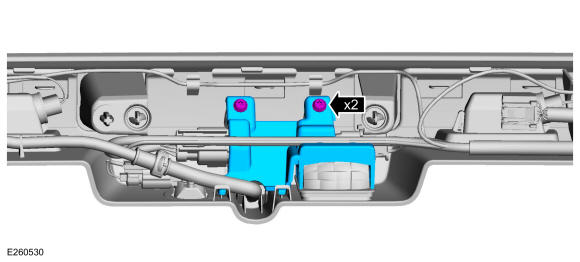

  2. Remove the screws and the rear parking aid camera bracket.
    GFD583615Courtesy of FORD MOTOR COMPANY

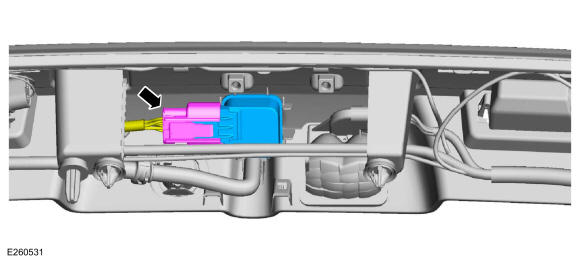

  3. Disconnect the electrical connector and remove the rear parking aid camera.
GFD583616Courtesy of FORD MOTOR COMPANY
