Parking Aid - Component Location

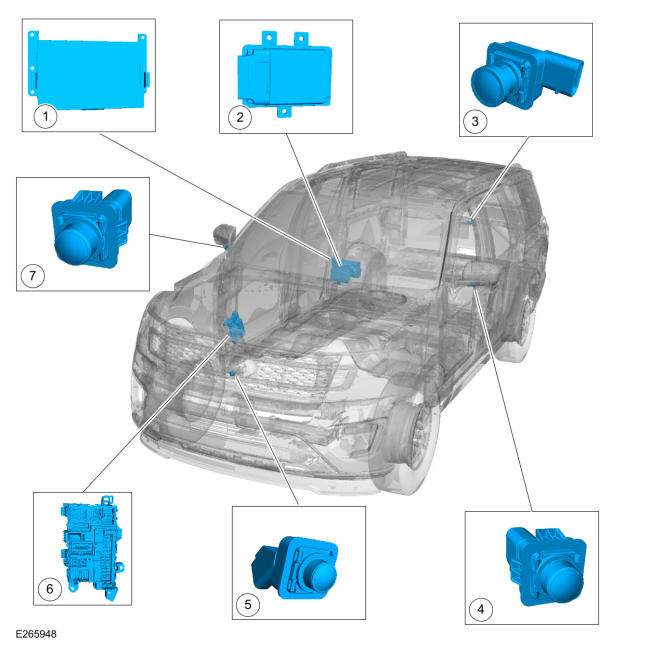

Component Location - Parking Aid Camera
| Item | Description |
|---|---|
| 1 | FDIM shown in illustration, FCDIM similar |
| 2 | IPMB (rear only parking aid camera system with PTBA or 360 degree view camera system) |
| 3 | Rear parking aid camera |
| 4 | LH side parking aid camera (360 degree view camera system) |
| 5 | Front parking aid camera (360 degree view camera system) |
| 6 | BCM (rear only parking aid camera system without PTBA) |
| 7 | RH side parking aid camera (360 degree view camera system) |
