Active Park Assist Switch: Removal

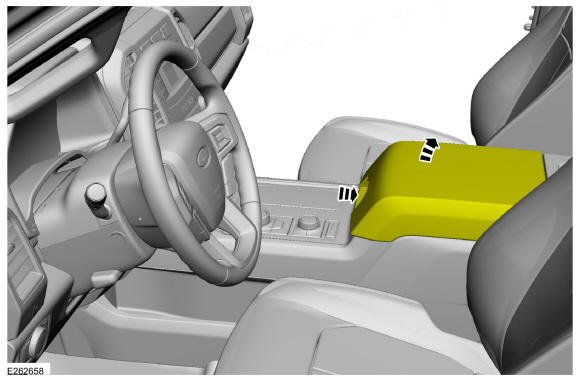

  1. Open the floor console armrest.
    GFD583625Courtesy of FORD MOTOR COMPANY

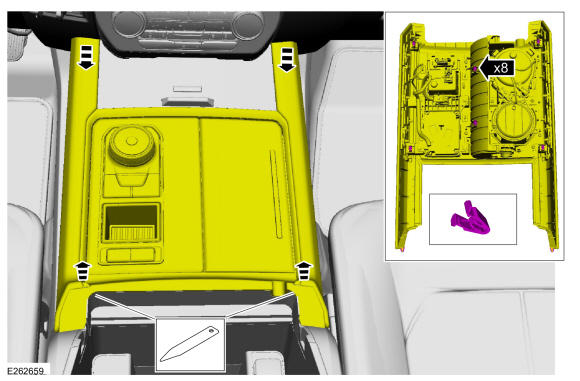

  2. Release the clips and position the floor console top trim panel up.
    GFD583626Courtesy of FORD MOTOR COMPANY

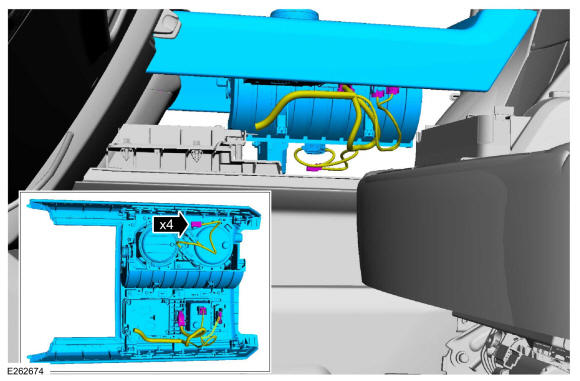

  3. NOTE: Keyed vehicle is shown in illustration, keyless vehicle is similar.

    Disconnect the electrical connectors and remove the floor console top trim plate.

    GFD583627Courtesy of FORD MOTOR COMPANY

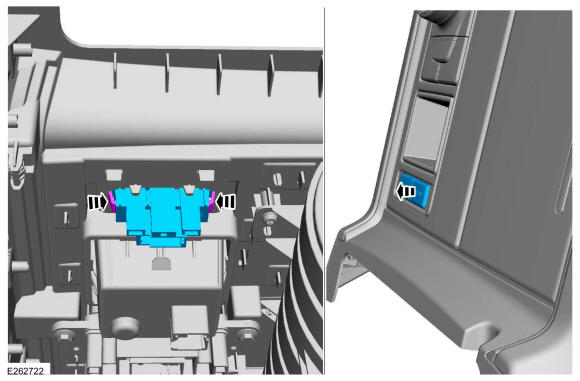

  4. Release the tabs and remove the active park assist switch.
GFD583628Courtesy of FORD MOTOR COMPANY
