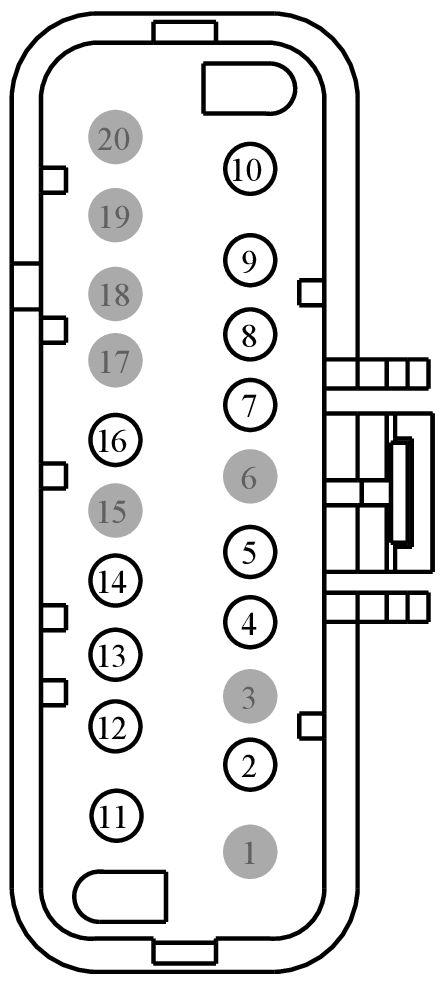

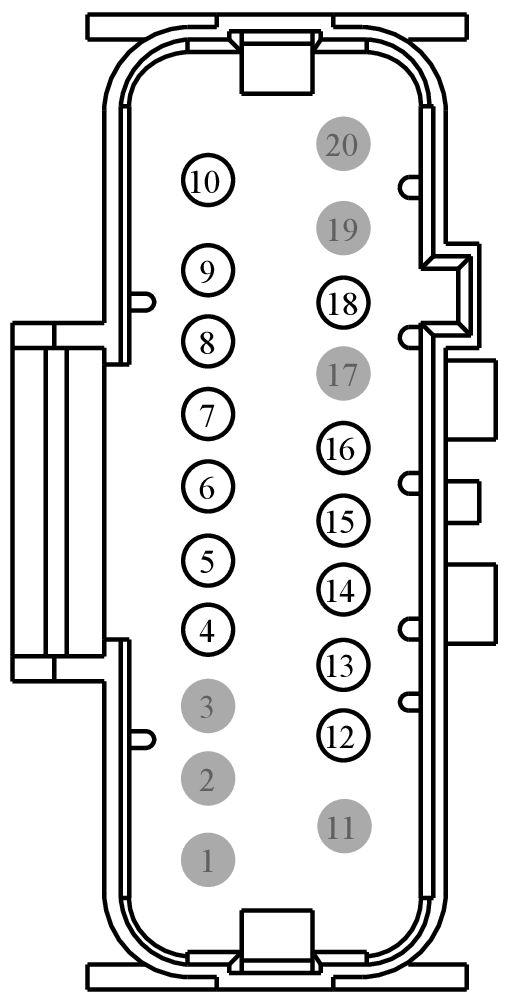

Connector End View C3053 - Inline
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3053 | INLINE | 14D23114A005 | Not Available |
MALE
Harness
14D231
FEMALE
Harness
14A005
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 97BG-14421-ABB | Not Available | |
| 97BG-14421-AAB | Not Available | |
| BU5T-14474-UA | DU2Z-14474-DA | 1.50 |
| 3M5T-14474-HAA | DU2Z-14474-EA | 2.80 |
| 3M5T-14474-HBA | DU2Z-14474-EA | 2.80 |
| 7C3T-14474-EA | DU2Z-14474-DA | 1.50 |
| 97BG-14421-BBA | EU2Z-14421-EA | 2.80 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | N/A | |
| 2 | * | * | N/A | |
| 3 | * | * | N/A | |
| 4 | CPP22 (GY-BN) | 18 | 97BG-14421-ABB | |
| 5 | CPP04 (GY) | 18 | 97BG-14421-ABB | |
| 6 | VPP08 (WH) | 20 | 97BG-14421-AAB | |
| 7 | CPP01 (WH-OG) | 18 | 97BG-14421-ABB | |
| 8 | CPP23 (VT-GY) | 18 | 97BG-14421-ABB | |
| 9 | CPP03 (GN-VT) | 18 | 97BG-14421-ABB | |
| 10 | CBX04 (WH-RD) | 16 | 97BG-14421-BBA | |
| 11 | * | * | N/A | |
| 12 | CPP02 (BN) | 18 | 97BG-14421-ABB | |
| 13 | CPP09 (VT-OG) | 20 | 97BG-14421-AAB | |
| 14 | CPP10 (BN-BU) | 20 | 97BG-14421-AAB | |
| 15 | VPP17 (VT-BN) | 20 | 97BG-14421-AAB | |
| 16 | RPS12 (YE-VT) | 20 | 97BG-14421-AAB | |
| 17 | * | * | N/A | |
| 18 | VPP16 (BU-BN) | 20 | 97BG-14421-AAB | |
| 19 | * | * | N/A |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | * | * | N/A | |
| 2 | VDB06 (GY-OG) | 20 | BU5T-14474-UA | |
| 3 | * | * | N/A | |
| 4 | CPP22 (GY-BN) | 20 | BU5T-14474-UA | |
| 5 | CPP04 (GY) | 20 | BU5T-14474-UA | |
| 6 | * | * | N/A | |
| 7 | CPP01 (WH-OG) | 20 | BU5T-14474-UA | |
| 8 | CPP23 (VT-GY) | 20 | BU5T-14474-UA | |
| 9 | CPP03 (GN-VT) | 20 | BU5T-14474-UA | |
| 10 | SBP03 (BU-RD) | 20 | 3M5T-14474-HAA | |
| 11 | GD233 (BK) | 16 | 3M5T-14474-HBA | |
| 12 | CPP02 (BN) | 20 | BU5T-14474-UA | |
| 13 | CPP09 (VT-OG) | 20 | BU5T-14474-UA | |
| 14 | CPP10 (BN-BU) | 20 | BU5T-14474-UA | |
| 15 | * | * | N/A | |
| 16 | CPP05 (WH-VT) | 20 | BU5T-14474-UA|7C3T-14474-EA | |
| 17 | * | * | N/A | |
| 18 | * | * | N/A | |
| 19 | * | * | N/A |
