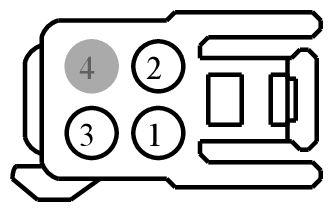

Connector End View C2159 - Adjustable Pedal Motor
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2159 | ADJUSTABLE PEDAL MOTOR | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-DA | DU2Z-14474-DA | 1.50 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number |
|---|---|---|---|---|---|
| 1 | CPP02 (BN) | 20 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL REARWARD | AU5T-14474-DA | |
| 1 | CPP02 (BN) | 22 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL REARWARD | AU5T-14474-DA | |
| 2 | CPP01 (WH-OG) | 20 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL FORWARD | AU5T-14474-DA | |
| 2 | CPP01 (WH-OG) | 22 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL FORWARD | AU5T-14474-DA | |
| 3 | CPP05 (WH-VT) | 20 | CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON | AU5T-14474-DA | |
| 3 | RPP06 (GN) | 22 | CTRL MOD. - SENSOR ADJUSTABLE PEDAL - | AU5T-14474-DA | |
| 4 | * | * | Not Used | N/A |
Available Pigtail Kits
Pigtail Kit Part Number WPT-977
Service Part Number:
3U2Z-14S411-LUB
Gauge:
14
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Element - Heated Seat
- Lamp - Ambient Lighting
- Lamp - Courtesy - Footwell
- Mirror - Sideview
- Motor - Adjustable Pedal
- Motor - Steering Column Adjust
- Solenoid - Brake Shift Park Interlock
- Speaker - Subwoofer
- Switch - Gear Shift Select/Neutral Safety
- Transceiver - Passive Anti-Theft (PATS)
