Brake Vacuum Sensor: Removal

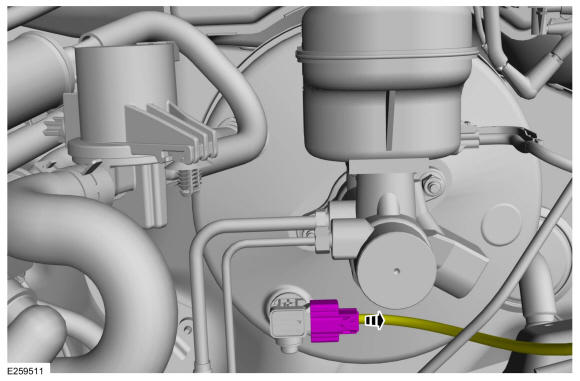

  1. Disconnect the vacuum sensor electrical connector.
    GFD581095Courtesy of FORD MOTOR COMPANY

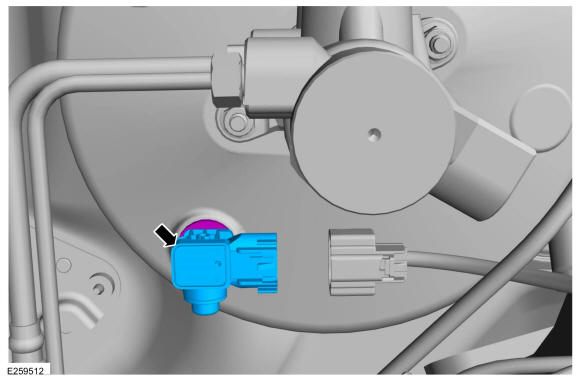

  2. Remove the vacuum sensor.
GFD581096Courtesy of FORD MOTOR COMPANY
