Brake Pedal Control Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

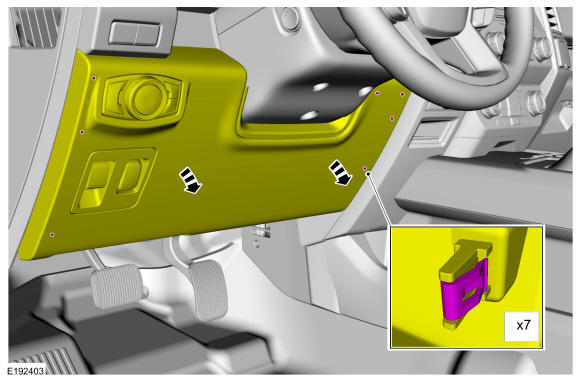

  1. Pull outward on the steering column opening cover detaching the 7 clips and allow the cover to hinge downward.
    GFD581067Courtesy of FORD MOTOR COMPANY

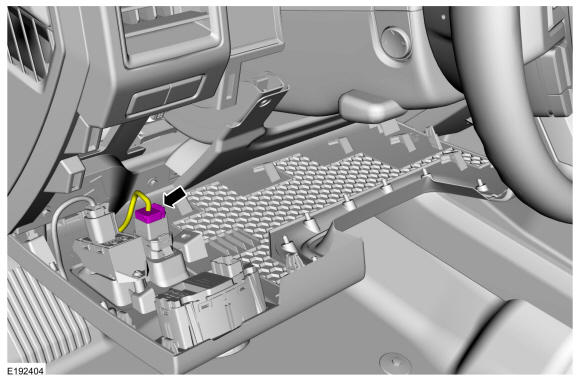

  2. Disconnect the adjustable pedal switch electrical connector.
    GFD581087Courtesy of FORD MOTOR COMPANY

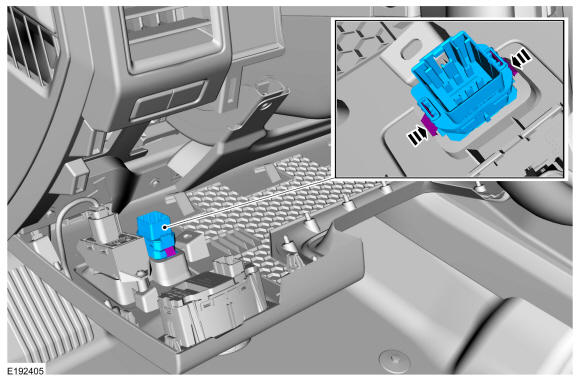

  3. Press inward on the 2 clips and remove the adjustable pedal switch.
GFD581088Courtesy of FORD MOTOR COMPANY
