High-Level IPC
High-Level IPC
NOTE:

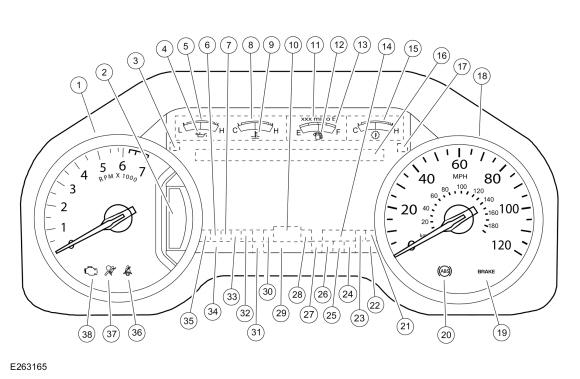

The illustration shows the basic display elements. The elements displayed and the layout changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Progressive range select and SelectShift® display |
| 3 | LH turn indicator |
| 4 | Low engine oil pressure warning RTT warning indicator |
| 5 | Virtual engine oil pressure gauge |
| 6 | Auto stop/start RTT indicator |
| 7 | Stability-traction control indicator (sliding car icon) |
| 8 | Virtual engine temperature gauge |
| 9 | Engine over-temperature RTT warning indicator |
| 10 | Cruise control and set speed display (non-ACC) Lane keeping aid and ACC display |
| 11 | DTE display |
| 12 | Low fuel RTT warning indicator |
| 13 | Virtual fuel gauge |
| 14 | Rotating RTT indicator display area Blind Spot Information System (BLIS®) off Charging system Door ajar warning Electronic Limited Slip Differential (eLSD) Engineering test mode Hill descent Hood ajar Liftgate/liftglass ajar Low washer fluid level Overspeed warning (Gulf Cooperative Countries [GCC] only) Powertrain malfunction (wrench) |
| 15 | Configurable virtual gauge Transmission temperature gauge Turbo boost gauge |
| 16 | Main menu tabbed navigation |
| 17 | RH turn indicator |
| 18 | Speedometer |
| 19 | Brake warning indicator (USA shown in illustration, non-USA use a different indicator) |
| 20 | ABS indicator |
| 21 | Front fog lamp RTT indicator |
| 22 | Compass |
| 23 | Electronic Limited Slip Differential (eLSD) RTT indicator |
| 24 | Electronic park brake RTT indicator |
| 25 | Lights on RTT indicator |
| 26 | Auto high beam RTT indicator |
| 27 | Selectable drive mode RTT indicator Tow haul Sport mode Snow/wet Grass/gravel/snow Mud/rut Sand Eco Select |
| 28 | ACC set speed indication |
| 29 | PRNDL display area |
| 30 | ACC active RTT indicator |
| 31 | TPMSRTT warning indicator |
| 32 | High beam indicator |
| 33 | Traction control disabled RTT indicator (sliding car OFF icon) |
