Base IPC
Base IPC
NOTE:

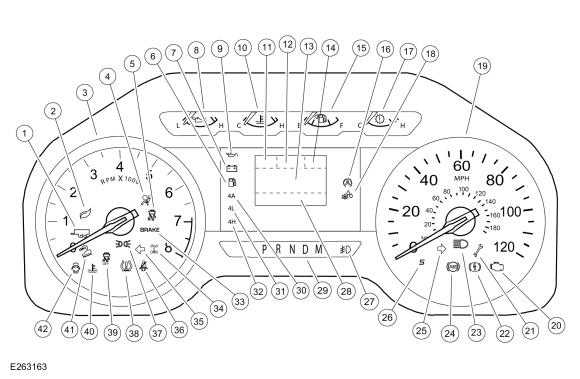

The illustration shows the basic display elements. The elements displayed and the layout of the LCD display changes based on driver selections. For additional information about specific feature displays, refer to the Owner's Literature.
| Item | Description |
|---|---|
| 1 | Tow haul indicator |
| 2 | Eco Select indicator |
| 3 | Tachometer |
| 4 | Airbag warning indicator |
| 5 | Stability-traction control indicator (sliding car icon) |
| 6 | Low fuel indicator |
| 7 | Charging system warning indicator |
| 8 | Oil pressure gauge |
| 9 | Low oil pressure warning indicator |
| 10 | Engine temperature gauge |
| 11 | Manual shift mode, progressive range select and SelectShift® display |
| 12 | Cruise control active indicator |
| 13 | Message center display area |
| 14 | Compass |
| 15 | Fuel gauge |
| 16 | Auto stop/start indicator |
| 17 | Transmission temperature gauge |
| 18 | Snow/wet mode indicator |
| 19 | Speedometer |
| 20 | MIL |
| 21 | Powertrain malfunction (wrench) indicator |
| 22 | Electronic park brake indicator (North America shown in illustration, non-North America uses a different indicator) |
| 23 | High beam indicator |
| 24 | ABS indicator |
| 25 | RH turn indicator |
| 26 | Sport mode indicator |
| 27 | Front fog lamp indicator |
| 28 | Odometer display |
| 29 | PRNDL display area |
| 30 | 4WD auto indicator |
| 31 | 4WD low indicator |
| 32 | 4WD high indicator |
| 33 | Brake warning indicator (USA shown in illustration, non-USA use a different indicator) |
| 34 | Electronic Limited Slip Differential (eLSD) indicator |
| 35 | LH turn indicator |
| 36 | Seatbelt warning indicator |
| 37 | Lights on indicator |
| 38 | TPMS warning indicator |
| 39 | Traction control disabled indicator (sliding car OFF icon) |
| 40 | Engine over-temperature warning indicator |
| 41 | Hill descent indicator |
| 42 | Door/liftgate ajar warning indicator |
