Parking Aid - Component Location
WARNING: This page is about a different car, the 2019 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

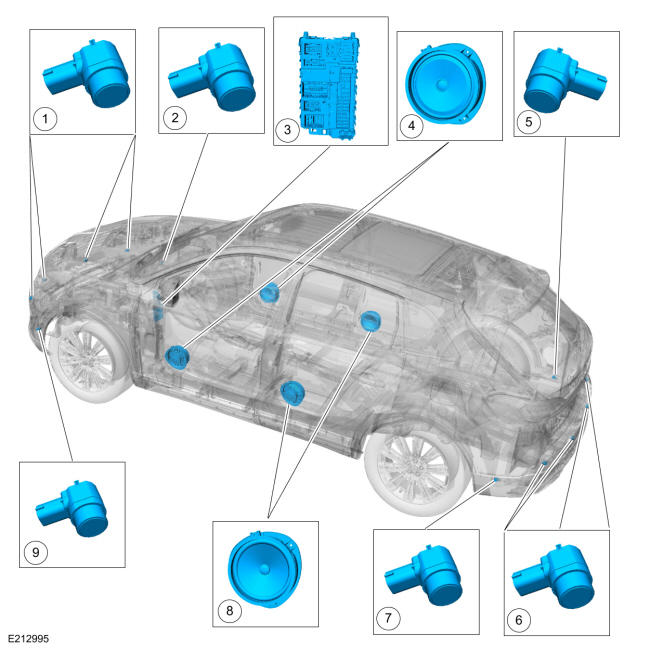

Component Location. Parking Aid - Audible
| Item | Description |
|---|---|
| 1 | Front parking aid sensors |
| 2 | RHF active park assist sensor |
| 3 | PAM (integral to the BCM) |
| 4 | Front speakers (part of the audio system) |
| 5 | RHR active park assist sensor |
| 6 | Rear parking aid sensors |
| 7 | LHR active park assist sensor |
| 8 | Rear speakers (part of the audio system) |
| 9 | LHF active park assist sensor |
