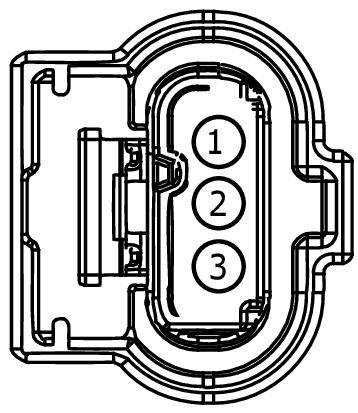

Connector End View C1608 - Front Active Park Assist RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1608	FRONT ACTIVE PARK ASSIST RH		15K867	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
EU5T-14474-DAB	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LMP06 (VT-GY)	20	CTRL MOD. - PARKING AID # SENSORS FRONT +		EU5T-14474-DAB
2	VMP21 (WH-BN)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE		EU5T-14474-DAB
3	RMP06 (YE-OG)	20	CTRL MOD. - PARKING AID # SENSORS FRONT -		EU5T-14474-DAB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1308

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AVA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
• Sensor - Fuel Low Pressure
