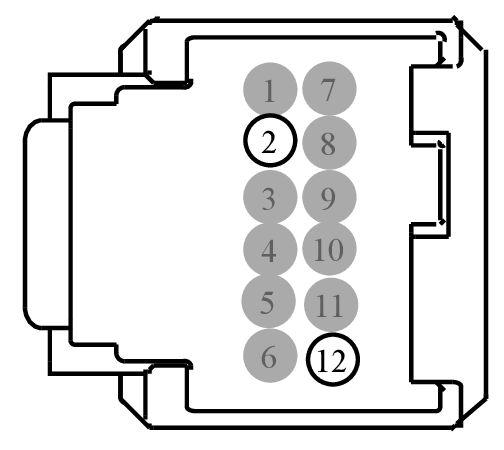

Connector End View C4226B - Parking Aid Module (PAM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4226B	PARKING AID MODULE (PAM)		14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used		N/A
2	LMP06 (VT-GY)	22	CTRL MOD. - PARKING AID # SENSORS FRONT +		9U5T-14474-DB
3	*	*	Not Used		N/A
4	*	*	Not Used		N/A
5	*	*	Not Used		N/A
6	*	*	Not Used		N/A
7	*	*	Not Used		N/A
8	*	*	Not Used		N/A
9	*	*	Not Used		N/A
10	*	*	Not Used		N/A
11	*	*	Not Used		N/A
12	RMP06 (YE-OG)	22	CTRL MOD. - PARKING AID # SENSORS FRONT -		9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1401

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-SA

Gauge:

20

Pin material:

Tin

Cavities:

12

Vehicle Uses:

• Module - Climate Control Seat
• Module - Heated Seat (Rear)
• Module - Image Processing
• Module - Media Gateway
• Module - Power Steering
• Monitor - Video/DVD
